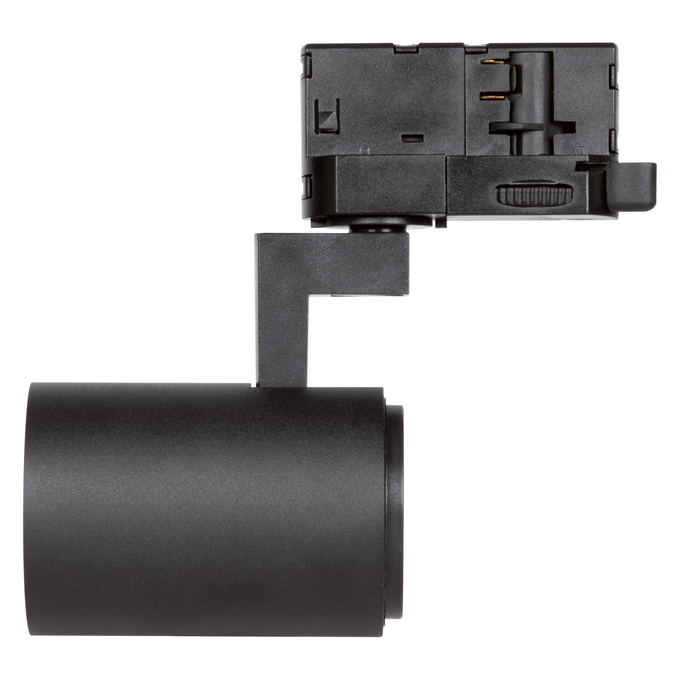

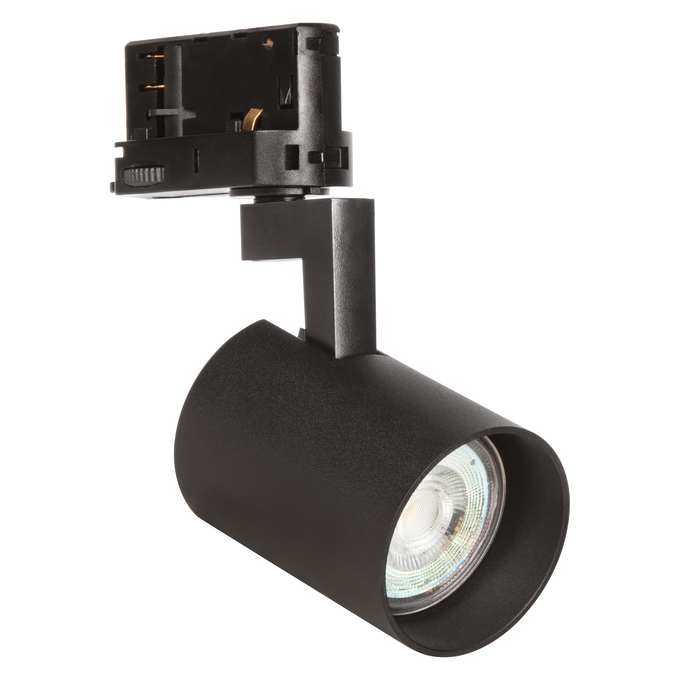

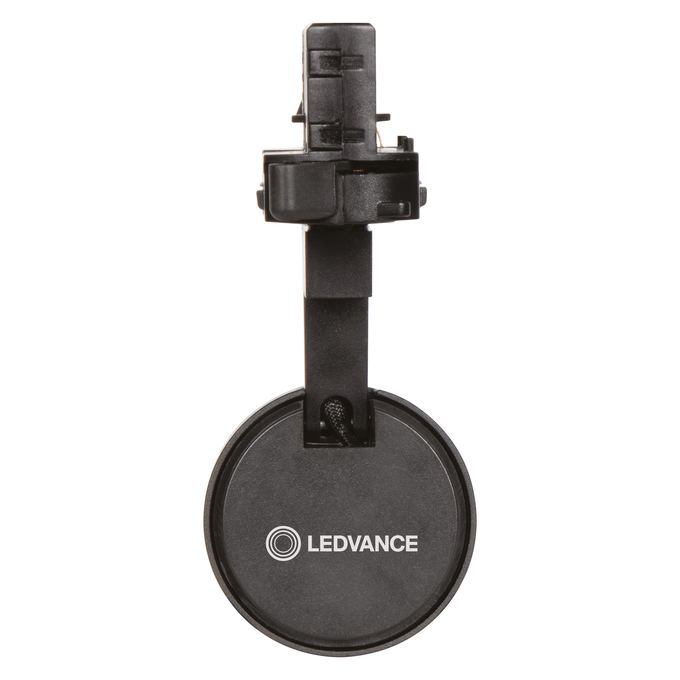

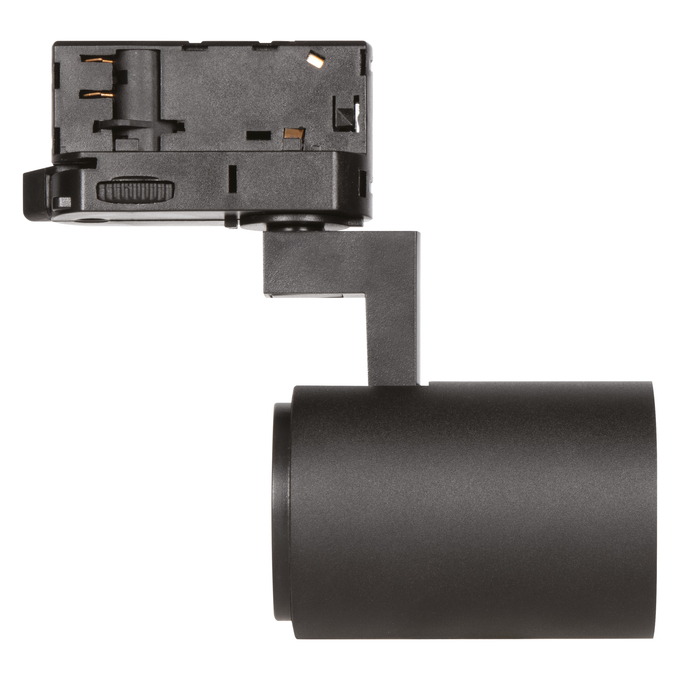

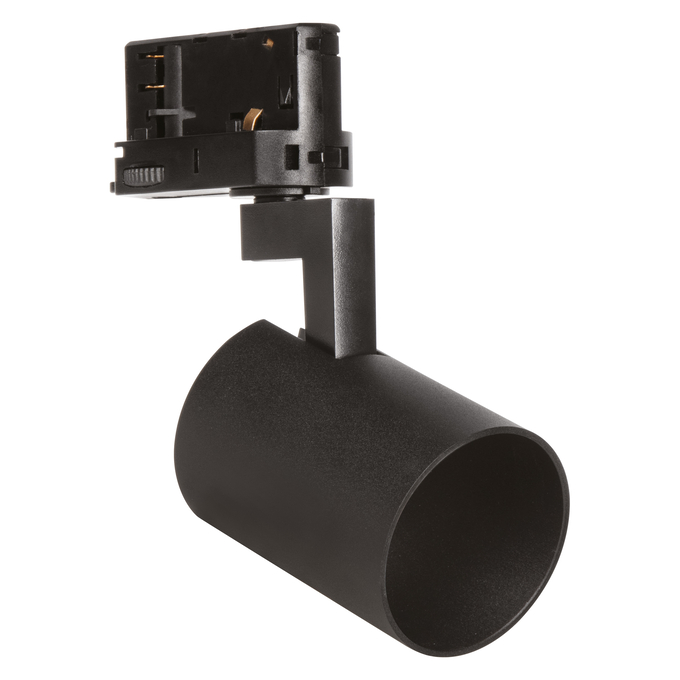

TR SP HOUSING E GU10 BK
4099854590009
Product benefits
- Socket compatible for lamp power up to 10W
Areas of application
- Shops, changing rooms, shop windows
- Hotels, restaurants
Product features
- Base: GU10
- Rotation angle: 350°, tilt angle: 90°
- Durable die-cast aluminum housing
- Available in matt white (like RAL9003), matt black (like RAL9005)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Body material
Aluminum
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
58.00 mm
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854590009
Height
145.00 mm
Holder designation
GU10
Housing color
Black
Length
58.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting track
Mounting type
Surface
Nominal voltage
220…240 V
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
151.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9005
Replaceable light source
No
Temperature range at storage
-20…+80 °C
Type of connection
Adapter, 3-phase
Width
58.00 mm
With light source
No
