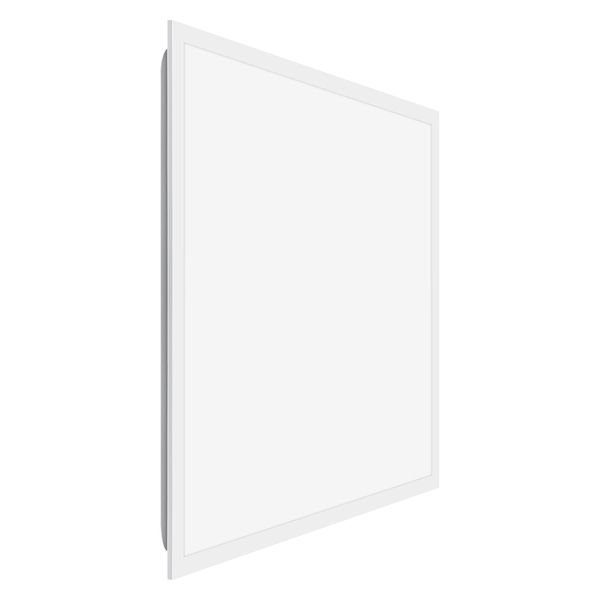

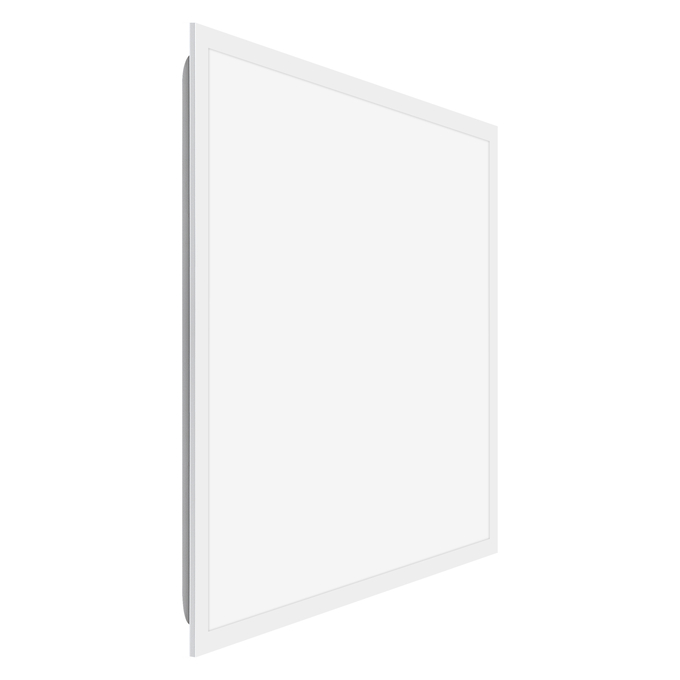

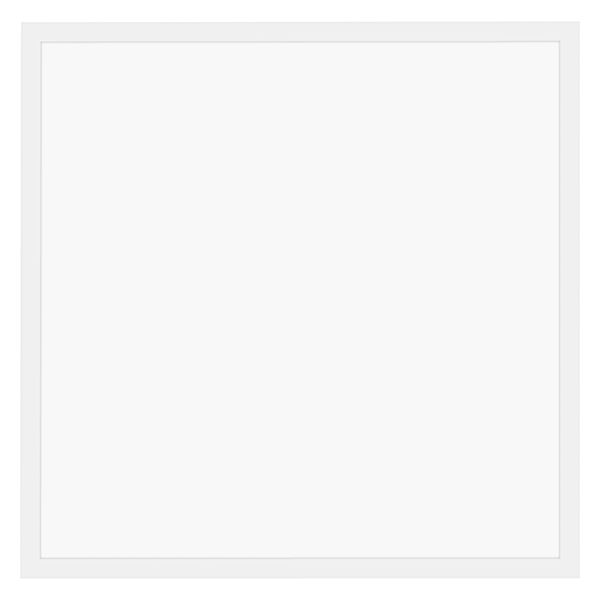

PL COMP 600 V 33W 840
4099854017902
Отсутствие пульсации благодаря качественному драйверу осрам.
Экономия энергии благодаря эффективности светового потока 110 лм/Вт
Внешний драйвер для расширенной гибкости и легкой установки
Доступна версия светильника с возможностью диммирования по системе DALI
Гарантия 5 лет
Мощность светильника: 33 Вт
Напряжение: 220-240 В
Частота сети: 50-60 Гц
Номинальный ток 150 000 мА
Пусковой ток 12,3 А
Коэффициент мощности: λ > 0,90
Класс защиты II
Световой поток: 3630 лм
Световая эффективность: 110 лм/Вт
Цветовая температура: 4000 К
Индекс цветопередачи: Ra 80
Угол светового пучка: 120°
Product benefits
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 110 lm/W
- External driver with an optional 3-pole through-wiring feature
- Versions with DALI ECG available
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled

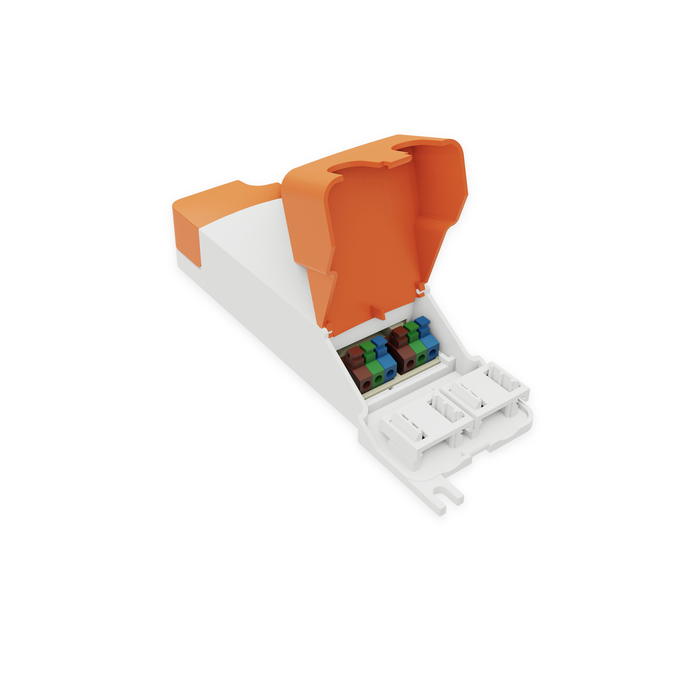

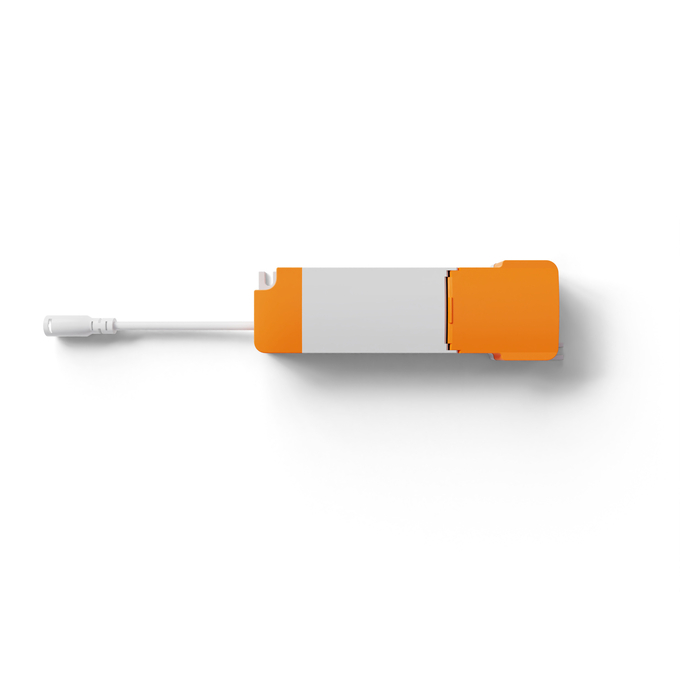

- External control gear included
- Suitable for use with separate Emergency Conversion Box
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
-10…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polystyrene (PS)
Dimmable
No
ECG - Height
27 mm
ECG - Length
116.7 mm
ECG - Output ripple current
< 7 %
ECG - Width
49.9 mm
EPD
LEDV-00008-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854017902
Height
32.00 mm
Housing color
White
Inrush current
12.3 A
Inrush current time Th50
52 µs
Length
595.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Cool White
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W
Luminous flux
3630 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
61
Max. number of luminaires per miniature circuit breaker C10
48
Max. number of luminaires per miniature circuit breaker C16
78
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting length
575 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
575 mm
Nominal current
150.000 mA
Nominal voltage
220…240 V
Nominal wattage
33.00 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1543.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Recommended control gear
LEDV DR DALI-P-44/220-240/1050
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Total harmonic distortion
< 10 %
Type of connection
Screwless terminal, 2-Pole (L, N)
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of protection
IP40/IP20
Width
595.00 mm
With light source
Yes
