STREETLIGHT FLEX SMALL 36W 740 RV25ST ZHAGA TOP&BOTTOM WA
4099854792380
Product benefits
- Durable design and highest quality component selection for long lasting performance
- Quick and easy wiring, due to tool-free housing opening and push button terminal
- High light uniformity
- 5 light colors available, perfectly suited to illuminate highly diverse surroundings
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Automatic mains disconnection when opening the housing
- 5 years guarantee
Areas of application
- Street lighting, city lighting
- Outdoor applications
- City roads, industrial roads, parking lots
- M-, C- and P-class roads acc. to EN 13201
- Pedestrian zones
- Public areas
- Industry
Product features
- Color temperature: 2,200 K, 2,700 K, 3,000 K, 4,000 K, 5,700 K
- Light distributions optimized for streets of similar width to the pole height
- Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
- Spigot for 48-60 mm poles included
- Adjustable spigot for both side-entry and post-top installation

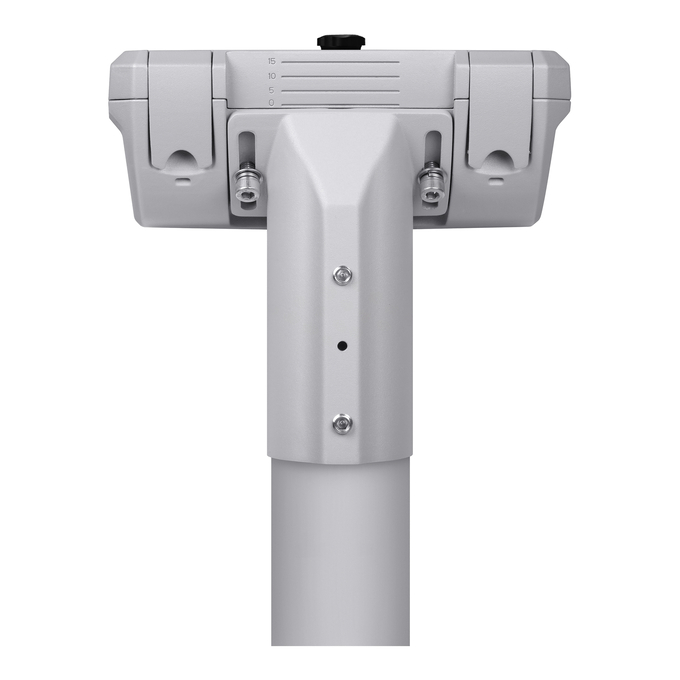

- +/- 15° tilt angle adjustment without opening the housing
- High luminous efficacy: up to 180 lm/W
- Operating temperature: -40...50 °C
- High surge protection: up to 10 kV (L/N-GND)
- Protection class: I and II
- Certificate: ENEC+, ENEC, ZD4i RoHS, SASO
- Type of protection: IP66
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Added function
VIVARES
Adjustable
No
Ambient temperature range
-40…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
165 x 55 °
Body material
Aluminum
Color rendering index Ra
> 70
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Corrosion resistance class acc. to EN 12944
C4
Cover material
Glass
Dimmable
Yes
ECG - Output ripple current
≤ 10 %
EPD
LEDV-00059-V02.01-EN
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854792380
Height
112.00 mm
Housing color
White aluminum
Inrush current
26 A
Inrush current time Th50
180 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
560.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
100000 h
Light color (designation)
Cool White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
152 lm/W
Luminous flux
5470 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
16
Max. number of luminaires per miniature circuit breaker C10
13
Max. number of luminaires per miniature circuit breaker C16
21
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Pole
Mounting type
Side entry|post top
Nominal current
165 mA
Nominal voltage
220…240 V
Nominal wattage
36.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White aluminum
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
4900.00 g
Protection class
II
Protection class IK (shock resistance)
IK09
RAL Color (most similar)
RAL 9006
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
< 5 sdcm
Surge capability (L-N)
6 kV
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 10 %
Type of connection
Screwless terminal
Type of connection for sensor/communication module
Dual Zhaga socket (on top and bottom)
Type of protection
IP66
Width
250.00 mm
With light source
Yes
