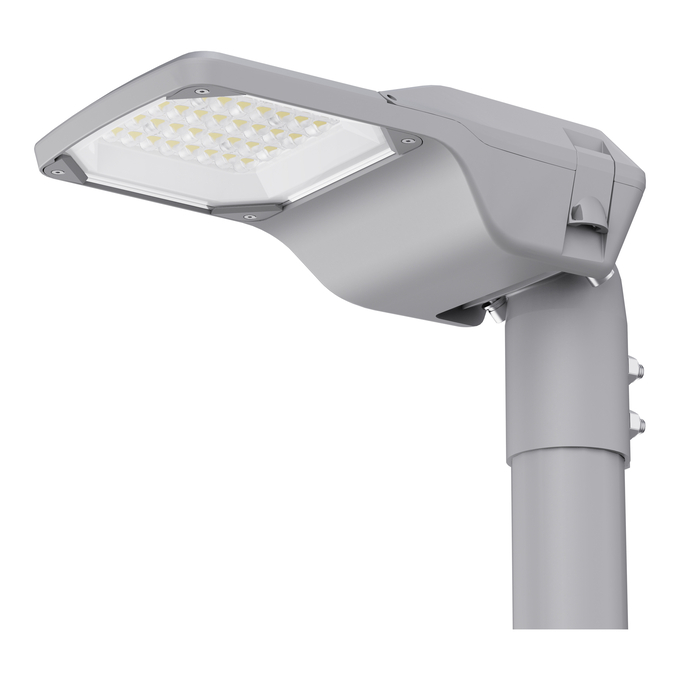

STREETLIGHT COMPACT SMALL 025W 740 RU25ST 1DIM CLASS 2 WHITE ALU
4099854844409
Product benefits
- 3 light colors available, perfectly suited to illuminate highly diverse surroundings
- Durable design and highest quality component selection for long lasting performance
- Automatic mains disconnection when opening the housing
- Quick and easy wiring, due to tool-free housing opening and push button terminal
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- 5 years guarantee
Areas of application
- Street lighting, city lighting
- Outdoor applications
- City roads, industrial roads, parking lots
- M-, C- and P-class roads acc. to EN 13201
- Public areas
Product features
- Light distributions optimized for streets of similar width to the pole height
- Long Lifetime (L80/B10): up to 100,000 h
- High luminous efficacy: up to 160 lm/W

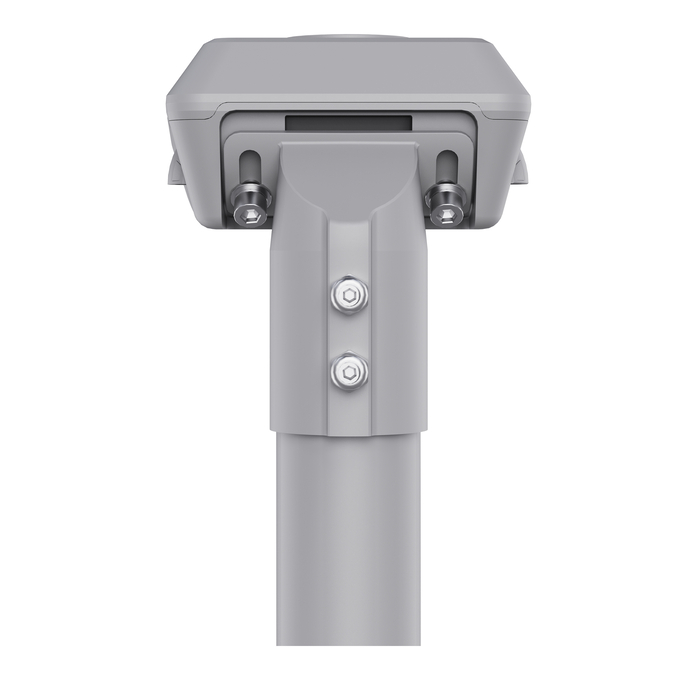

- Adjustable spigot for both side-entry and post-top installation included
- +/- 15° tilt angle adjustment without opening the housing
- 10 KV surge protection, with replaceable SPD
- Operating temperature: -40...50 °C
- Certificate: ENEC
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-40…+50 °C
Application environment
Outdoor
Beam angle
90° x 155 °
Body material
Aluminum
Color rendering index Ra
70
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Glass
Dimmable
No
ECG - Output ripple current
10 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854844409
Height
194.00 mm
Housing color
Light grey
Inrush current
35.2 A
Inrush current time Th50
200 µs
Length
430.00 mm
Lifespan L80/B10 at 25 °C
100000 h 1)
Light color (designation)
Cool White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Perfluorobutane Sulfonic Acid (PFBS) and its Salts
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
155 lm/W
Luminous flux
3875 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
10
Max. number of luminaires per miniature circuit breaker C10
9
Max. number of luminaires per miniature circuit breaker C16
14
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Pole
Mounting type
Side entry|post top
Nominal current
< 130 mA
Nominal voltage
220…240 V
Nominal wattage
25.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
663 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.95
Product color
White aluminum
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
2785.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL9006
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
10 kV
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal
Type of protection
IP66
Width
135.00 mm
With light source
Yes
