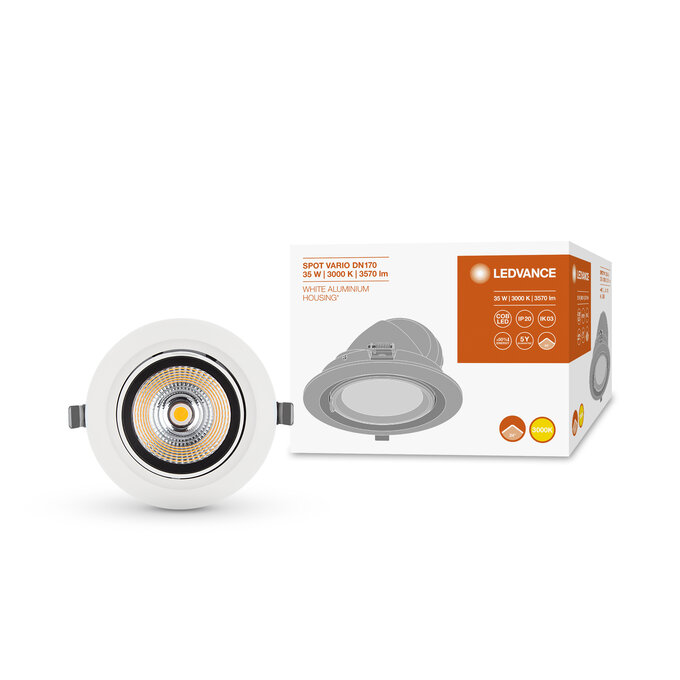

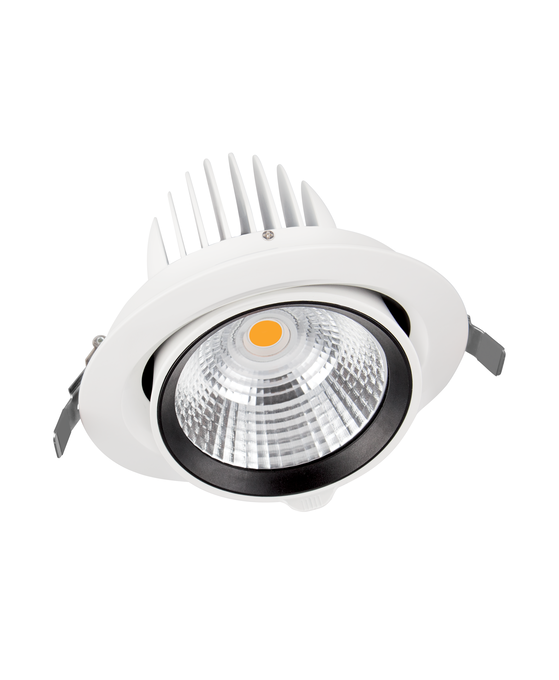

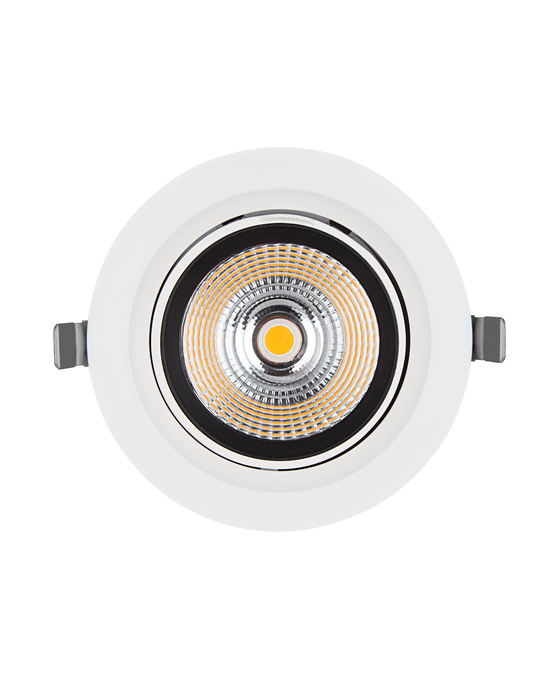

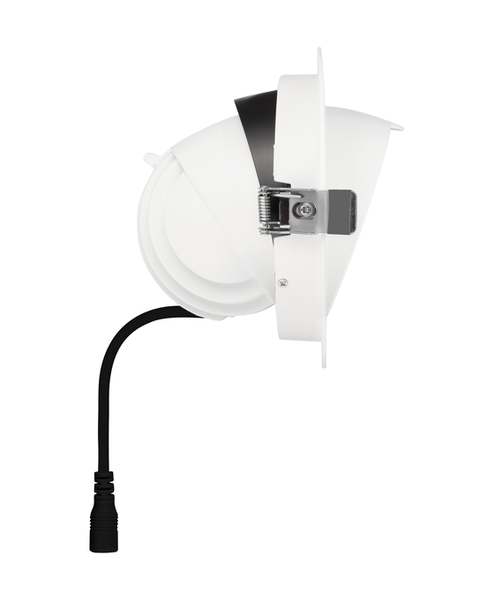

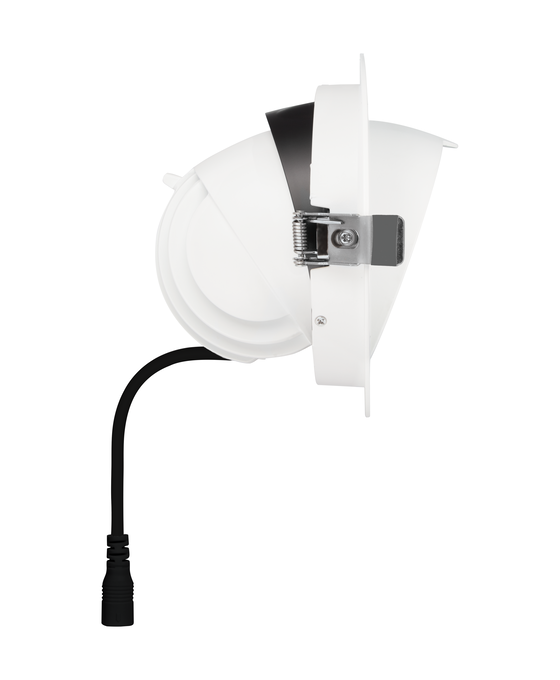

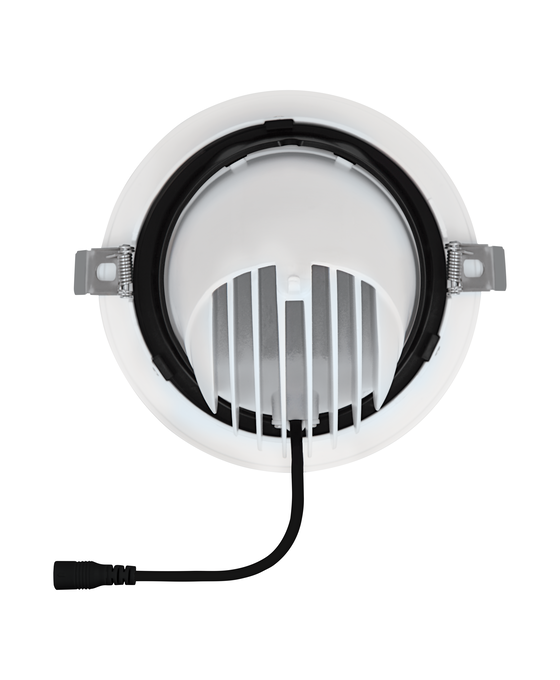

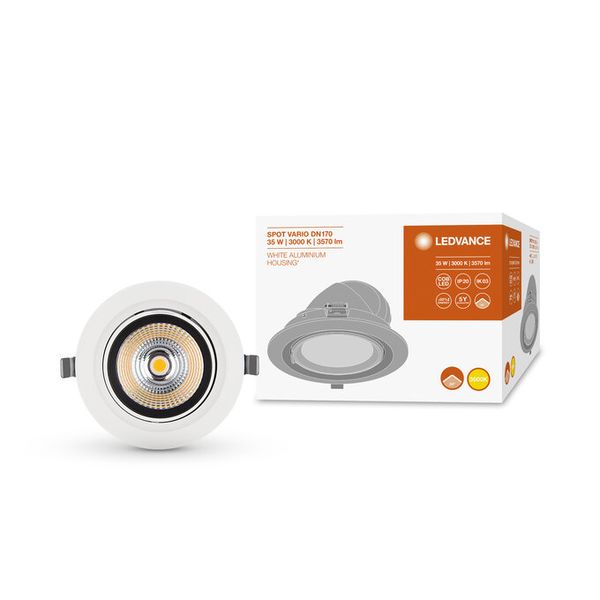

SPOT VARIO DN 170 35 W 3000 K 24DEG WT
4058075104020
Product benefits
- Low flicker light thanks to special electronic control gear
- High luminous efficacy
- Die-cast aluminum housing for improved heat dissipation
- Easy replacement of external driver thanks to plug with bayonet lock
- Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
- Shallow mounting depth
- Various options to highlight target areas
- 5 years guarantee
Areas of application
- Accent- and general lighting for all kind of salesrooms
- Retail
- Supermarkets
- Shops, boutiques
- Hotel rooms
- Stairways
- Corridors
- Lobbies
Product features
- Large faceted reflector for high light output
- Beam angle: 24°
- Rotation angle: 0°...350°, tilt angle: 0°...35°
- Diameter of required ceiling cut out: 165...170 mm
Equipment / Accessories
- Driver included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
24 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Diameter
180.00 mm
Dimmable
No
ECG - Height
31 mm
ECG - Length
153 mm
ECG - Width
44 mm
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075104020
Height
129.00 mm
Housing color
White
Inrush current
40 A
Inrush current time Th50
100 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
45000 h 1)
Lifespan L90/B10 at 25 °C
30000 h
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
95 lm/W
Luminous flux
3350 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
15
Max. number of luminaires per miniature circuit breaker C10
9
Max. number of luminaires per miniature circuit breaker C16
15
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
150 mm
Mounting diameter
170 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
850 mA
Nominal voltage
220…240 V
Nominal wattage
35.00 W
Number of switching cycles
50000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1126.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
-
Total harmonic distortion
20 %
Type of connection
Screw terminal, 2-Pole (L,N)
Type of protection
IP20
With light source
Yes
