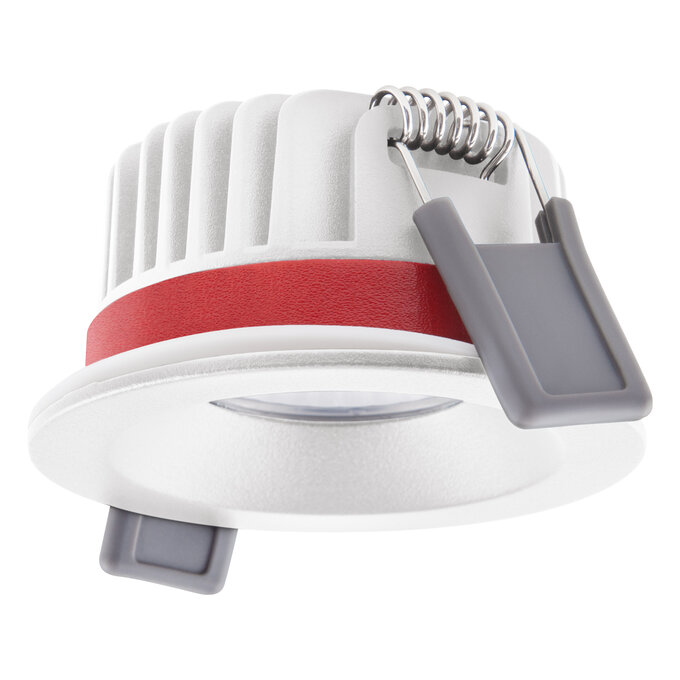

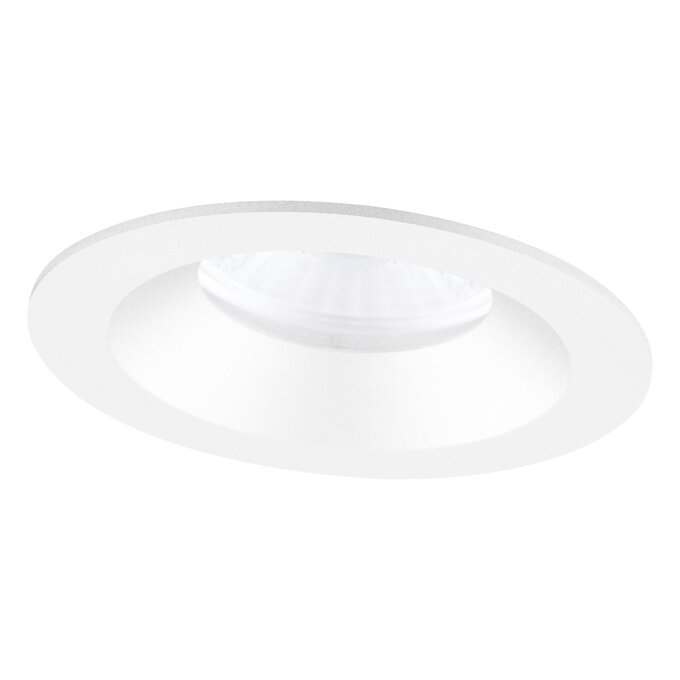

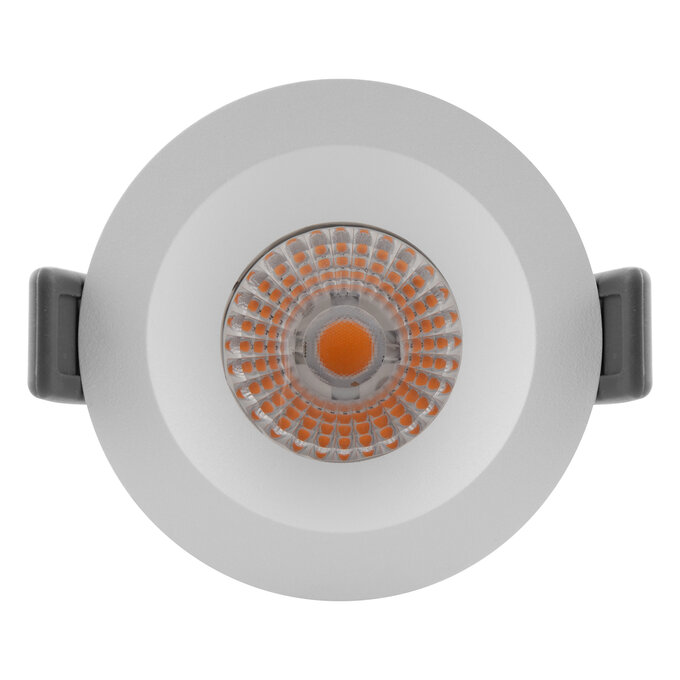

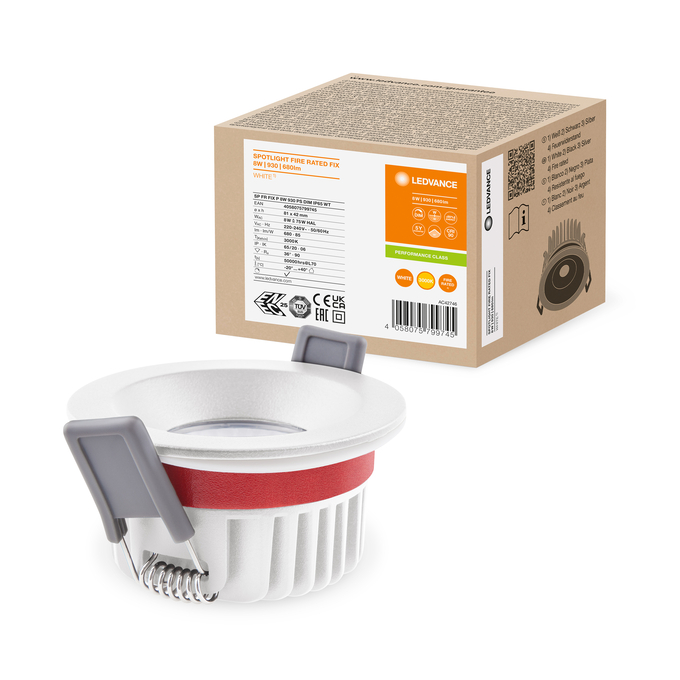

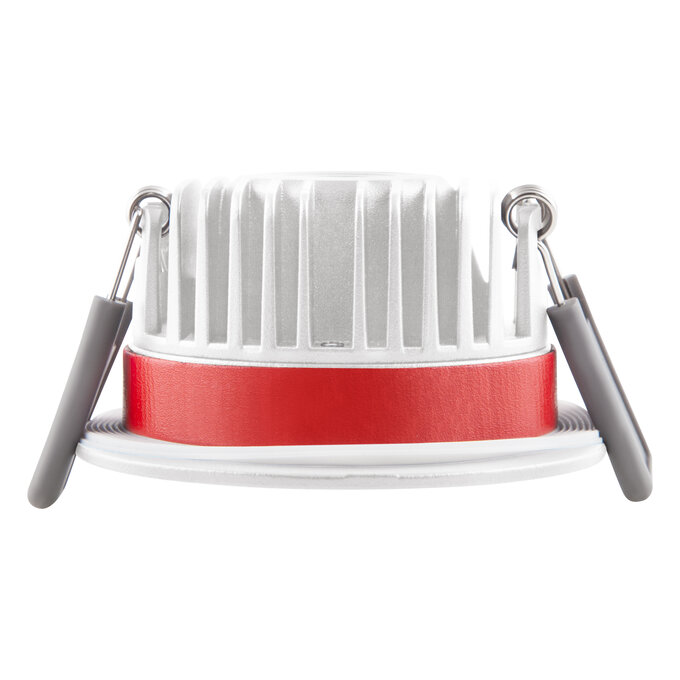

SP FP FIX P 8W 930 PS DIM IP65 WT
4058075799745
Product benefits
- Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
- Airtight construction for reduced air-leakage and limited energy loss
- Multi Lumen: Brightness adjustment via dip switches on the driver
- Easy replacement of external driver thanks to plug with bayonet lock
- Easy installation and electrical connection thanks to tool-free electrical connectors
- SCALE Design – great appearance, valuable materials and small size fits into every surrounding
- 5 years guarantee
Areas of application
- Direct replacement for recessed spotlights with halogen lamps
- Fire resistent ceilings
- Hotel rooms and corridors
- Bars, restaurants
- Galleries, museums
Product features
- Color rendering index Ra: 90
- Type of protection: IP65 (room side)
- Beam angle: 36°
- Die-cast aluminum housing

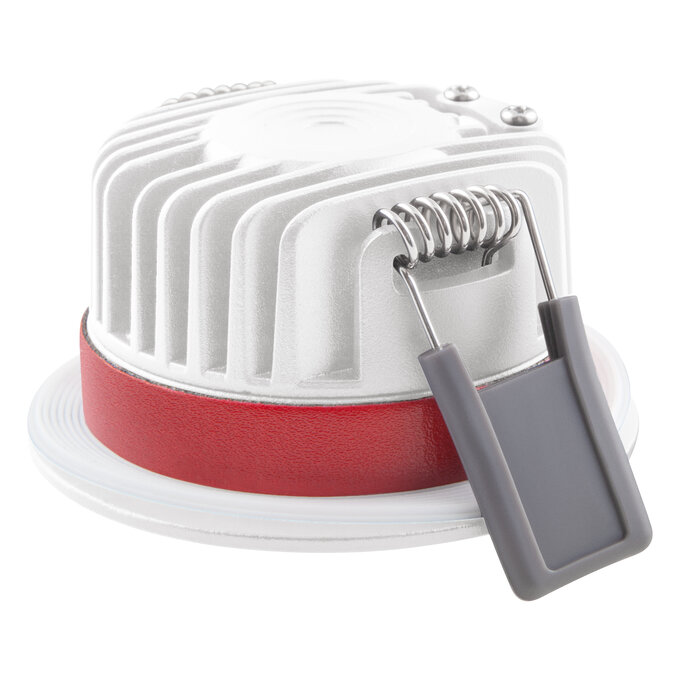

- Thermal expansion ribbon already preinstalled

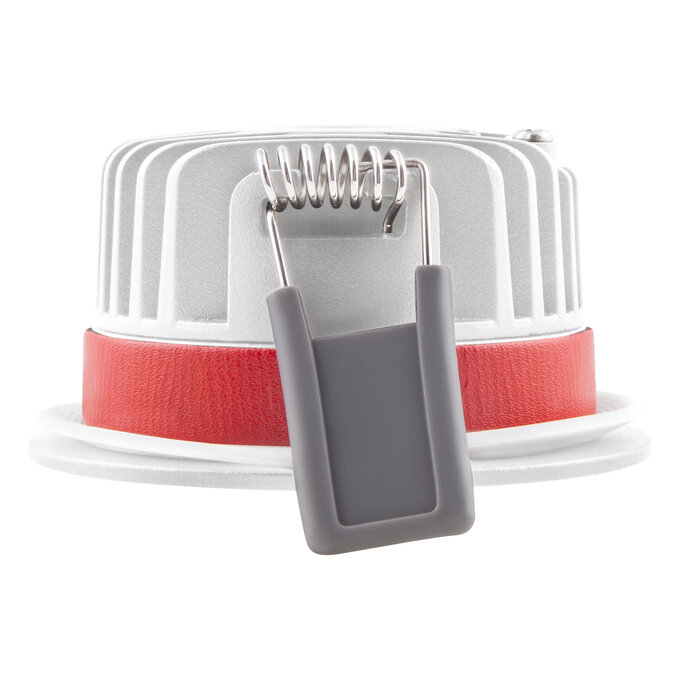

- Silicon-pad protected springs
- Dimmable (with many common dimmers, see also )
- Through-wiring possible
Equipment / Accessories

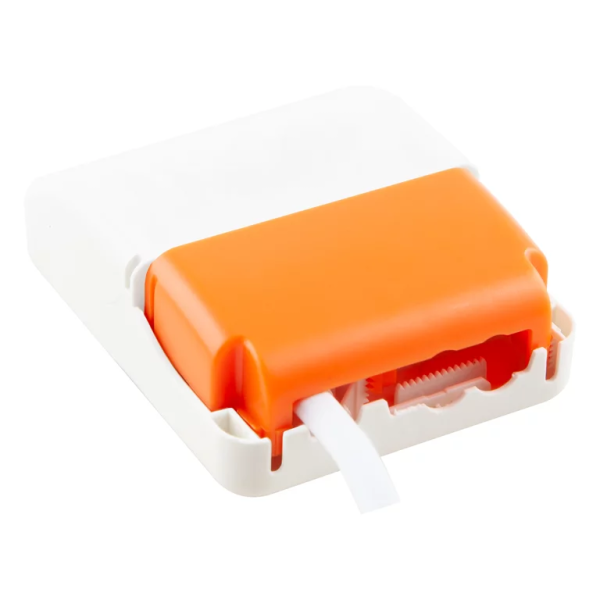

- External control gear included with dip-switches to select power during installation
- Selected DALI 2.0 driver available as accessory
Legal advice
- Installation hints in the current user instruction (www.ledvance.com) must be observed
Safety advice
- Coordination with your responsible fire safety inspector is required in advance
- Fire rating tested for 30 min in fire-resistant ceiling RIGIPS SD12RF F30 according EN-1364-2
- Fire rating tested for 60 min in I-Joist ceiling system according BS 476-21
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
36 °
Body material
Aluminum
Color rendering index Ra
90
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Diameter
81.00 mm
Dimmable
Yes
ECG - Height
22,0 mm
ECG - Length
68.00 mm
ECG - Output ripple current
< 10 %
ECG - Width
55,0 mm
EPD
LEDV-00013-V01.01-EN
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075799745
Height
42.00 mm
Housing color
White
Inrush current
2 A
Inrush current time Th50
60 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
41000 h 1)
Lifespan L90/B10 at 25 °C
18000 h
Light color (designation)
Warm White
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
85 lm/W
Luminous flux
680 lm / 510 lm / 340 lm
Luminous intensity
1300 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
336
Max. number of luminaires per miniature circuit breaker C10
210
Max. number of luminaires per miniature circuit breaker C16
336
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting diameter
68 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
37mA / 28mA / 20 mA
Nominal voltage
220…240 V
Nominal wattage
8 W / 6 W / 4 W
Number of switching cycles
30000
Operating mode
Electronic control gear (ECG)
Output current
180 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
250.00 g
Protection class
II
Protection class IK (shock resistance)
IK05
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Reference control setting of contained light source (Kelvin)
3000 K
Replaceable light source
No
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
1 kV
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
620 lm
Type of connection
Push terminal
Type of dimming
PHASE CUT
Type of protection
IP65~IP20
UGR
< 28
With light source
Yes
