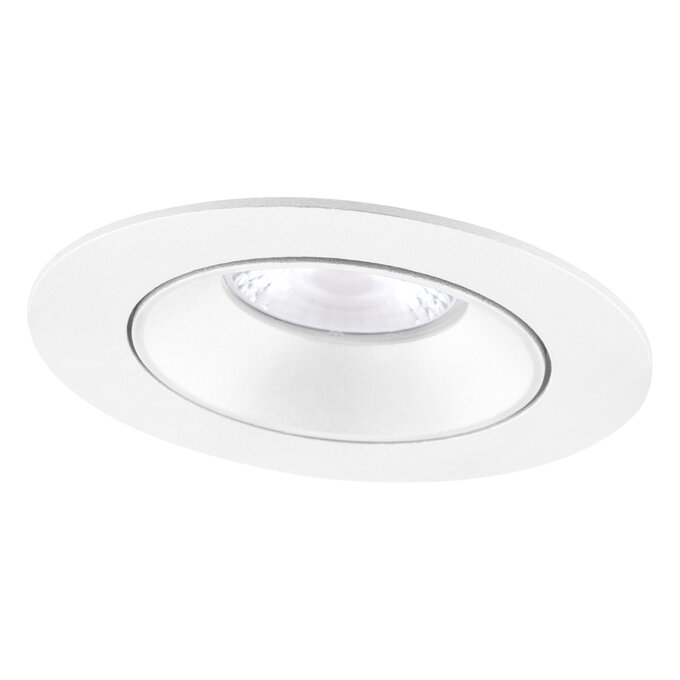

SP AIR ADJ P 4W 930 DIM IP23 WT
4099854000041
Product benefits
- Airtight construction for reduced air-leakage and limited energy loss
- Coverable by many types of thermal insulation material
- Low profile enables installation into shallow ceiling voids
- Easy replacement of external driver thanks to plug with bayonet lock
- Easy installation and electrical connection thanks to tool-free electrical connectors
- SCALE Design – great appearance, valuable materials and small size fits into every surrounding
- 5 years guarantee
Areas of application
- Direct replacement for recessed spotlights with halogen lamps
- Ceilings in low energy houses
- General illumination
- Hotel rooms and corridors
- Bars, restaurants
- Accent lighting
- Residential interiors
Product features
- Adjustable swivel angle: ±25°
- Color rendering index Ra: 90
- Type of protection: IP23 (room side)
- Beam angle: 36°
- Die-cast aluminum housing

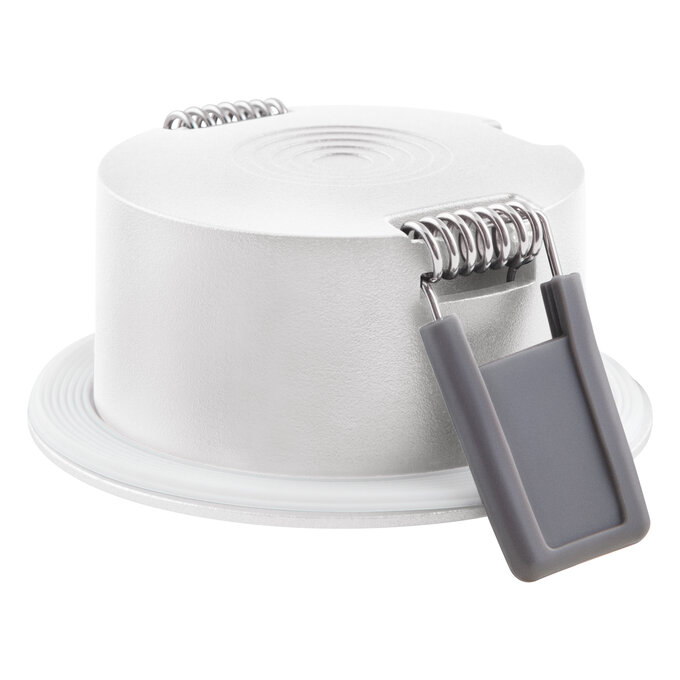

- Silicon-pad protected springs
- Dimmable (with many common dimmers, see also )
- Through-wiring possible
Equipment / Accessories

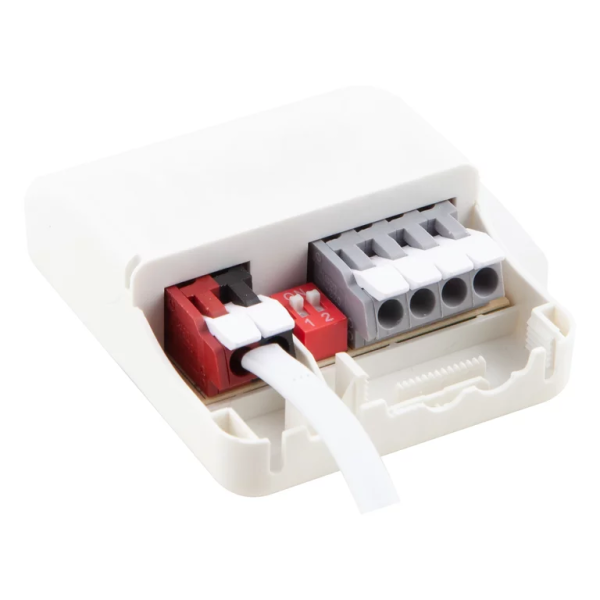

- External control gear included
Legal advice
- Installation hints in the current user instruction (www.ledvance.com) must be observed
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
36 °
Body material
Aluminum
Color rendering index Ra
90
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Diameter
81.00 mm
Dimmable
Yes
ECG - Height
22,0 mm
ECG - Length
68.00 mm
ECG - Output ripple current
< 10 %
ECG - Width
55,0 mm
EPD
LEDV-00016-V01.01-EN
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854000041
Height
34.00 mm
Housing color
White
Inrush current
2 A
Inrush current time Th50
60 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
41000 h 1)
Lifespan L90/B10 at 25 °C
18000 h
Light color (designation)
Warm White
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
85 lm/W
Luminous flux
340 lm
Luminous intensity
585 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
480
Max. number of luminaires per miniature circuit breaker C10
300
Max. number of luminaires per miniature circuit breaker C16
480
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
35,0 mm
Mounting diameter
68 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
20.000 mA
Nominal voltage
220…240 V
Nominal wattage
4.00 W
Number of switching cycles
30000
Operating mode
Electronic control gear (ECG)
Output current
85 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.85
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
190.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Reference control setting of contained light source (Kelvin)
3000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
1 kV
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 40 %
Total luminous flux of contained light sources
290 lm
Type of connection
Push terminal
Type of dimming
PHASE CUT
Type of protection
IP23~IP20
UGR
< 28
With light source
Yes
