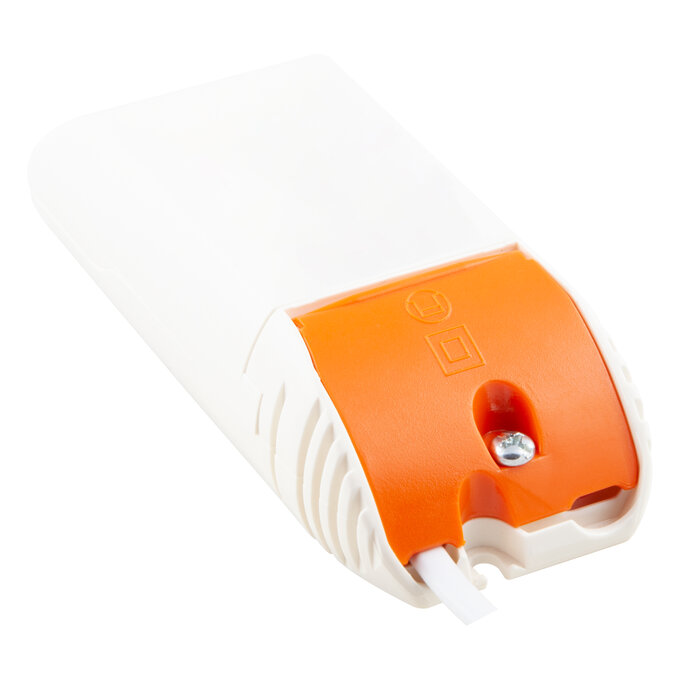

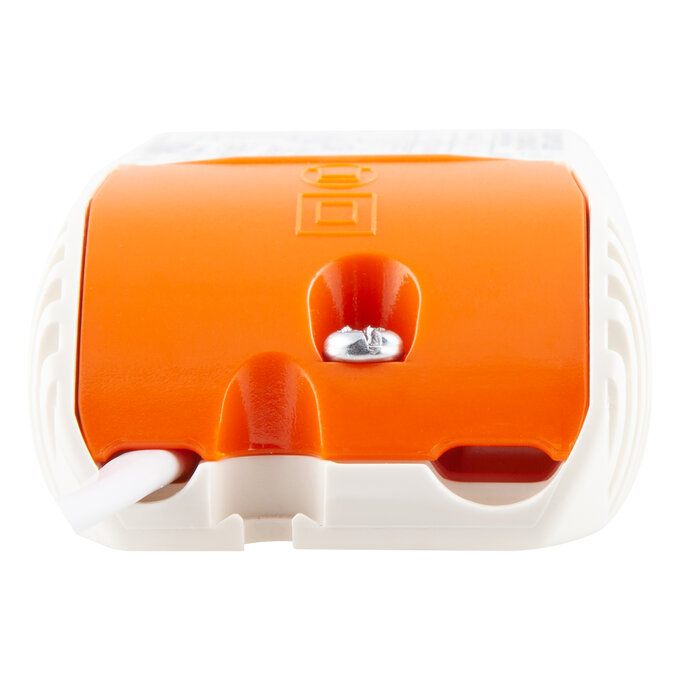

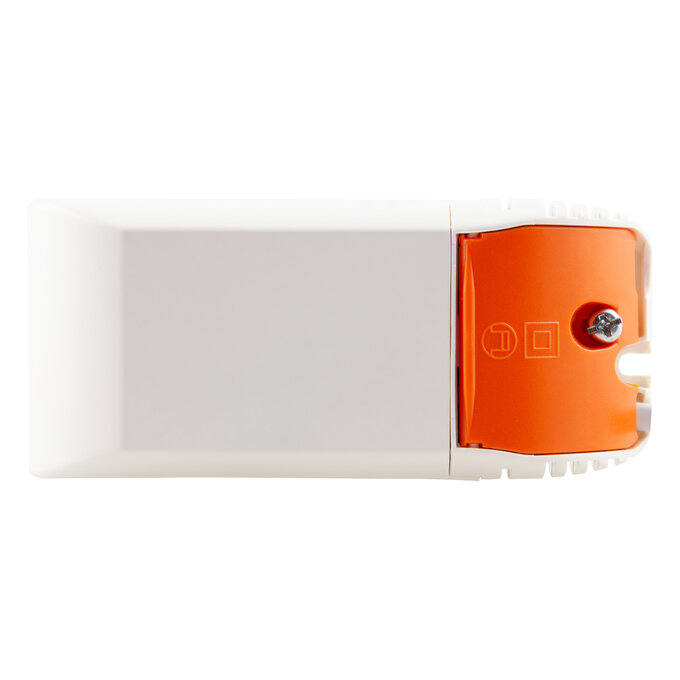

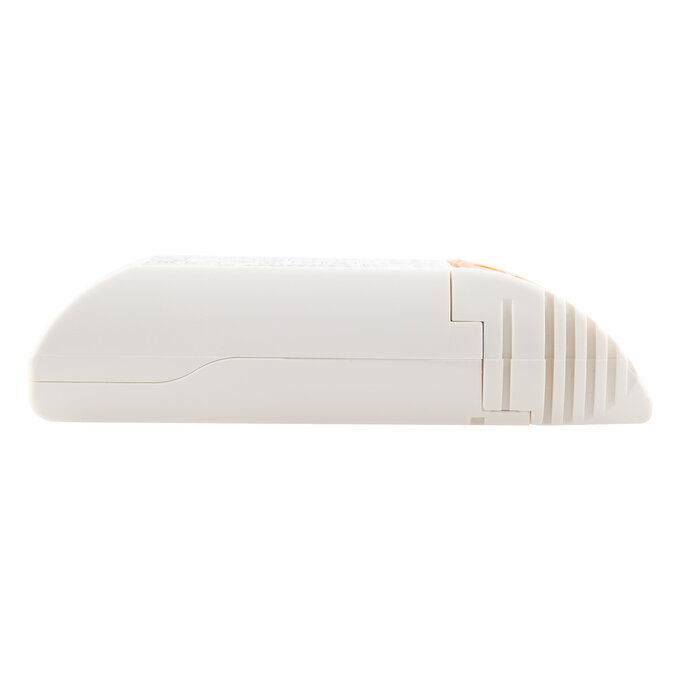

SP DRIVER DALI 8W
4099854089558
Product benefits
- DALI driver with individual luminaire current set-up already installed
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- Easy replacement of external driver thanks to plug with bayonet lock
Areas of application
- DALI installations
Product features
- IoT-ready driver with DALI-2 technology
- Push DIM function for dimming and switching directly on a pushbutton
- Suitable for emergency central battery installations acc. to EN 60598-2-22

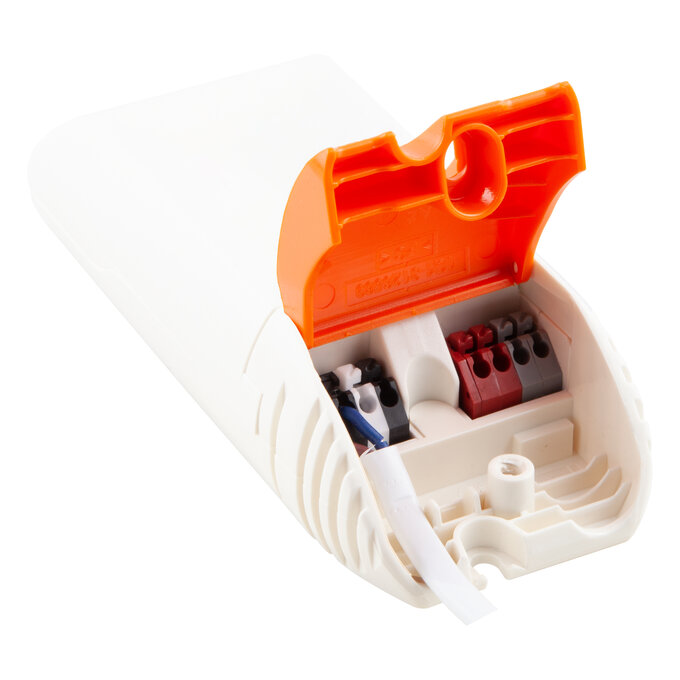

- Twist & lock connector for ease of installation
Equipment / Accessories
- Can only be used with LEDVANCE SPOTs 8 W (CC 180mA)
Safety advice
- Do not cover with any thermal insulation material!
Ambient temperature range
-20…+40 °C
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
GTIN
4099854089558
Height
30.00 mm
Length
120.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous flux in emergency operation mode
120 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
130
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Nominal wattage
8.00 W
Output current
180 mA
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
100.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Replaceable light source
No
Temperature range at storage
-42…+80 °C
Type of dimming
DALI-2
Type of protection
IP20
Wattage in emergency operation mode
3,0 W
Width
53.00 mm
