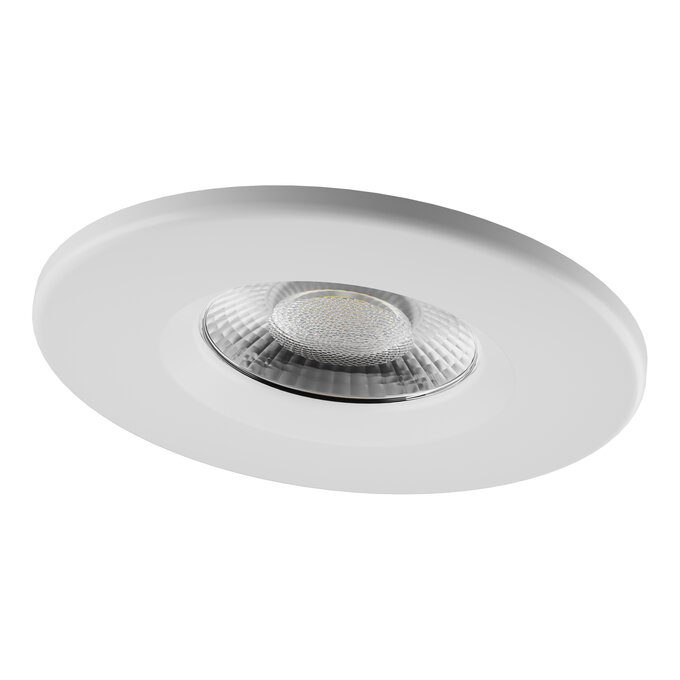

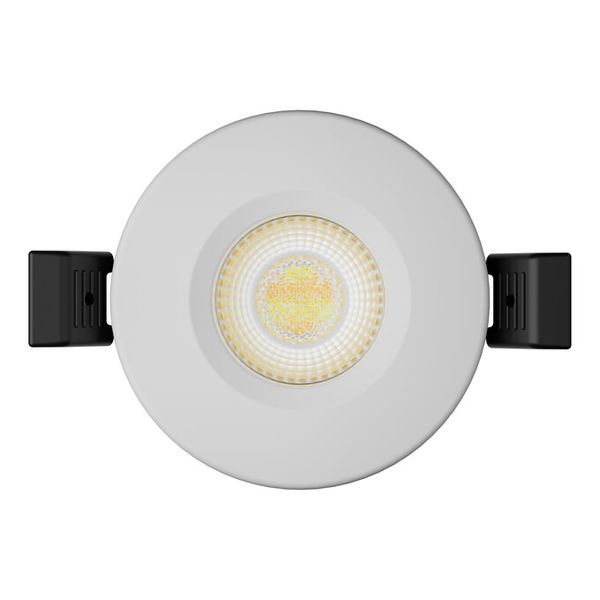

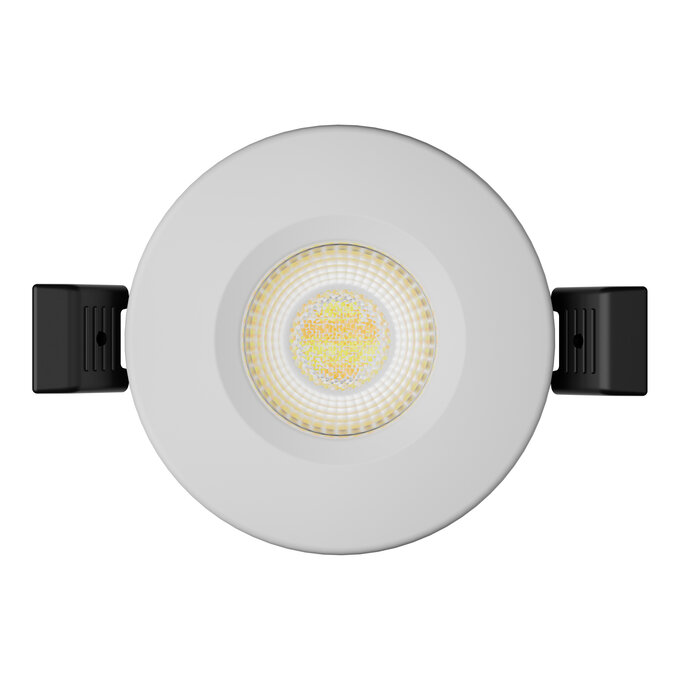

SP CBO FPFIX V 6W MS827 DIM IP65 WT
4099854459894
Product benefits
- Easy color temperature adjustment via switch on the front of the spot
- Highly versatile due to selectable lumen steps (Multi Lumen) on the front of the luminaire
- Can be covered with most insulating materials
- Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
Areas of application
- Direct replacement for recessed spotlights with halogen lamps
- General illumination
- Hotel rooms and corridors
- Bars, restaurants
- Residential interiors
Product features
- Adjustable color temperature (Multi Color): 2700 K, 3000 K, 4000 K, 6000 K
- Version with Multi Lumen function available: lumen steps selectable
- Type of protection: IP65 (room side)
- Housing material: iron
- Ring material: plastic
Equipment / Accessories
- Already equipped with white round ring
- Additional cover rings separately available in round shape and in different colors
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see
4 W
110 lm/W
6 W
110 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
60 °
Body material
Plastic|METAL
Cable length
110 mm
Color rendering index Ra
> 80
Color temperature
2700 K / 3000 K / 4000 K / 6000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Plastic
Diameter
86.00 mm
Dimmable
Yes
ECG - Output ripple current
< 5 %
EPD
LEDV-00048-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854459894
Height
33.00 mm
Housing color
Black
Inrush current
1.36 A
Inrush current time Th50
200 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
30000 h
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W / 105 lm/W / 100 lm/W
Luminous flux
650 lm / 610 lm / 580 lm / 460 lm / 440 lm / 420 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
281
Max. number of luminaires per miniature circuit breaker C10
237
Max. number of luminaires per miniature circuit breaker C16
380
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
33 mm
Mounting diameter
70 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
34.000 mA
Nominal voltage
220…240 V
Nominal wattage
6 W / 4 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
18 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.70
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
187.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
Type of connection
Plug-In connection
Type of dimming
PHASE CUT
Type of protection
IP65/IP20
With light source
Yes
