SL FLEX SM RV25ST P 25W 740 WAL
4058075552289
Product benefits
- Durable design and highest quality component selection for long lasting performance
- Quick and easy wiring, due to tool-free housing opening and push button terminal
- High light uniformity
- 3 light colors available, perfectly suited to illuminate highly diverse surroundings
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Automatic mains disconnection when opening the housing
- 5 years guarantee
Areas of application
- Outdoor use (IP66)
- M-, C- and P-class roads acc. to EN 13201
- Parking
- Public areas
- Industry
Product features
- Light distributions optimized for streets of similar width to the pole height
- Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
- Spigot for 48-60 mm poles included
- Additional reduction for 42 mm and adapter for 76 mm poles available separately

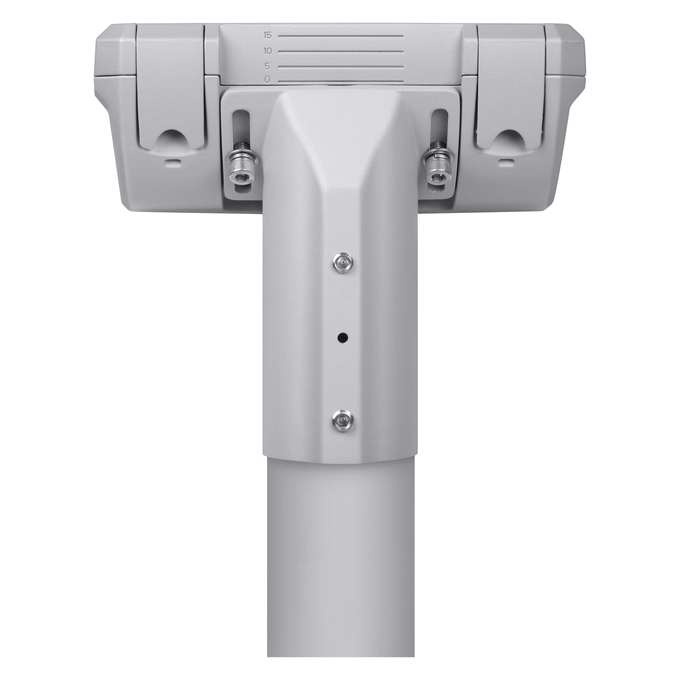

- Adjustable spigot for both side-entry and post-top installation

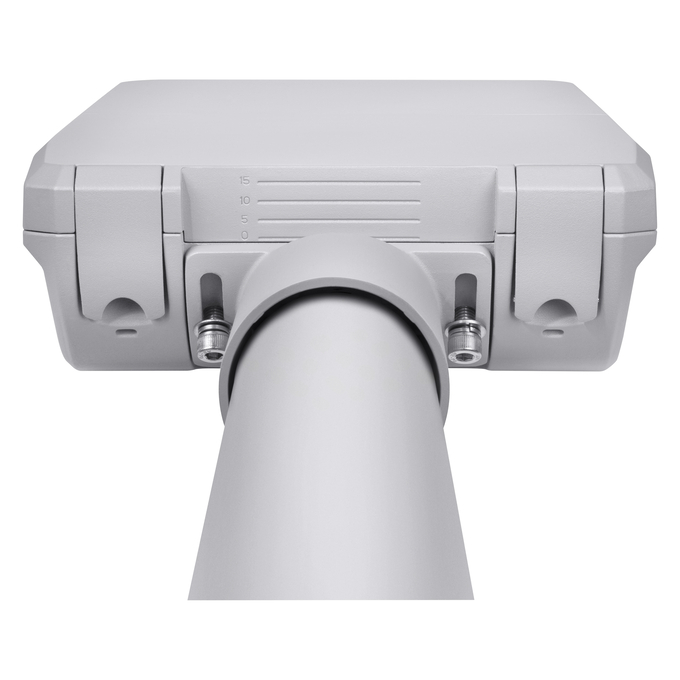

- +/- 15° tilt angle adjustment without opening the housing
- High luminous efficacy: up to 144 lm/W
- Operating temperature: -40...50 °C
- High surge protection: up to 10 kV (L/N-GND)
- Protection class: II
Equipment / Accessories
- Spigot for 42 and 76 mm poles available separately
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-40…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
25 ° x 145 °
Body material
Aluminum
Color rendering index Ra
70
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Tempered glass
Dimmable
No
ECG - Output ripple current
≤ 10 %
EPD
LEDV-00023-V01.01-EN
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075552289
Height
90.00 mm
Housing color
White aluminum
Inrush current
26 A
Inrush current time Th50
180 µs
Length
445.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
100000 h
Light color (designation)
Cool White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
141 lm/W
Luminous flux
3550 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C10
28
Max. number of luminaires per miniature circuit breaker C16
36
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Pole
Mounting type
Post top
Nominal current
115 mA
Nominal voltage
220…240 V
Nominal wattage
25.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
480 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White aluminum
Product recyclability
Mostly recyclable product 1)
Product weight
4500.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 10 %
Type of connection
Screwless terminal
Type of protection
IP66
Width
250.00 mm
With light source
Yes
