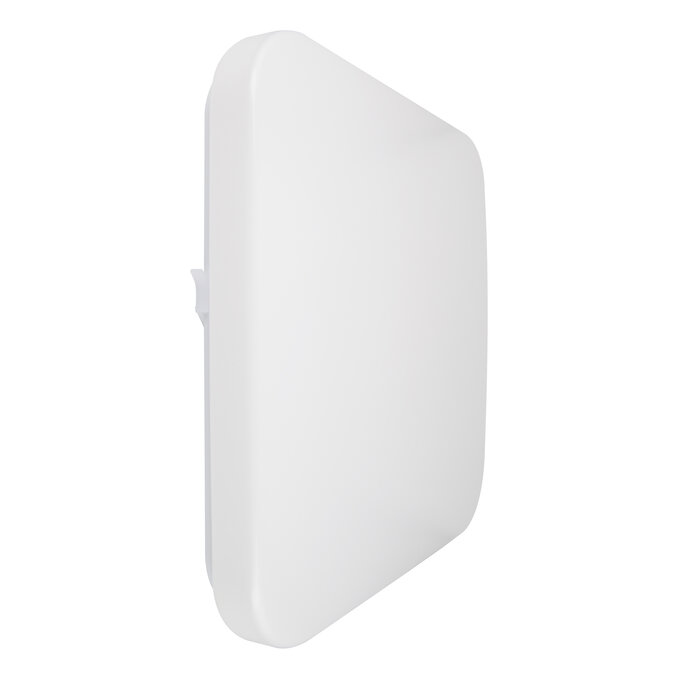

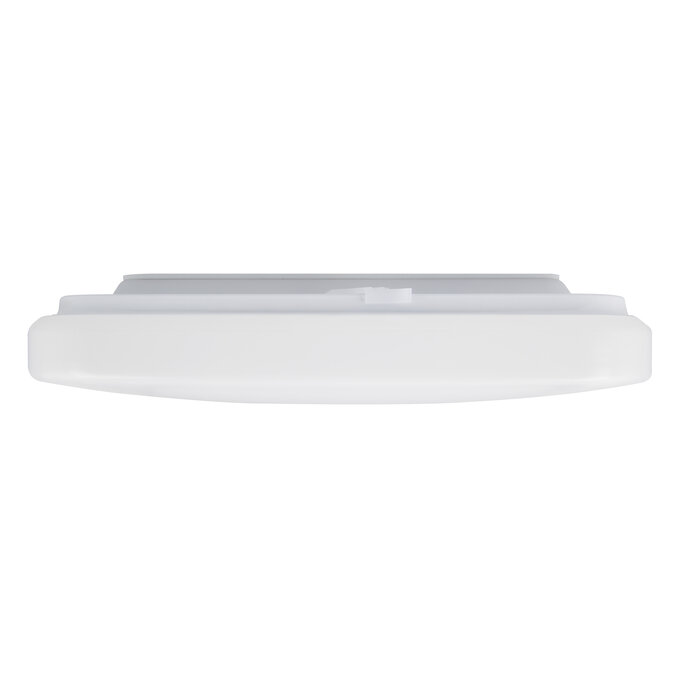

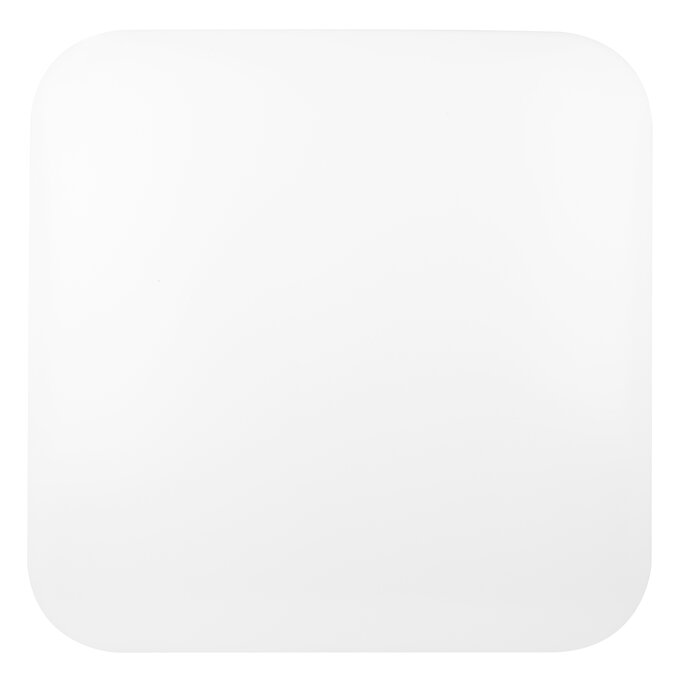

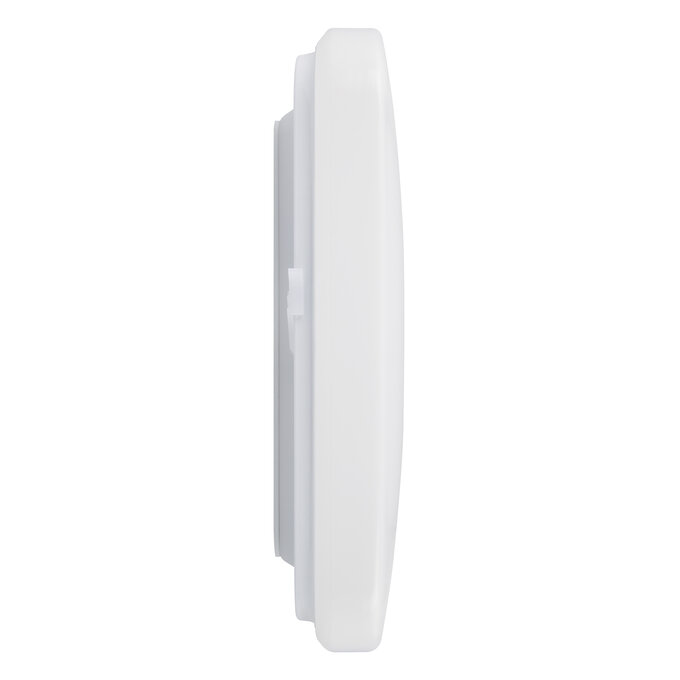

SF SQUARE 330 V 24W 3CCT IP44
4099854042034
Product benefits
- Indoor luminaire with high luminous efficacy
- Highly versatile due to selectable CCT in 3000K, 4000K and 5000K
- Energy savings of up to 55 % compared to luminaires that use CFL
- Easy and quick installation
- Very homogenous light
- 5 years guarantee
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
- Impact resistance: IK03
- Metal housing, PMMA cover
- Ambient temperature in operation: -20…+40 °C
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- Replacement cover optionally available
References / Links
- For Guarantee see
Added function
MULTI SELECT
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 5000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
No
ECG - Output ripple current
< 5 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854042034
Height
75.00 mm
Housing color
White
Inrush current
7.2 A
Inrush current time Th50
5.9 µs
Length
330.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
33000 h 1)
Lifespan L90/B10 at 25 °C
15000 h
Light color (designation)
Warm Whi
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
83 lm/W
Luminous flux
2000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
104
Max. number of luminaires per miniature circuit breaker C10
66
Max. number of luminaires per miniature circuit breaker C16
106
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
115.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
300 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.70
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
720.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 60 %
Type of connection
Terminal, 3-pin
Type of protection
IP44
Width
330.00 mm
With light source
Yes
