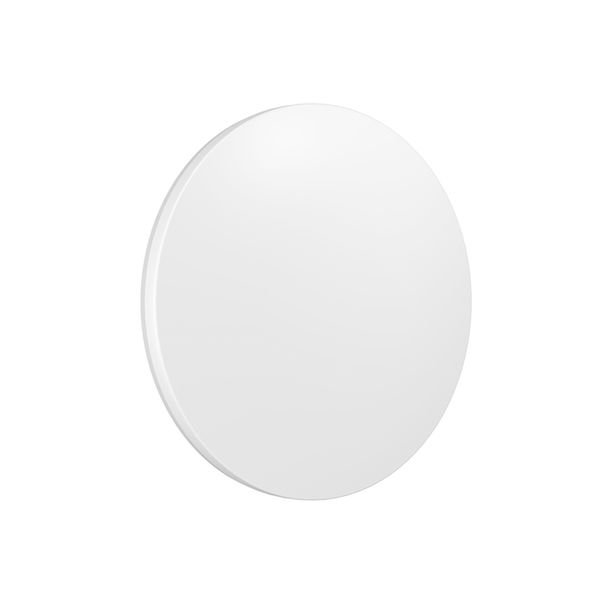

SF FLAT RD SN 500 P 27W ML 83040
4099854292736
Product benefits
- Multiple settings for sensor range, daylight detection, hold time and DIM-level /-period by DIP switches
- Wireless (radio frequency) communication with other sensor luminaires in a distance of up to 15 m
- Assignment of up to 15 groups and cross-group interaction (leader/follower or swarm function)
- Easy upgradeability of light source, driver and sensor (EVERLOOP design)
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
- Indoor luminaire with high luminous efficacy up to 140 lm/W
- High color consistency with SDCM 3
- Tool-free electrical connection with plug connectors
- Very homogenous light with a slight backlight effect
- For comfortable configuration the sensor can be removed from luminaire
- 5 years guarantee
Areas of application
- Direct replacement for surface luminaires with integrated CFLni lamps
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- High frequency sensor for daylight and motion detection, corridor- and grouping function
- Type of protection: IP54 (wall and ceiling)
- Impact resistance: IK08
- Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
- Polycarbonate (PC) housing, PC-diffuser
- Ambient temperature in operation: -20…+45 °C
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Through-wiring possible
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- EVERLOOP luminaire: upgrades and replacements available
- Decorative silver frame separately available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Added function
EVERLO
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
3…7 m
Detection threshold of daylight sensor
15…150 lx
Diameter
500.00 mm
Dimmable
No
ECG - Output ripple current
< 5 %
EPD
LEDV-00028-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854292736
Height
71.00 mm
Housing color
White
Inrush current
13 A
Inrush current time Th50
112 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
140 lm/W / 133 lm/W 1)
Luminous flux
3780 lm / 2660 lm 1)
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
57
Max. number of luminaires per miniature circuit breaker C10
46
Max. number of luminaires per miniature circuit breaker C16
73
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
120.000 mA
Nominal voltage
220…240 V
Nominal wattage
27 W / 19 W 1)
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
650 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3056.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9003
Replaceable light source
Yes
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
5 s…20 min
Sensor detection angle
120 °
Sensor technology
Microwave
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal
Type of protection
IP54
Type of sensor
Moti
With light source
Yes
