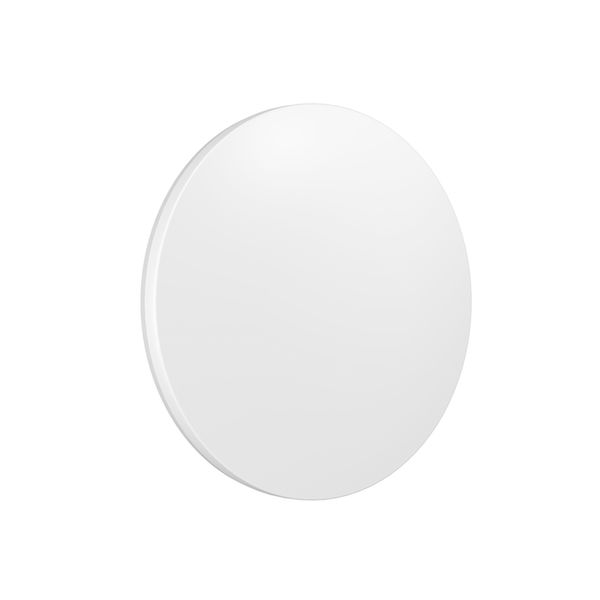

SF FLAT RD DA 500 P 27W 83040
4099854292774
Product benefits
- Easy upgradeability of light source, driver and sensor (EVERLOOP design)
- Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
- Highly versatile due to selectable CCT (Multi Color) on the driver
- Indoor luminaire with high luminous efficacy up to 140 lm/W
- High color consistency with SDCM 3
- Tool-free electrical connection due to push button connector
- Very homogenous light with a slight backlight effect
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- 5 years guarantee
Areas of application
- Direct replacement for surface luminaires with integrated CFLni lamps
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- IoT-ready luminaire with DALI-2 technology
- Suitable for central battery emergency installations acc. to EN 60598-2-22
- Type of protection: IP54 (wall and ceiling)
- Impact resistance: IK08
- Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
- Polycarbonate (PC) housing, PC-diffuser
- Ambient temperature in operation: -20…+45 °C
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Through-wiring possible
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- EVERLOOP luminaire: upgrades and replacements available
- Decorative silver frame separately available
References / Links
- For Guarantee see
Added function
EVERLO
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polycarbonate (PC)
Diameter
500.00 mm
Dimmable
Yes
ECG - Output ripple current
< 5 %
EPD
LEDV-00028-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854292774
Height
71.00 mm
Housing color
White
Inrush current
17.8 A
Inrush current time Th50
200 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
140 lm/W 1)
Luminous flux
3780 lm 1)
Luminous flux in emergency operation mode
510 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
11
Max. number of luminaires per miniature circuit breaker C10
10
Max. number of luminaires per miniature circuit breaker C16
16
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
120.000 mA
Nominal voltage
220…240 V
Nominal wattage
27.00 W 1)
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
650 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3129.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9003
Replaceable light source
Yes
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP54
Wattage in emergency operation mode
5.5 W
With light source
Yes
