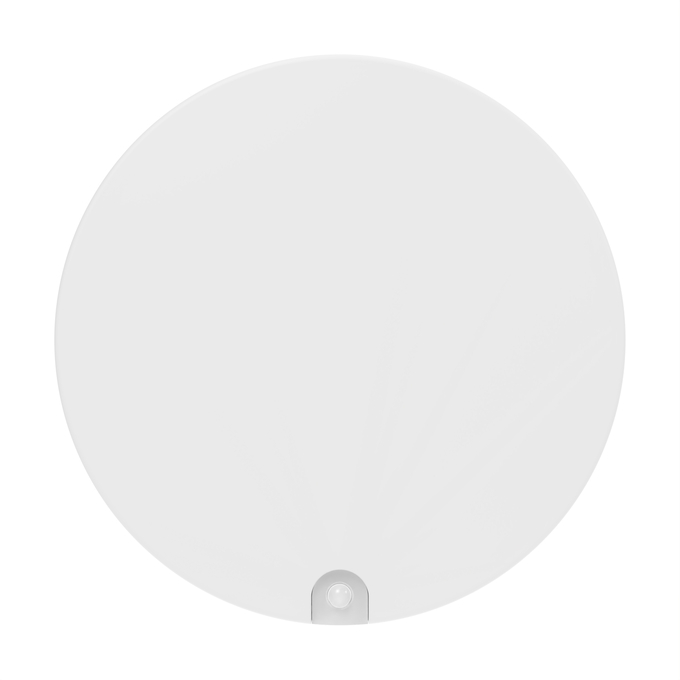

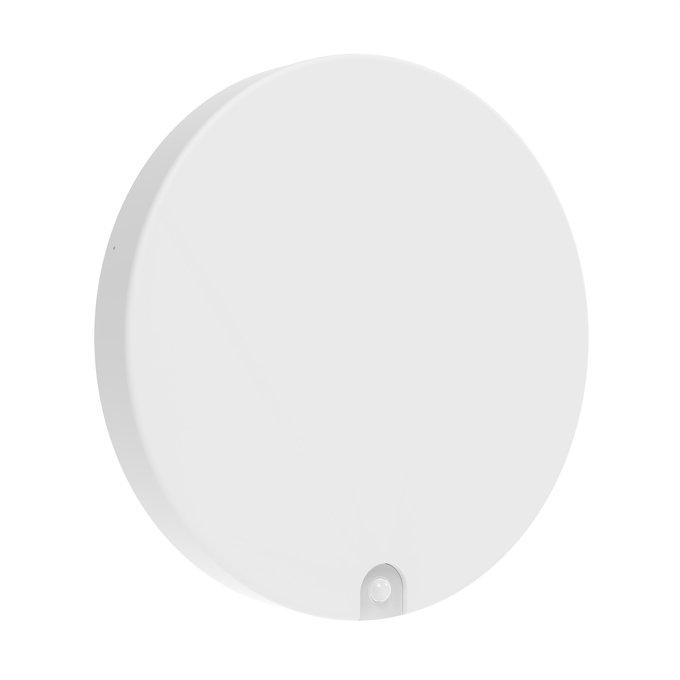

SF DISC EL SNP 300 V 21W ML 83040
4099854640605
Product benefits
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Multiple settings for sensor range, daylight detection, hold time and DIM-level /-period by DIP switches
- Optional wired leader/follower function
- Highly versatile due to selectable lumen steps (Multi Lumen) via dip switches on the driver
- Indoor luminaire with high luminous efficacy up to 120 lm/W
- High color consistency with SDCM 3

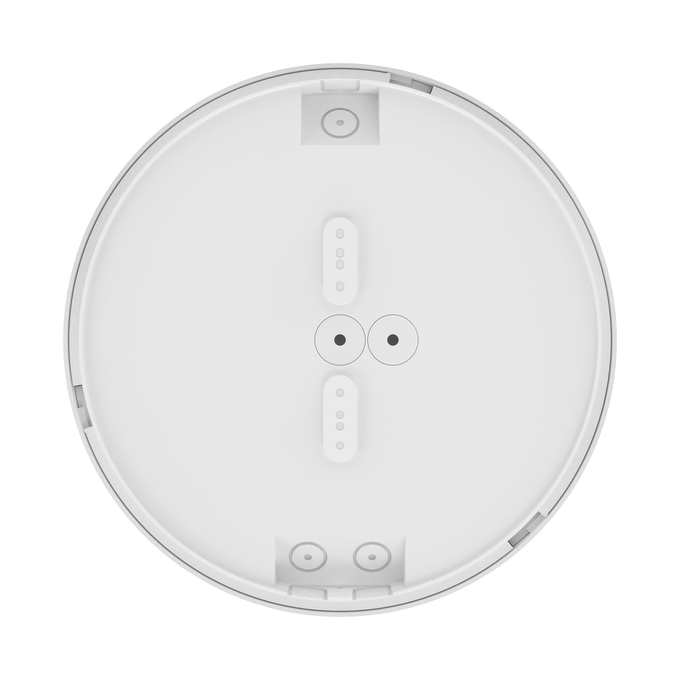

- Tool-free electrical connection due to push button connector
- Easy locking system to prevent unauthorized access
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Direct replacement for surface luminaires with integrated CFLni lamps
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- Luminaire suitable for normal lighting and emergency lighting
- Suitable for central battery emergency installations acc. to EN 60598-2-22
- PIR sensor for daylight, motion detection and corridor function
- Type of protection: IP54 (wall and ceiling)
- Lifetime (L80/B10): up to 75,000 h (at 25 °C)
- Polycarbonate (PC) housing, PC-diffuser
- Ambient temperature in operation: -20…+45 °C
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Through-wiring possible
- Indoor use only, not suitable for outdoor use

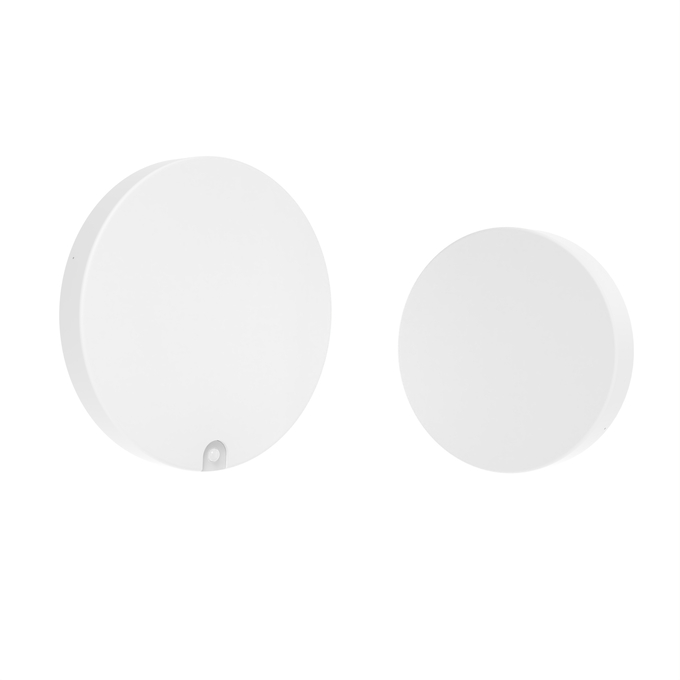

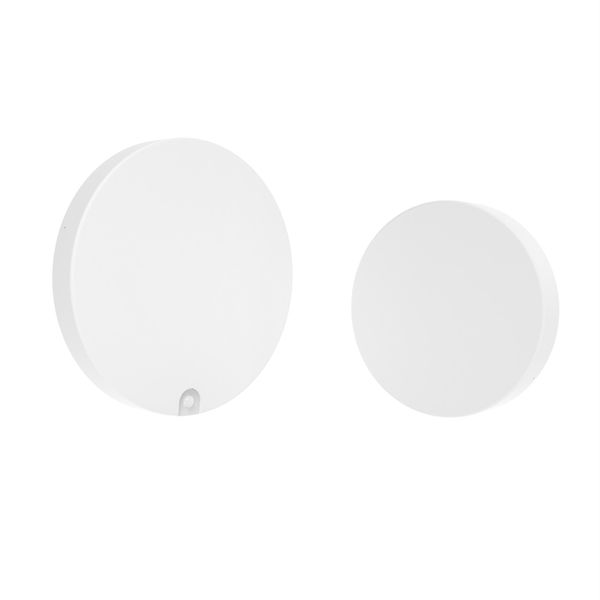

- SF DISC family versions available: dimmable, on/off, DALI-2, sensor and/or emergency lighting function
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
15 W
114 lm/W
21 W
114 lm/W
9 W
114 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
125 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
1.5…3 m
Detection threshold of daylight sensor
5…170 lx
Diameter
300.00 mm
Dimmable
No
ECG - Output ripple current
< 5 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854640605

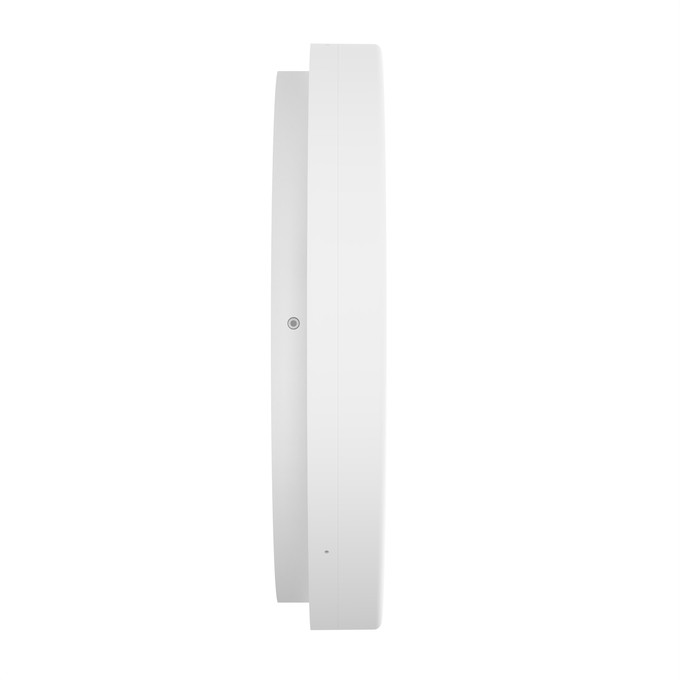

Height
56.00 mm
Housing color
White
Inrush current
10,0 A
Inrush current time Th50
250 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
55000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Octamethylcyclotetrasiloxane (D4) - (556-67-2)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
2520 lm / 1800 lm / 1080 lm 1)
Luminous flux in emergency operation mode
180 lm
Luminous flux in maintained operation mode
180 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
25
Max. number of luminaires per miniature circuit breaker C10
25
Max. number of luminaires per miniature circuit breaker C16
40
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal capacity of battery
3000 mAh
Nominal current
100 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
21 W / 15 W / 9 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
500 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1340.00 g
Protection class
II
Protection class IK (shock resistance)
IK00 1)
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Only by an expert
Sensor controlled switching time
5 s… 60 min
Sensor detection angle
360 °
Sensor IK rating
IK00
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of Battery
LiFePO4
Type of connection
Push-in clamp
Type of emergency light operation
Non-maintain
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP54
Type of sensor
Motion
Wattage in emergency operation mode
1.5 W
Wattage in maintained operation mode
1.5 W
With light source
Yes
