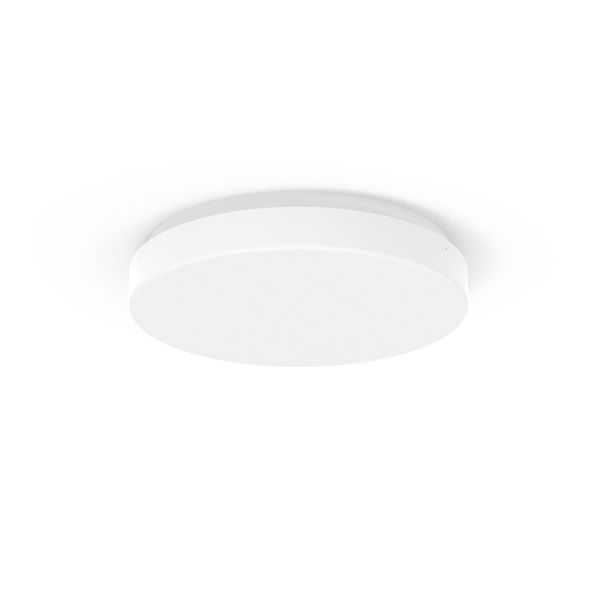

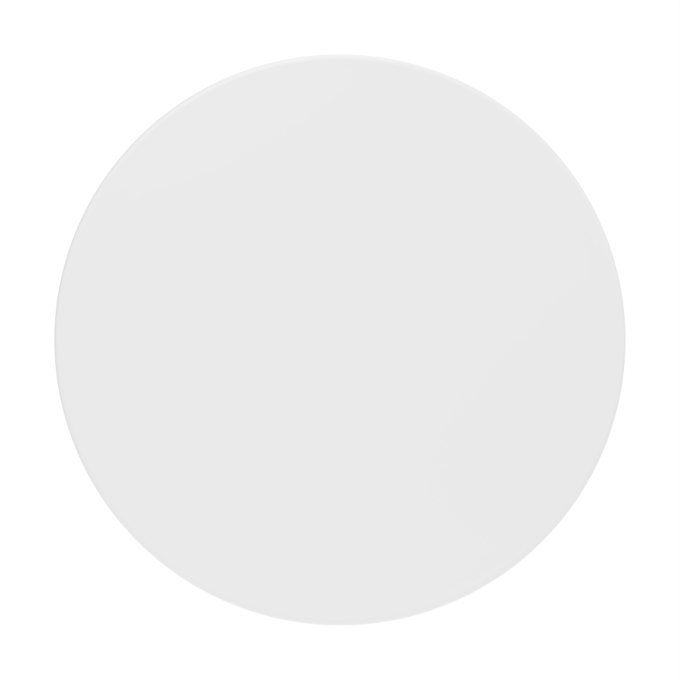

SF DISC DA 300 V 21W 83040
4099854640520
Product benefits
- Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- Highly versatile due to selectable CCT (Multi Color) in 3000K and 4000K
- Indoor luminaire with high luminous efficacy up to 120 lm/W
- High color consistency with SDCM 3
- Tool-free electrical connection due to push button connector
- Easy locking system to prevent unauthorized access
Areas of application
- Direct replacement for surface luminaires with integrated CFLni lamps
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- IoT-ready luminaire with DALI-2 technology
- Suitable for central battery emergency installations acc. to EN 60598-2-22
- Type of protection: IP54 (wall and ceiling)
- Impact resistance: IK10
- Lifetime (L80/B10): up to 75,000 h (at 25 °C)
- Polycarbonate (PC) housing, PC-diffuser
- Ambient temperature in operation: -20…+45 °C
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Through-wiring possible
- Indoor use only, not suitable for outdoor use
- SF DISC family versions available: dimmable, on/off, DALI-2, sensor and/or emergency lighting function
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
21 W
114 lm/W
Added function
MULTI SELE
Adjustable
No
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
125 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
300.00 mm
Dimmable
Yes
Dimming range
1…100 %
ECG - Output ripple current
< 5 %
EPD
LEDV-00067-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854640520
Height
56.00 mm
Housing color
White
Inrush current
25 A
Inrush current time Th50
140 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
55000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Octamethylcyclotetrasiloxane (D4) - (556-67-2)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
2520 lm
Luminous flux in emergency operation mode
180 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C10
19
Max. number of luminaires per miniature circuit breaker C16
30
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
100 mA
Nominal voltage
220…240 V
Nominal wattage
21.00 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
500 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1190.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Push-in clamp
Type of dimming
DALI-2
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP54
Wattage in emergency operation mode
1.5 W
With light source
Yes
