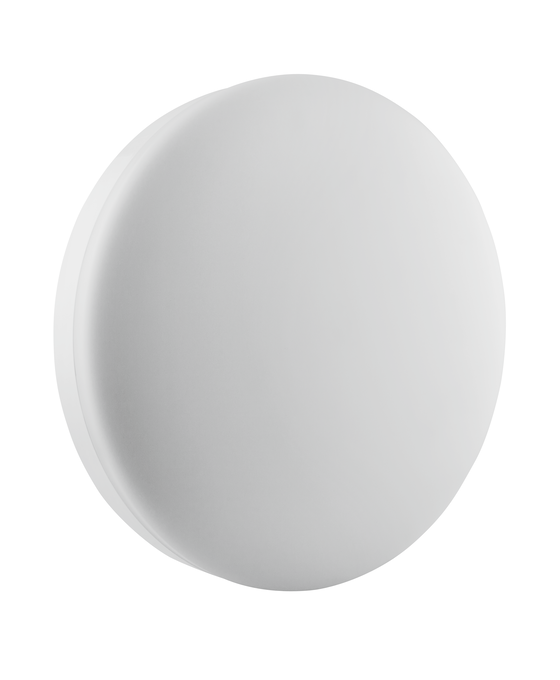

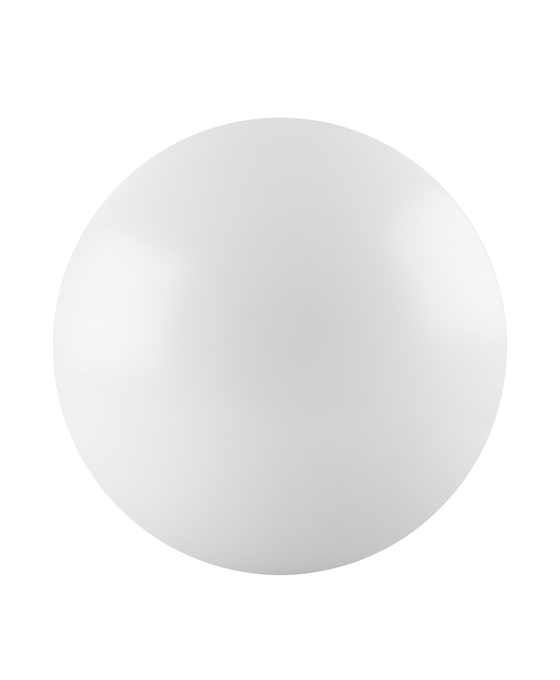

SF COMPACT IK10 300 24 W 3000 K IP65 WT
4058075062207
Product benefits
- Slim profile
- Resistance against vandalism
- High luminous efficacy
- Very homogenous light
- LED protected for safe installation
- 5 years guarantee
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
- Public areas
Product features
- Beam angle: 120°
- Type of protection: IP65
- Impact resistance: IK10
- Housing and cover made from polycarbonate
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- Through-wiring possible
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-20…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
300.00 mm
Dimmable
No
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075062207
Height
61.00 mm
Housing color
White
Inrush current
15.6 A
Inrush current time Th50
620 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
30000 h 1)
Lifespan L90/B10 at 25 °C
15000 h
Light color (designation)
Warm White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
75 lm/W
Luminous flux
1800 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
30
Max. number of luminaires per miniature circuit breaker C10
28
Max. number of luminaires per miniature circuit breaker C16
45
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
110 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
280 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
940.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Standard deviation of color matching
≤4 sdcm
Stroboscope effect metric (SVM)
-
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 3-Pole
Type of protection
IP65
With light source
Yes
