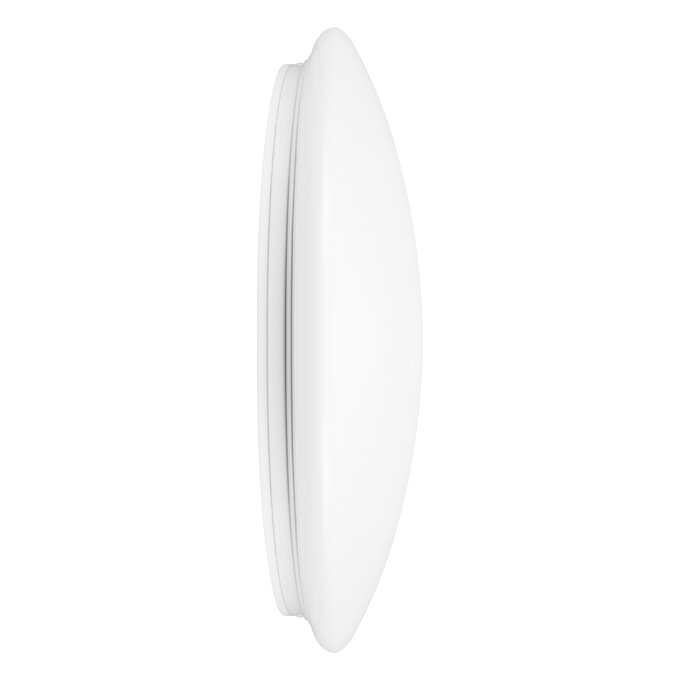

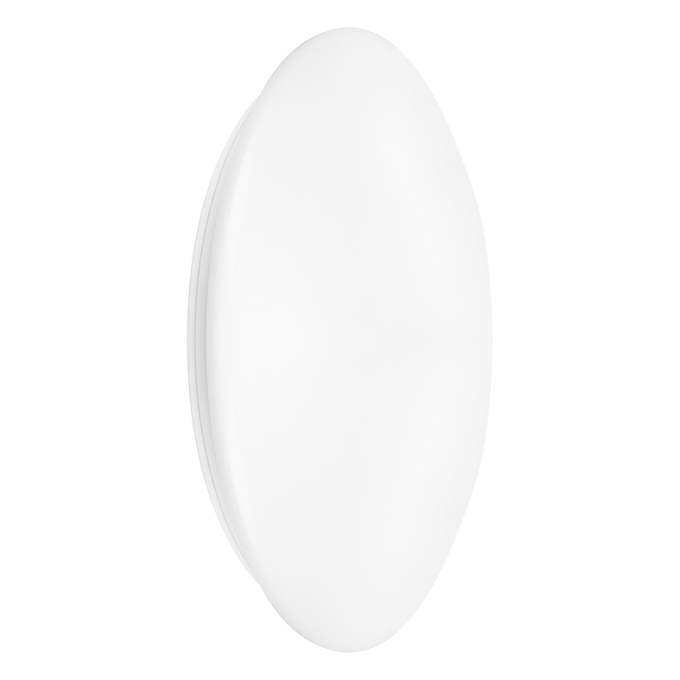

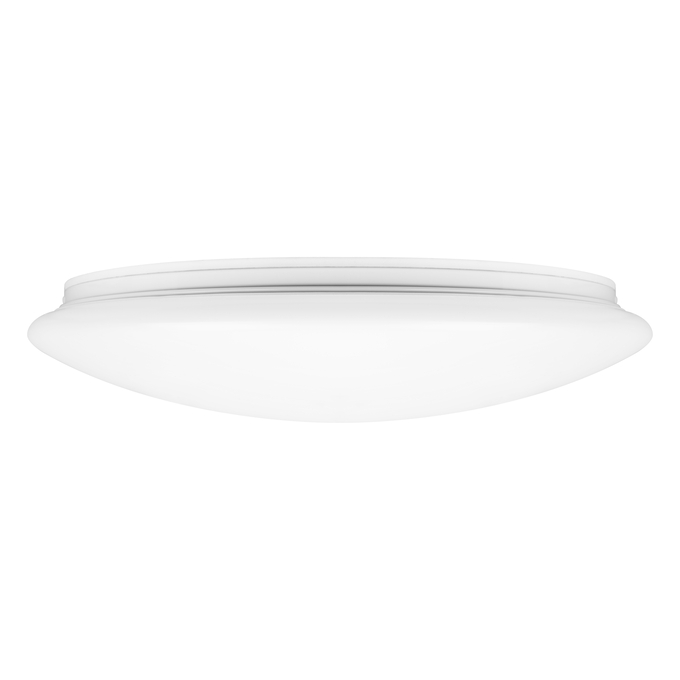

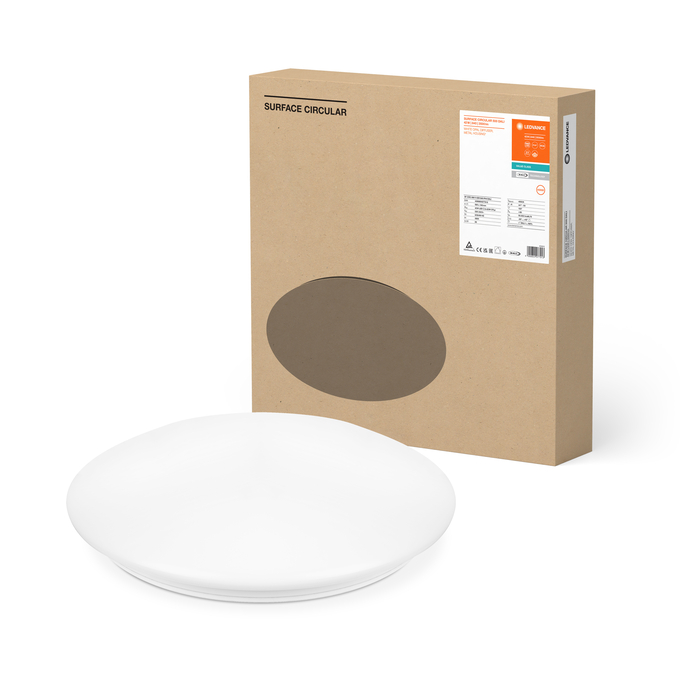

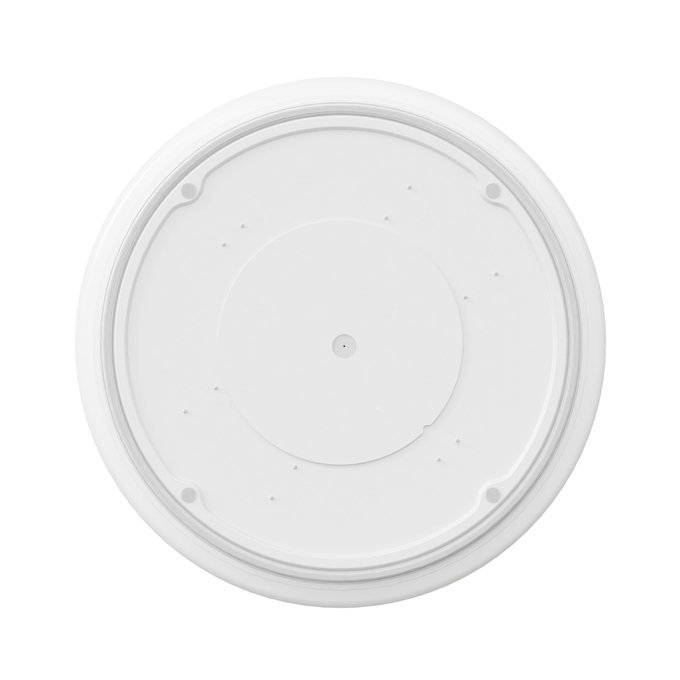

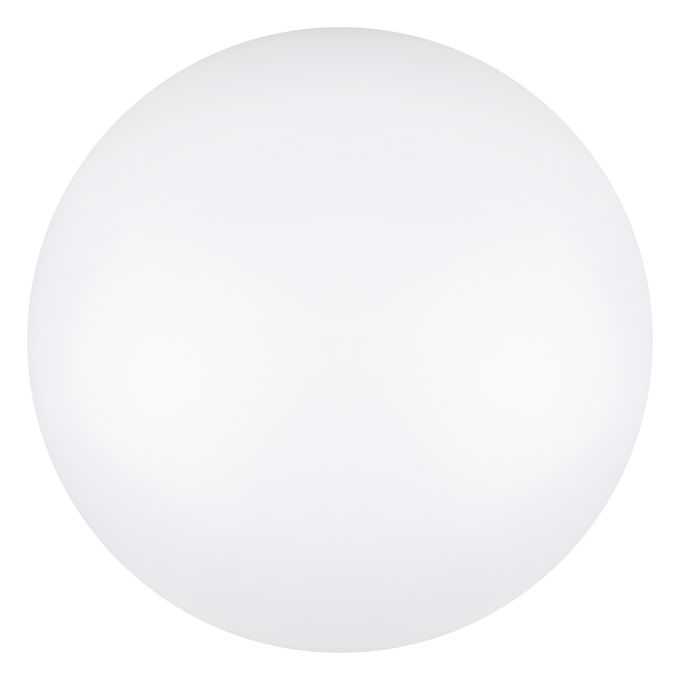

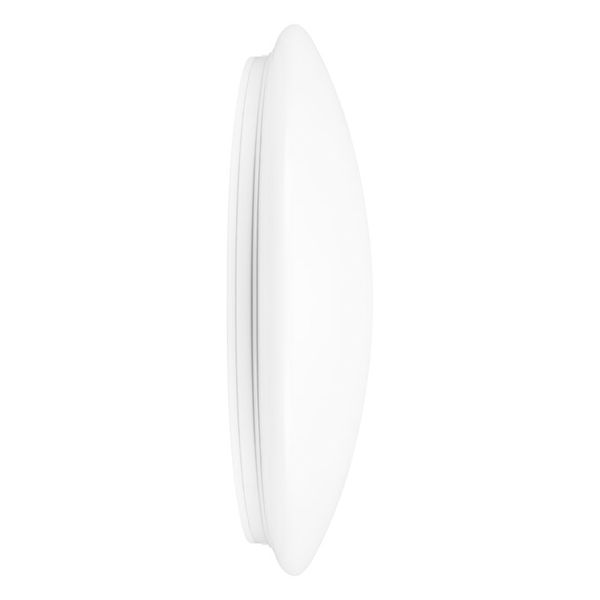

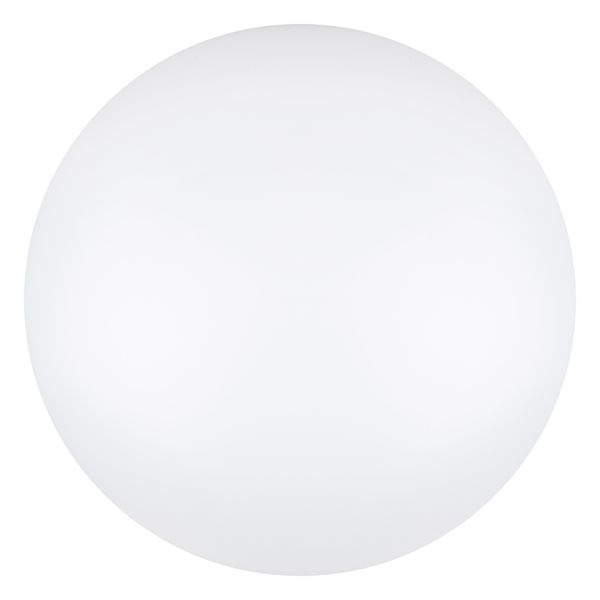

SF CIRC 500 V 42W 840 IP44 DALI
4099854077913
Product benefits
- Indoor luminaire with high luminous efficacy
- Integrated DALI-2 driver for extended functionalities
- Energy savings of up to 55 % compared to luminaires that use CFL
- Easy and quick installation
- Very homogenous light
- 5 years guarantee
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
- Suitable for central battery emergency installations acc. to EN 60598-2-22
- Push DIM function for dimming and switching directly on a pushbutton
- Extended lifetime (L70/B10): up to 50,000 h (at 25°C)
- Impact resistance: IK03
- Metal housing, PMMA cover
- Ambient temperature in operation: -20…+40 °C
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- Replacement cover optionally available
References / Links
- For Guarantee see
Added function
VIVARES
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Diameter
500.00 mm
Dimmable
Yes
ECG - Output ripple current
< 30 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854077913
Height
105.00 mm
Housing color
White
Inrush current
10.90 A
Inrush current time Th50
330 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
45000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
83 lm/W
Luminous flux
3500 lm
Luminous flux in emergency operation mode
550 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
25
Max. number of luminaires per miniature circuit breaker C10
26
Max. number of luminaires per miniature circuit breaker C16
43
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
180.000 mA
Nominal voltage
220…240 V
Nominal wattage
42.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
1000 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1260.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 10 %
Type of connection
Terminal, 5-pin
Type of dimming
DALI-2
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of protection
IP44
Wattage in emergency operation mode
6 W
With light source
Yes
