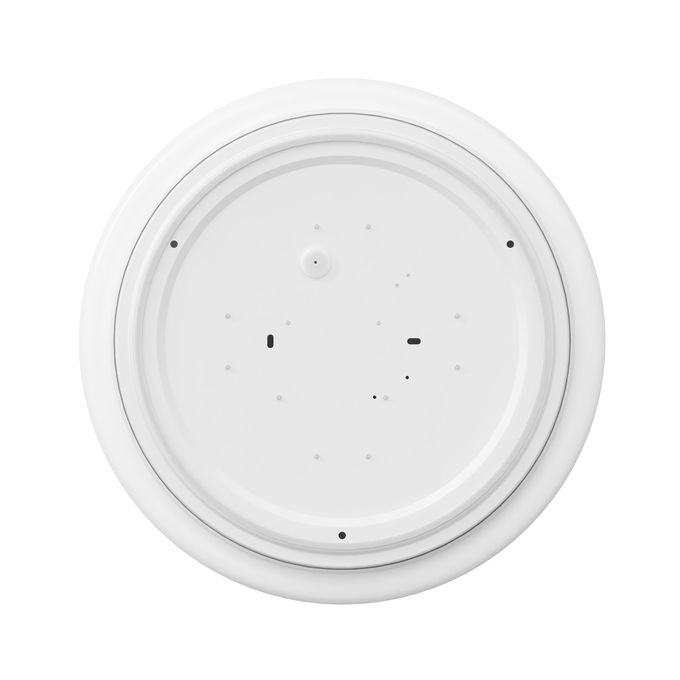

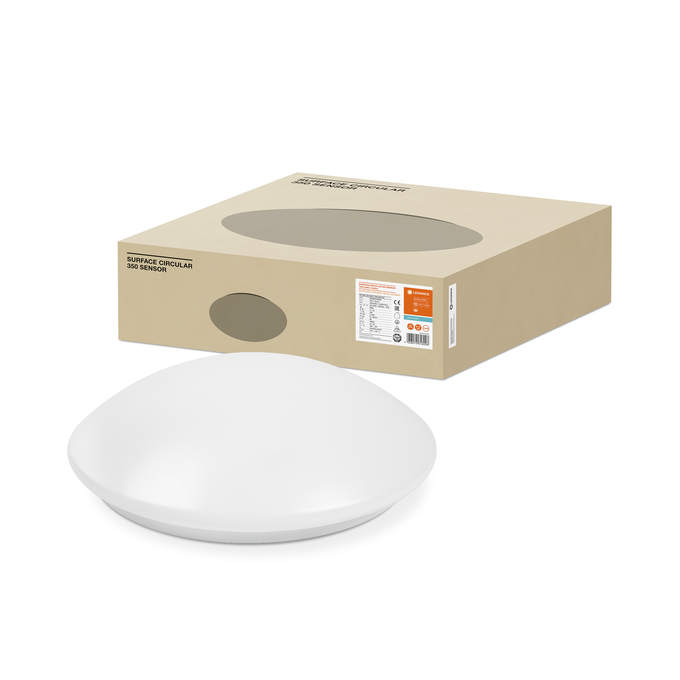

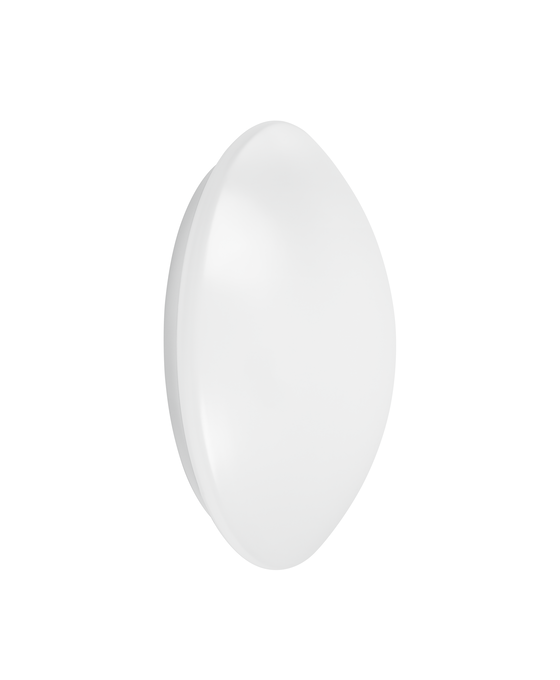

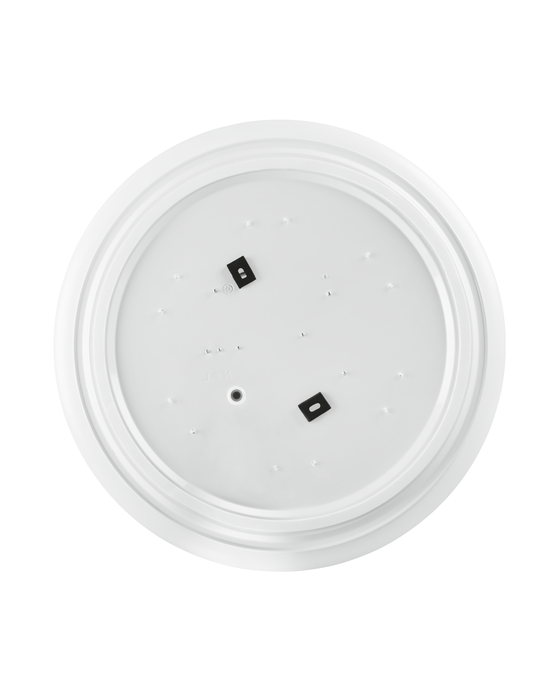

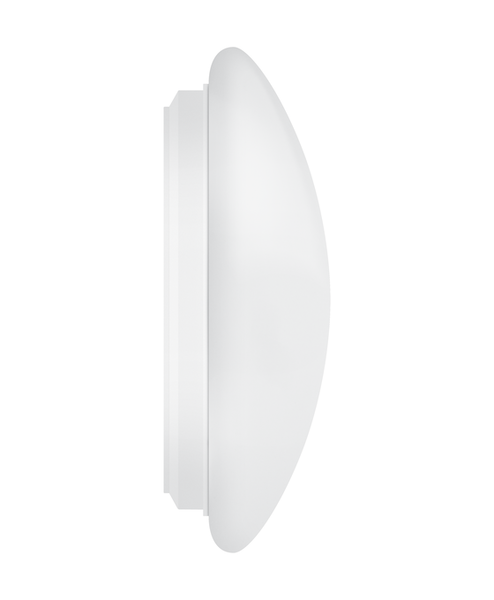

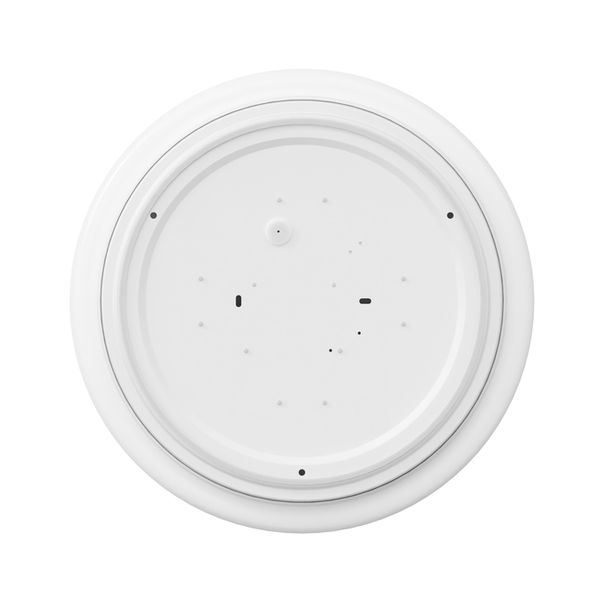

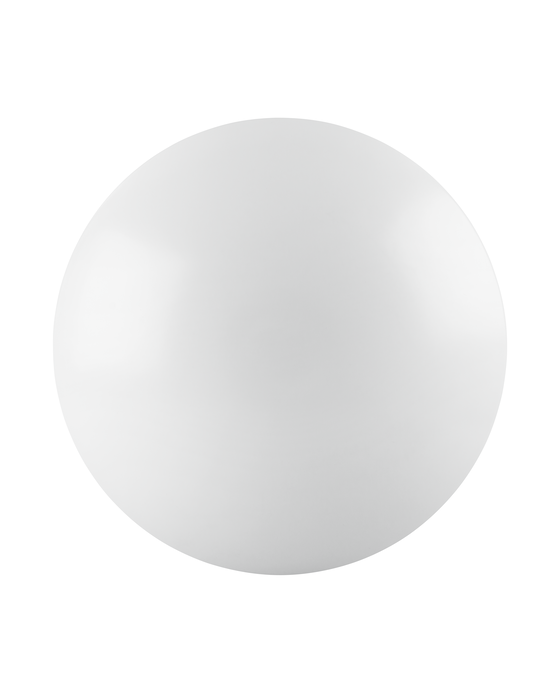

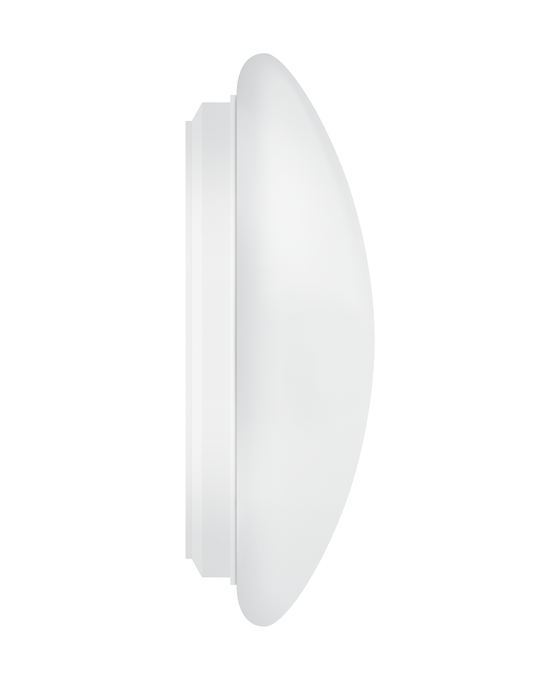

SF CIRC 350 SEN V 18W 840 IP44
4058075618008
Product benefits
- Easy adjustment of sensor range, daylight detection and hold time
- Indoor luminaire with high luminous efficacy
- Energy savings of up to 55 % compared to luminaires that use CFL
- Easy and quick installation
- Very homogenous light
- 3 years guarantee
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- High frequency sensor for daylight and motion detection
- Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
- Impact resistance: IK03
- Metal housing, PMMA cover
- Ambient temperature in operation: -20…+40 °C
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- Replacement cover optional available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polymethylmethacrylate (PMMA)
Detection range of motion sensor
4…7 m
Detection threshold of daylight sensor
2…50 lx
Diameter
350.00 mm
Dimmable
No
EPD
LEDV-00010-V01.01-EN
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075618008
Height
115.00 mm
Housing color
White
Inrush current
7 A
Inrush current time Th50
212 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Lifespan L80/B10 at 25 °C
22000 h 1)
Lifespan L90/B10 at 25 °C
15000 h
Light color (designation)
Cool White
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
80 lm/W
Luminous flux
1440 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
78
Max. number of luminaires per miniature circuit breaker C10
49
Max. number of luminaires per miniature circuit breaker C16
94
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
140 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
280 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.55
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
600.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
5 s…30 min
Sensor detection angle
120 °
Sensor IP rating
IP44
Sensor technology
Microwave
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 120 %
Type of connection
Terminal, 3-pin
Type of protection
IP44 1)
Type of sensor
Moti
With light source
Yes
