SENSOR SF FLAT LEADER FOLLOWER
4099854292897
Product benefits

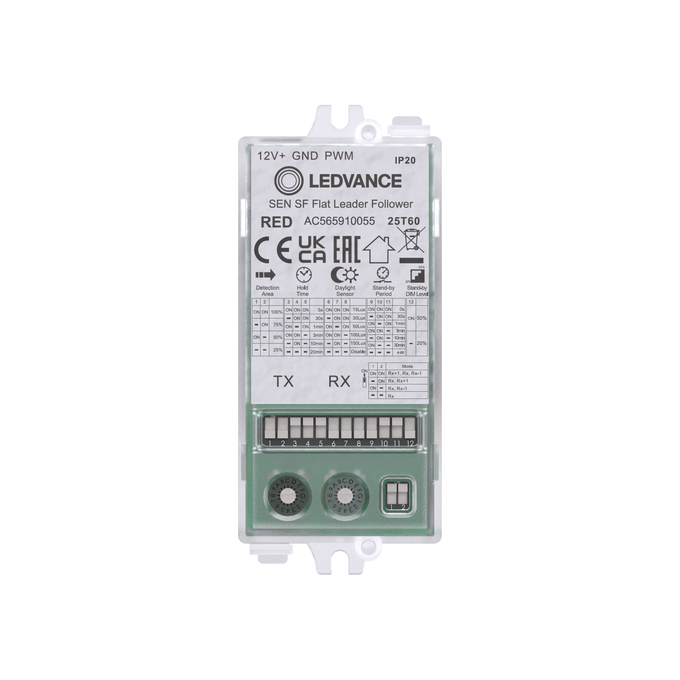

- Multiple settings for sensor range, daylight detection, hold time and DIM-level /-period by DIP switches
- Wireless (radio frequency) communication with other sensor luminaires in a distance of up to 15 m
- Assignment of up to 15 groups and cross-group interaction (leader/follower or swarm function)
- Simple tool-free mounting in the luminaire
- 5 years guarantee
Areas of application
- Suitable for SURFACE FLAT / SURFACE FLAT SENSOR 19 W / 27 W
Product features
- Type of protection: IP20
Equipment / Accessories
- Connection wire for direct installation integrated
References / Links
- For Guarantee see
Ambient temperature range
-25…+60 °C
Body material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection range of motion sensor
3…7 m
Detection threshold of daylight sensor
15…150 lx
Dimmable
No
ECG lifetime
100000 h
GTIN
4099854292897
Height
35 mm
Length
90 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
75 mA
Nominal output current
75 mA
Nominal voltage
12 V
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Transparent
Product recyclability
Mostly recyclable product 1)
Product weight
32.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Replaceable light source
No
Sensor controlled switching time
5 s…20 min
Sensor detection angle
120 °
Sensor technology
Microwave
Temperature range at storage
-40…+80 °C
Type of sensor
Moti
Width
39 mm
