PL SF SUSPENSION KIT L/E/N/DA+/DA-
4099854732027
Product benefits

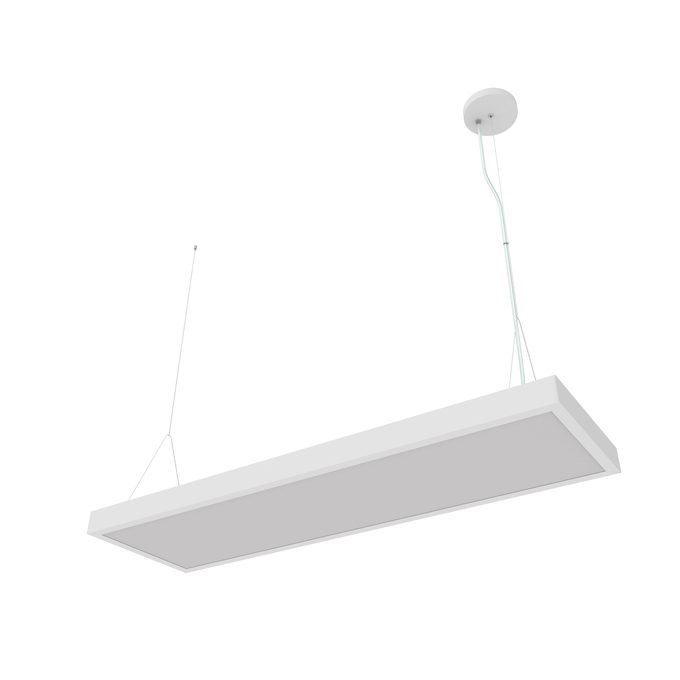

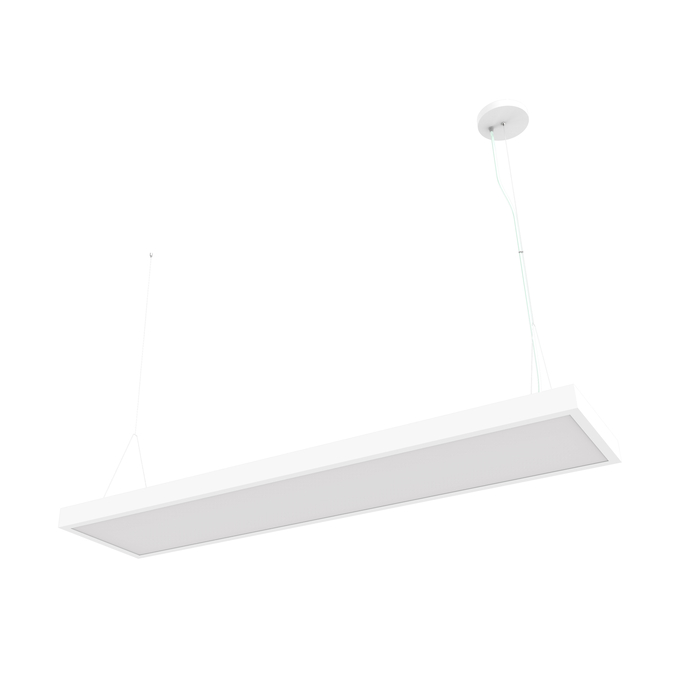

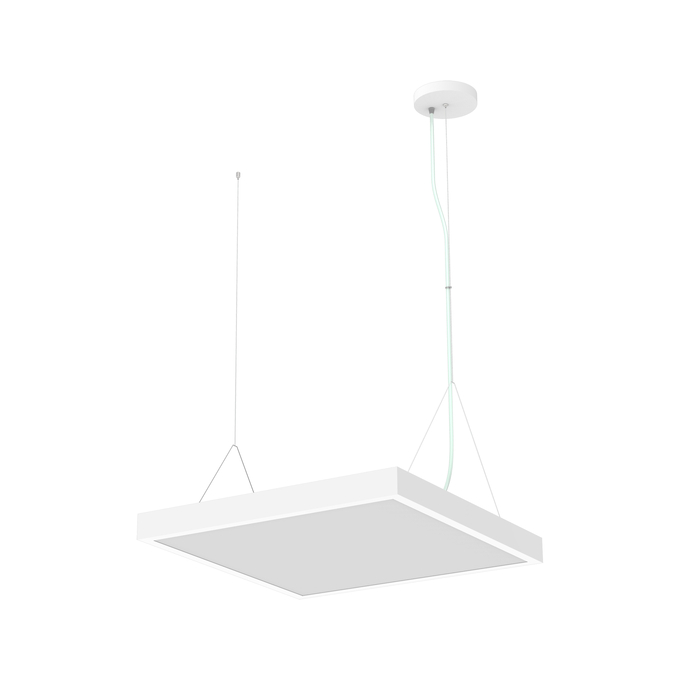

- Kit for easy suspension of PANEL SURFACE luminaires
- Maximum suspension distance to ceiling 1500 mm, adjustable
- Direct electrical connection in canopy (protection class I)
Areas of application
- Suitable for PANEL SURFACE
Product features

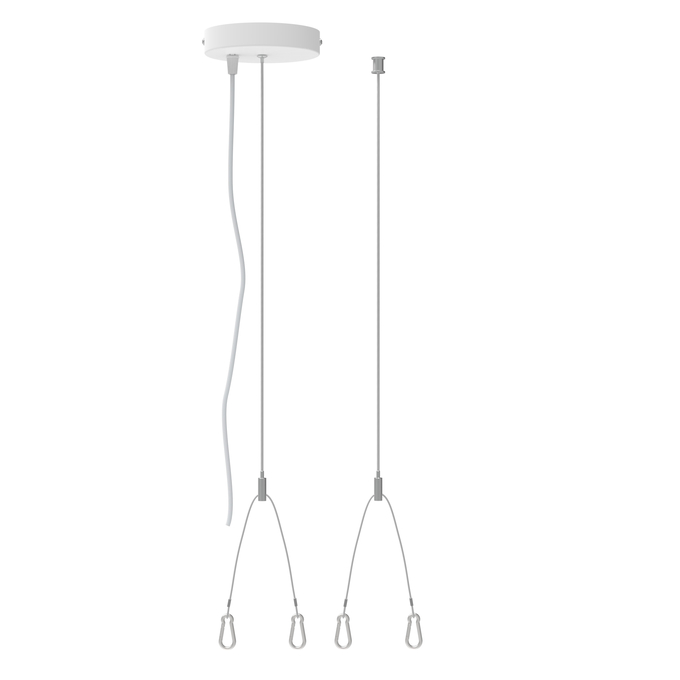

- Round metal canopy with preinstalled 5-pole terminal block
- 2- or 4-pole cable preinstalled to connect with luminaire driver
- Y-shaped metal wire suspension with carabiners
- Versions for protection class II luminaire wiring: 2-pole (standard) or 4-pole (DALI)
Equipment / Accessories
- Transparent wire clamps for attachment to the metal wire suspension included
Cable length
1500.00 mm
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
151.00 mm
GTIN
4099854732027
Height
50.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
150.00 g
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Type of emergency operation test
None
Type of protection
IP20
Wattage in emergency operation mode
5 W
