PL SF 1574 SNP V 48W ML 93040
4099854731969
Product benefits
- Multiple settings for sensor range, daylight detection, hold time and DIM-level /-period by DIP switches

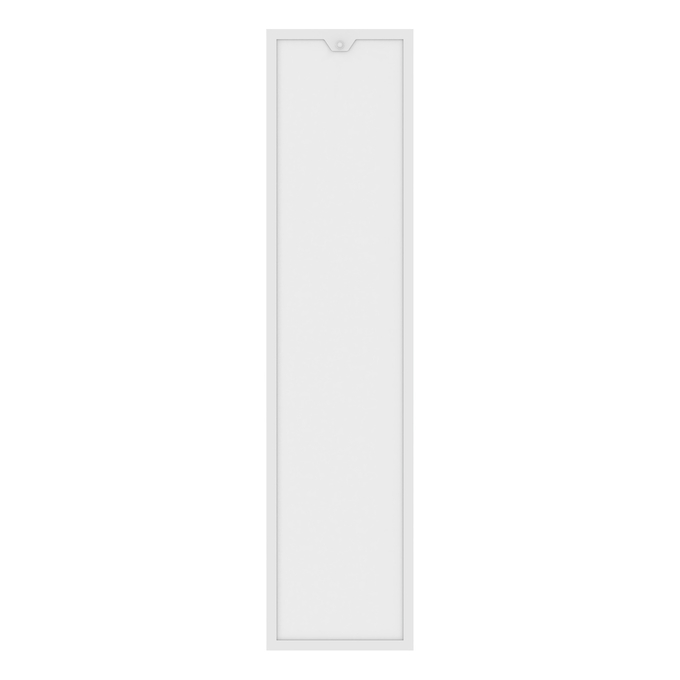

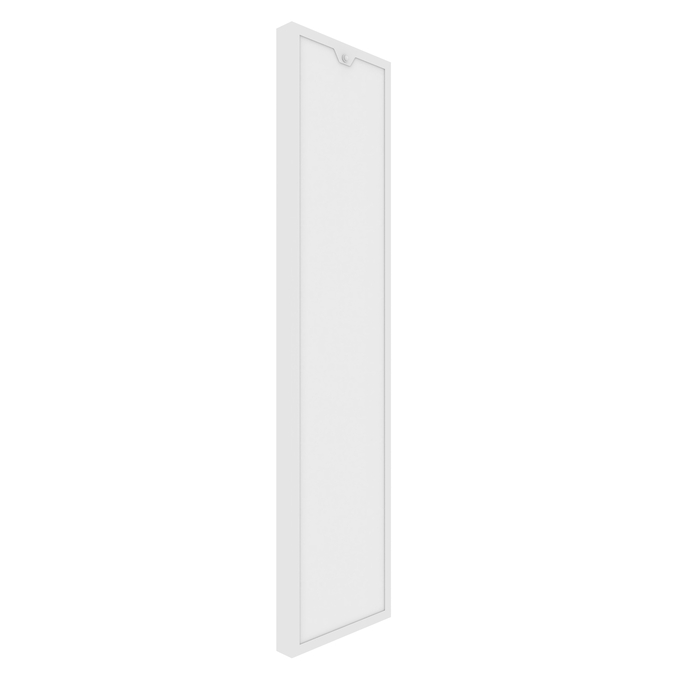

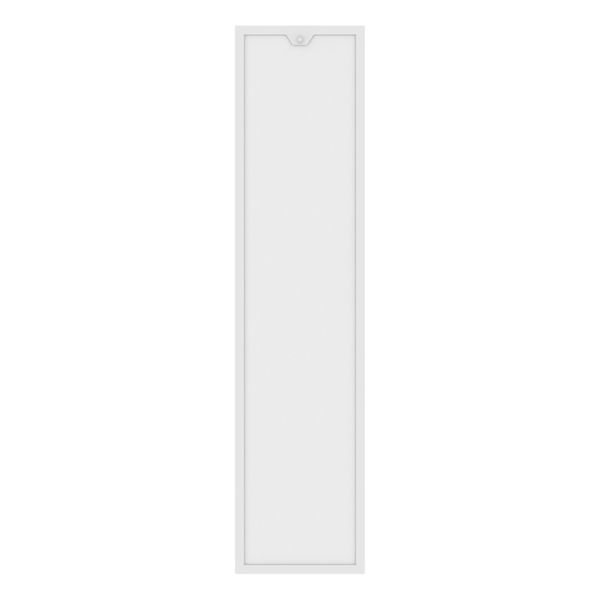

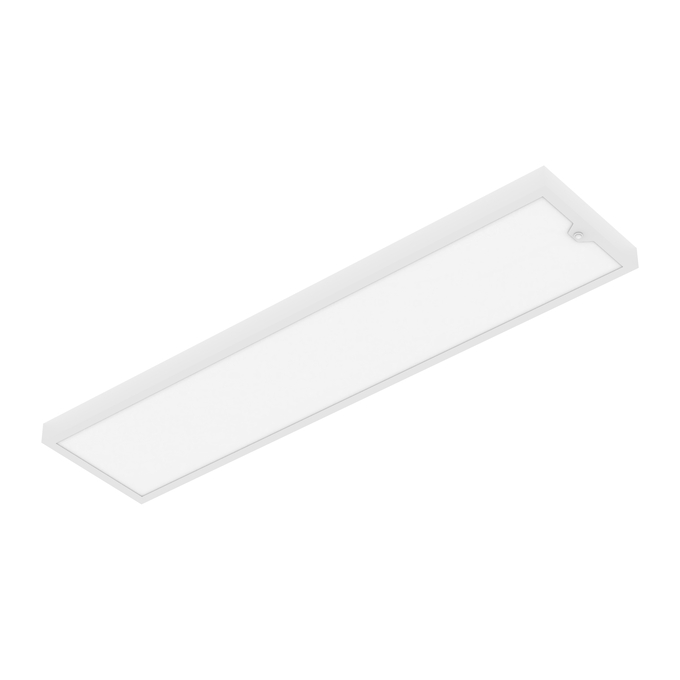

- Rectangular refurbishment luminaire for replacing standard T5 and T8 surface-mounted luminaires
- Enlarged luminaire dimensions to cover mounting marks of existing luminaire
- Highly versatile due to selectable lumen levels and light colors (Multi Select)

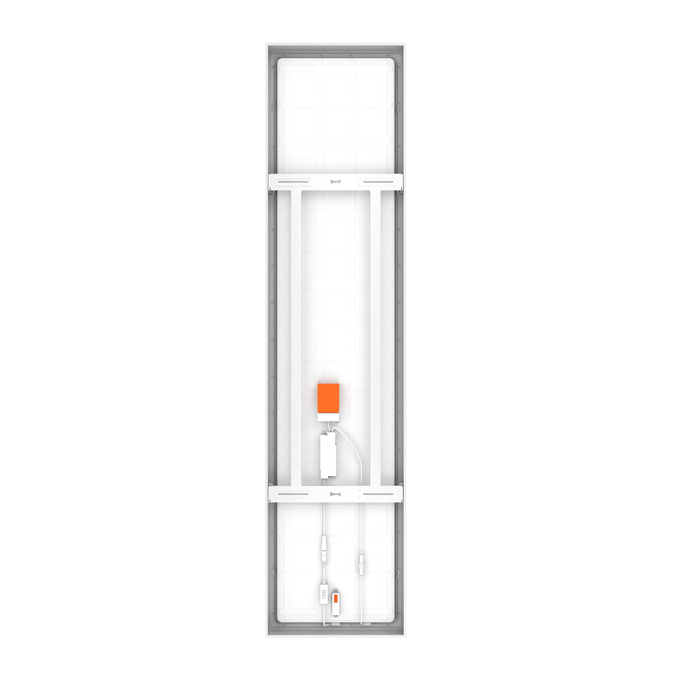

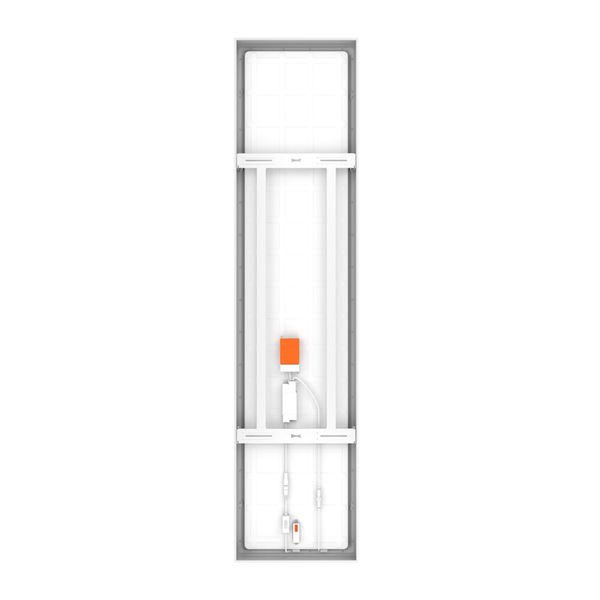

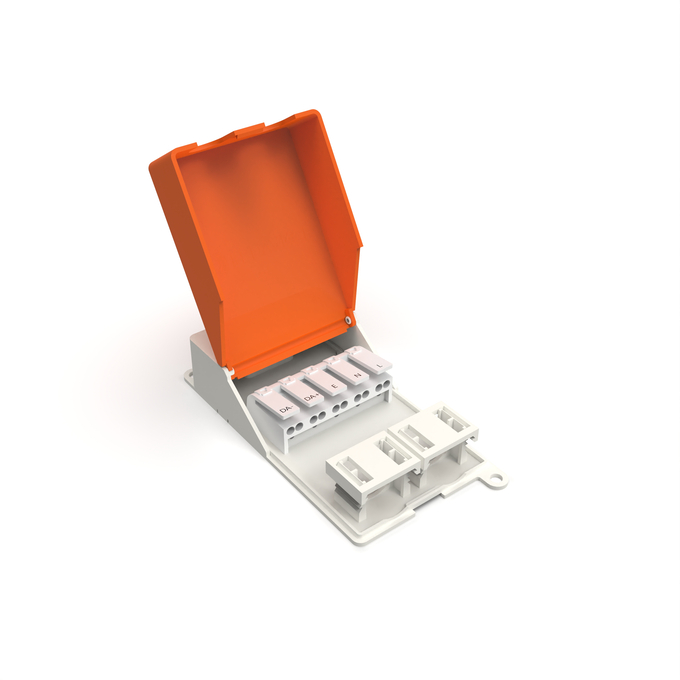

- Through-wiring possible with included connector box
- Easy mounting by single person
- Versions with reduced glare (U19) for office applications available
Areas of application
- Offices, conference rooms
- Reception areas, foyers, corridors
Product features
- Integrated PIR sensor with corridor function
- High color rendering (CRI > 90) with up to 130 lm/W
- Robust one-piece metal frame
- Polystyrene diffuser
- High color consistency: ≤ 3 SDCM
Equipment / Accessories
- Suspension kit available as separate accessory
Safety advice
- All electrical connections must be made by a qualified person.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
31 W
135 lm/W
39 W
130 ln/W
48 W
125 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-10…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Detection range of motion sensor
1…3 m
Detection threshold of daylight sensor
10…150 lx
Dimmable
No
ECG - Output ripple current
< 5 %
EPD
LEDV-00078-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854731969
Height
78.00 mm
Housing color
White
Inrush current
0.207 A
Inrush current time Th50
121 µs
Length
1574.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
140 lm/W / 135 lm/W / 130 lm/W
Luminous flux
6240 lm / 5265 lm / 4030 lm 1)
Luminous flux in emergency operation mode
650 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
23
Max. number of luminaires per miniature circuit breaker C10
17
Max. number of luminaires per miniature circuit breaker C16
28
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface/Suspended
Nominal current
210mA / 170mA / 135 mA
Nominal voltage
220…240 V
Nominal wattage
48 W / 39 W / 31 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
1050mA / 900mA / 700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
4675.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Recommended control gear
LEDVANCE 48WConstant Current PIR LED Power
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
5 s…20 min
Sensor detection angle
360 °
Sensor IK rating
IK02
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal, 2-Pole (L, N)
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of emergency operation test
None
Type of protection
IP20
Type of sensor
Motion
Wattage in emergency operation mode
5 W
Width
373.00 mm
With light source
Yes
