PL SF 1274 ZB V 38W 93040 U19
4099854731624
Product benefits
- Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems

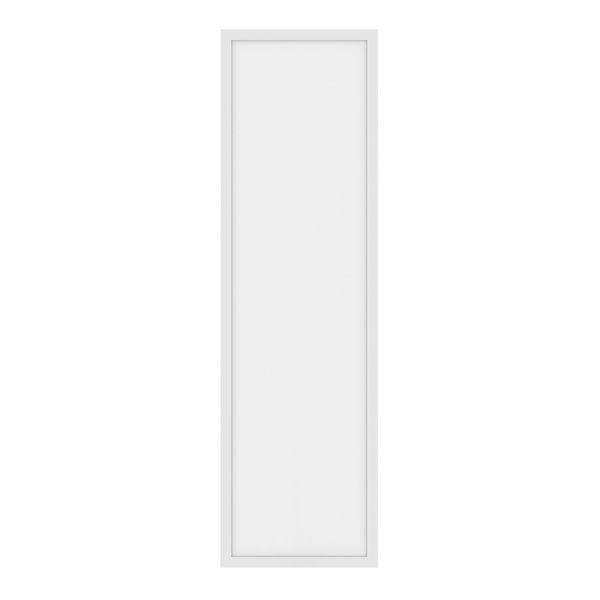

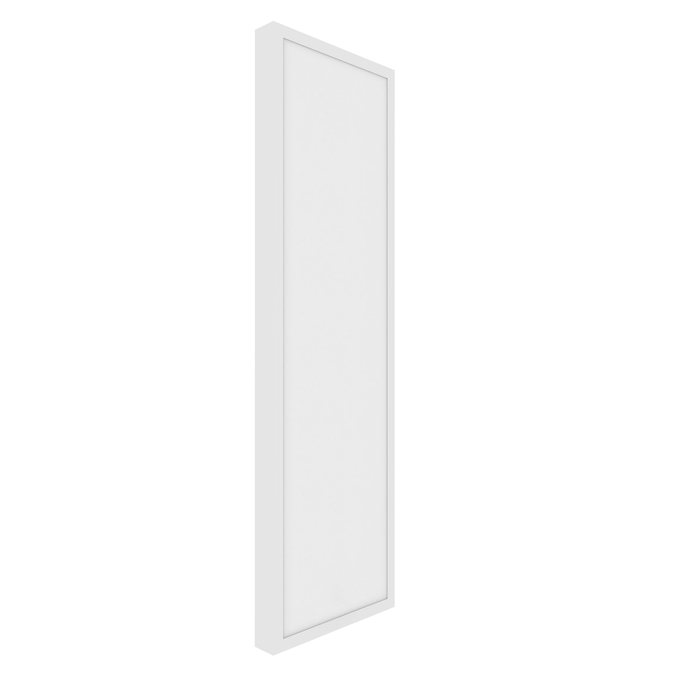

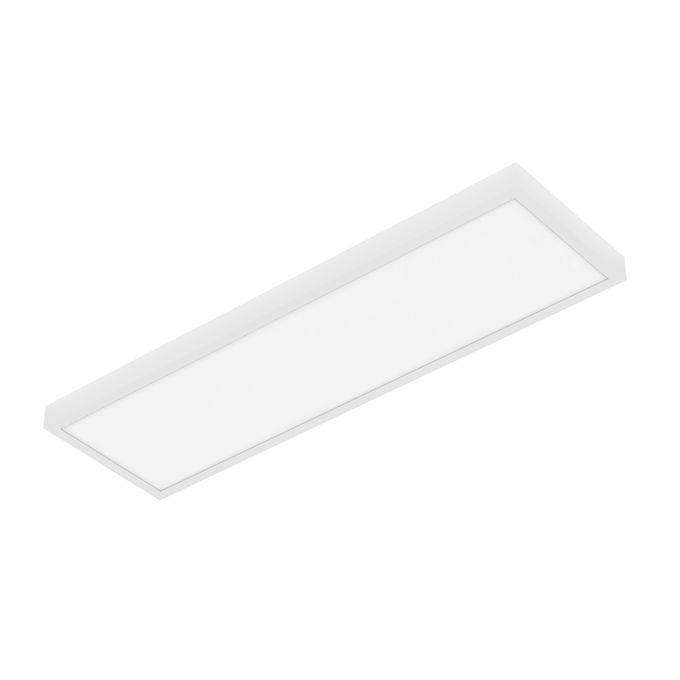

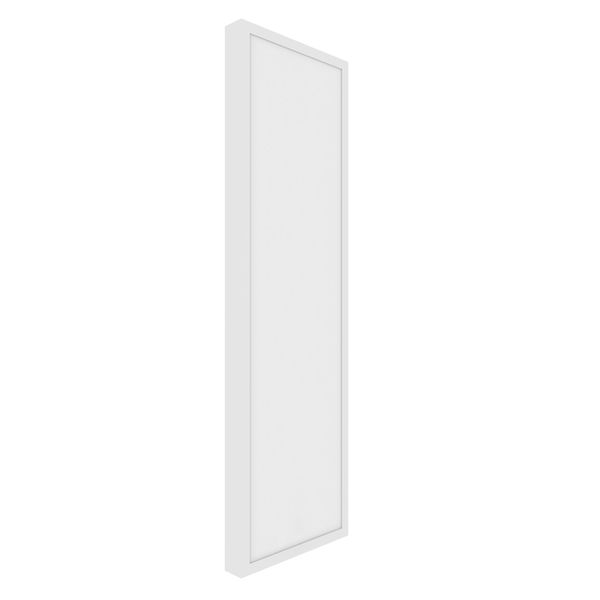

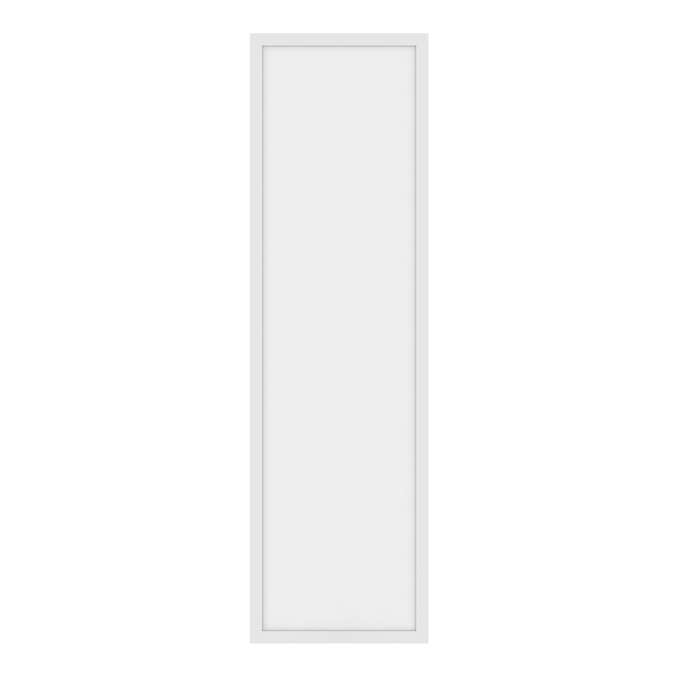

- Rectangular refurbishment luminaire for replacing standard T5 and T8 surface-mounted luminaires
- Enlarged luminaire dimensions to cover mounting marks of existing luminaire
- Highly versatile due to selectable light colors (Multi Select)

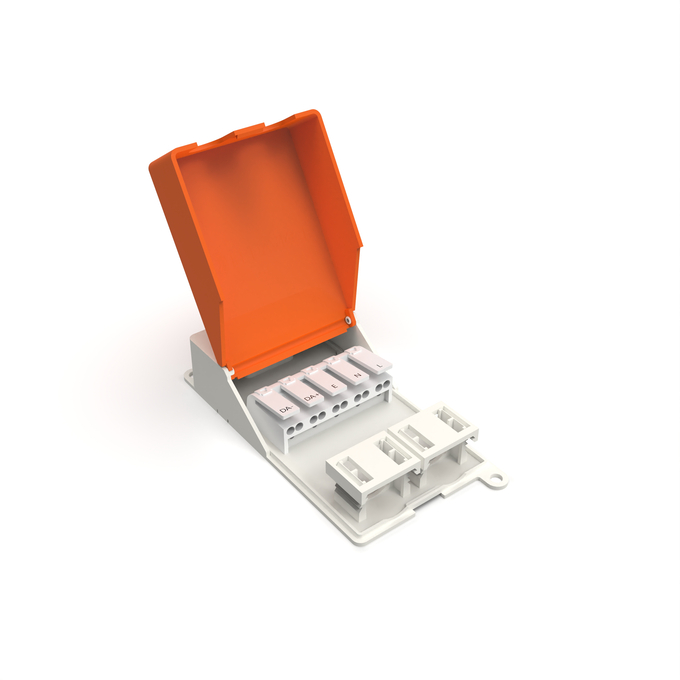

- Through-wiring possible with included connector box
- Easy mounting by single person
- Extended services such as energy monitoring and remote maintenance possible
- Versions with reduced glare (U19) for office applications available
Areas of application
- Offices, conference rooms
- Reception areas, foyers, corridors
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- High color rendering (CRI > 90) with up to 130 lm/W
- Robust one-piece metal frame
- Polystyrene diffuser
- High color consistency: ≤ 3 SDCM
- Suitable for central battery emergency installations acc. to EN 60598-2-22
Equipment / Accessories
- Suspension kit available as separate accessory
Safety advice
- All electrical connections must be made by a qualified person.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
38 W
125 lm/W
Added function
MULTI SELE
Adjustable
No
Ambient temperature range
-10…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
Yes
ECG - Output ripple current
< 5 %
EPD
LEDV-00078-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854731624
Height
69.00 mm
Housing color
White
Inrush current
0.27 A
Inrush current time Th50
34 µs
IoT ready
Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1)
Length
1274.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
130 lm/W
Luminous flux
5000 lm 1)
Luminous flux in emergency operation mode
650 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
47
Max. number of luminaires per miniature circuit breaker C10
29
Max. number of luminaires per miniature circuit breaker C16
47
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type

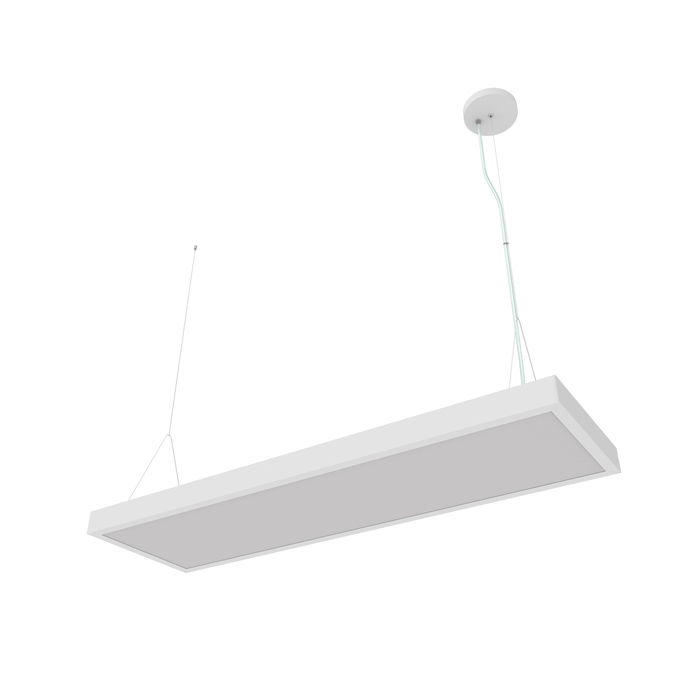

Surface/Suspended
Nominal current
175.000 mA
Nominal voltage
220…240 V
Nominal wattage
38.00 W
Number of switching cycles
50000
Operating mode

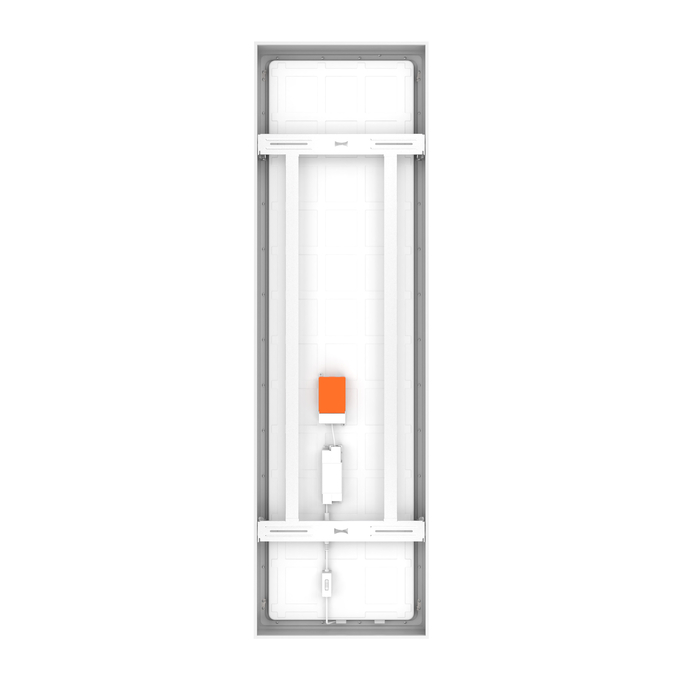

External LED driver
Output current
850 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
4265.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Recommended control gear
DR ZB NF P 45W 220-240V 1A2
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal, 3-POLE (L, N, PE)
Type of dimming
ZIGBEE
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separate
Type of emergency operation test
None
Type of protection
IP20
UGR
< 19
Wattage in emergency operation mode
5 W
Width
373.00 mm
With light source
Yes
