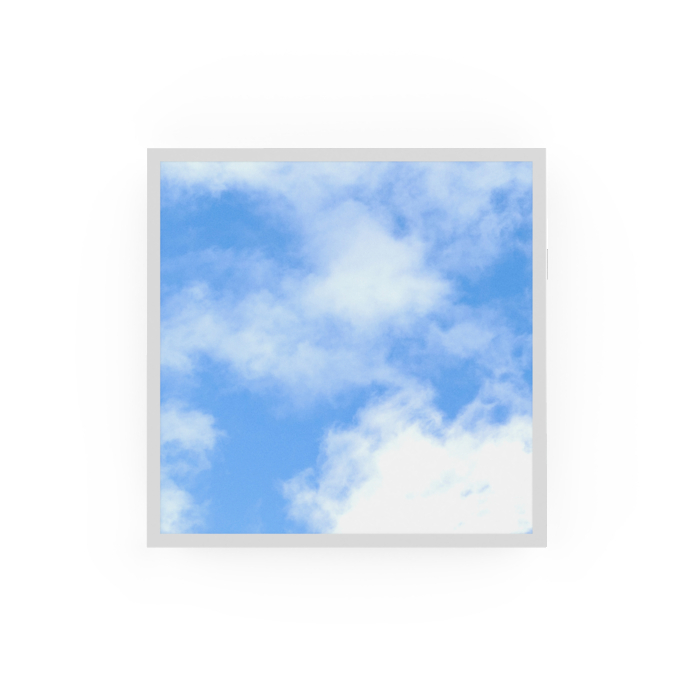

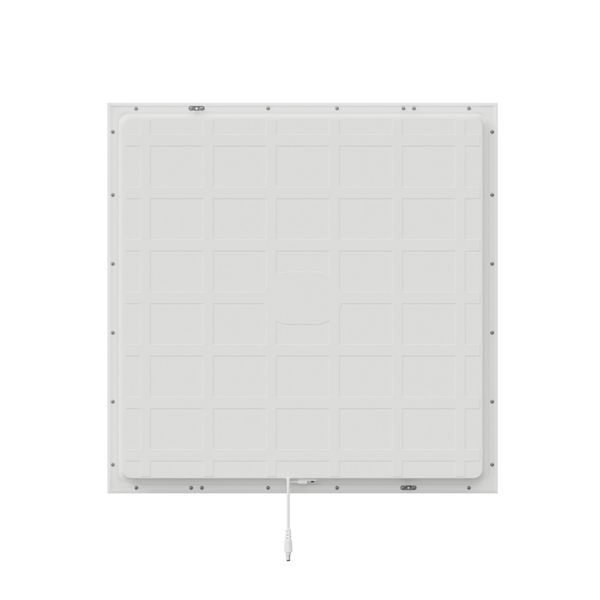

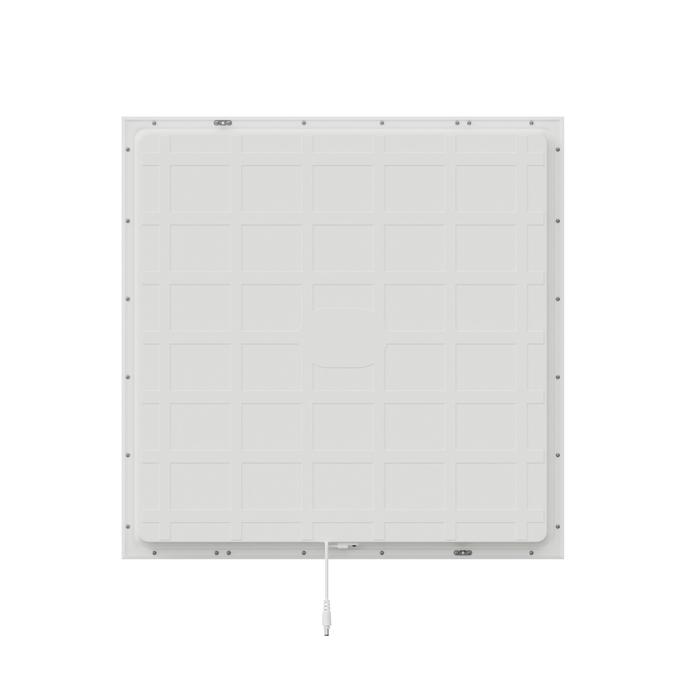

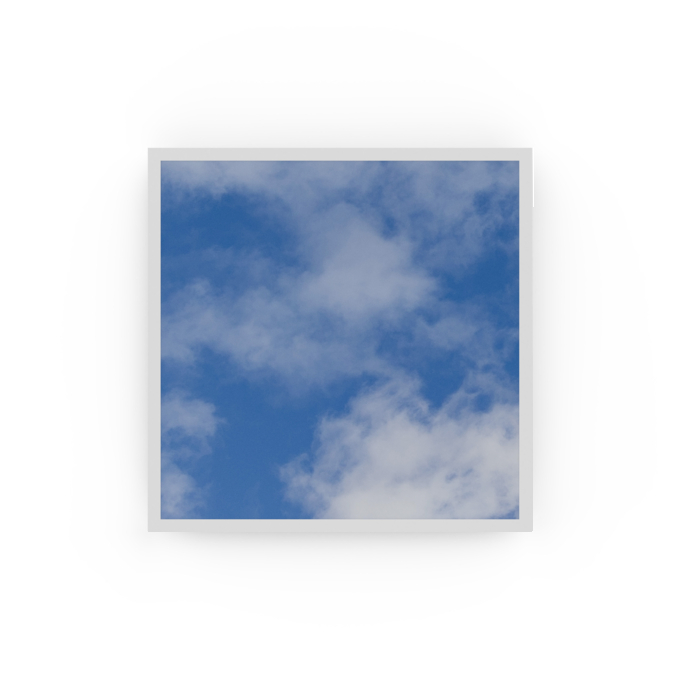

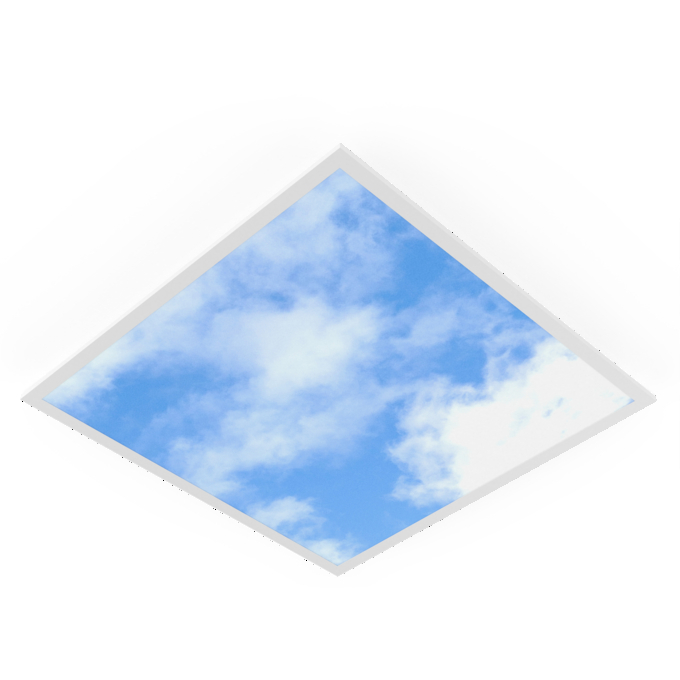

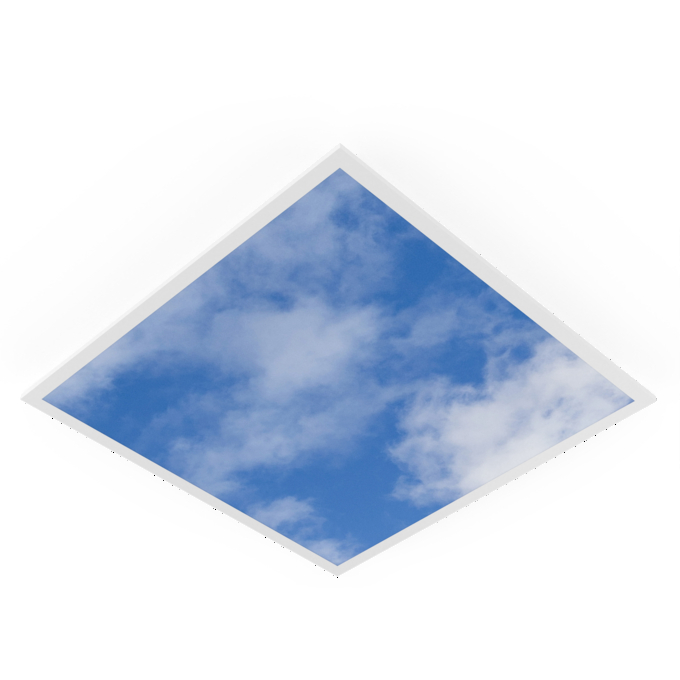

PL PRINT SKY1 DA 625 V 33W
4099854536038
Product benefits
- Brings natural looking sky into buildings
- Luminous ceiling creating an atmosphere that comforts people
- Available as a single panel, set of 4, set of 6 and set of 9
- Other images, customized patterns and logos on request
Areas of application
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
- Lounges, reception areas, foyers, corridors, elevators
- Decorative illumination
Product features
- Extruded aluminum frame, metal housing
- Color coated polystyrene diffuser
- UGR ≤ 22 with a 120° beam angle
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- External DALI-2 driver included
Equipment / Accessories
- Accessories for several mounting options available
- Security brackets preinstalled
- External control gear included
Safety advice
- The individual pattern can have influence on the perceived CRI, color temperature and lumen value.
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
No
Ambient temperature range
-10…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Steel
Color rendering index Ra
80 1)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
Yes
ECG - Height
32 mm
ECG - Length
168 mm
ECG - Output ripple current
< 7 %
ECG - Width
44 mm
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854536038
Height
32.00 mm
Housing color
White
Inrush current
1.7 A
Inrush current time Th50
52 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
620.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W 1)
Luminous flux
3630 lm 1)
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
83
Max. number of luminaires per miniature circuit breaker C10
52
Max. number of luminaires per miniature circuit breaker C16
83
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting length
600 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
600 mm
Nominal current
190.000 mA
Nominal voltage
220…240 V
Nominal wattage
33.00 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1600.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
> 5 sdcm 1)
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Type of connection
Push connector, 2-Pole (L/N)
Type of dimming
DALI-2
Type of protection
IP40/IP20
Width
620.00 mm
With light source
Yes
