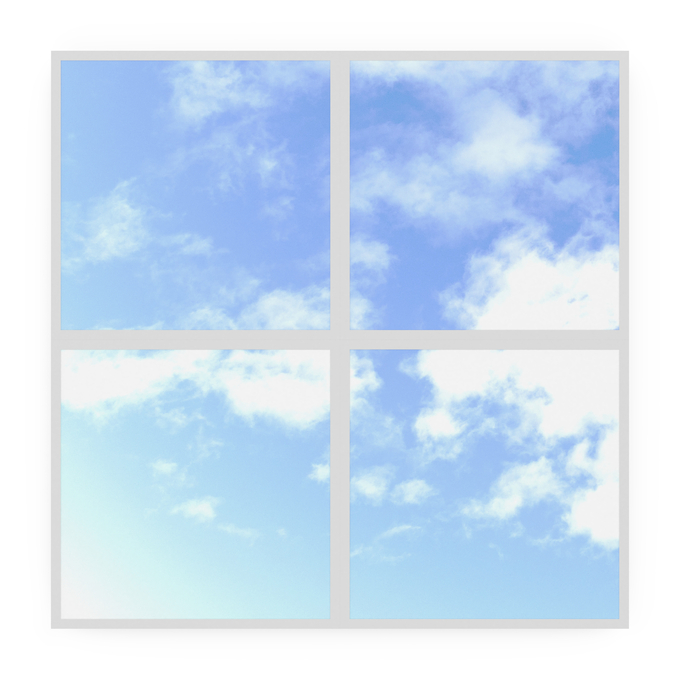

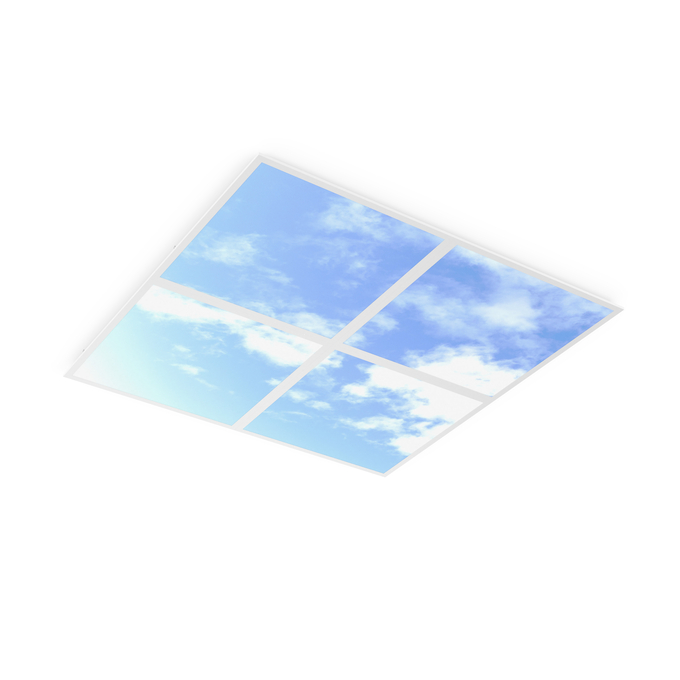

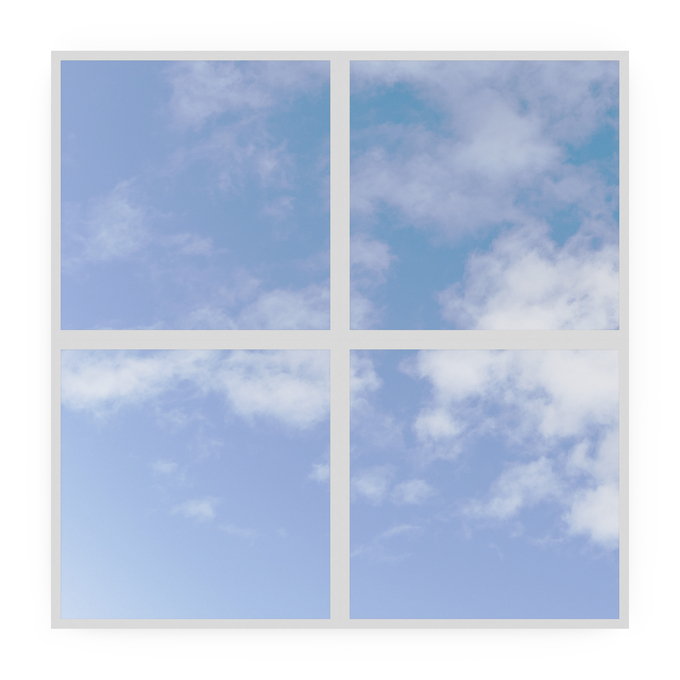

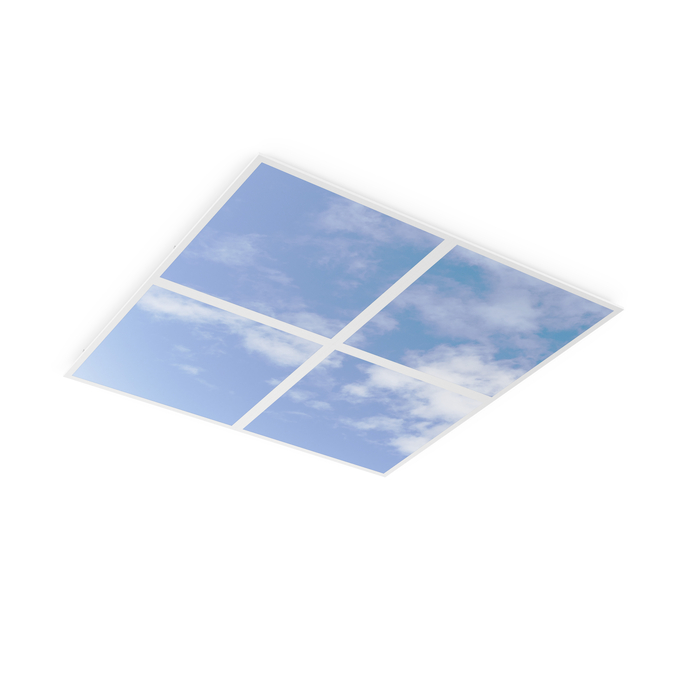

PL PRINT SKY DA 600 V 26W SET4
4058075861756
Product benefits
- Brings natural looking sky into buildings
- Luminous ceiling creating an atmosphere that comforts people
- Available as a single panel, set of 4, set of 6 and set of 9
- Other images, customized patterns and logos on request
- Through-wiring possible
Areas of application
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
- Lounges, reception areas, foyers, corridors, elevators
- Decorative illumination
Product features

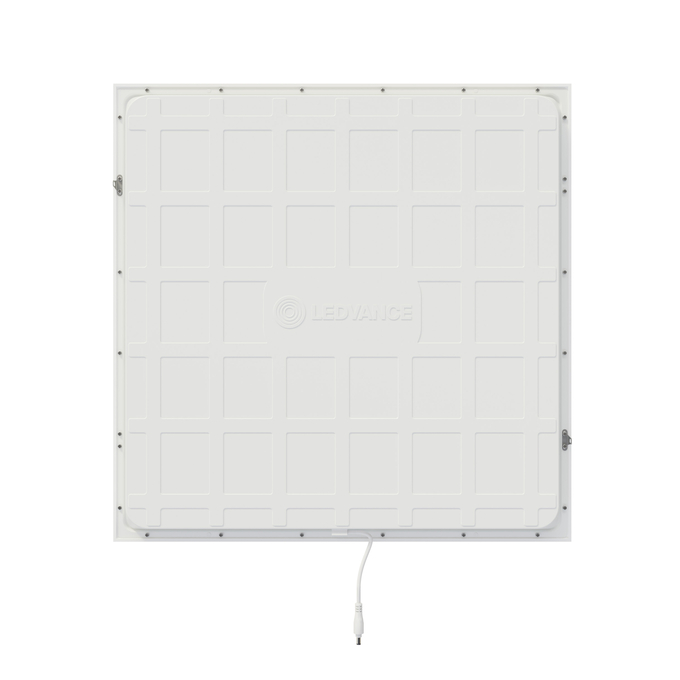

- Extruded aluminum frame, metal housing
- Color coated polystyrene diffuser
- UGR ≤ 22 with a 120° beam angle
- Lifetime (L80/B10): up to 75,000 h (at 25 °C)
- External DALI-2 driver included

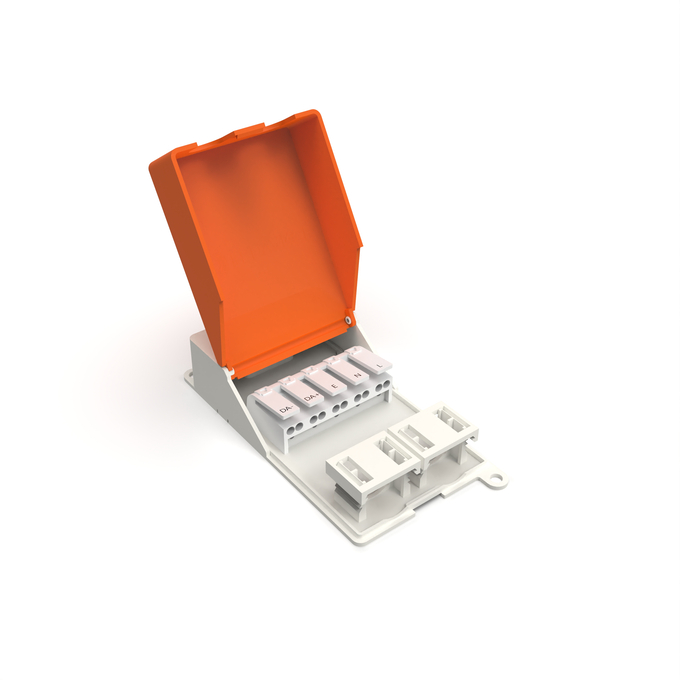

- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
Safety advice
- The individual pattern can have influence on the perceived CRI, color temperature and lumen value.
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
No
Ambient temperature range
-10…+45 °C
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
> 80 1)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
Yes
Dimming range
1…100 %
ECG - Height
25 mm
ECG - Length
105.00 mm
ECG - Output ripple current
0.05 %
ECG - Width
45 mm
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075861756
Height
34.0 mm
Inrush current
5.32 A
Inrush current time Th50
34 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
595.00 mm 1)
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
140 lm/W 1)
Luminous flux
14560 lm 1)
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
47
Max. number of luminaires per miniature circuit breaker C10
29
Max. number of luminaires per miniature circuit breaker C16
47
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50 mm
Mounting length
575 mm
Mounting location
Ceiling
Mounting type
Recessed
Mounting width
575 mm
Nominal current
120 mA
Nominal voltage
220…240 V
Nominal wattage
104 W
Number of switching cycles
100000
Operating mode
External LED driver
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
8000.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Recommended control gear
DR DALI-P-42/220-240/1A0
Replaceable light source
No
Standard deviation of color matching
< 3 sdcm 1)
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Type of connection
Screwless terminal, 5-Pole
Type of emergency operation test
None
Type of protection
IP50/IP20
Width
595.00 mm 1)
With light source
Yes
