PL PRINT SKY 625 V 26W SET9
4058075861978
Product benefits

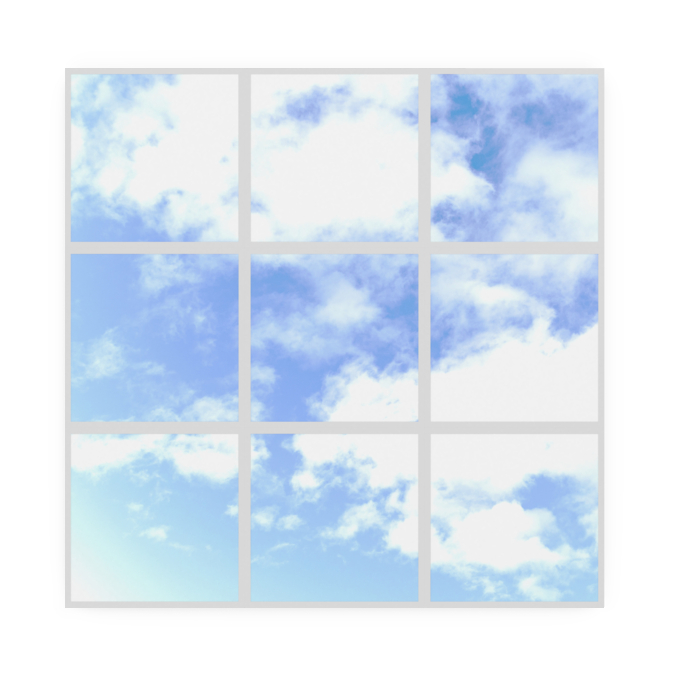

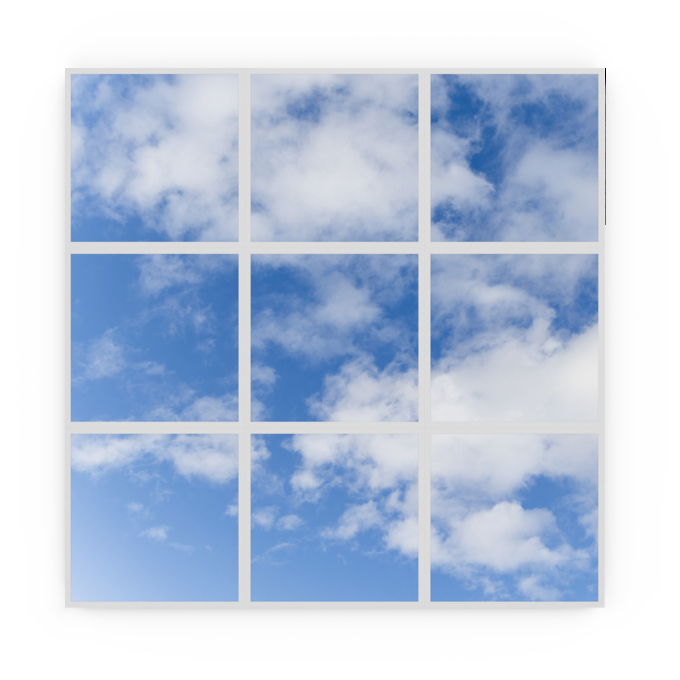

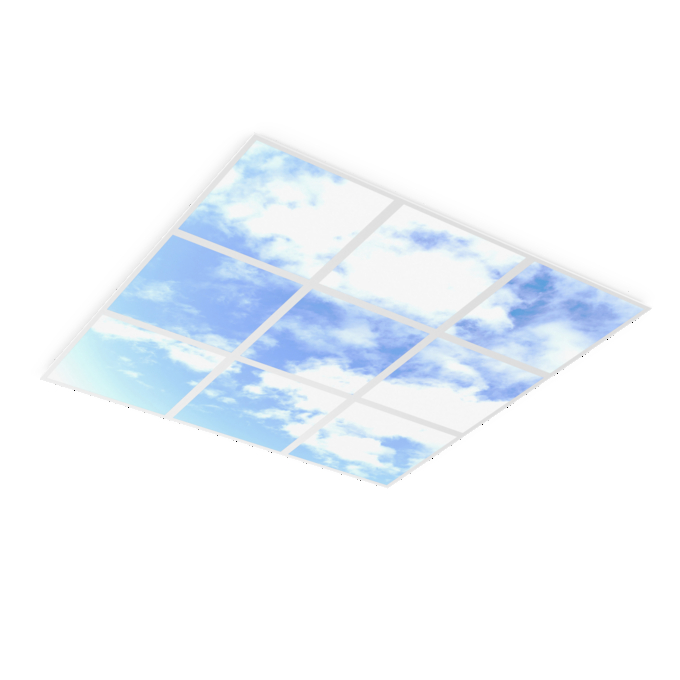

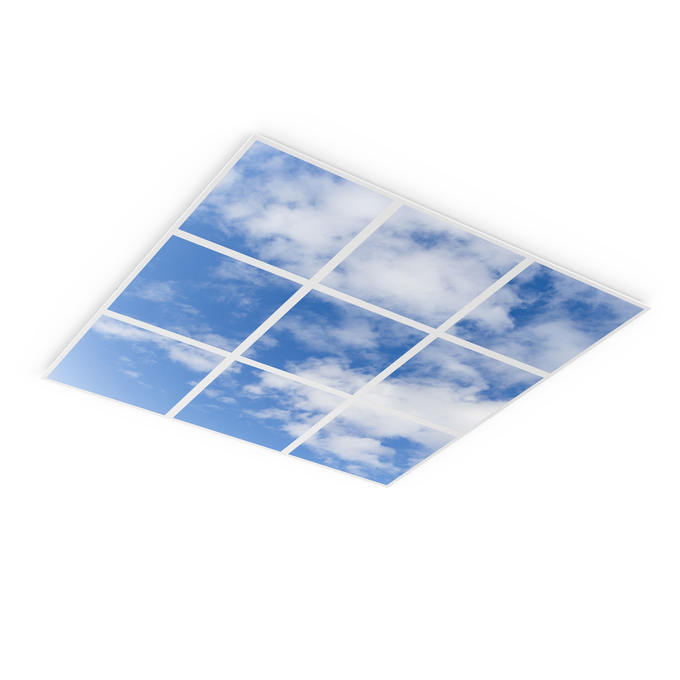

- Brings natural looking sky into buildings
- Luminous ceiling creating an atmosphere that comforts people
- Available as a single panel, set of 4, set of 6 and set of 9
- Other images, customized patterns and logos on request
- External driver with an optional 3-pole through-wiring feature
- Version with DALI ECG available
- Through-wiring possible
Areas of application
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
- Lounges, reception areas, foyers, corridors, elevators
- Decorative illumination
Product features

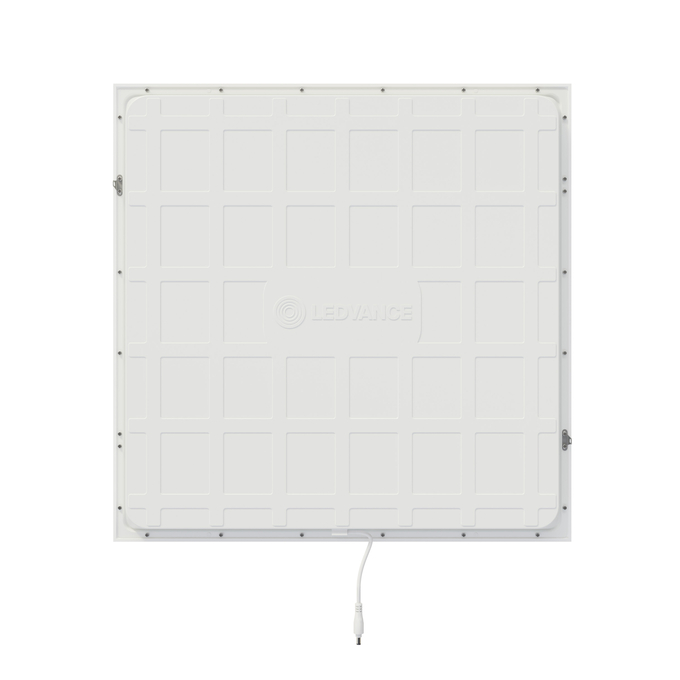

- Extruded aluminum frame, metal housing
- Color coated polystyrene diffuser
- UGR ≤ 22 with a 120° beam angle
- Lifetime (L80/B10): up to 75,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Security brackets preinstalled

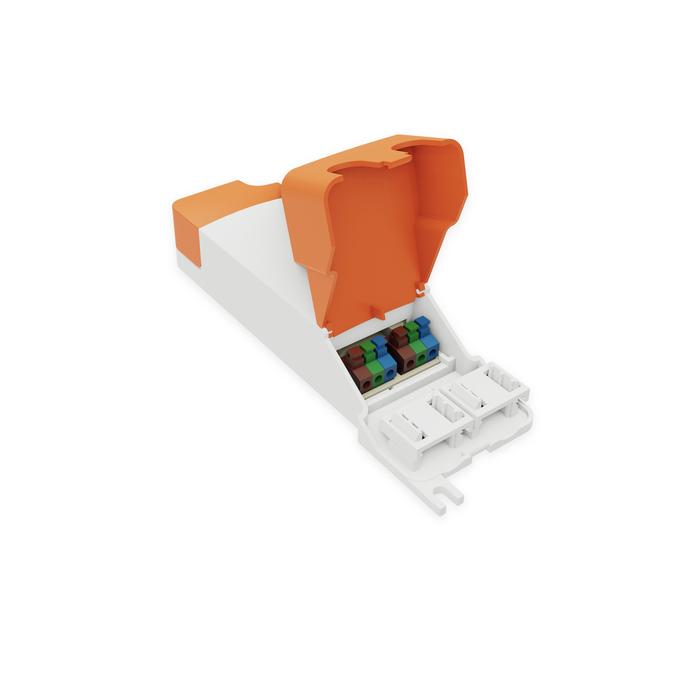

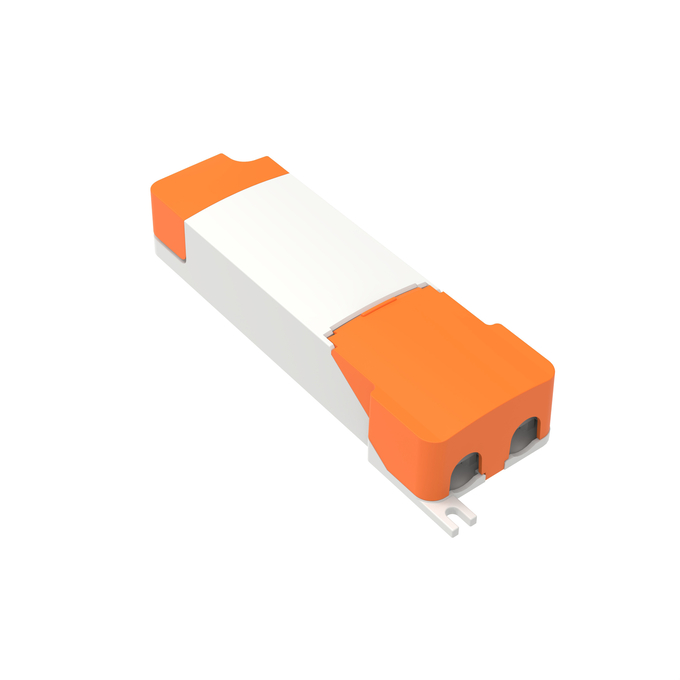

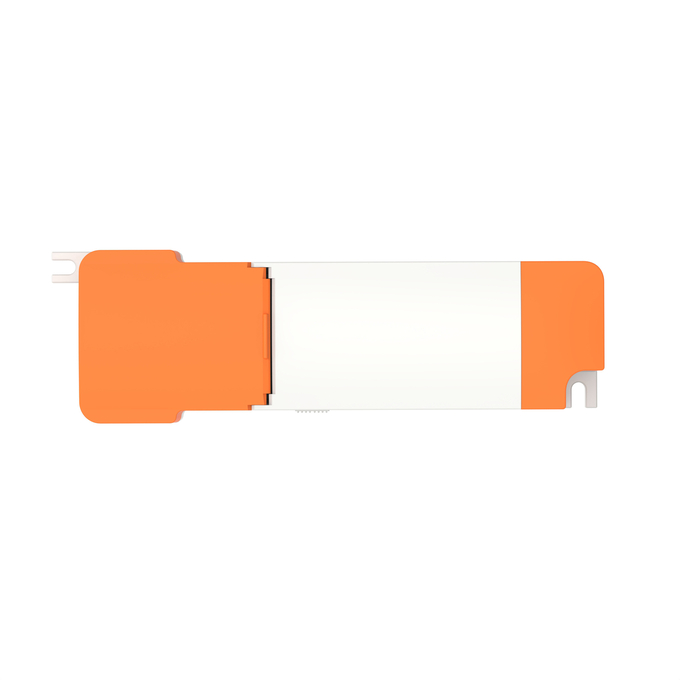

- External control gear included
Safety advice
- The individual pattern can have influence on the perceived CRI, color temperature and lumen value.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
-10…+45 °C
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
> 80 1)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
ECG - Height
30.00 mm
ECG - Length
175.00 mm
ECG - Output ripple current
0.05 %
ECG - Width
55.00 mm
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075861978
Height
34.0 mm
Inrush current
28 A
Inrush current time Th50
95 µs
Length
620 mm 1)
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
140 lm/W 1)
Luminous flux
32760 lm 1)
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
25
Max. number of luminaires per miniature circuit breaker C10
21
Max. number of luminaires per miniature circuit breaker C16
34
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50 mm
Mounting length
600 mm
Mounting location
Ceiling
Mounting type
Recessed
Mounting width
600 mm
Nominal current
120 mA
Nominal voltage
220…240 V
Nominal wattage
234 W
Number of switching cycles
100000
Operating mode
External LED driver
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
22000.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Recommended control gear
DR DALI-P-42/220-240/1A0
Replaceable light source
No
Standard deviation of color matching
< 3 sdcm 1)
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Type of connection
Screw terminal, 3-Pole
Type of emergency operation test
None
Type of protection
IP50/IP20
Width
620 mm 1)
With light source
Yes
