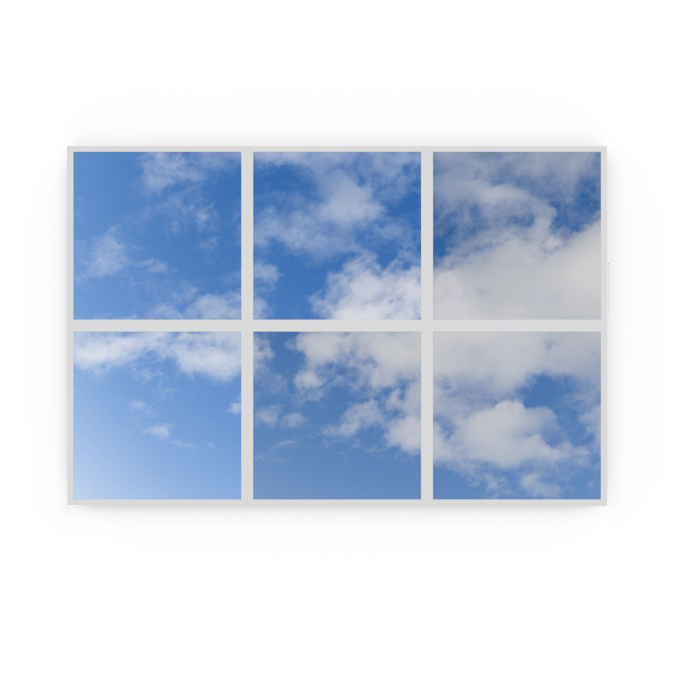

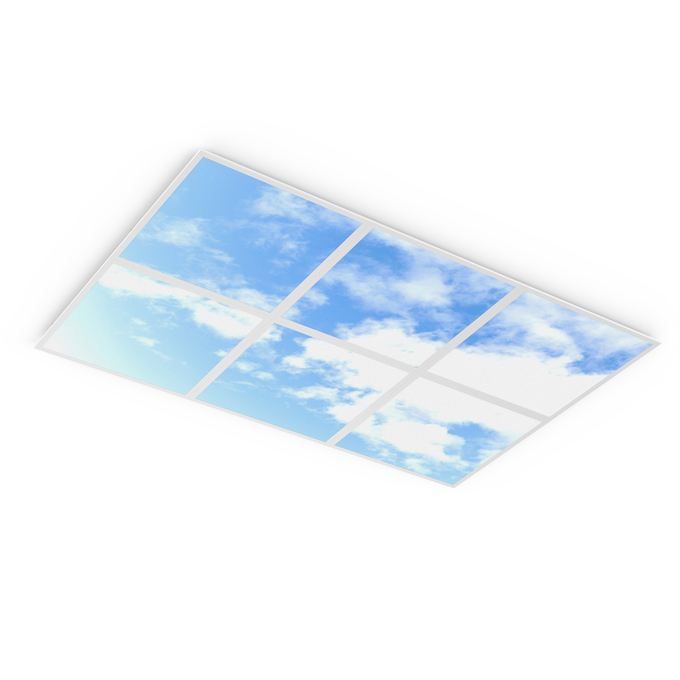

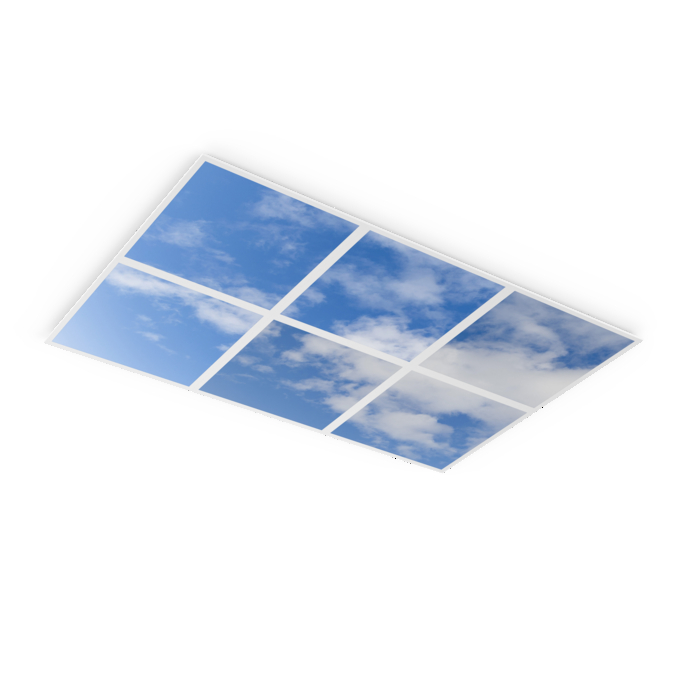

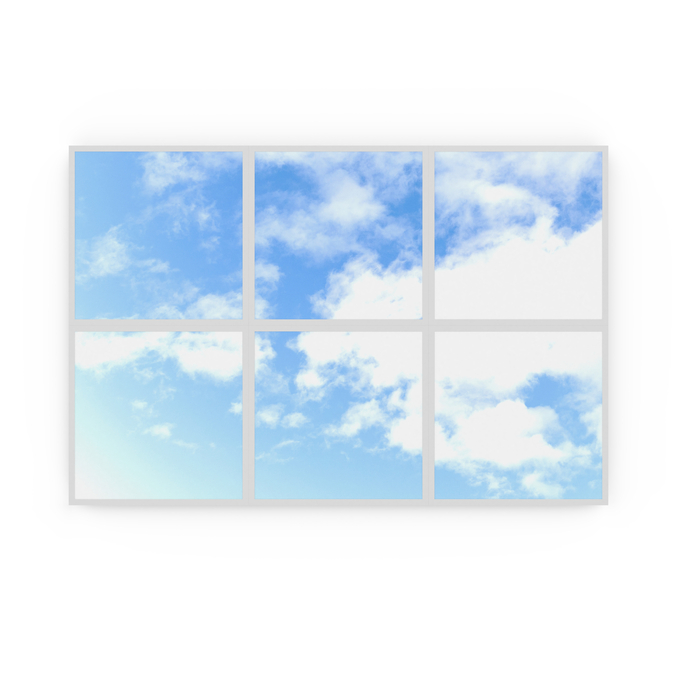

PL PRINT SKY 600 V 33W SET6
4099854538377
Product benefits
- Brings natural looking sky into buildings
- Luminous ceiling creating an atmosphere that comforts people
- Available as a single panel, set of 4, set of 6 and set of 9
- Other images, customized patterns and logos on request

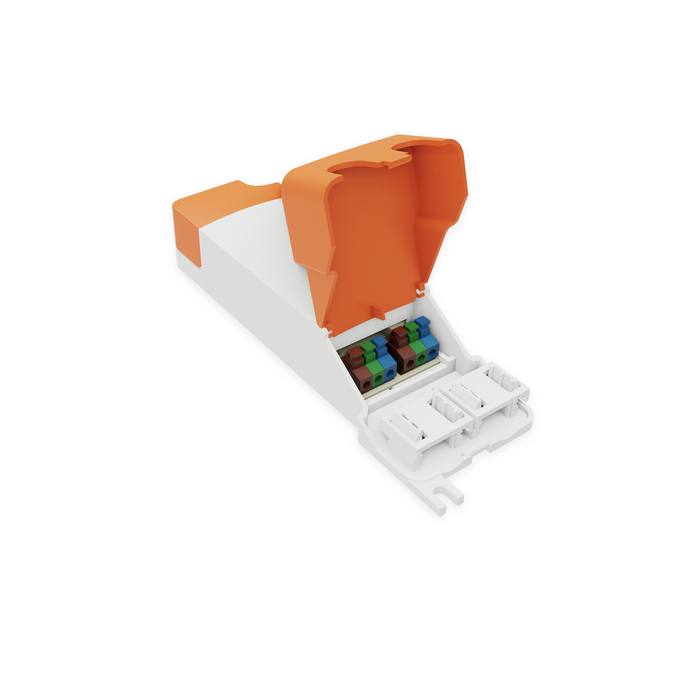

- External driver with an optional 3-pole through-wiring feature
- Version with DALI ECG available
Areas of application
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
- Lounges, reception areas, foyers, corridors, elevators
- Decorative illumination
Product features
- Extruded aluminum frame, metal housing
- Color coated polystyrene diffuser
- UGR ≤ 22 with a 120° beam angle
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled

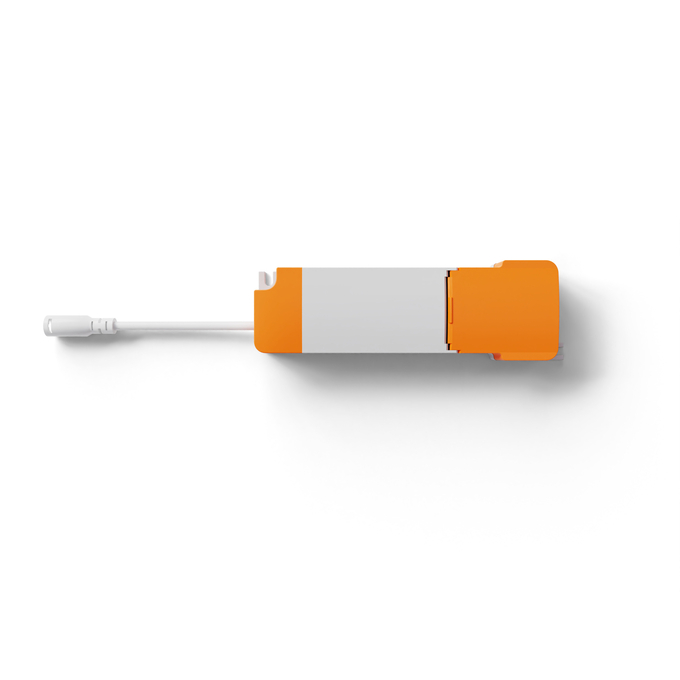

- External control gear included
Safety advice
- The individual pattern can have influence on the perceived CRI, color temperature and lumen value.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
-10…+45 °C
Ball shot safe
No
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
80 1)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
ECG - Height
30.00 mm
ECG - Length
175.00 mm
ECG - Output ripple current
< 7 %
ECG - Width
55.00 mm
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854538377
Height
32.00 mm
Housing color
White
Inrush current
28 A
Inrush current time Th50
52 µs
Length
595.00 mm 1)
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W 1)
Luminous flux
21870 lm 1)
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
61
Max. number of luminaires per miniature circuit breaker C10
48
Max. number of luminaires per miniature circuit breaker C16
78
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting length
575 mm
Mounting location
Ceiling
Mounting type
Recessed
Mounting width
575 mm
Nominal current
150 mA
Nominal voltage
220…240 V
Nominal wattage
198 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
15800.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Replaceable light source
No
Standard deviation of color matching
> 5 sdcm 1)
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Type of connection
Push connector, 2-Pole (L/N)
Type of protection
IP40/IP20
Width
595 mm 2)
With light source
Yes
