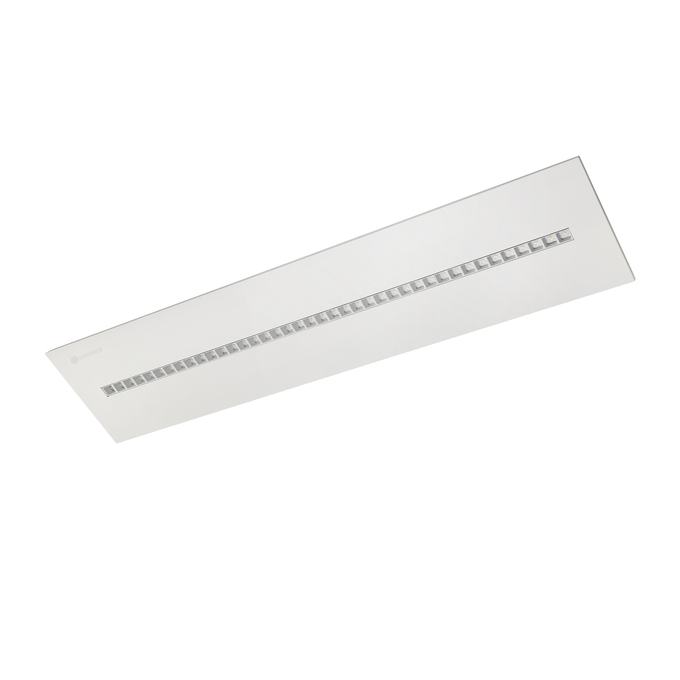

PL INV 1200 DA P 38W ML 940 U19 WT
4099854736360
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)

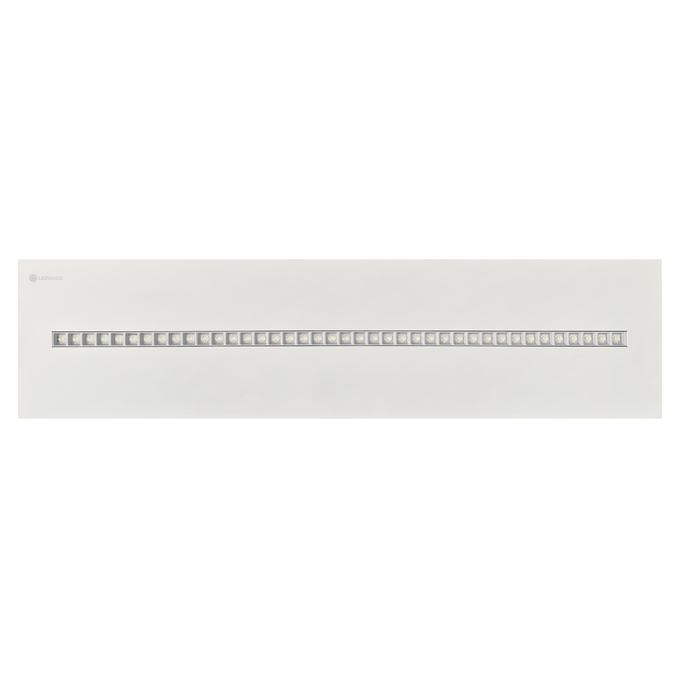

- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
- High performance with CRI 90 and up to 140 lm/W
- Highly versatile due to selectable lumen levels (Multi Select)
- High color consistency with SDCM 3

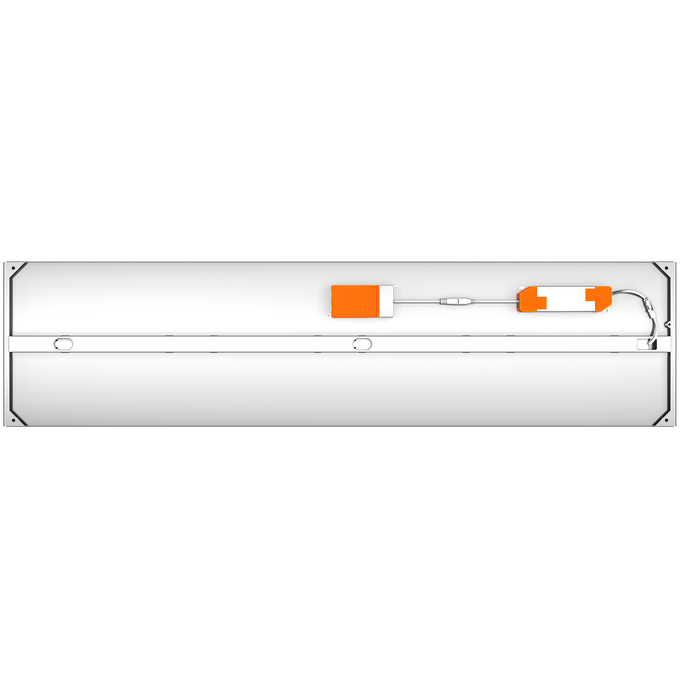

- External driver for extended flexibility and easy installation
- Through-wiring possible with included connector box
- Multiple mounting options thanks to different accessories
- Suitable for central battery emergency installations acc. to EN 60598-2-22
Areas of application
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, education, public buildings
- Conference rooms
- Suitable for recessed ceiling systems with grid size of 1200 x 300 mm
Product features
- Low-carbon steel housing, available in white and black color
- Includes EVERLOOP: Convenient replacement of light source and LED driver
- IoT-ready luminaire with DALI-2 technology
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Connector box with 5-pole terminal included
- Security rope for luminaire included
- External control gear included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
References / Links
- For Guarantee see
24 W
140 lm/W
29 W
138 lm/W
34 W
137 lm/W
38 W
136 lm/W
Added function
MULTI SELE
Adjustable
No
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Steel
Color rendering index Ra
≥90
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Steel
Dimmable
Yes
ECG - Height
25 mm
ECG - Length
164 mm
ECG - Output ripple current
≤ 3 %
ECG - Width
45 mm
EPD
LEDV-00079-V01.01-EN
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854736360
Height
22.00 mm
Housing color
White
Inrush current
5.32 A
Inrush current time Th50
34 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1195.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9), Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
136 lm/W / 137 lm/W / 138 lm/W / 140 lm/W
Luminous flux
5150 lm / 4650 lm / 4000 lm / 3350 lm
Luminous flux in emergency operation mode
860 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
47
Max. number of luminaires per miniature circuit breaker C10
29
Max. number of luminaires per miniature circuit breaker C16
47
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50 mm
Mounting length
1175 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
275 mm
Nominal current
170mA/145mA/125mA/105 mA
Nominal voltage
220…240 V
Nominal wattage
38 W / 34 W / 29 W / 24 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
800mA / 700mA / 600mA / 500 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.9
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
3400.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9003
Recommended control gear
DR DALI-P-42/220-240/1A0
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP20
UGR
< 19
Wattage in emergency operation mode
5.5 W
Width
295.00 mm
With light source
Yes
