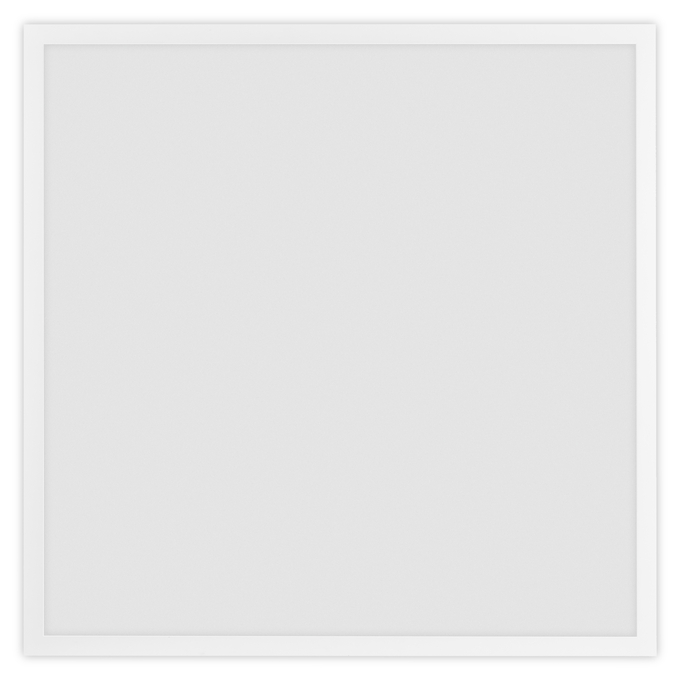

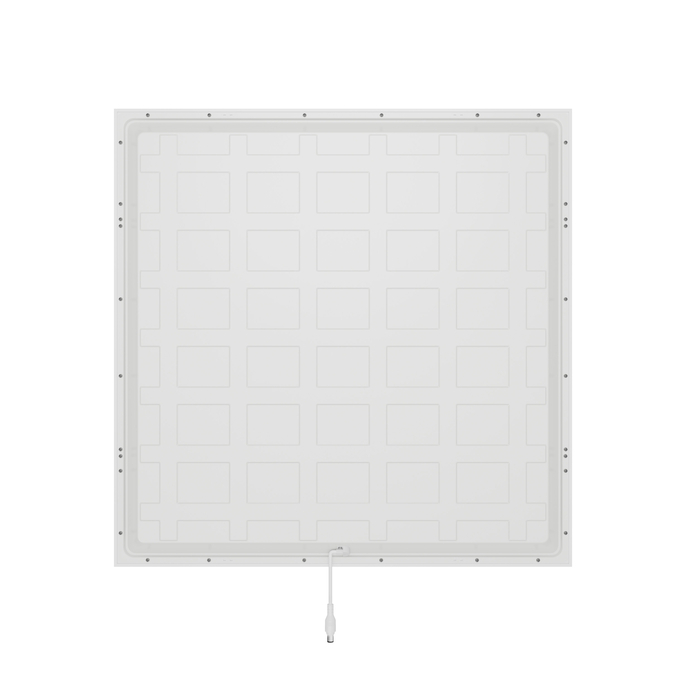

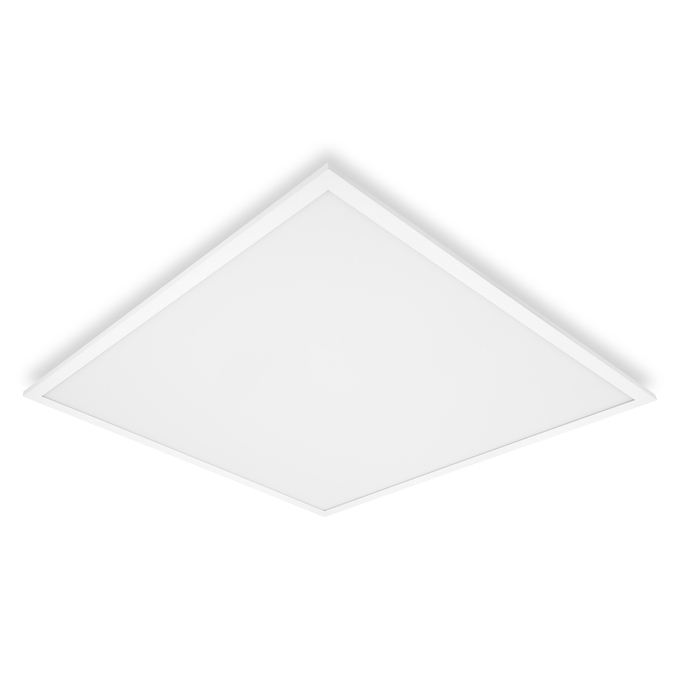

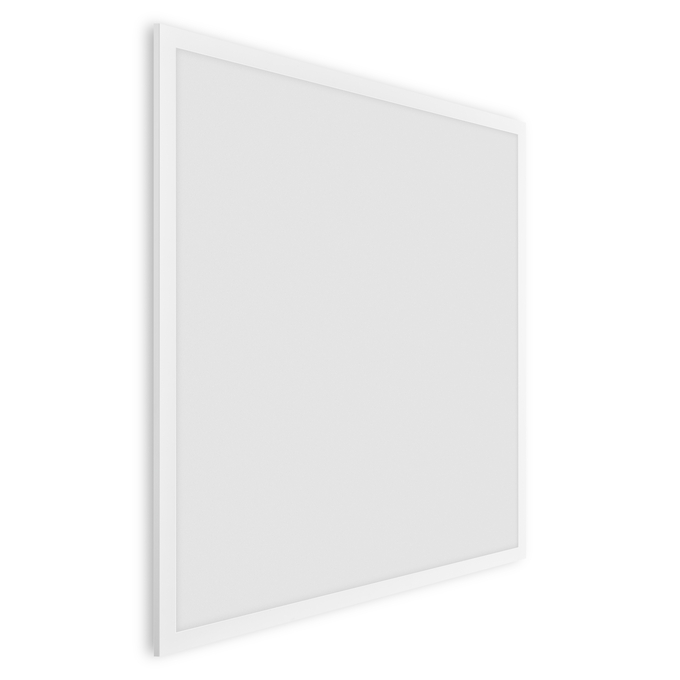

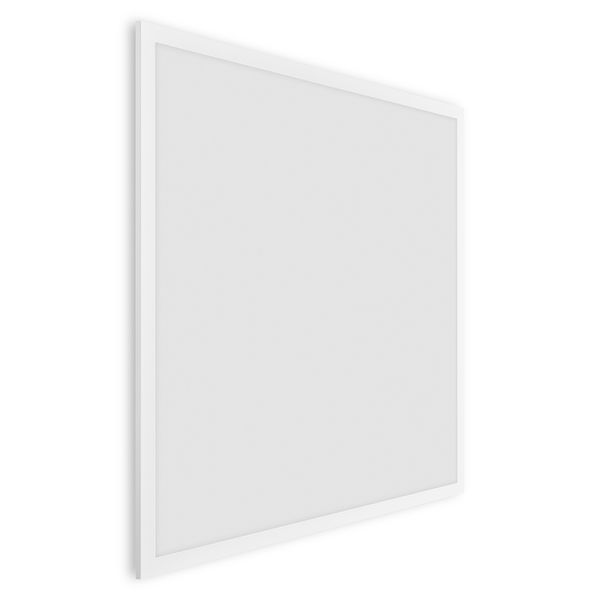

PL FLEX 600 S 30W 840 PS
4099854276484
Product benefits
- Highly versatile due to selectable lumen steps (Multi Lumen) on the driver and up to 4860 lm
- Energy savings thanks to high system efficacy: up to 169 lm/W
- High color consistency with SDCM 3

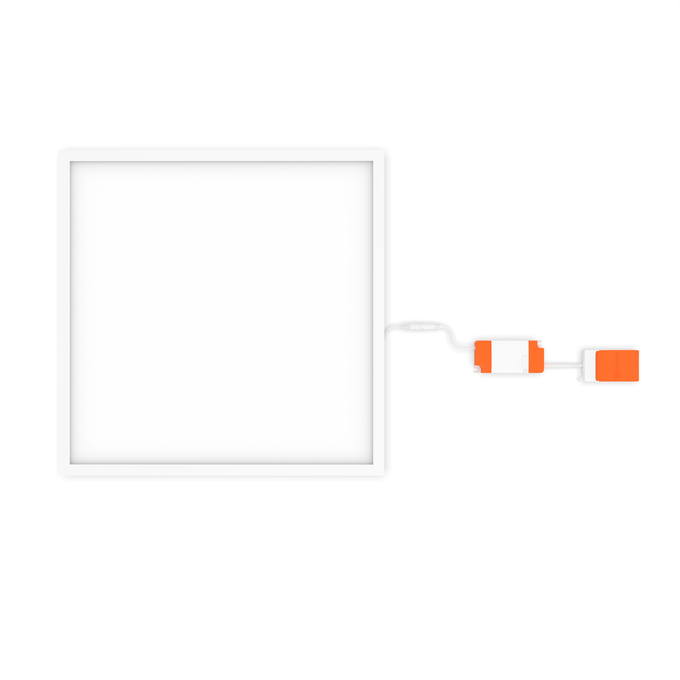

- External driver for extended flexibility and easy installation
- Low flicker light thanks to special electronic control gear
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- 7 years guarantee
Areas of application
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
Product features
- Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
- Suitable for central battery emergency installations acc. to EN 60598-2-22
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Extruded aluminum frame, metal housing
- Polystyrene diffuser
- Luminaire versions with IoT-ready DALI-2 driver available
Equipment / Accessories
- Accessories for several mounting options available

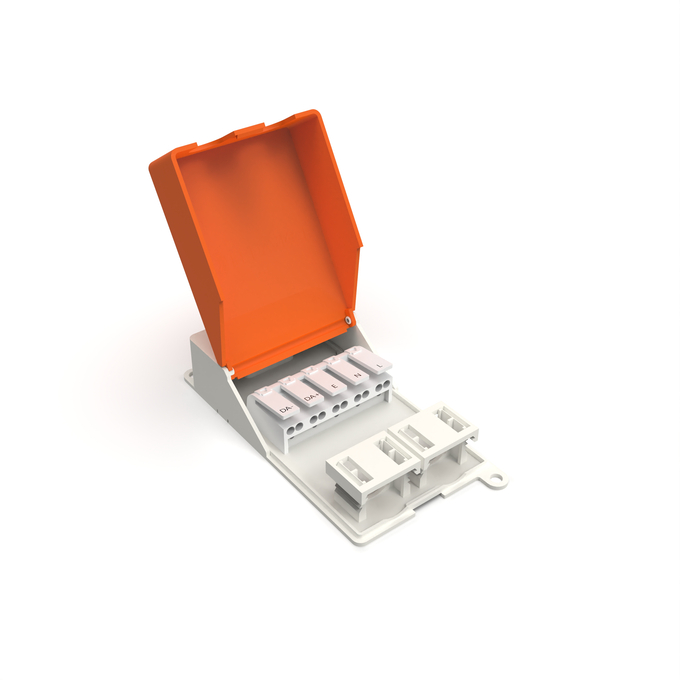

- Connector box with 5-pole terminal included
- Security rope for luminaire included
- Security brackets preinstalled

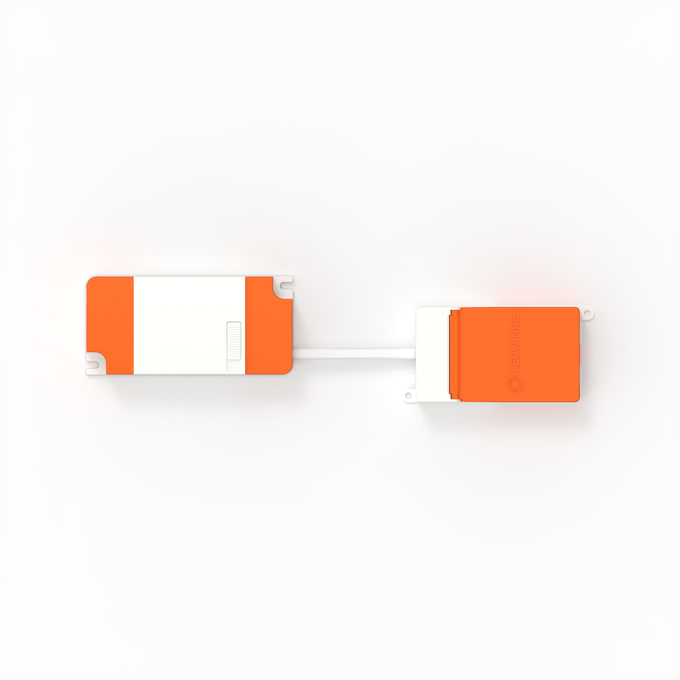

- External control gear included
- Suitable for use with separate Emergency Conversion Box
- Serviceable luminaire: Upgrades and replacements available
References / Links
- For Guarantee see
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-10…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
ECG - Height
30 mm
ECG - Length
125 mm
ECG - Output ripple current
< 5 %
ECG - Width
60 mm
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854276484
Height
32.00 mm
Housing color
White
Inrush current
11.1 A
Inrush current time Th50
600 µs
Length
595.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
162 lm/W / 165 lm/W / 167 lm/W / 169 lm/W
Luminous flux
4860 lm / 4130 lm / 3510 lm / 2880 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
12
Max. number of luminaires per miniature circuit breaker C10
13
Max. number of luminaires per miniature circuit breaker C16
21
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50 mm
Mounting length
595.00 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
595.00 mm
Nominal current
140.000 mA
Nominal voltage
220…240 V
Nominal wattage
30 W / 25 W / 21 W / 17 W
Number of switching cycles
100000
Operating mode
External LED driver
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1500.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Recommended control gear
DR DS-P-30/220-240/700 PL FLEX 600
Replaceable light source
No
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separate
Type of protection
IP40/IP20
Width
595.00 mm
With light source
Yes
