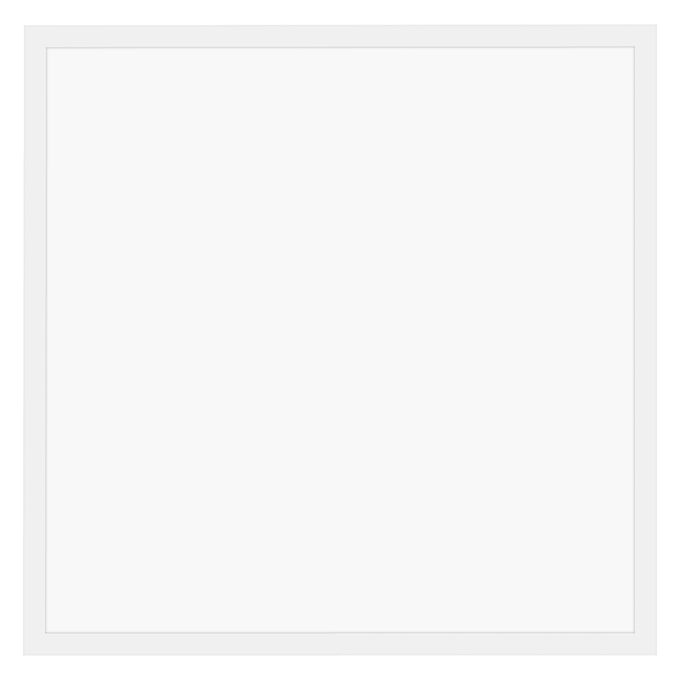

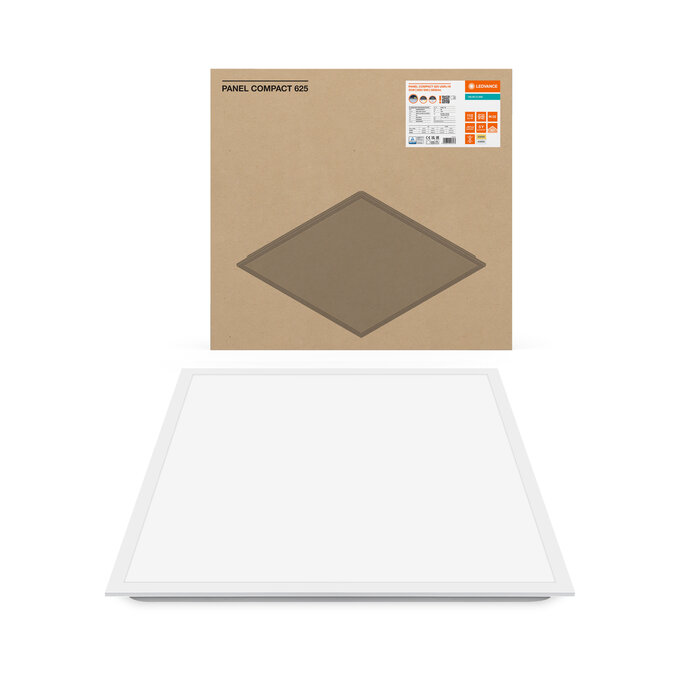

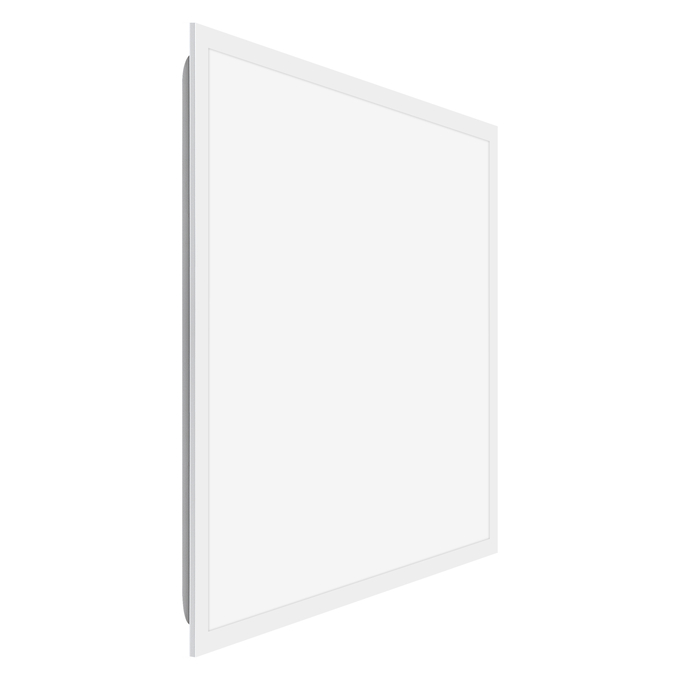

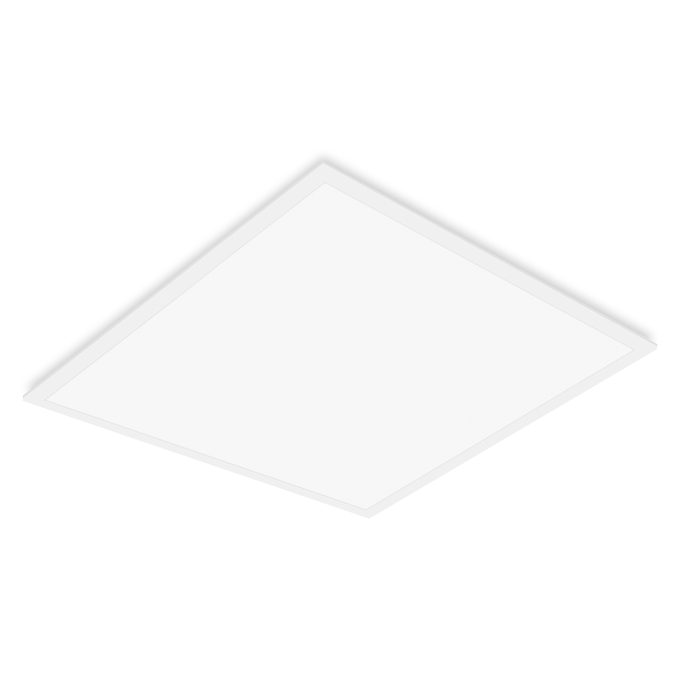

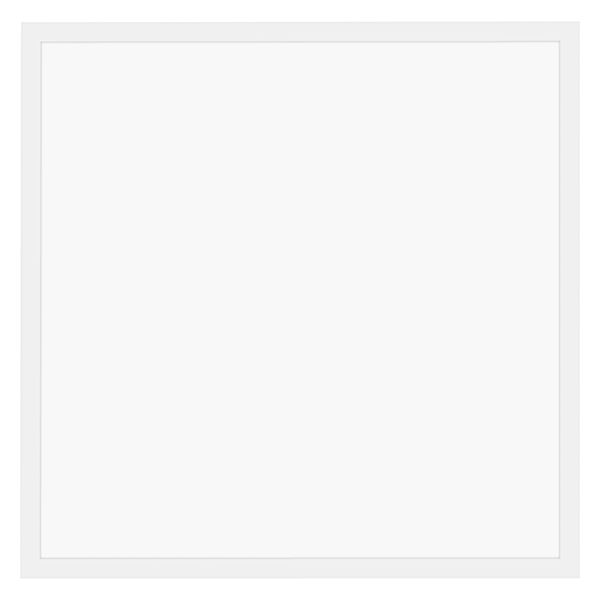

PL COMP 625 V 35W 830 840 U19 PS
4099854206573
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select)
- Good glare reduction (UGR < 19)
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 110 lm/W
- External driver for extended flexibility and easy installation
- Versions with DALI ECG available
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories

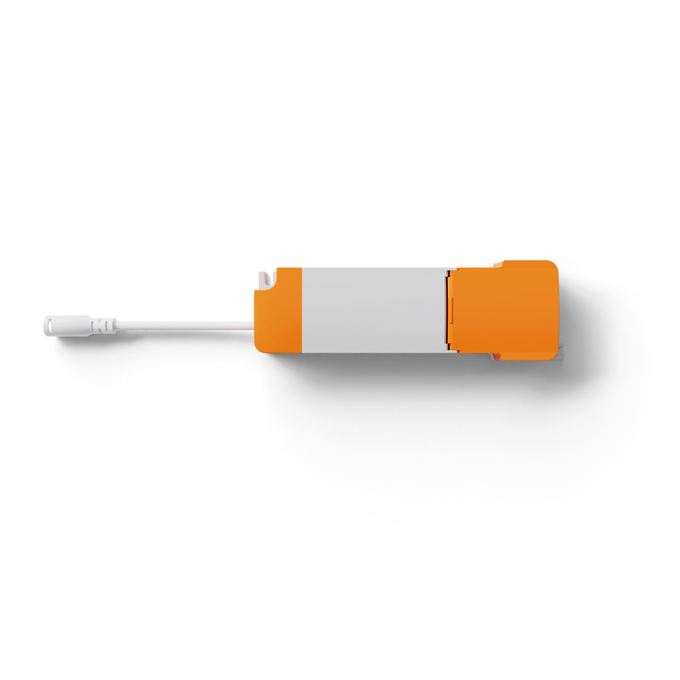

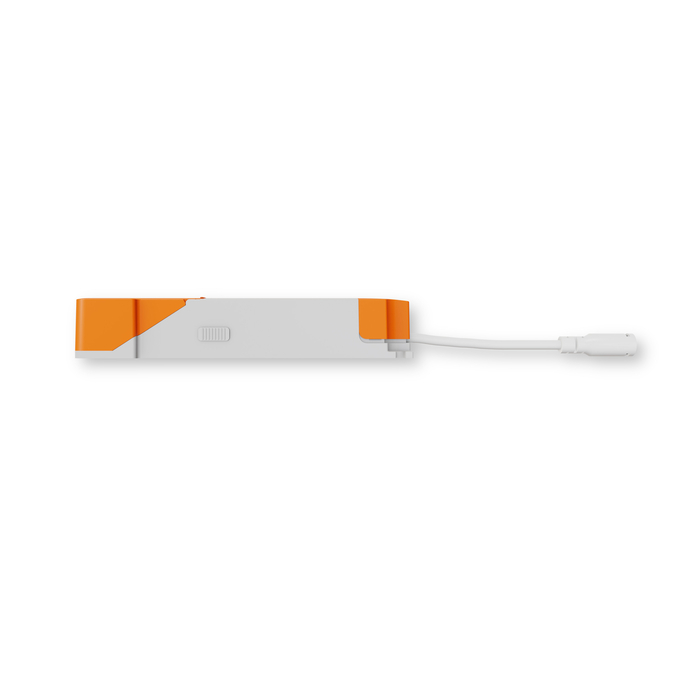

- External control gear included with a switch to select preferred lumen level
- Separate switch preinstalled to choose preferred CCT during installation
- Suitable for use with separate Emergency Conversion Box
- Accessories for several mounting options available
- Security brackets preinstalled
References / Links
- For Guarantee see
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-10…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
ECG - Height
30,0 mm
ECG - Length
116.7 mm
ECG - Output ripple current
< 5 %
ECG - Width
44 mm
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854206573
Height
32.00 mm
Housing color
White
Inrush current
12.3 A
Inrush current time Th50
52 µs
Length
620.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W
Luminous flux
3300 lm / 3850 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
61
Max. number of luminaires per miniature circuit breaker C10
48
Max. number of luminaires per miniature circuit breaker C16
78
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting length
600 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
595.00 mm
Nominal current
170.000 mA
Nominal voltage
220…240 V
Nominal wattage
35.0 W / 30 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
730 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1900.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Recommended control gear
LEDV DR DALI-P-44/220-240/1050
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 10 %

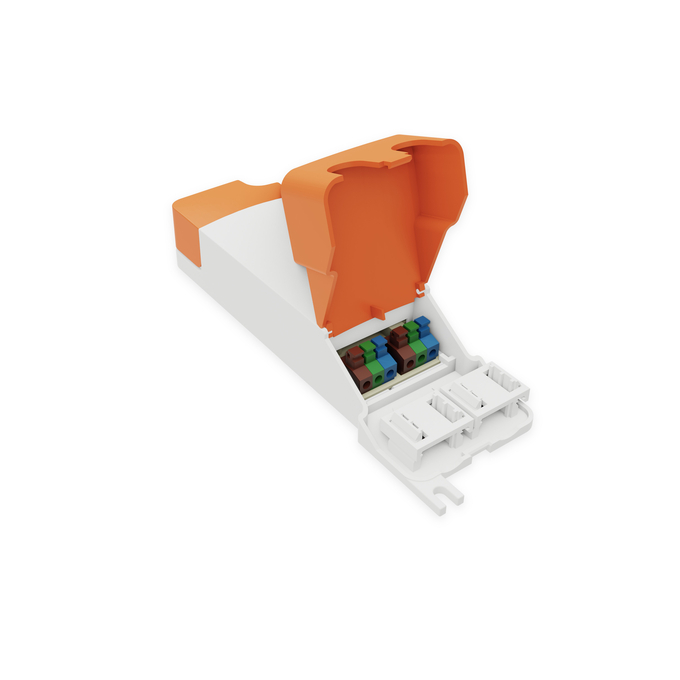

Type of connection
Screwless terminal, 2-Pole (L, N)
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separate
Type of protection
IP40~IP20
UGR
< 19
Width
620.00 mm
With light source
Yes
