PL COMP 625 V 30W ML 93040 U19
4099854739323
Product benefits
- Highly versatile due to selectable lumen levels and light colors (Multi Select)
- Energy savings thanks to high system efficacy: up to 140 lm/W
- High lumen output with up to 4200 lm (3 levels selectable)
- High color consistency with SDCM 3
- Versions with reduced glare (U19) for office applications and CRI 90 versions available
- Through-wiring possible
- Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
Areas of application
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
Product features
- Extruded aluminum frame, metal housing
- Polystyrene diffuser
- Lifetime (L80/B10): up to 75,000 h (at 25 °C)
- 3-pole terminal block, cable cross section up to 3 x 1.5 mm²
- Type of protection: IP50 (panel luminaire), IP20 (driver)
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled

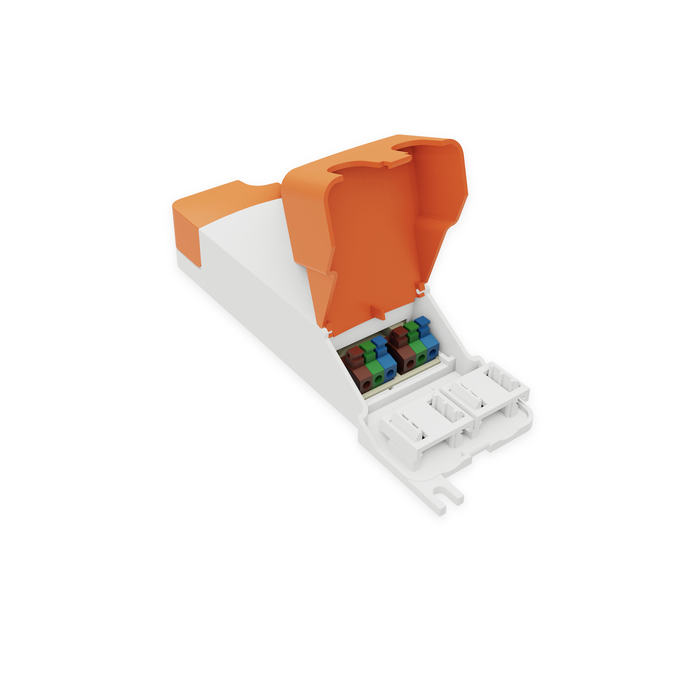

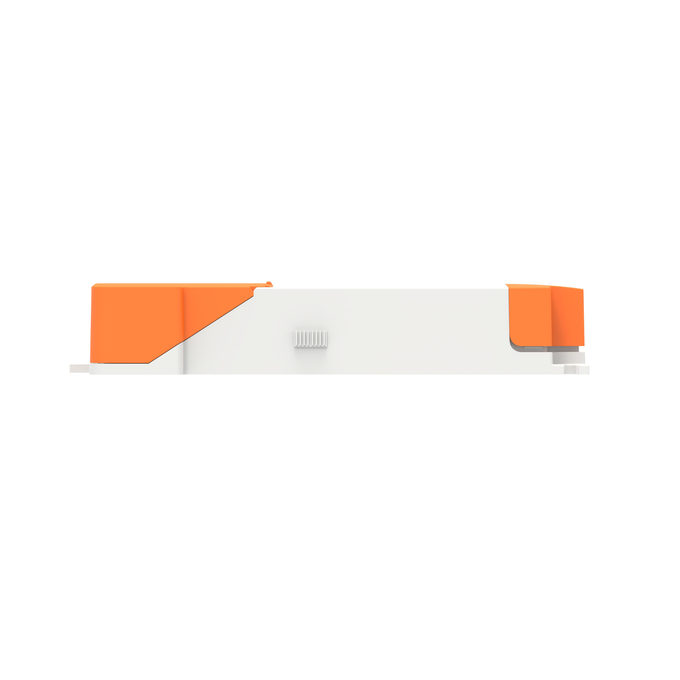

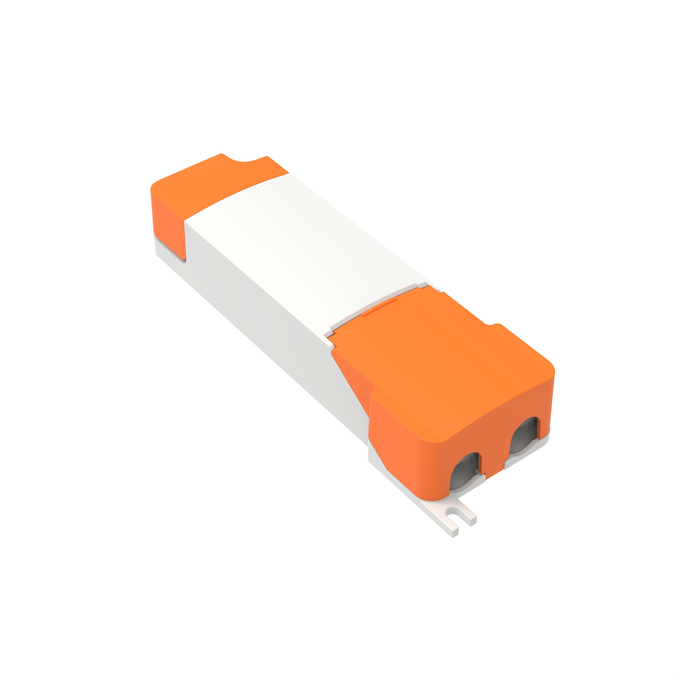

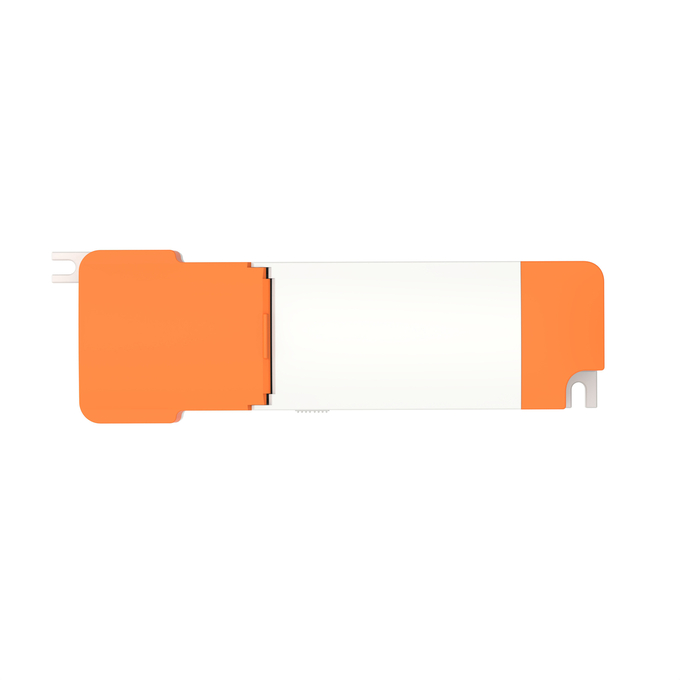

- External control gear included
- Suitable for use with separate Emergency Conversion Box
- Replacement driver separately available
Safety advice
- All electrical connections must be made by a qualified person.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
22 W
140 lm/W
26 W
140 lm/W
30 W
140 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-10…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polystyrene (PS)
Dimmable
No
ECG - Height
30.00 mm
ECG - Length
175.00 mm
ECG - Output ripple current
0.05 %
ECG - Width
55.00 mm
EPD
LEDV-00075-V02.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854739323
Height
34.00 mm
Housing color
White
Inrush current
23 A
Inrush current time Th50
114 µs
Length
620.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
135 lm/W
Luminous flux
4200 lm / 3640 lm / 3080 lm
Luminous flux in emergency operation mode
560
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
25
Max. number of luminaires per miniature circuit breaker C10
19
Max. number of luminaires per miniature circuit breaker C16
30
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50 mm
Mounting length
600 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
600 mm
Nominal current
135mA / 115mA / 105 mA
Nominal voltage
220…240 V
Nominal wattage
30 W / 26 W / 22 W
Number of switching cycles
100000
Operating mode
External LED driver
Output current
800mA / 700mA / 600 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
1900.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Recommended control gear
DR DS-V-30/220-240/800 PL COMP
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+70 °C
Type of connection
Screwless terminal
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of protection
IP50/IP20
UGR
< 19
Wattage in emergency operation mode
4,5 W
Width
620.00 mm
With light source
Yes
