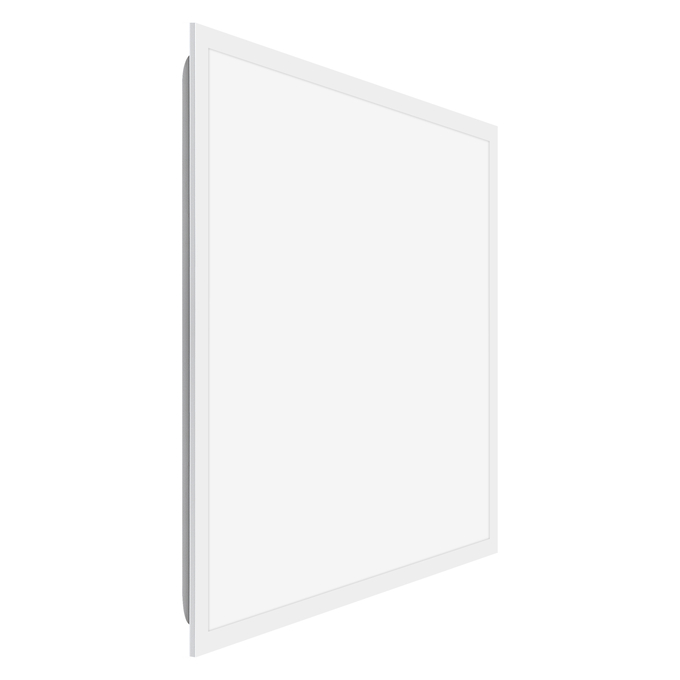

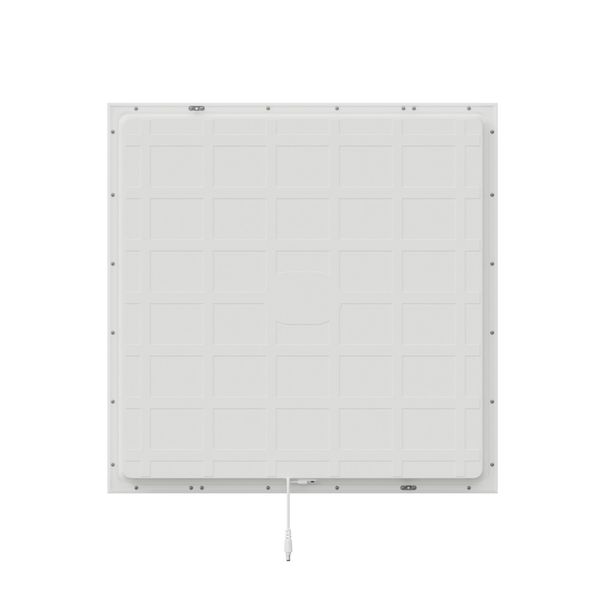

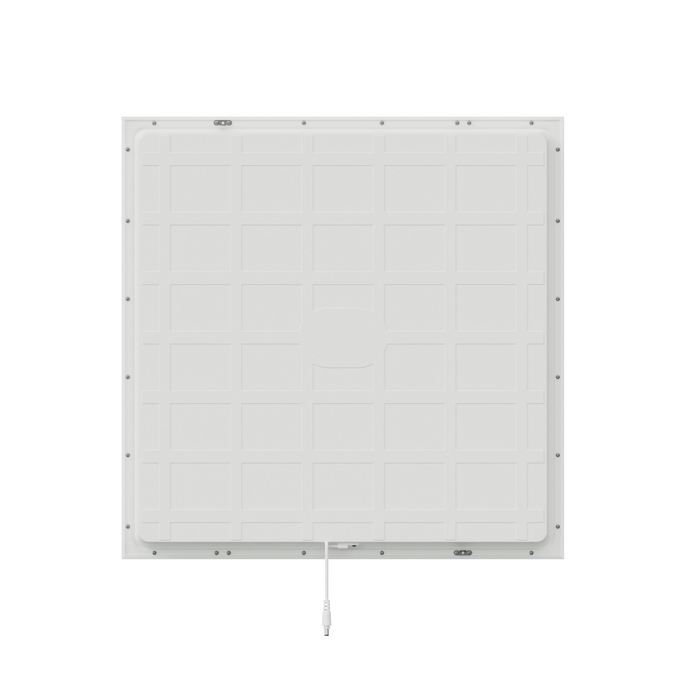

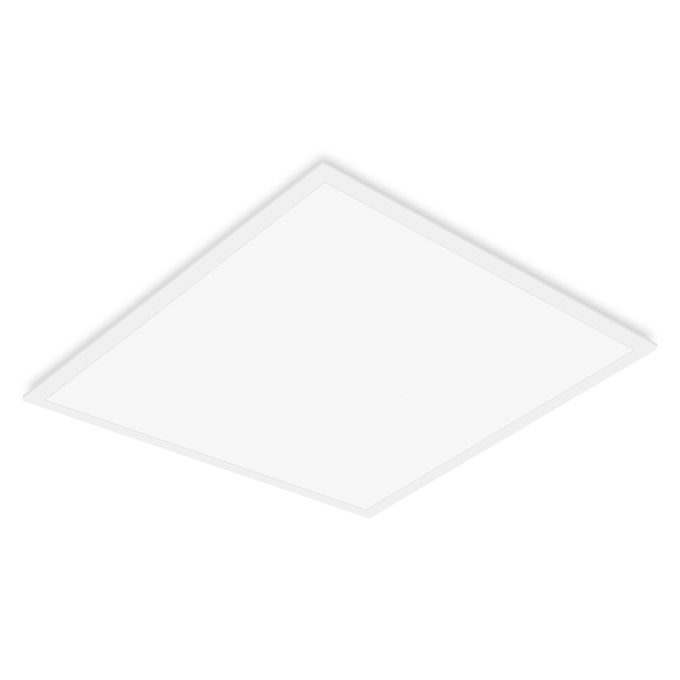

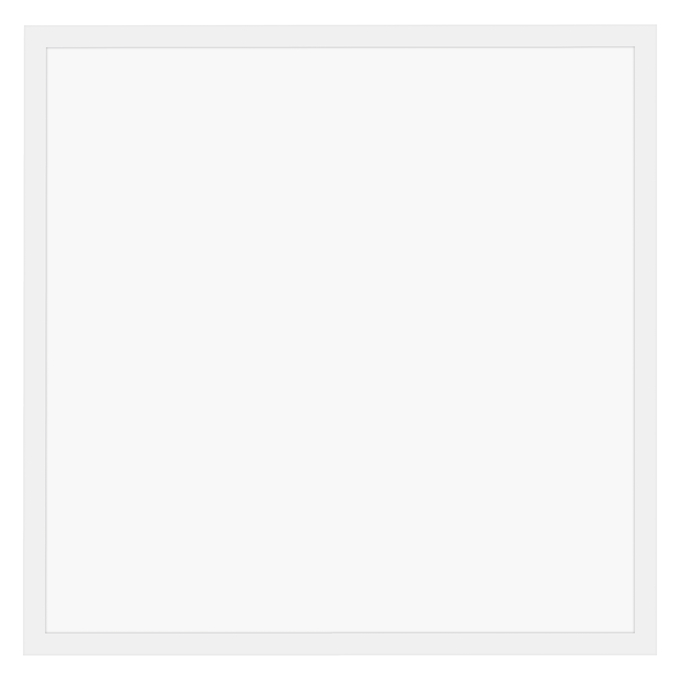

PL COMP 600 TPA V 28W MC 840
4058075849464
Product benefits
- Highly versatile due to selectable CCT (Multi Color) in 3000K and 4000K
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 120 lm/W
- External driver for extended flexibility and easy installation
Areas of application
- Areas which require UK building regulation rating TP(a)
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser - TP(a) rated (UK)
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- External control gear included

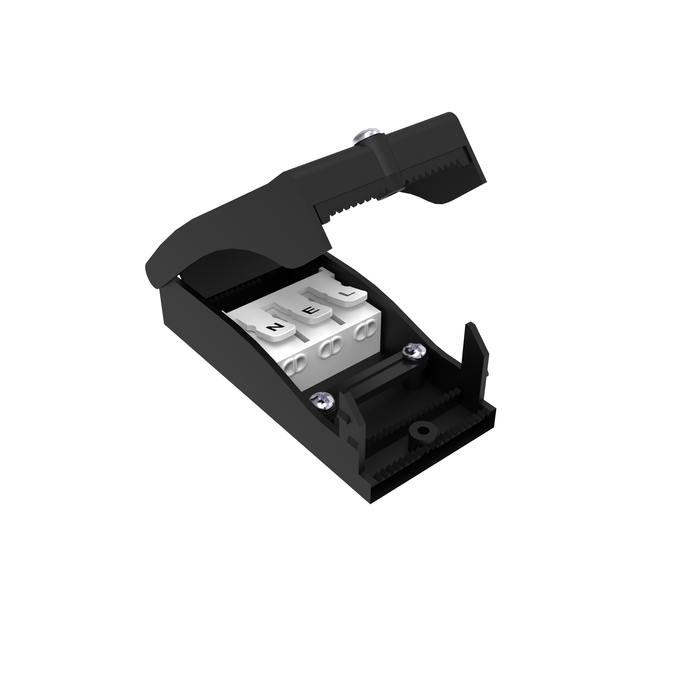

- Preinstalled connector box for easy wiring and optional through-wiring
- Suitable for use with separate Emergency Conversion Box
- Separate DALI driver available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
28 W
120 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-10…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
115 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
4000 K / 3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
ECG - Height
25 mm
ECG - Length
100 mm
ECG - Output ripple current
< 5 %
ECG - Width
38 mm
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075849464
Height
34.00 mm
Housing color
White
Inrush current
25 A
Inrush current time Th50
150 µs
Length
595.00 mm
Lifespan L70/B50 at 25 °C
75000 h 1)
Lifespan L80/B10 at 25 °C
35000 h 1)
Lifespan L90/B10 at 25 °C
20000 h
Light color (designation)
Cool Whi
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W / 115 lm/W
Luminous flux
3360 lm / 3220 lm
Luminous flux in emergency operation mode
370 lm / 620 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C10
19
Max. number of luminaires per miniature circuit breaker C16
30
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50 mm
Mounting length
575 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
575 mm
Nominal current
130.000 mA
Nominal voltage
220…240 V
Nominal wattage
28.00 W
Number of switching cycles
100000
Operating mode
External LED driver
Output current
750 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1450.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Recommended control gear
DR DALI-P-42/220-240/1A0
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 2-Pole (L, N)
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of emergency operation test
None
Type of protection
IP40/IP20
Wattage in emergency operation mode
2.3 W / 4 W
Width
595.00 mm
With light source
Yes
