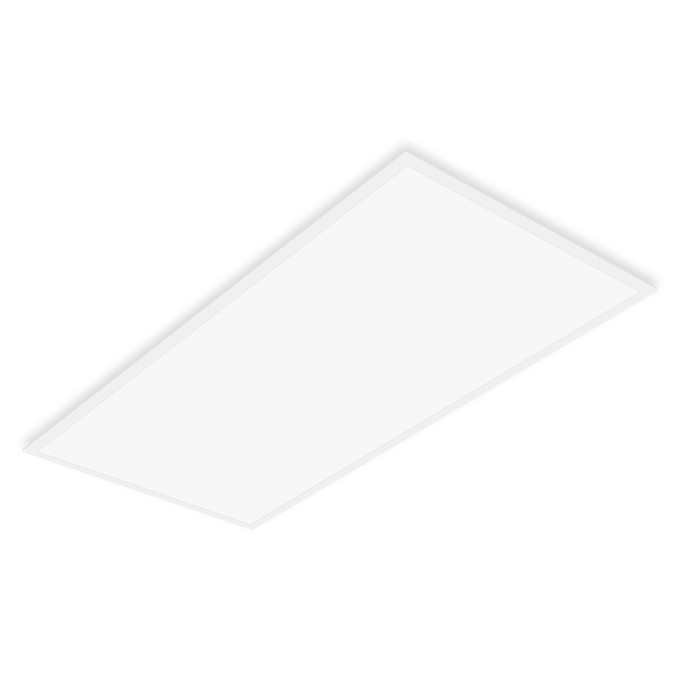

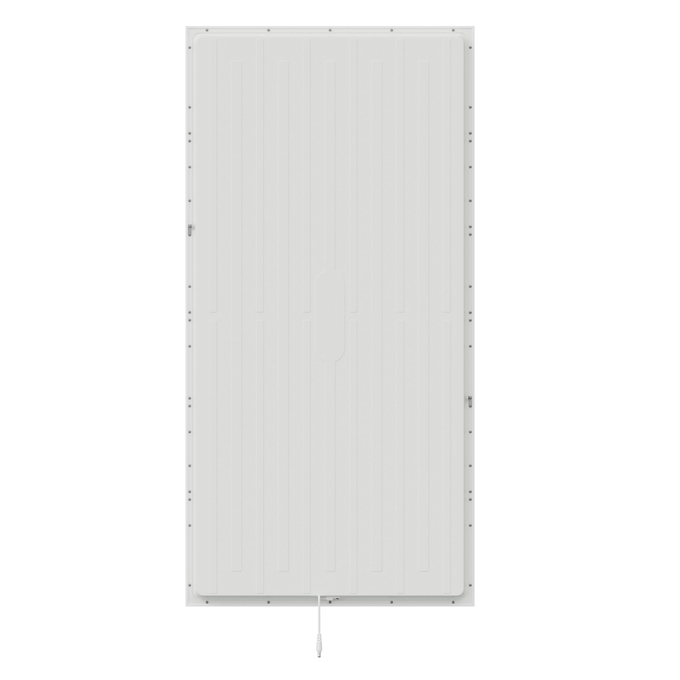

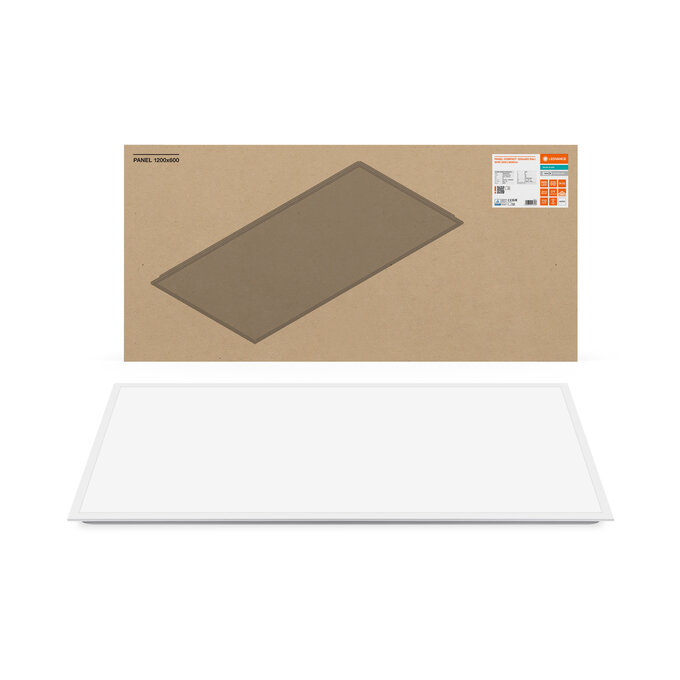

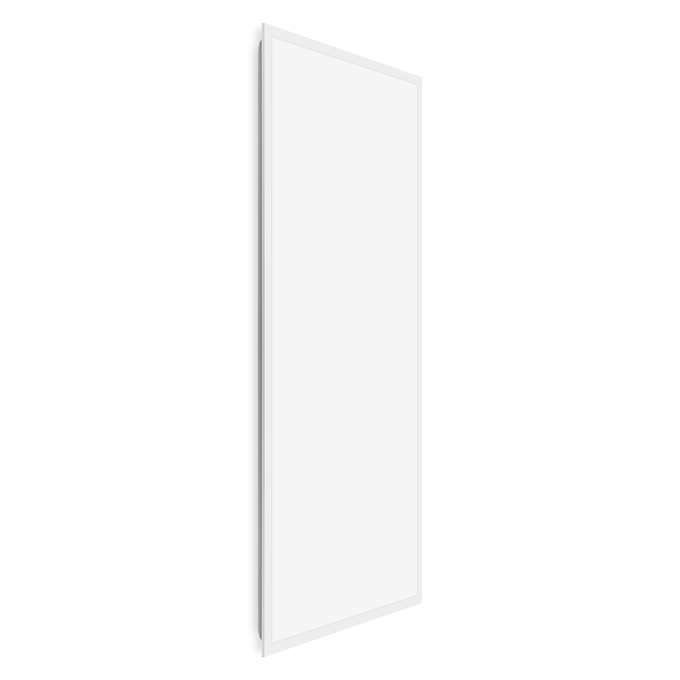

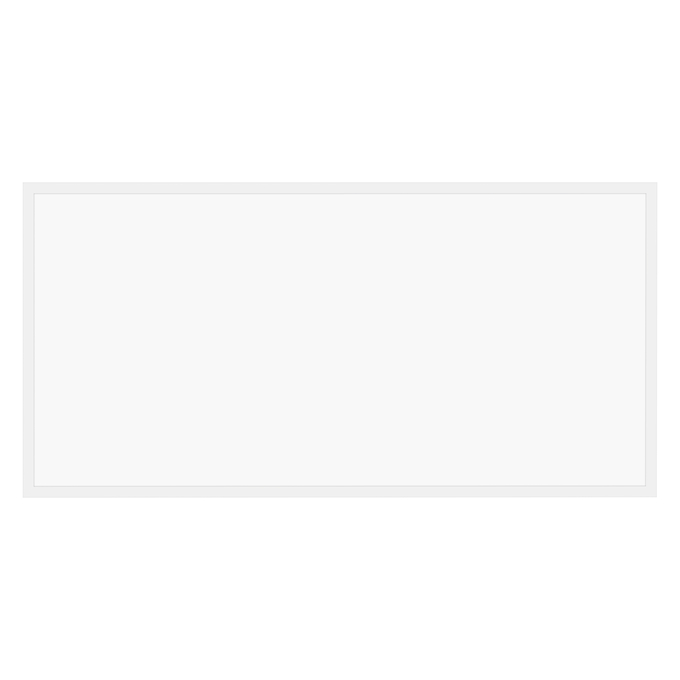

PL COMP 1200X600 V 53W 840 DALI
4099854113703
Product benefits
- Low flicker light thanks to special electronic control gear
- External driver for extended flexibility and easy installation
- Suitable for emergency lighting
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 1200 x 600 mm
Product features
- Suitable for central battery emergency installations acc. to EN 60598-2-22
- Push DIM function for dimming and switching directly on a pushbutton
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
- Suitable for use with separate Emergency Conversion Box
- Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
No
Ambient temperature range
-10…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
Yes
ECG - Height
32 mm
ECG - Length
110 mm
ECG - Output ripple current
< 7 %
ECG - Width
75 mm
EPD
LEDV-00008-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854113703
Height
34.00 mm
Housing color
White
Inrush current
1.8 A
Inrush current time Th50
50 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1195.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Cool White
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W
Luminous flux
5830 lm
Luminous flux in emergency operation mode
700 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
55
Max. number of luminaires per miniature circuit breaker C10
34
Max. number of luminaires per miniature circuit breaker C16
55
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50 mm
Mounting length
1175 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
575 mm
Nominal current
230.000 mA
Nominal voltage
220…240 V
Nominal wattage
53.00 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
1150 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3500.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Recommended control gear
OSRAM OTI DALI 50/220-240/1A4 NFC
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Total harmonic distortion
< 10 %
Type of connection
Screwless terminal, 4-Pole (L,N, DA+, DA-)
Type of dimming
DALI-2
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separate
Type of protection
IP40/IP20
Wattage in emergency operation mode
8,0 W
Width
595.00 mm
With light source
Yes
