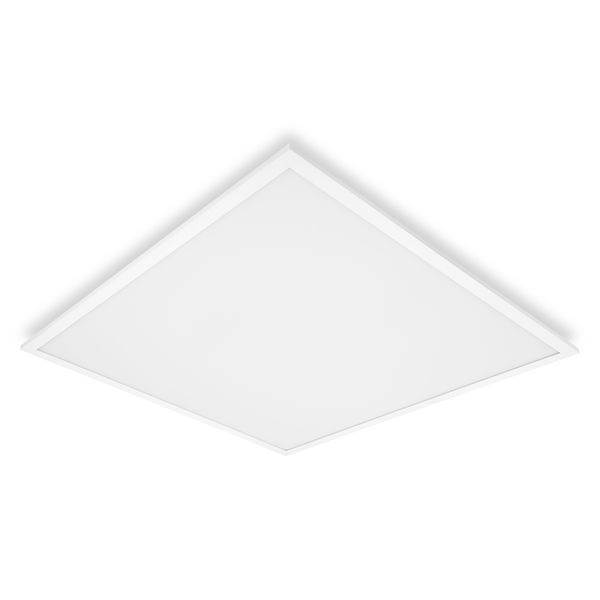

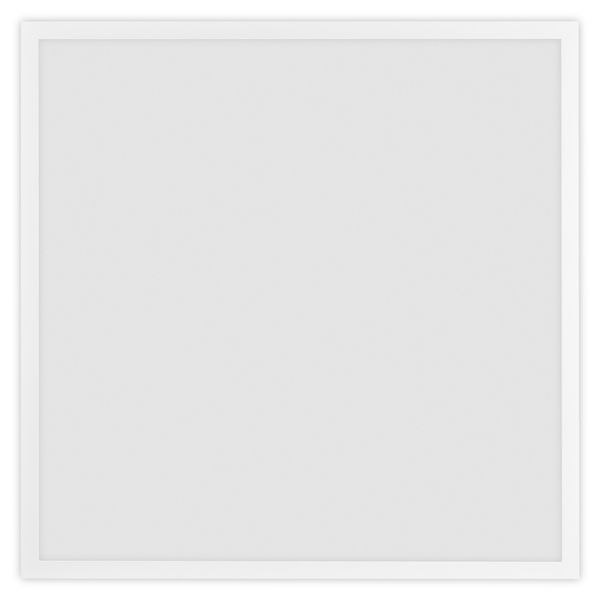

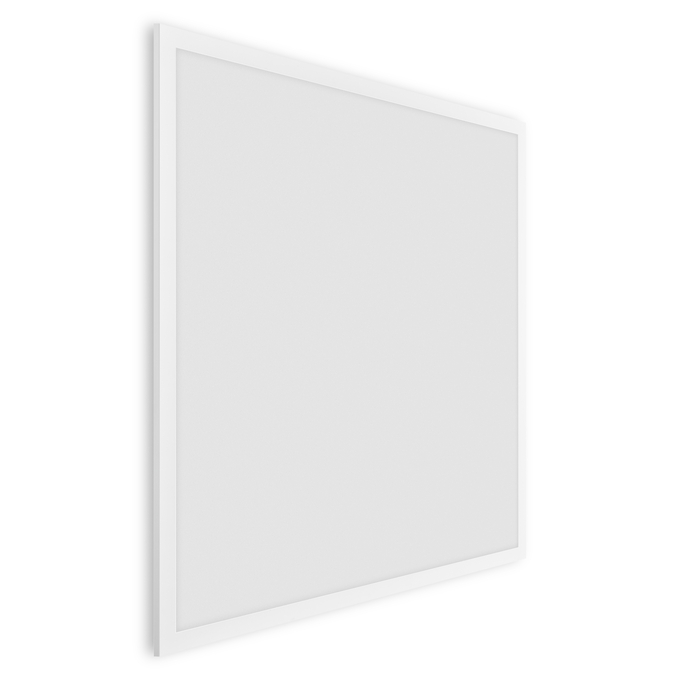

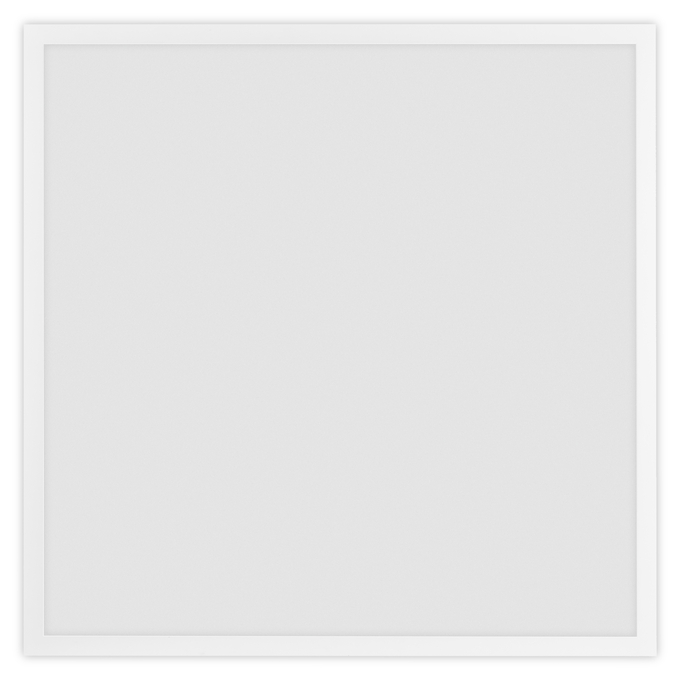

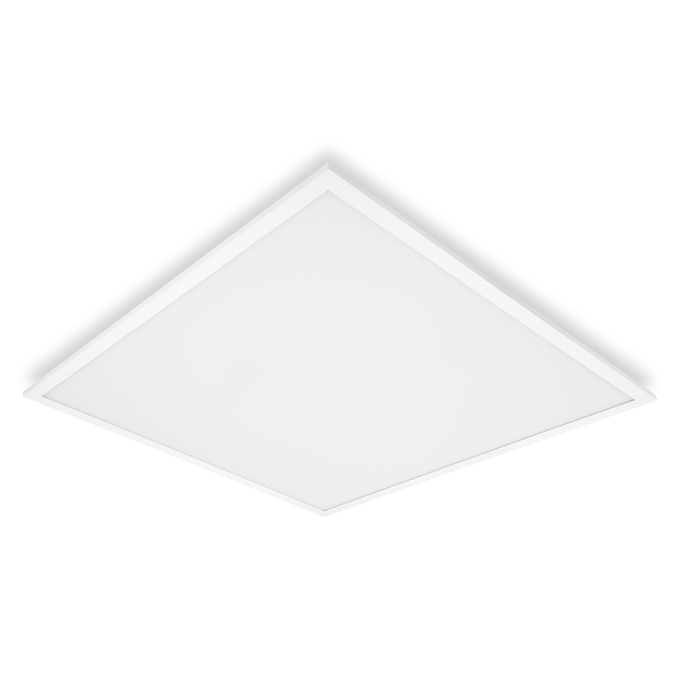

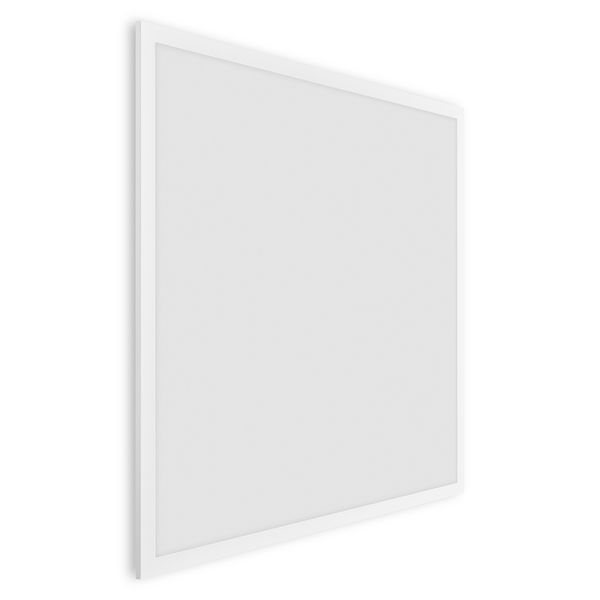

PL CMFT 625 ZB P 36W 93040 U19
4099854514050
Product benefits
- Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
- High performance with CRI90 and up to 118 lm/W
- Highly versatile due to selectable CCT (CCT Select - CS)
- High color consistency with SDCM 3
- Good glare reduction (UGR < 19)
- Through-wiring possible with included connector box
- External driver for extended flexibility and easy installation
- Low flicker light thanks to special electronic control gear
- Extended services such as energy monitoring and remote maintenance possible with Zigbee versions
Areas of application
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Schools, public buildings
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- Extruded aluminum frame
- Polystyrene diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
- Accessories for several mounting options available
- Separate switch preinstalled to choose preferred CCT during installation
- Connector box with 5-pole terminal included
- Security brackets preinstalled
- External control gear included
Safety advice
- All electrical connections must be made by a qualified person.
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
36W
112 lm/W
Added function
VIVARES
Adjustable
No
Ambient temperature range
-10…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
3000 … 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
Yes
Dimming range
1…100 %
ECG - Height
25 mm
ECG - Length
119,0 mm
ECG - Output ripple current
3.0 %
ECG - Width
45 mm
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854514050
Height
34.00 mm
Housing color
White
Inrush current
5.24 A
Inrush current time Th50
47.2 µs
IoT ready
Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1)
Length
620.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
60000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W / 115 lm/W
Luminous flux
4200 lm / 4000 lm
Luminous flux in emergency operation mode
360 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
55
Max. number of luminaires per miniature circuit breaker C10
34
Max. number of luminaires per miniature circuit breaker C16
55
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50 mm
Mounting length
600 mm
Mounting location
Ceiling
Mounting type
Surface/Recessed
Mounting width
600 mm
Nominal current
165.000 mA
Nominal voltage
220…240 V
Nominal wattage
36.00 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
1100 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.95
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1850.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Replaceable light source
Yes
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
4 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 7 %
Type of connection
Screwless terminal, 3-POLE (L, N, PE)
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP40/IP20
UGR
< 19
Wattage in emergency operation mode
6.5 W
Width
620.00 mm
With light source
Yes
