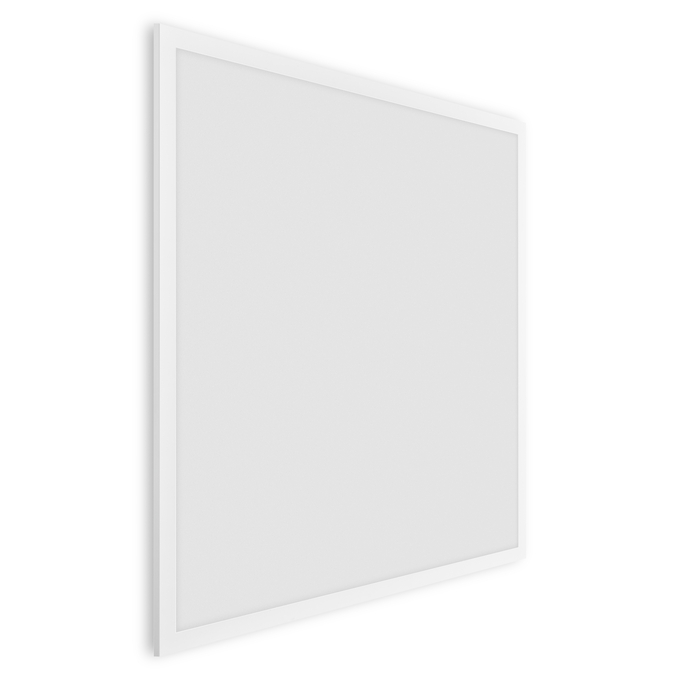

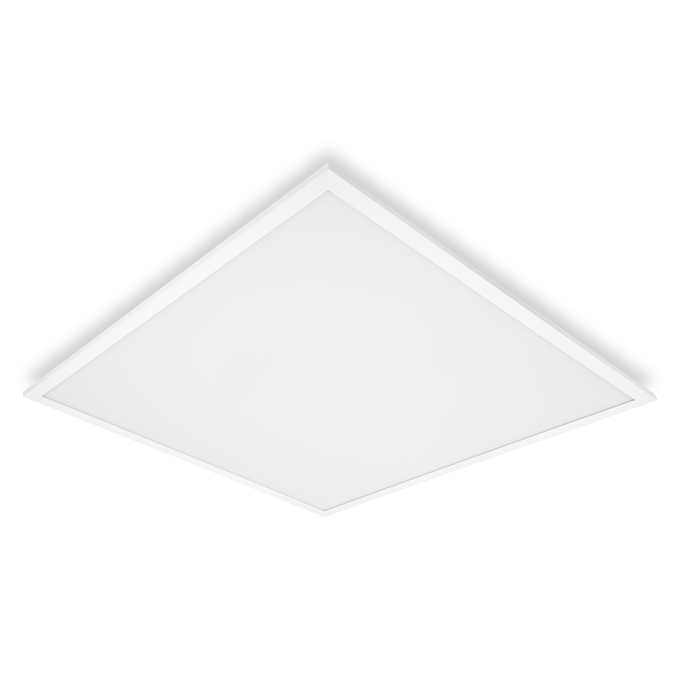

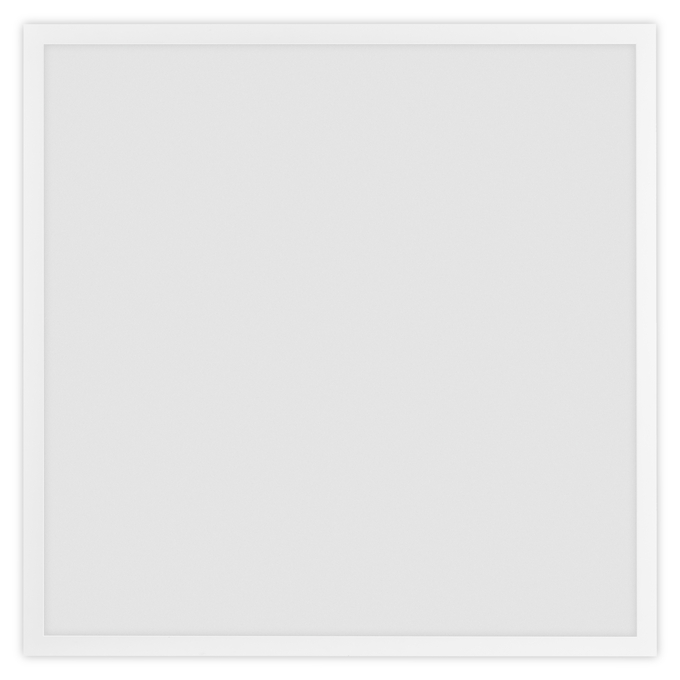

PL CMFT 625 P 36W 930 940 U19 CPS CRI90
4058075694484
Product benefits
- High performance with CRI90 and high luminous efficacy
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
- High color consistency with SDCM 3
- Good glare reduction (UGR < 19)
- Through-wiring possible with included connector box
- External driver for extended flexibility and easy installation
- Low flicker light thanks to special electronic control gear
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- 5 years guarantee
Areas of application
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Schools, public buildings
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Luminaire versions with IoT-ready DALI-2 driver available
- Lifetime (L80/B10): up to 60,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Connector box with 5-pole terminal included
- Security brackets included

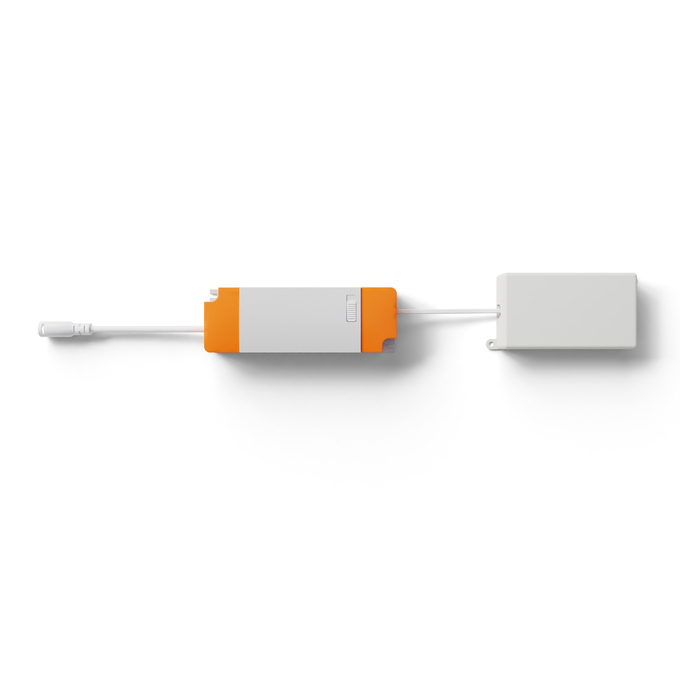

- External control gear included with switches to select CCT and power during installation
Safety advice
- All electrical connections must be made by a qualified person.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
Added function
MULTI SELECT
Ambient temperature range
-10…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Steel
Color rendering index Ra
≥90
Color temperature
3000 K / 4000 K 2)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
ECG - Output ripple current
10 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075694484
Height
32.00 mm
Housing color
White
Inrush current
12 A
Inrush current time Th50
200 µs
Length
620.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
60000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
122 lm/W / 118 lm/W / 115 lm/W / 112 lm/W 1)
Luminous flux
4200 lm / 4000 lm / 3600 lm / 3400 lm 1)
Luminous intensity
- cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C10
16
Max. number of luminaires per miniature circuit breaker C16
25
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
80,0 mm
Mounting length
600,0 mm
Mounting location
Ceili
Mounting type
Surface/Recessed
Mounting width
600,0 mm
Nominal current
165.000 mA
Nominal voltage
220…240 V
Nominal wattage
36 W / 29.5 W 1)
Number of switching cycles
50000
Operating mode
External LED driver
Output current
1100 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
2150.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection
IP40~IP20
UGR
< 19
Width
620.00 mm
With light source
Yes
