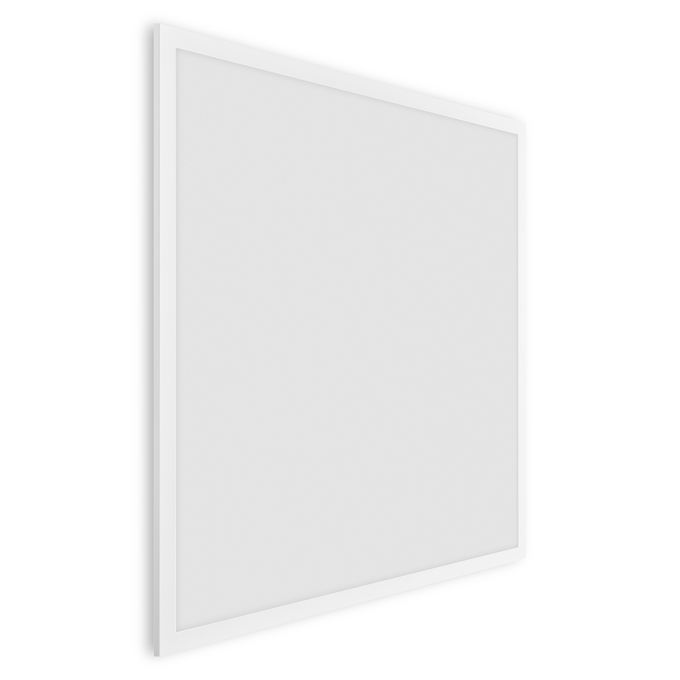

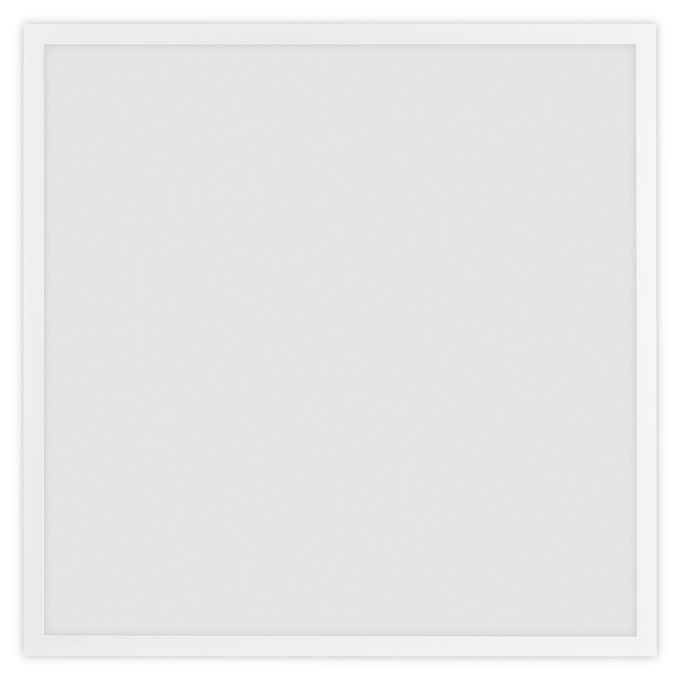

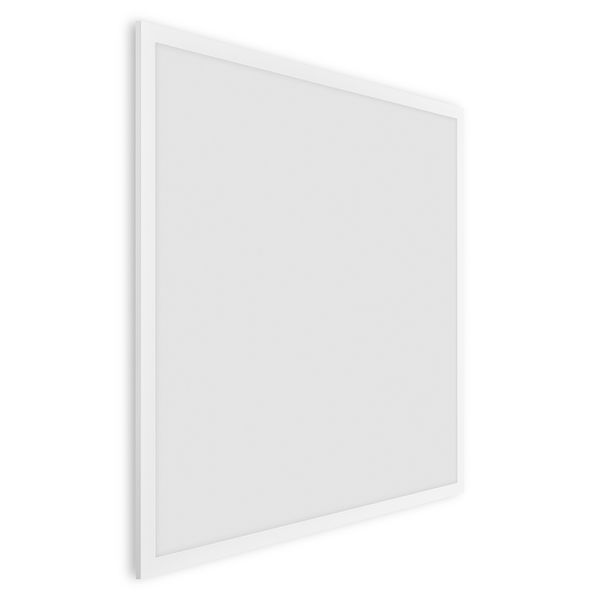

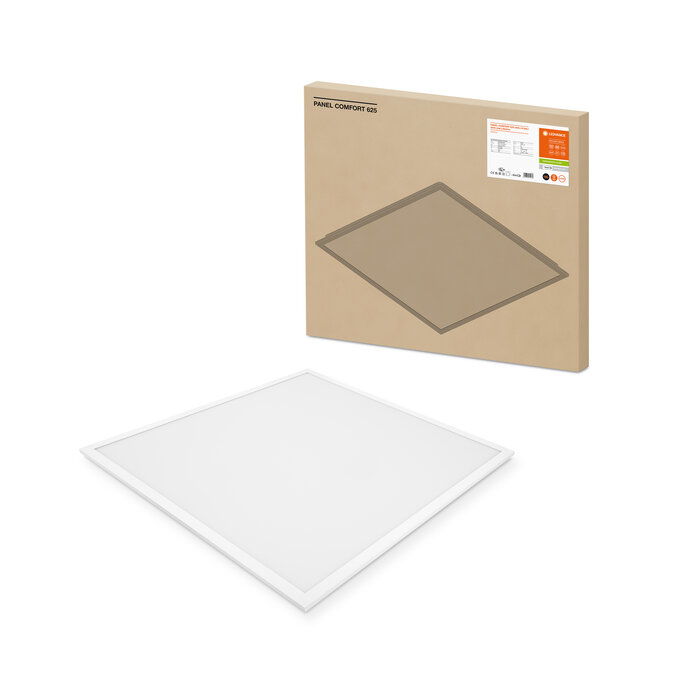

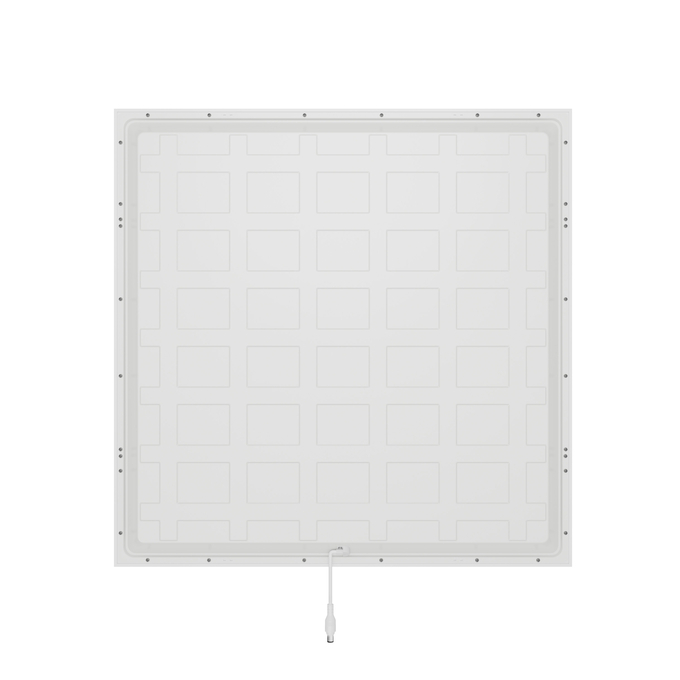

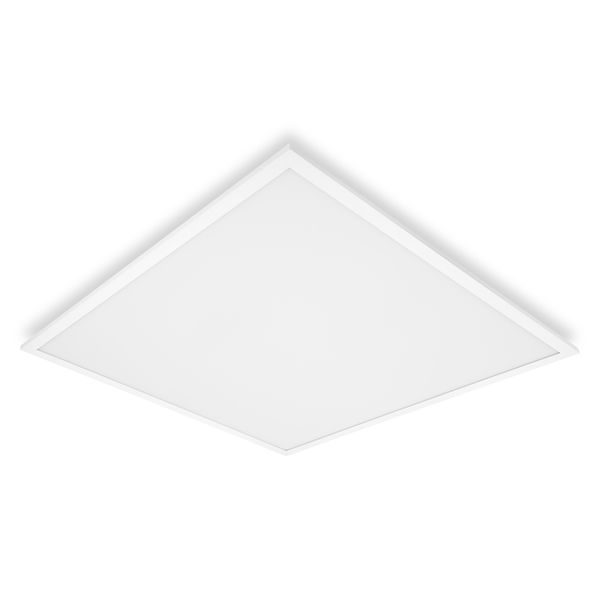

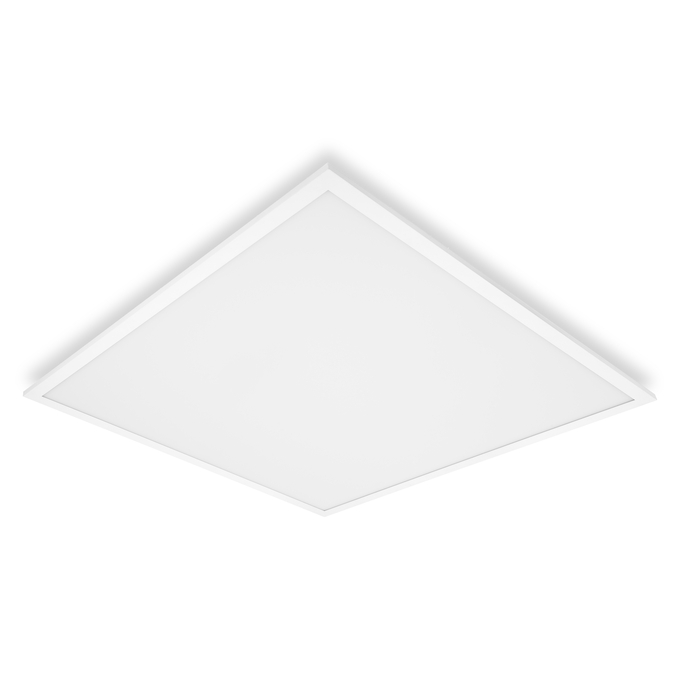

PL CMFT 625 P 28W 840 U19 DALIVR
4099854014482
Product benefits
- Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 130 lm/W
- Good glare reduction (UGR < 19)
- High color consistency with SDCM 3
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- External driver for extended flexibility and easy installation
- Low flicker light thanks to special electronic control gear
- Suitable for emergency lighting
- 5 years guarantee
Areas of application
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
Product features
- IoT-ready luminaire with DALI-2 technology
- Suitable for central battery emergency installations acc. to EN 60598-2-22
- Push DIM function for dimming and switching directly on a pushbutton
- Versions available with CRI 90
- Extruded aluminum frame
- Polystyrene diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Connector box with 5-pole terminal included
- Security brackets preinstalled
- External control gear included
- Suitable for use with separate Emergency Conversion Box
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
No
Ambient temperature range
-10…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
Yes
ECG - Height
30 mm
ECG - Length
209,00 mm
ECG - Output ripple current
< 5 %
ECG - Width
42.5 mm
EPD
LEDV-00011-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854014482
Height
32.00 mm
Housing color
White
Inrush current
4.4 A
Inrush current time Th50
440 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
620.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
48000 h
Light color (designation)
Cool White
Light emitting surface material
Polystyrene
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Additional info can be provided per individual request
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
130 lm/W 1)
Luminous flux
3640 lm 1)
Luminous flux in emergency operation mode
500 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
40
Max. number of luminaires per miniature circuit breaker C10
40
Max. number of luminaires per miniature circuit breaker C16
65
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting length
600,0 mm
Mounting location
Ceiling
Mounting type
Recessed/Suspended/Surface
Mounting width
600,0 mm
Nominal current
130.000 mA
Nominal voltage
220…240 V
Nominal wattage
28.00 W 1)
Number of switching cycles
50000
Operating mode
External LED driver
Output current
620 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
2000.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Recommended control gear
OSRAM OTI DALI 50/220-240/1A4 N
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separate
Type of protection
IP40/IP20
UGR
< 19
Wattage in emergency operation mode
5.5 W
Width
620.00 mm
With light source
Yes
