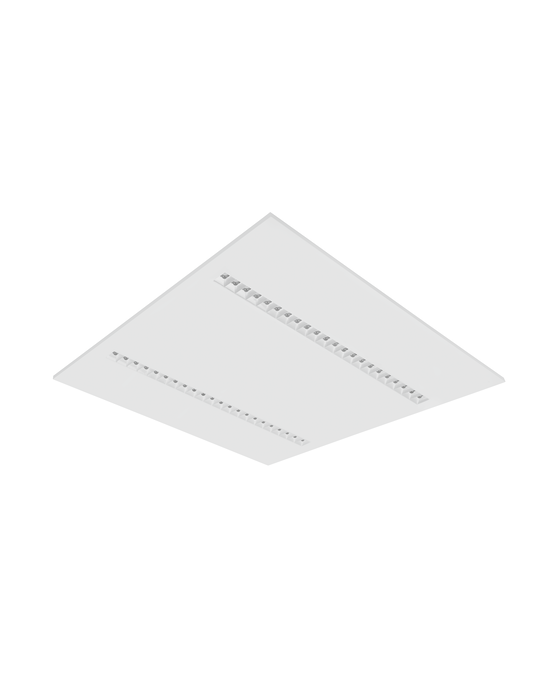

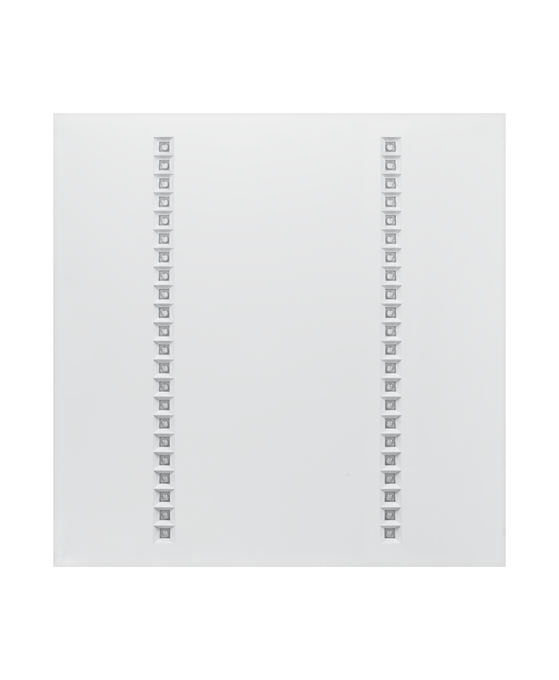

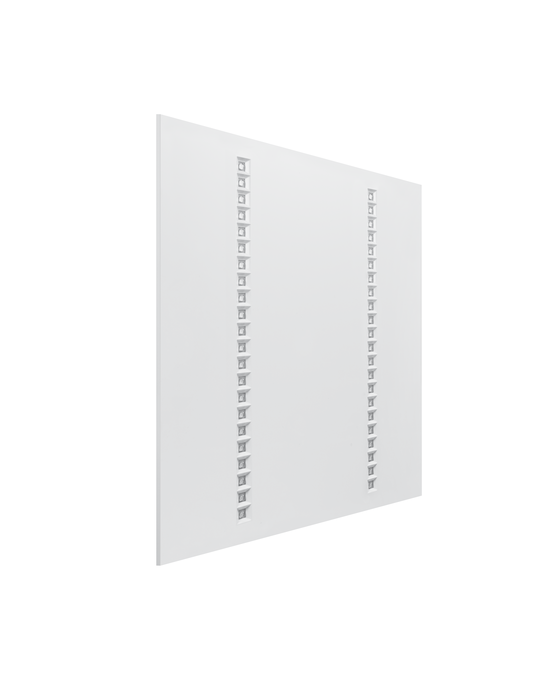

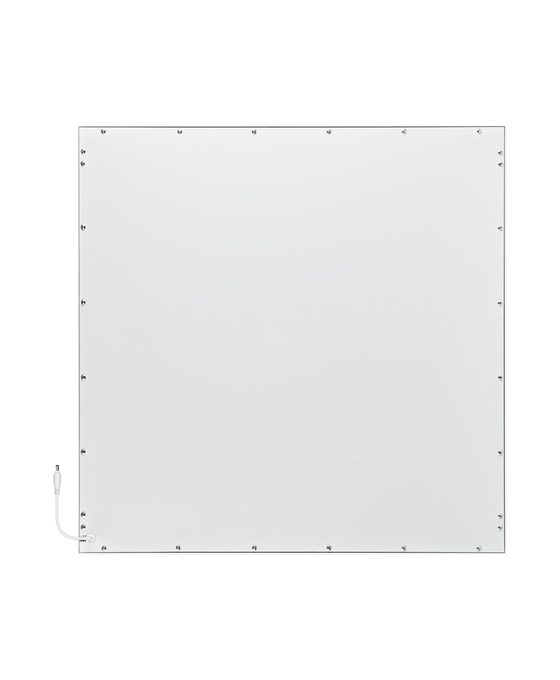

PANEL INDV 600 33W 4000 K ZBVR
4058075521841
Product benefits
- Suitable luminaire for VIVARES and other Zigbee 3.0 Light Management Systems
- Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
- Low flicker light thanks to special electronic control gear
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Corridors
- Offices
- Conference rooms
- Reception areas
- Foyers
- Elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
- Lifetime (L80/B50): up to 50,000 h (at 25 °C)
- Metal housing, polycarbonate (PC) lenses and reflectors
- Luminous flux: up to 4,000 lm
- Luminous efficacy: up to 120 lm/W
- Initial color consistency: 3 SDCM
- Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- External control gear included
References / Links
- For Guarantee see
Added function
VIVARES
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
70 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
ECG - Output ripple current
≤ 5 %
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075521841
Height
13.00 mm
Housing color
White
Inrush current
30 A
Inrush current time Th50
200 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
595.00 mm
Lifespan L70/B50 at 25 °C
80000 h 1)
Lifespan L80/B10 at 25 °C
60000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
4000 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
11
Max. number of luminaires per miniature circuit breaker C10
10
Max. number of luminaires per miniature circuit breaker C16
16
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting length
575 mm
Mounting location
Ceiling
Mounting type
Surface/Recessed
Mounting width
575 mm
Nominal current
180.000 mA
Nominal voltage
220…240 V
Nominal wattage
33.00 W
Number of switching cycles
25000
Operating mode
External LED driver
Output current
750 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3500.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
-
Total harmonic distortion
≤ 10 %
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of dimming
ZIGBEE
Type of protection
IP40/IP20
UGR
< 16
Width
595.00 mm
With light source
Yes
