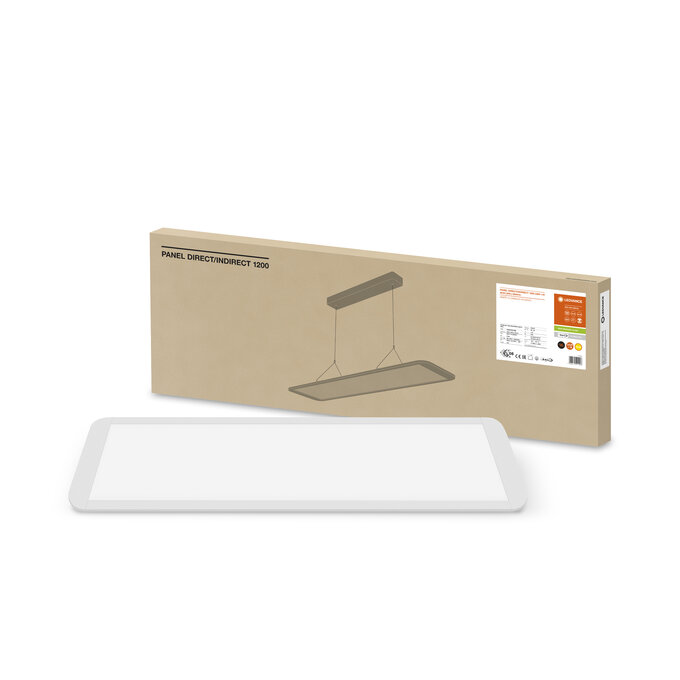

PANEL D/I 1200 36 W 3000 K UGR 19 DALI
4058075504028
Product benefits
- Suitable luminaire for VIVARES and other DALI-2 Light Management Systems

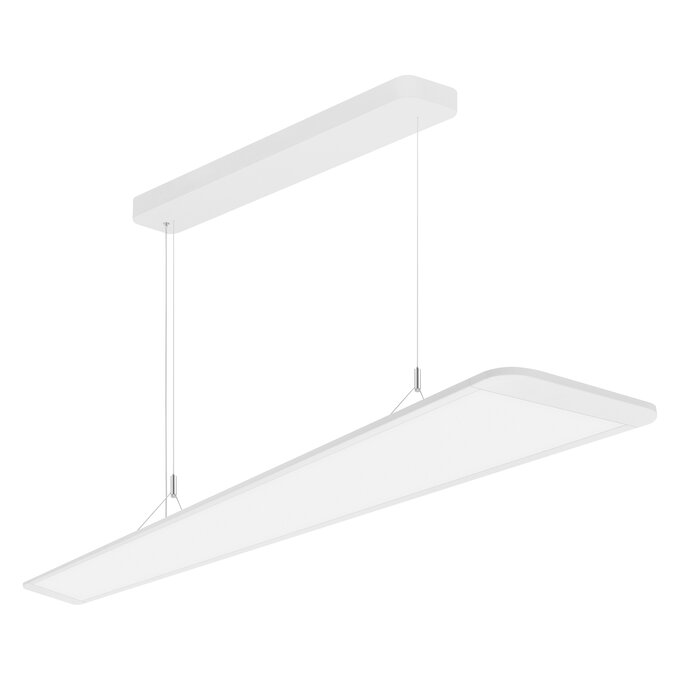

- Suspended edge-lit luminaires for direct light emission (70% ) and indirect light emission (30%)
- Attractive and functional design for office applications
- Good glare reduction (UGR ≤ 19)
- Very homogenous light
- Low maintenance and low operational costs
- External driver for extended flexibility
- Special light guide design for low-glare illumination
- Easy and quick installation
- Low flicker light thanks to special electronic control gear
- 5 years guarantee
Areas of application
- Efficient replacement for traditional T8 and T5 luminaires
- Offices
- Meeting rooms
- Conference rooms
- Reception areas and foyers
Product features
- IoT-ready luminaire with DALI-2 technology

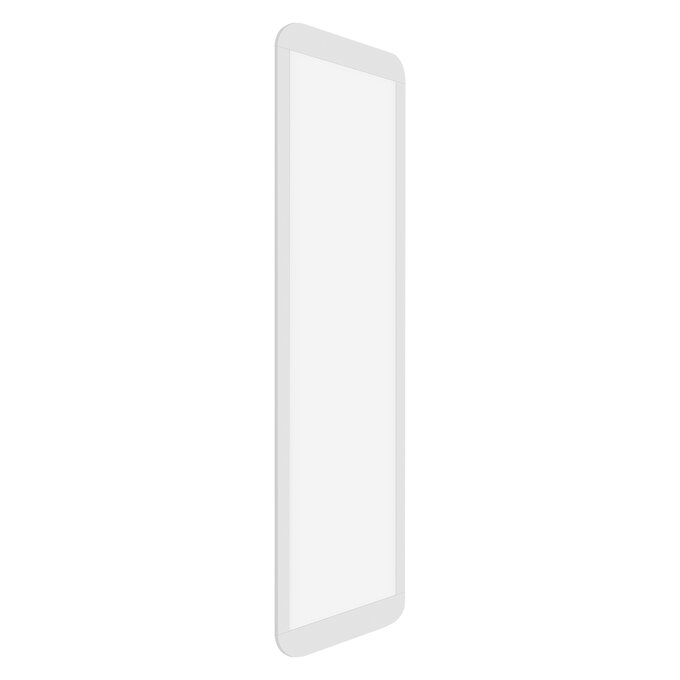

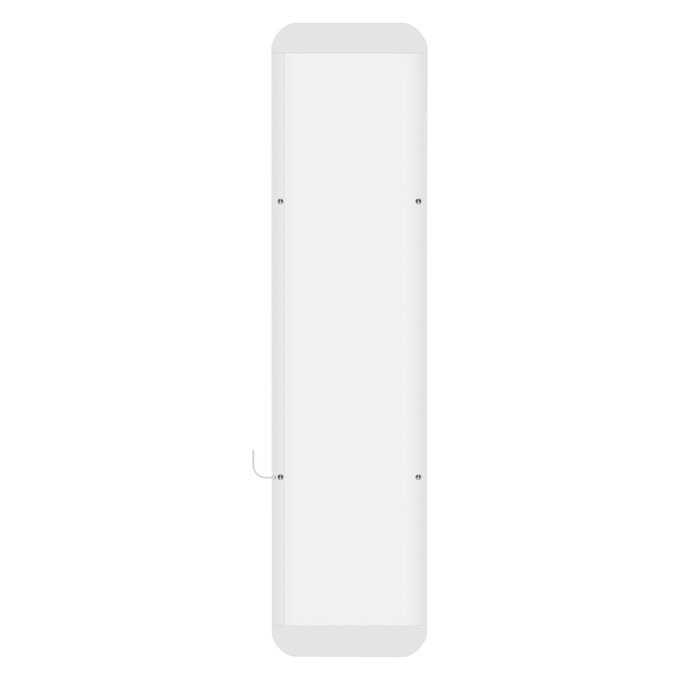

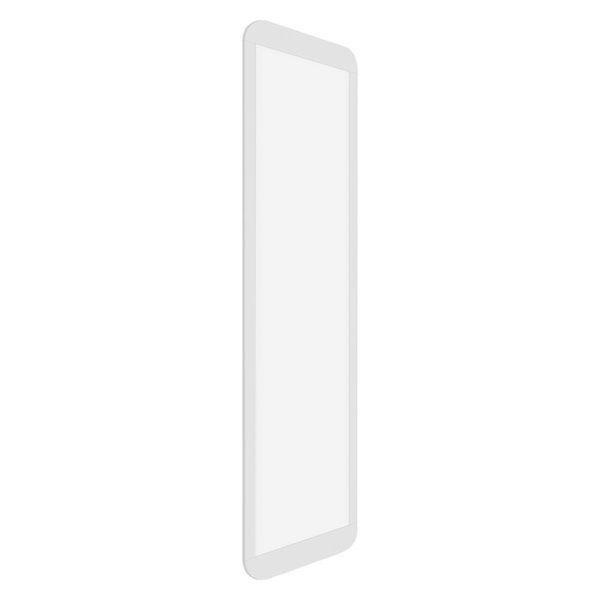

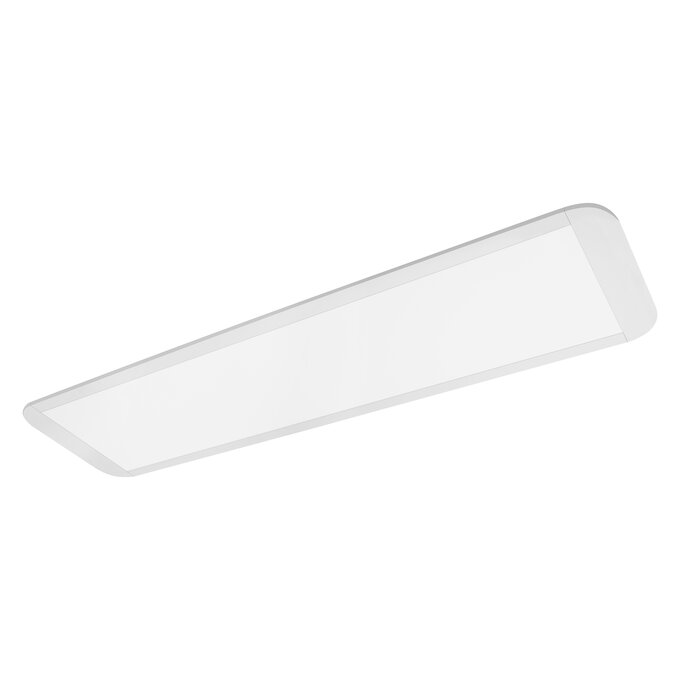

- Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70 %) and indirect (30 %) light emission
- Driver integrated into the remote driver box
- UGR ≤ 19 according to EN12464-1
- High luminous efficacy: up to 110 lm/W
- Lifetime (L70/B50): 80,000 h (at 25 °C)
- Follows the unified LEDVANCE design language (SCALE design)
- Very slim aluminum housing
Equipment / Accessories

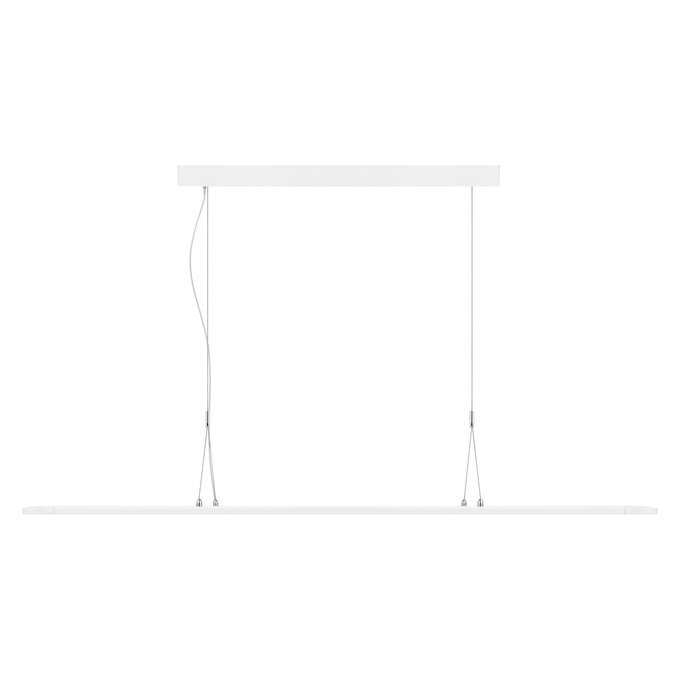

- Suspension kit included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Added function
VIVARES
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
ECG - Output voltage
38 V
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075504028
Height
16.00 mm
Housing color
White
Inrush current
16 A
Inrush current time Th50
160 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1200.00 mm
Lifespan L70/B50 at 25 °C
80000 h 1)
Lifespan L80/B10 at 25 °C
60000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
105 lm/W
Luminous flux
3800 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
20
Max. number of luminaires per miniature circuit breaker C10
21
Max. number of luminaires per miniature circuit breaker C16
33
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended
Nominal current
230.000 mA
Nominal voltage
220…240 V
Nominal wattage
36.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
800 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3500.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
4 sdcm
Stroboscope effect metric (SVM)
-
Total harmonic distortion
< 20 %
Type of connection
Terminal
Type of dimming
DALI
Type of protection
IP20
UGR
< 19
Width
300.00 mm
With light source
Yes
