MAG LED RING P 22W ML 83040 AC
4099854756764
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
- Retrofitting without completely replacing existing luminaires

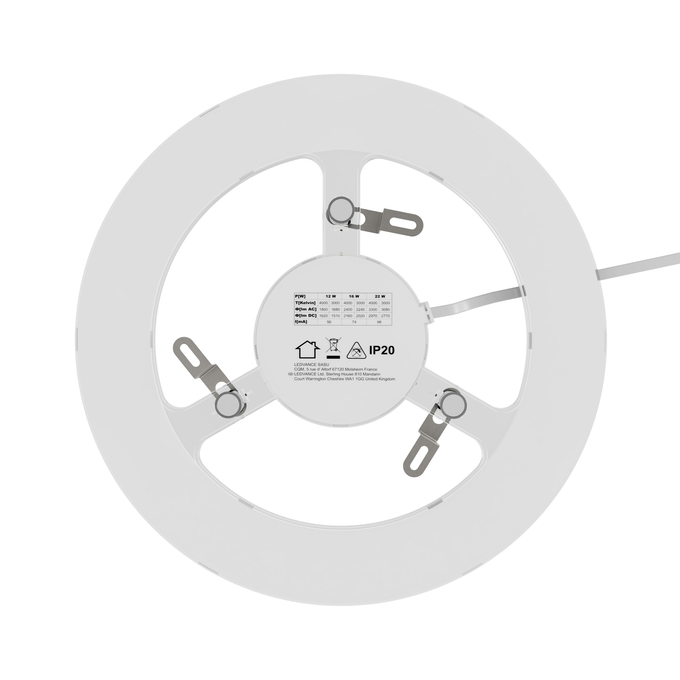

- With 3 strong neodymium magnets for easy installation and additional secure screw connection
- If necessary, the old luminaire may remain installed on the ceiling or wall during the conversion process
- Simple and quick upgrade solution
- 5 years guarantee
Areas of application
- Corridors
- Stairways
- Foyers
Product features

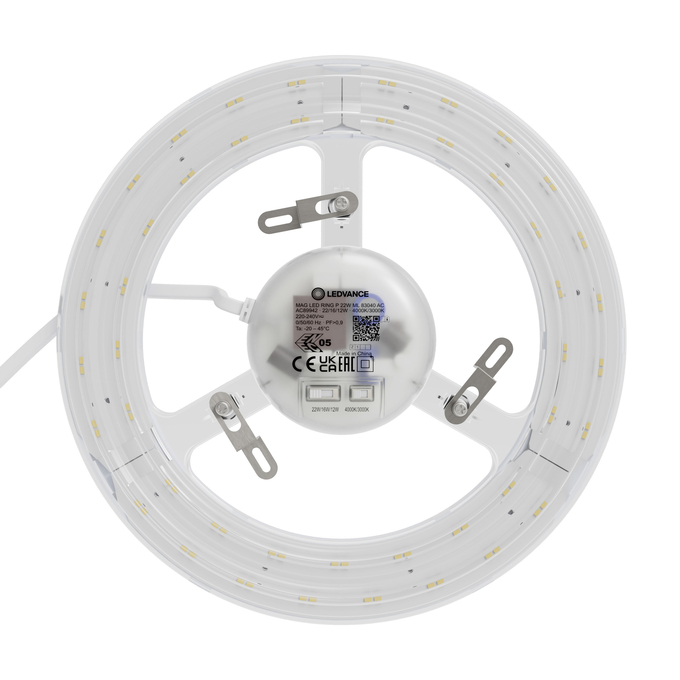

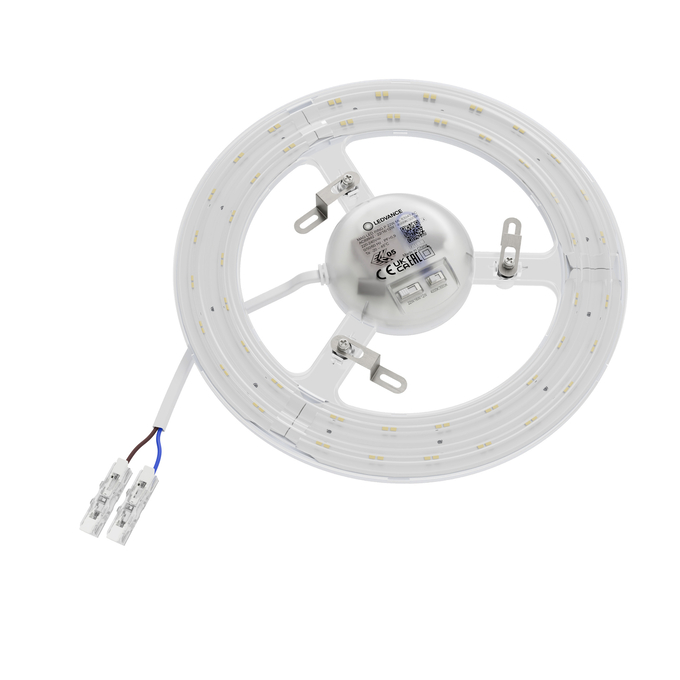

- LED ring module with integrated LED driver and magnetic feet for retrofitting protection class I luminaires
- Magnetic luminaire insert for modernizing existing traditional wall and ceiling luminaires
- Available in 3 different diameters: 130 mm, 180 mm and 230 mm
- Indoor luminaire with high luminous efficacy up to 150 lm/W
- Suitable for central battery emergency installations acc. to EN 60598-2-22
Equipment / Accessories
- Mounting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Caution, risk of electric shock.
- Warning! Pacemaker. Magnets could affect the function of pacemakers and implanted heart defibrillators. A pacemaker could switch into test mode and cause illness. A defibrillator may stop working. If you wear these devices keep sufficient distance to magnets. Warn others who wear these devices from getting too close to magnets.
References / Links
- For Guarantee see
12 W
140 lm/W
16 W
140 lm/W
22 W
140 lm/W
Added function
MULTI SELECT
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
160 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
230.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854756764

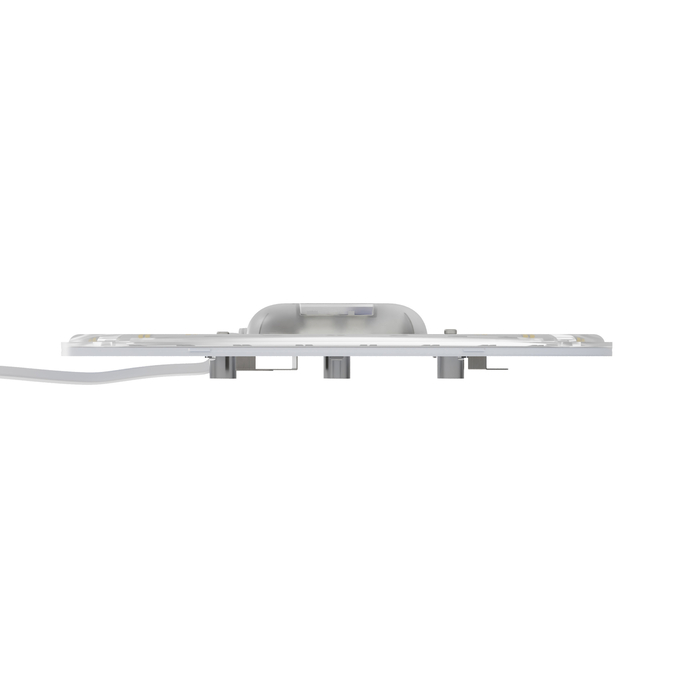

Height
31.00 mm
Housing color
White
Inrush current
5.72 A
Inrush current time Th50
28.4 µs
Lifespan L80/B10 at 25 °C
50000 h 1)
Light color (designation)
Warm Whi
Light emitting surface material
Plastic
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
150 lm/W 2)
Luminous flux
3300 lm / 2400 lm / 1800 lm 1)
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
131
Max. number of luminaires per miniature circuit breaker C10
88
Max. number of luminaires per miniature circuit breaker C16
142
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Nominal current
98mA / 74mA / 56 mA
Nominal voltage
220…240 V
Nominal wattage
22 W / 16 W / 12 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
197mA / 142mA / 106 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
268.00 g
Protection class
II
Protection class IK (shock resistance)
IK05
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
1000 V
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 20 %
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of protection
IP20
With light source
Yes
