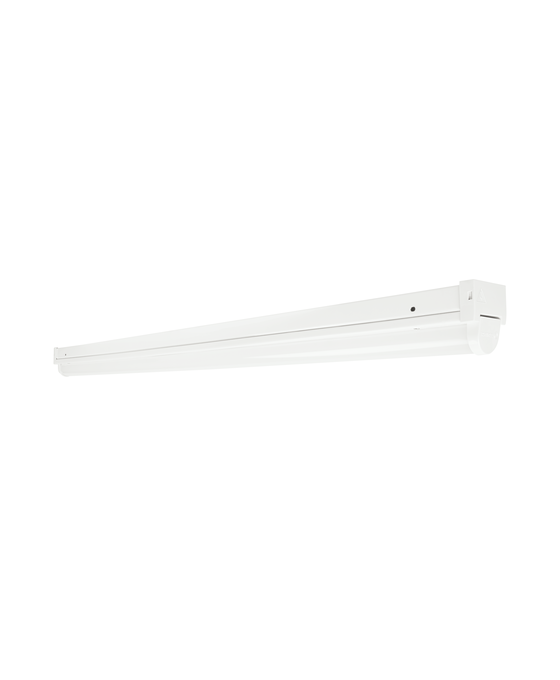

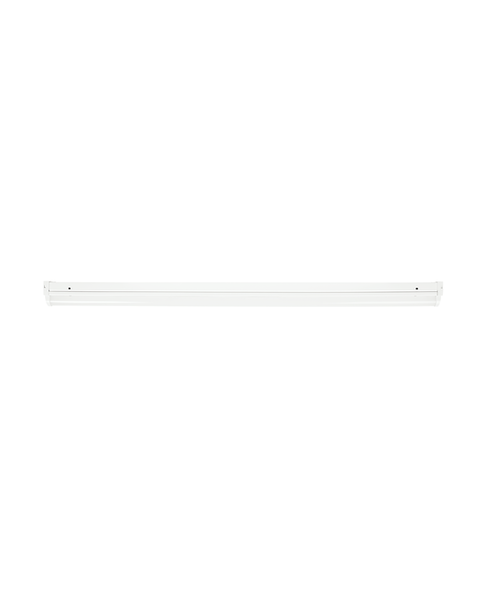

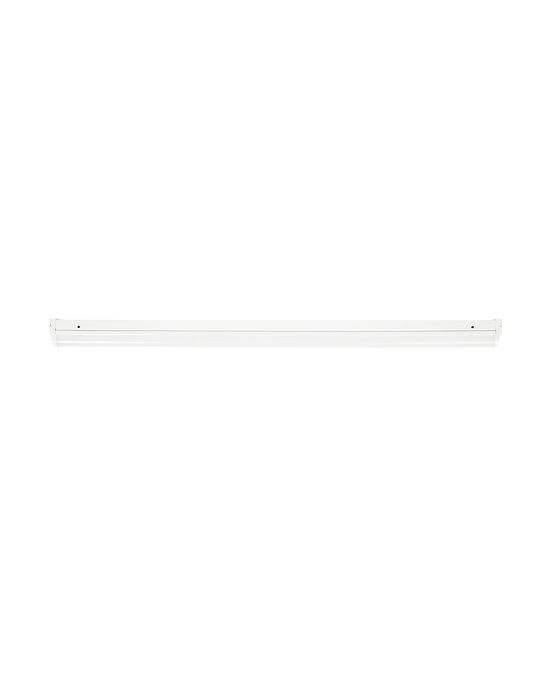

LN UO EM 1200 25 W 4000 K
4058075515222
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- High luminous efficacy in normal operation
- Replacement of conventional T8 luminaires with up to 7100 lm
- Energy savings up to 60 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
- 3 years guarantee
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Direct replacement for luminaires with fluorescent lamps
- Indoor applications
- Industrial and commercial halls
- Public areas
- Corridors, stairwells, basements
Product features
- Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
- Luminaire suitable for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Very high luminous efficacy: up to 125 lm/W
- Robust metal housing and PC diffuser
- Wiring at back side of luminaire
- Through wiring possible
Equipment / Accessories
- Mounting screws and dowels included
References / Links
- For Guarantee see
Ambient temperature range
0…+35 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
< 24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
120 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075515222
Height
74.00 mm
Housing color
White
Inrush current
20 A
Inrush current time Th50
100 µs
Integrated test switch
No
Length
1168.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
40000 h 1)
Lifespan L90/B10 at 25 °C
30000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
2950 lm
Luminous flux in emergency operation mode
370 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
41
Max. number of luminaires per miniature circuit breaker C10
33
Max. number of luminaires per miniature circuit breaker C16
53
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal capacity of battery
4500 mAh
Nominal current
115 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
25.00 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1410.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Temperature range at storage
0…+40 °C
Total harmonic distortion
≤ 20 %
Type of Battery
LiFePO4
Type of connection
Screwless terminal
Type of emergency light operation
Maintain
Type of emergency operation test
Automatic
Type of protection
IP20
Wattage in emergency operation mode
3,0 W
Wattage in maintained operation mode
25 W
Width
62.00 mm
With light source
Yes
