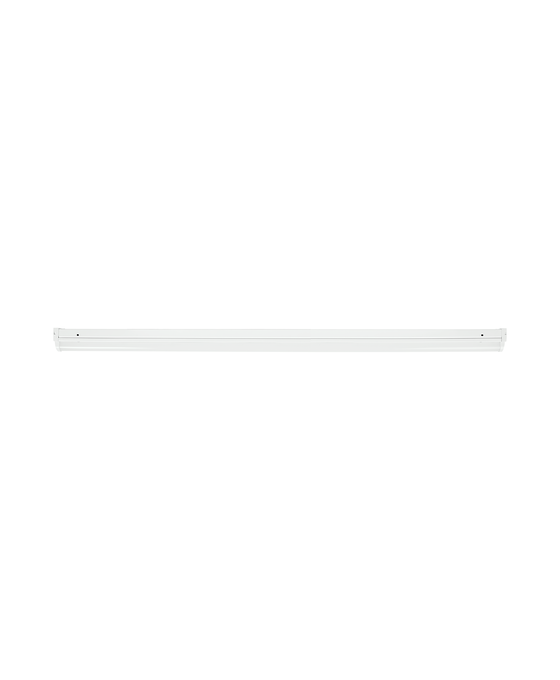

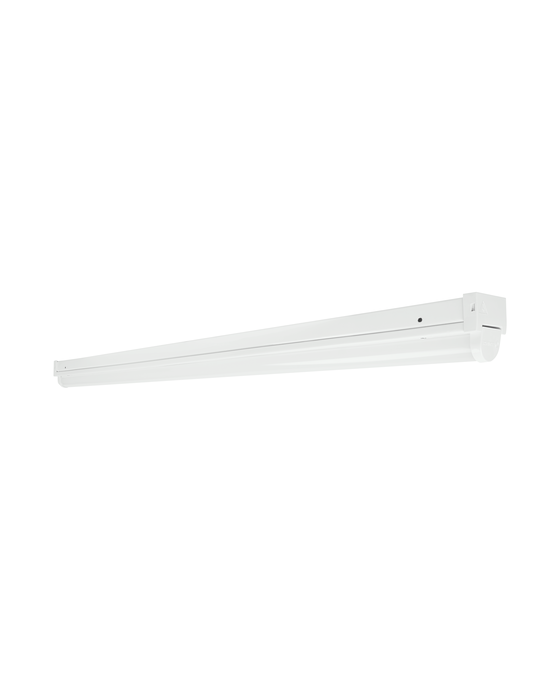

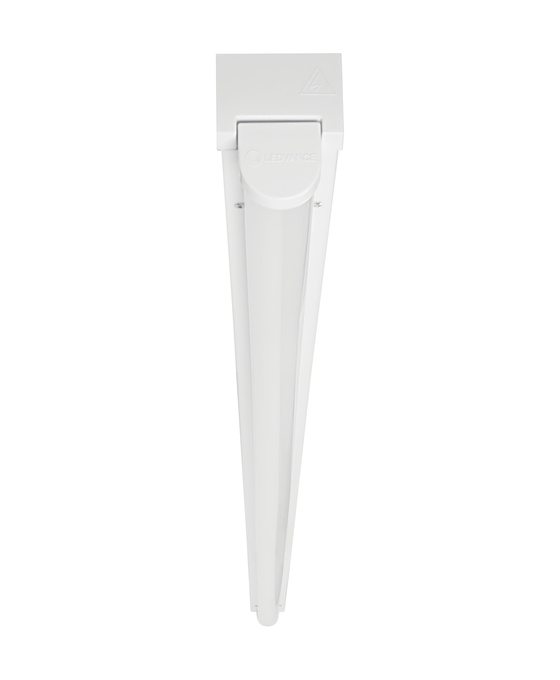

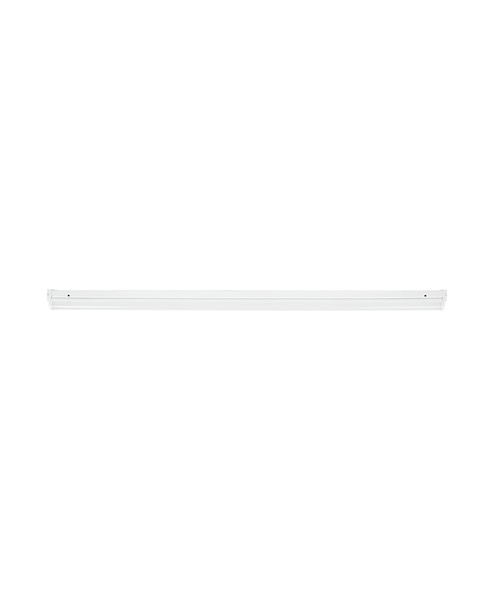

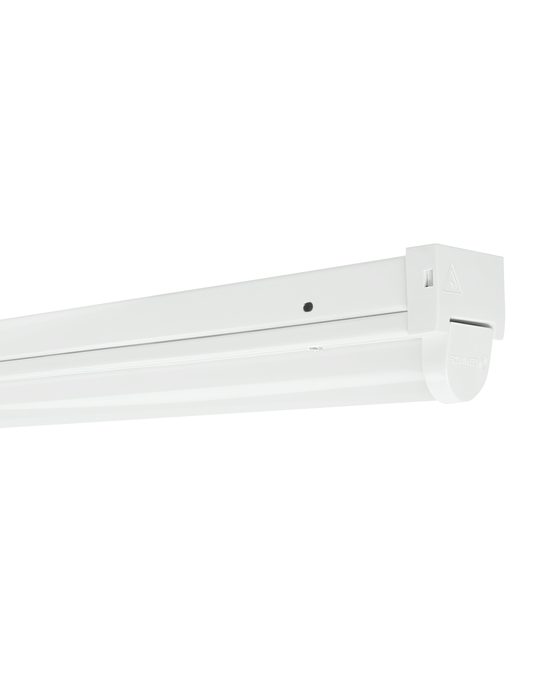

LN UO EL 1500 P 48W ML 83040 WT
4058075850477
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select)
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- High luminous efficacy in normal operation
- Replacement of conventional T8 luminaires with up to 7200 lm
- Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Direct replacement for luminaires with fluorescent lamps
- Indoor applications
- Industrial and commercial halls
- Public areas
- Corridors, stairwells, basements
Product features
- Certified according to European norms (EN 60598-1:2020; EN 60598-2-22:2021)
- Luminaire suitable for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Very high luminous efficacy: up to 150 lm/W
- Robust metal housing and PC diffuser
- Wiring at back side of luminaire
- Through wiring possible
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
24 W
140 lm/W
32 W
140 lm/W
40 W
140 lm/W
48 W
140 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
< 24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
110 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075850477
Height
74.00 mm
Housing color
White
Inrush current
37 A
Inrush current time Th50
120 µs
Integrated test switch
No
Length
1458.00 mm
Lifespan L70/B50 at 25 °C
88000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
150 lm/W 2)
Luminous flux
7200 lm / 6000 lm / 4800 lm / 3600 lm 1)
Luminous flux in emergency operation mode
450 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C10
13
Max. number of luminaires per miniature circuit breaker C16
21
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal capacity of battery
6000 mAh
Nominal current
228/196/166/135 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
48 W / 40 W / 32 W / 24 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1660.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-40…+80 °C
Total harmonic distortion
≤ 20 %
Type of Battery
LiFePO4
Type of connection
Screwless terminal
Type of emergency light operation
Maintain
Type of emergency operation test
Automatic
Type of protection
IP20
Wattage in emergency operation mode
3,0 W
Wattage in maintained operation mode
48 W
Width
65.00 mm
With light source
Yes
