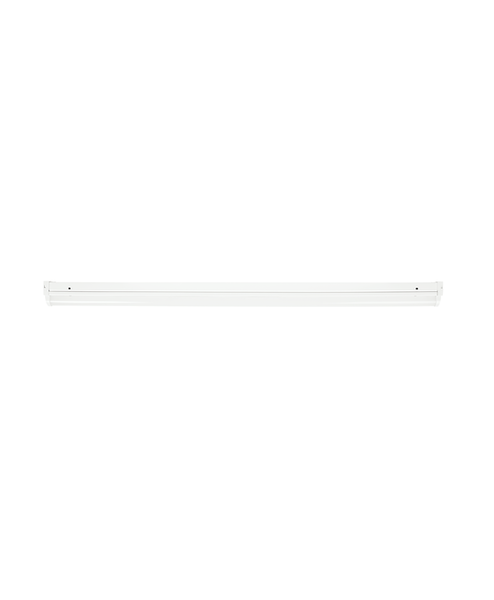

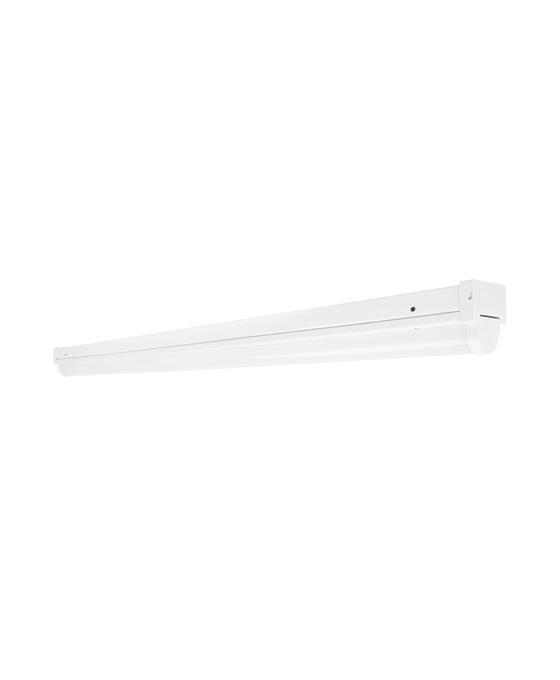

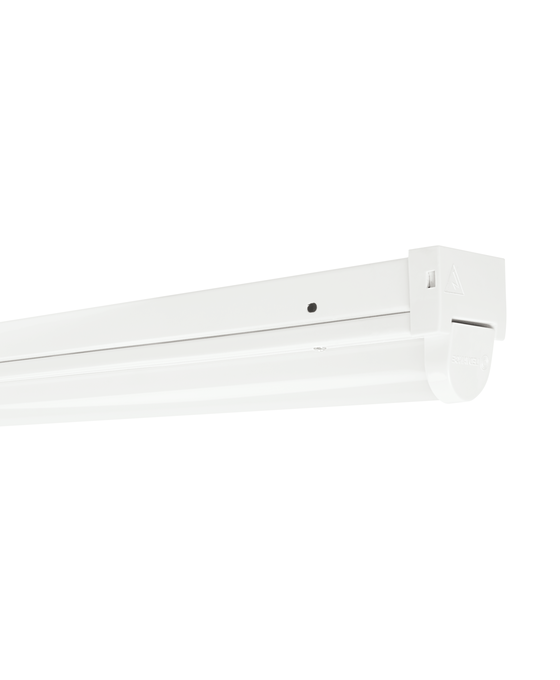

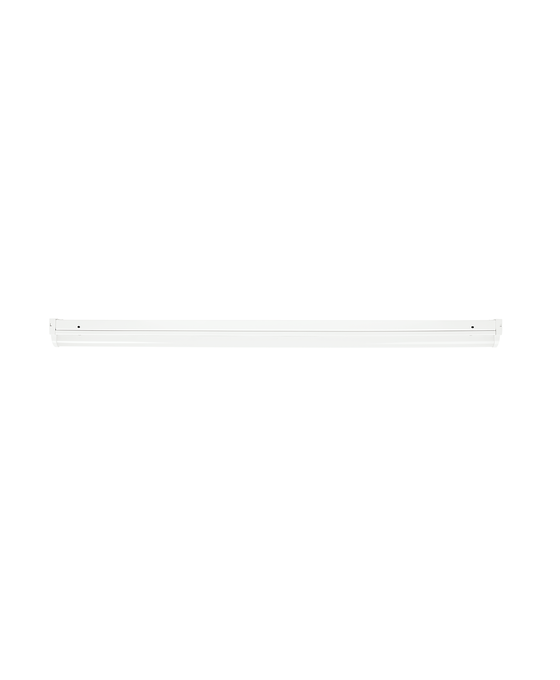

LN UO DA 1200 P 27W 83040 WT
4058075850392
Product benefits
- Highly versatile due to selectable CCT (Multi Color) in 3000K and 4000K
- DALI based light management system integrable into building management systems
- Integrated DALI-2 driver for extended functionalities
- SMD LEDs are moisture-proof and corrosion-proof thanks to tri-proof coating
- Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
- Easy installation and versatile application
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Indoor applications
- Industrial and commercial halls
- Public areas
- Corridors, stairwells, basements
Product features
- DALI-2 certified
- DALI/Touch DIM® control signal
- Three-proof coating to improve the protection of the SMD LEDs
- Very high luminous efficacy: up to 150 lm/W
- Robust metal housing and PC diffuser
- Through wiring possible
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
27 W
150 lm/W
Added function
MULTI SELE
Adjustable
No
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
110 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
Dimming range
1…100 %
ECG - Output ripple current
< 5 %
EPD
LEDV-00055-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075850392
Height
74.00 mm
Housing color
White
Inrush current
9 A
Inrush current time Th50
250 µs
Length
1168.00 mm
Lifespan L70/B50 at 25 °C
88000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
150 lm/W / 140 lm/W
Luminous flux
4050 lm / 3780 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
48
Max. number of luminaires per miniature circuit breaker C10
27
Max. number of luminaires per miniature circuit breaker C16
44
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
120 mA
Nominal voltage
220…240 V
Nominal wattage
27.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
248 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1210.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9003
Recommended control gear
LF-FSD037YA
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of emergency operation test
None
Type of protection
IP20
Width
65.00 mm
With light source
Yes
