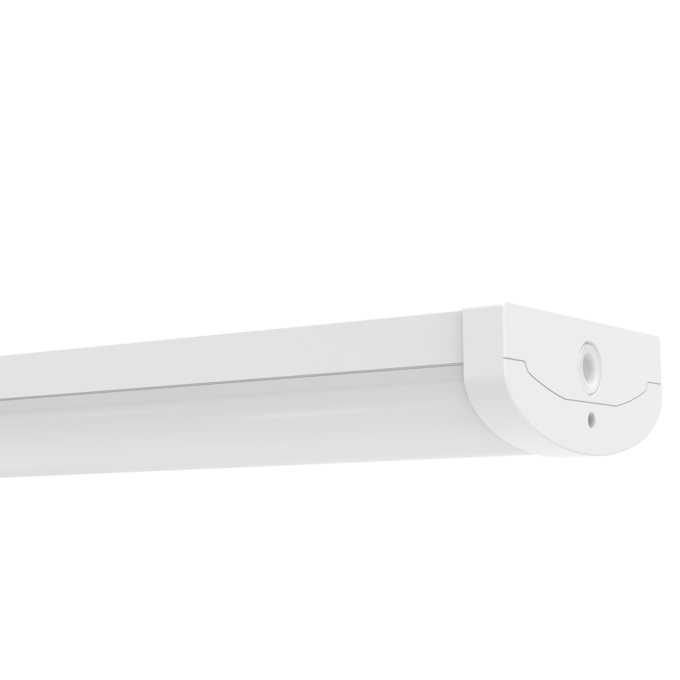

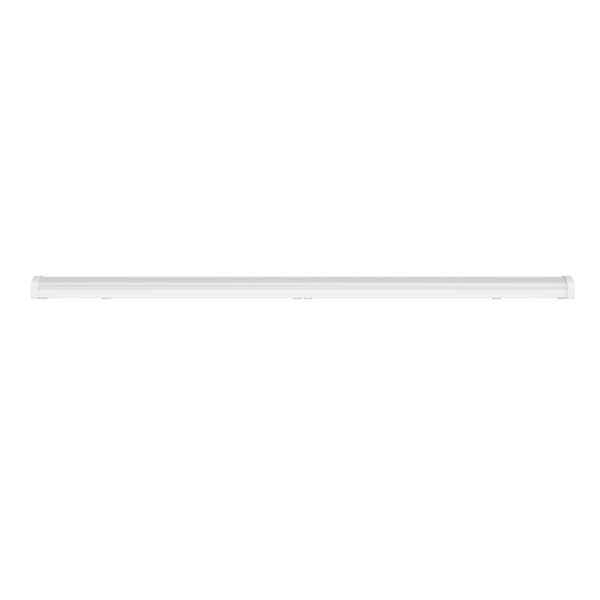

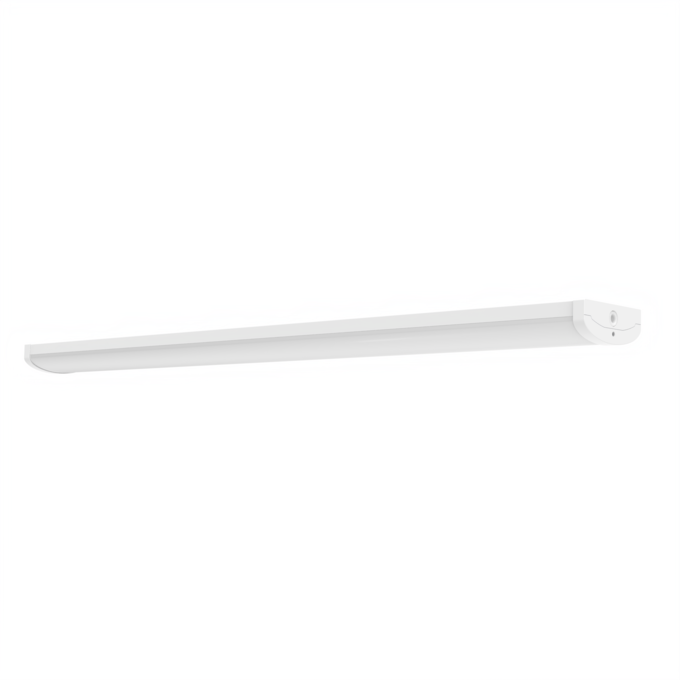

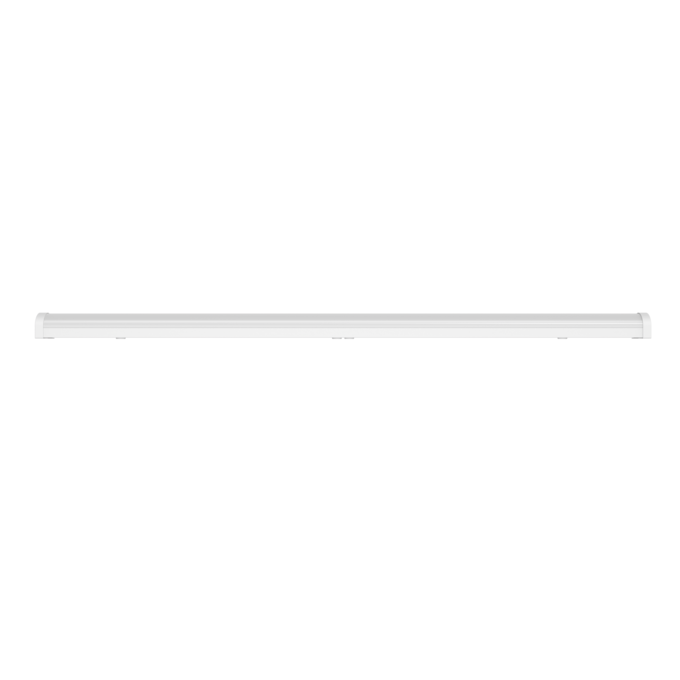

LN SF IP44 EM 1500 P 45W 840 WT
4058075733251
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Protection against cover falling, theft and vandalism thanks to safety screws
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function

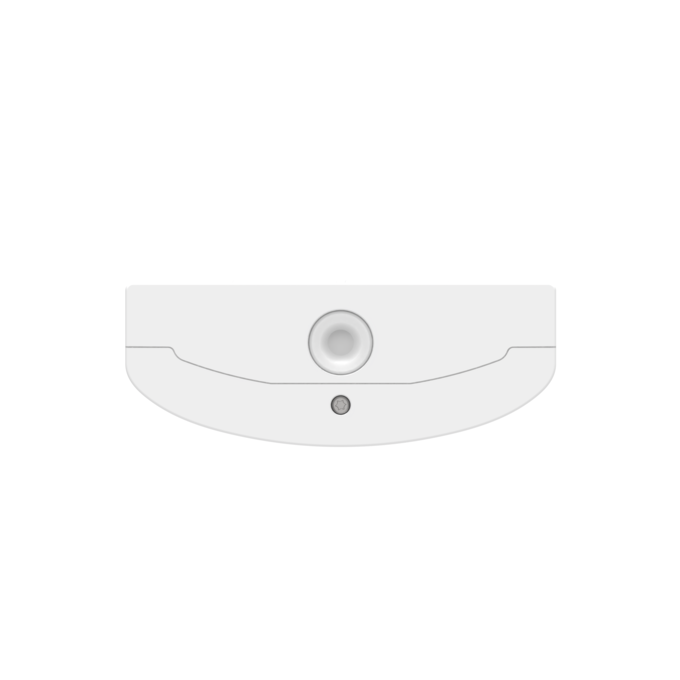

- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- High luminous efficacy in normal operation
- 3 years guarantee
- Low maintenance and low operational costs
- Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
- Easy and quick installation
- Low flicker light thanks to special electronic control gear
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Efficient replacement for traditional T8 and T5 luminaires
- Public buildings
- Corridors, stairways
Product features
- Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
- Luminaire suitable for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Ambient temperature in operation: +5...+35 °C
- Surface mounted luminaires with direct light emission
- Type of protection: IP44
- Impact resistance: IK08
- Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm
- High luminous efficacy: up to 137 lm/W
Equipment / Accessories
- Equipped with through-wiring cables and connectors
- Tool-free cable strain reliefs included
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
+5…+35 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
110 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 10 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075733251
Height
63.00 mm
Housing color
White
Inrush current
24 A
Inrush current time Th50
100 µs
Integrated test switch
No
Length
1476.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
47000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
137 lm/W
Luminous flux
6165 lm
Luminous flux in emergency operation mode
340 lm
Luminous flux in maintained operation mode
6165 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
22
Max. number of luminaires per miniature circuit breaker C10
14
Max. number of luminaires per miniature circuit breaker C16
22
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
210.000 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
45.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
1070 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3300.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
+5…+35 °C
Total harmonic distortion
< 20 %
Type of Battery
LiFePO4
Type of connection
Screwless terminal, 5-Pole
Type of emergency light operation
Maintain
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP44
Wattage in emergency operation mode
3,0 W
Wattage in maintained operation mode
45 W
Width
166.00 mm
With light source
Yes
