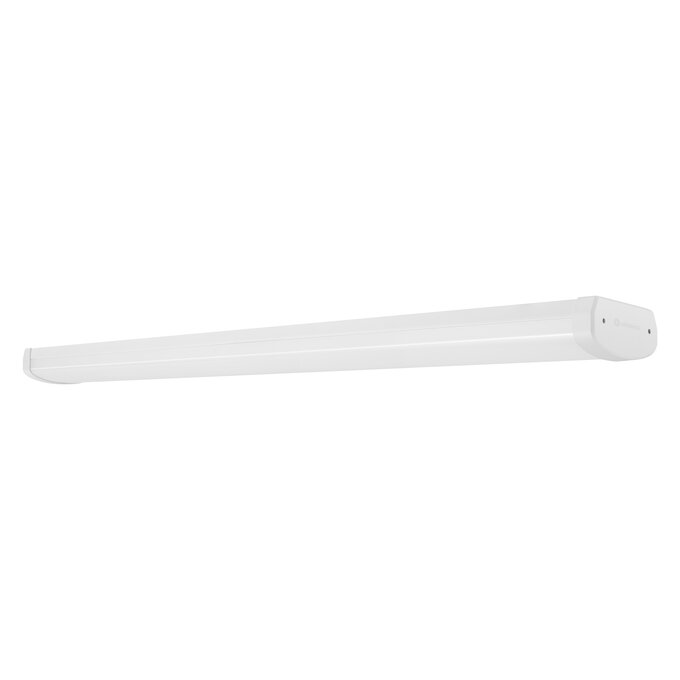

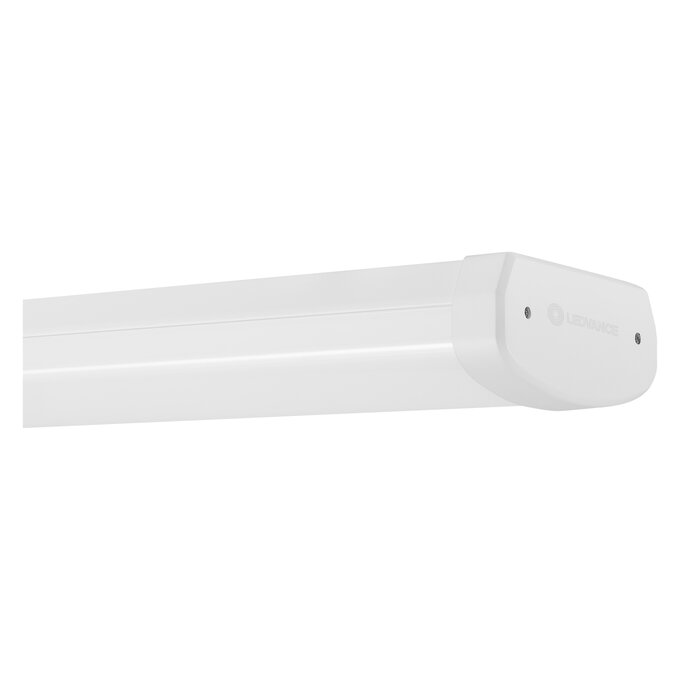

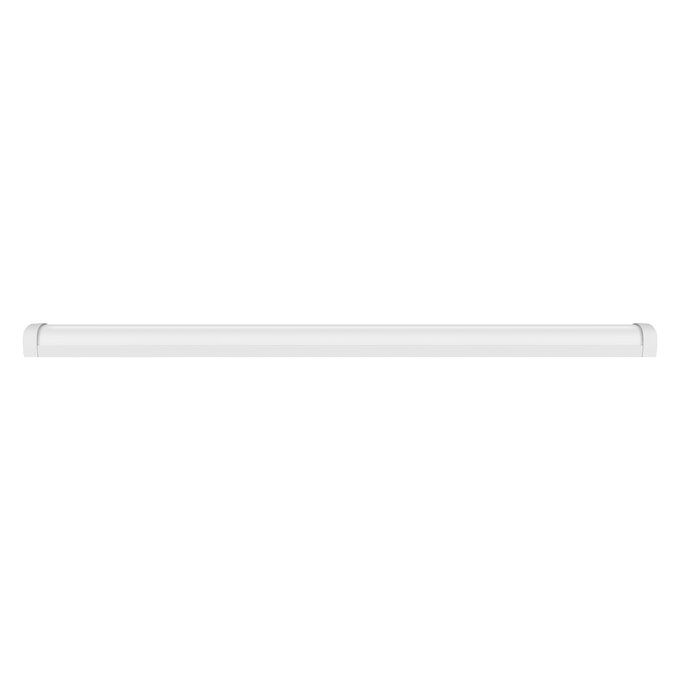

LN SF IP44 EM 1200 36 W 4000 K WT
4058075402973
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- High luminous efficacy in normal operation
- 3 years guarantee
- Low maintenance and low operational costs
- Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
- Easy and quick installation
- Low flicker light thanks to special electronic control gear
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Efficient replacement for traditional T8 and T5 luminaires
- Public buildings
- Corridors, stairways
Product features
- Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
- Luminaire suitable for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Ambient temperature in operation: 5°…+40 C
- Surface mounted luminaires with direct light emission
- Type of protection: IP44
- Impact resistance: IK08
- Available in 2 different lengths: 1200 mm and 1500 mm
- High luminous efficacy: up to 115 lm/W
Equipment / Accessories
- Accessories for suspension available
- Mounting screws and dowels included
References / Links
- For Guarantee see
Ambient temperature range
+5…+40 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
< 24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
120 °
Body material
Stainless steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075402973
Height
64.50 mm
Housing color
White
Inrush current
15.6 A
Inrush current time Th50
265 µs
Integrated test switch
No
Length
1199.00 mm
Lifespan L70/B50 at 25 °C
60000 h 1)
Lifespan L80/B10 at 25 °C
40000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
4000 lm
Luminous flux in emergency operation mode
350 lm
Luminous flux in maintained operation mode
4000 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
16
Max. number of luminaires per miniature circuit breaker C10
16
Max. number of luminaires per miniature circuit breaker C16
25
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface/Suspended
Nominal capacity of battery
4500 mAh
Nominal current
180 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
36.00 W
Number of illuminants
-
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
1050 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
2400.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤4 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
5…+35 °C
Total harmonic distortion
≤ 20 %
Type of Battery
LiFePO4
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of emergency light operation
Maintain
Type of emergency operation test
Automatic
Type of protection
IP44
Wattage in emergency operation mode
3,0 W
Wattage in maintained operation mode
36 W
Width
145.00 mm
With light source
Yes
