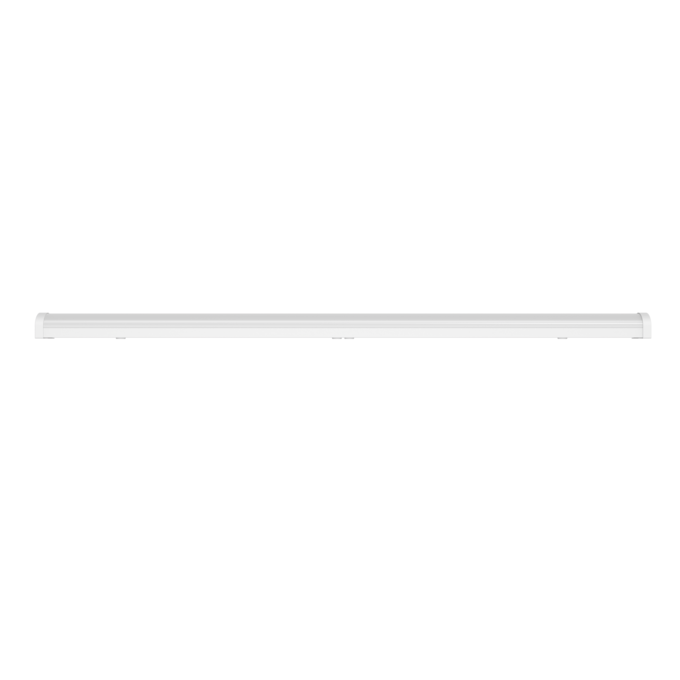

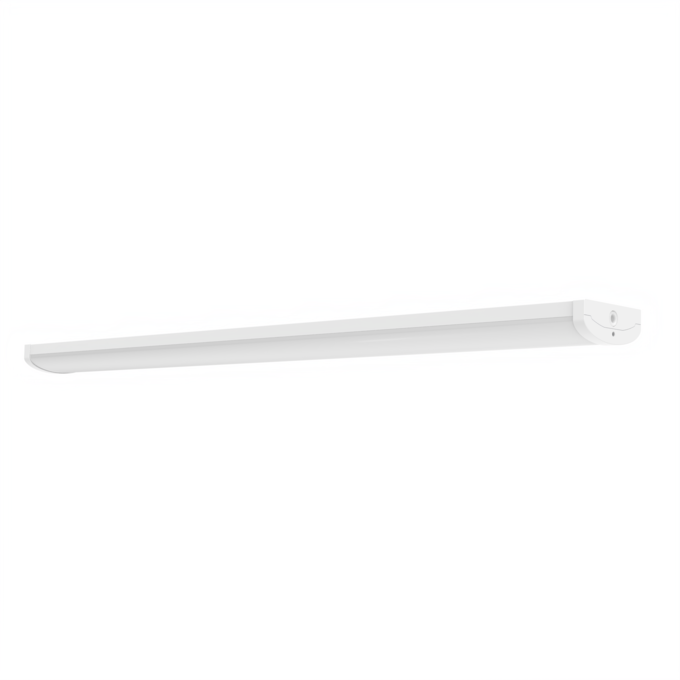

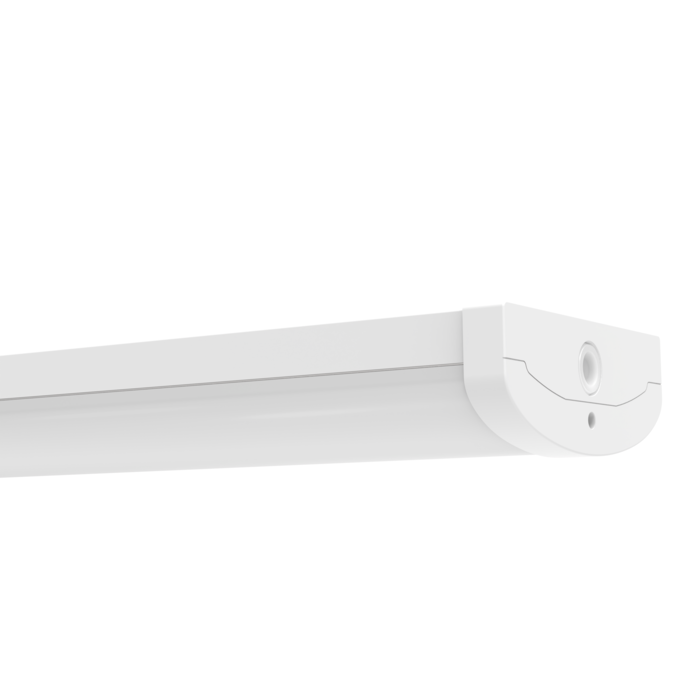

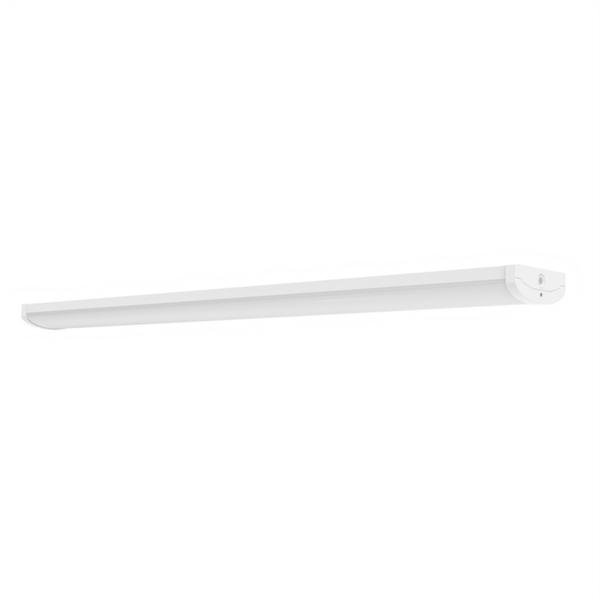

LN SF 600 ZB P 18W 830 WT IP44
4099854515170
Product benefits
- Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
- Low maintenance and low operational costs
- Protection against cover falling, theft and vandalism thanks to safety screws
- Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
- Easy and quick installation
- Low flicker light thanks to special electronic control gear
Areas of application
- Efficient replacement for traditional T8 and T5 luminaires
- Public buildings
- General illumination
- Libraries, schools
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- Surface mounted luminaires with direct light emission
- Type of protection: IP44
- Impact resistance: IK08
- Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm
- High luminous efficacy: up to 137 lm/W
- Through-wiring cable already installed
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- White painted steel housing (like RAL: 9003)
- Diffuser material: UV-stable polycarbonate
- End caps (made of polycarbonate) screwed to the housing
Equipment / Accessories
- Equipped with through-wiring cables and connectors
- Tool-free cable strain reliefs included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
No
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
ECG - Height
25 mm
ECG - Length
178 mm
ECG - Output ripple current
< 5 %
ECG - Width
45 mm
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854515170
Height
64.00 mm
Housing color
White
Inrush current
< 6 A
Inrush current time Th50
190 µs
IoT ready
Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1)
Length
608.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Warm White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
130 lm/W
Luminous flux
2340 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
63
Max. number of luminaires per miniature circuit breaker C10
53
Max. number of luminaires per miniature circuit breaker C16
86
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
80.000 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Number of switching cycles
100000
Output current
440 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.97
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1420.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9010
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 3-POLE (L, N, PE)
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP44
Width
166.00 mm
With light source
Yes
