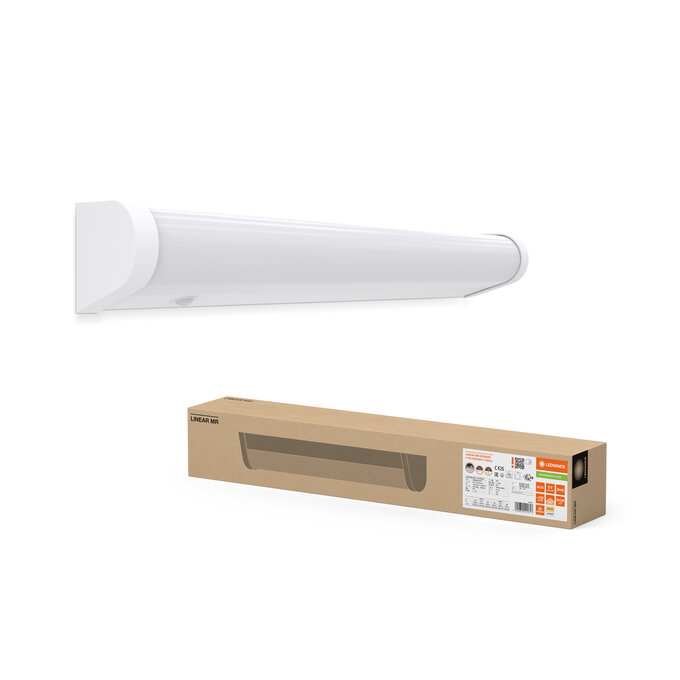

LN MR SN 600 P 11W ML 83040
4099854401817
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
- High color consistency with SDCM 3
- Tool-free electrical connection due to push button connector

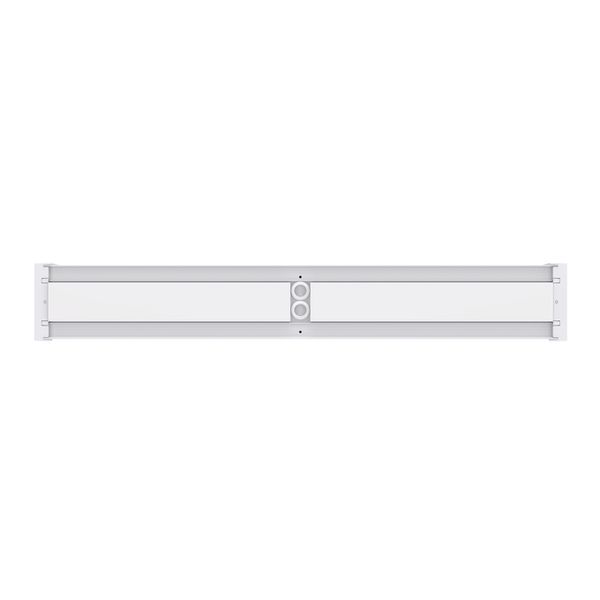

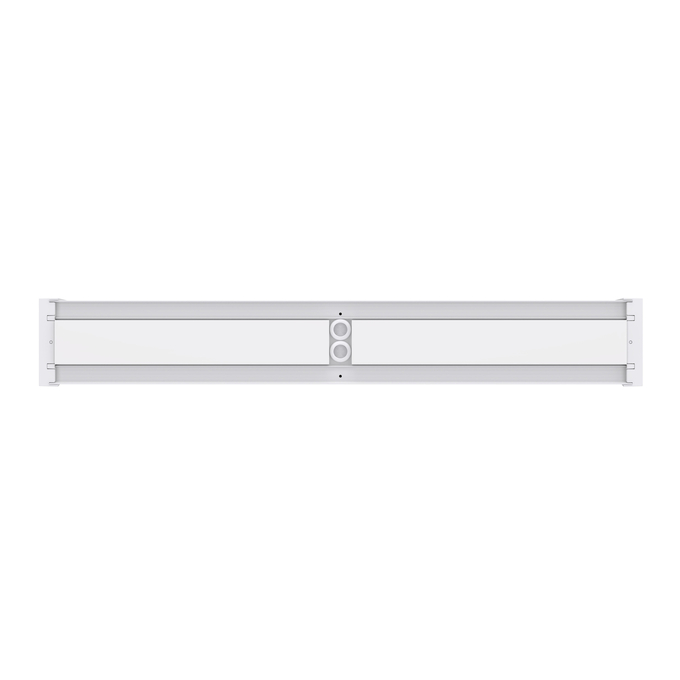

- Toolless assembly of the luminaire
Areas of application
- Sanitary areas
- Bathrooms (IP44)
- Direct replacement for luminaires with indcandescent or fluorescent lamps
Product features

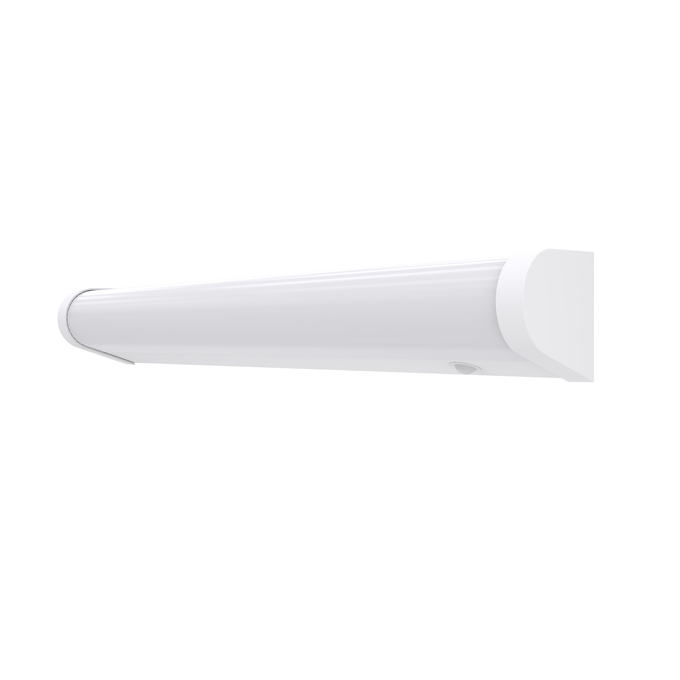

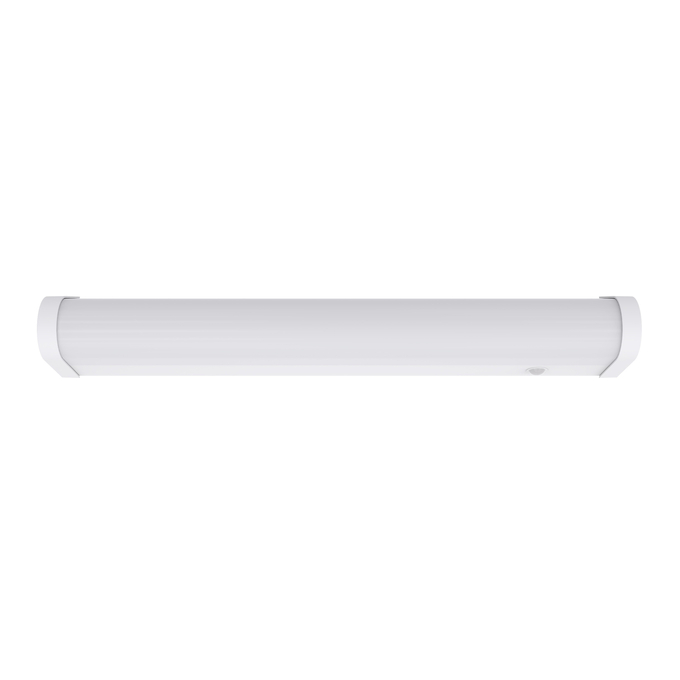

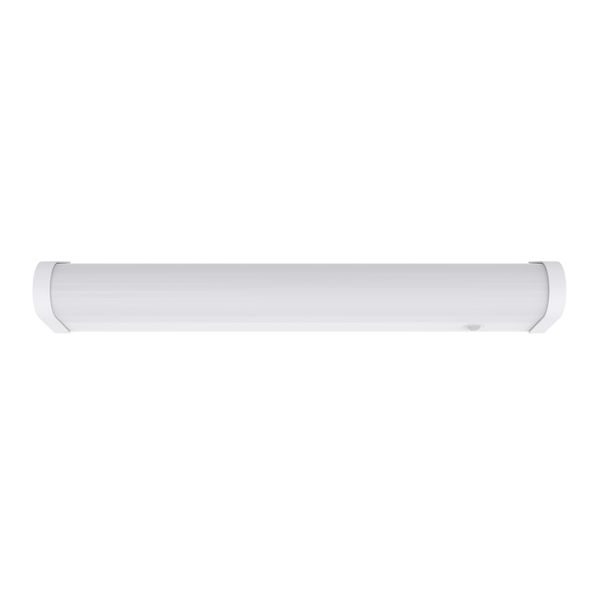

- Wall-mounted luminaire with direct light emission

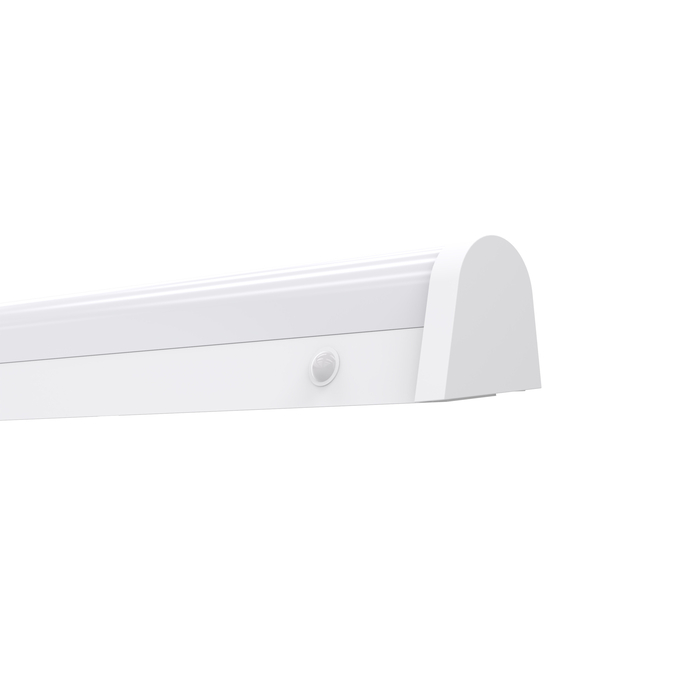

- Preset PIR sensor integrated in the luminaire
- Type of protection: IP44
- Impact resistance: IK03
- White painted metal housing (like RAL: 9003)
- Through-wiring possible
- Lifetime (L80/B10): up to 75,000 h (at 25 °C)
- Diffuser and end cap material: Polycarbonate (PC)
- Luminaire length: 560 mm
- High luminous efficacy: up to 130 lm/W
Equipment / Accessories
- Mounting screws and dowels included
- Chrome-plated end caps available separately for visual enhancement
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
11 W
130 lm/W
6 W
130 lm/W
8 W
130 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
1…3 m
Detection threshold of daylight sensor
5…35 lx
Dimmable
No
ECG - Output ripple current
< 30 %
EPD
LEDV-00044-V01.01-EN
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
750 °C
GTIN
4099854401817
Height
82.00 mm
Housing color
White
Inrush current
12 A
Inrush current time Th50
120 µs
Length
561.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
130 lm/W 2)
Luminous flux
1430 lm / 1040 lm / 780 lm 1)
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
52
Max. number of luminaires per miniature circuit breaker C10
39
Max. number of luminaires per miniature circuit breaker C16
62
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
290…210…150 mA
Nominal voltage
220…240 V
Nominal wattage
11 W / 8 W / 6 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
290…210…150 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
800.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
30 s
Sensor detection angle
120 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 30 %
Type of connection
Screwless terminal, 3-POLE (L, N, PE)
Type of protection
IP44
Type of sensor
Daylig
Width
82.00 mm
With light source
Yes
