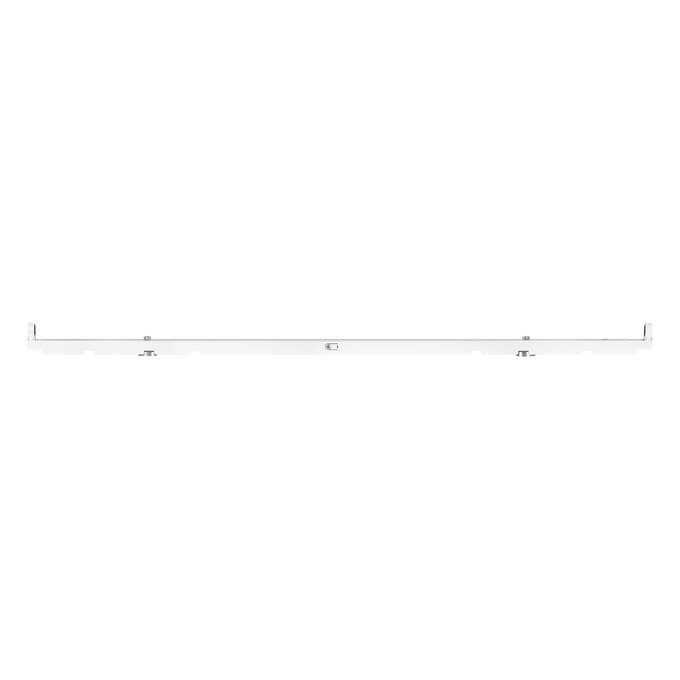

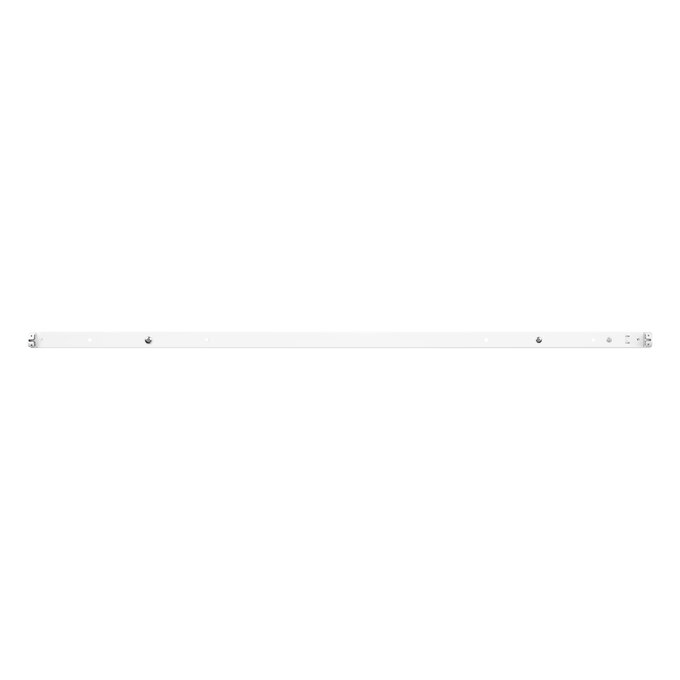

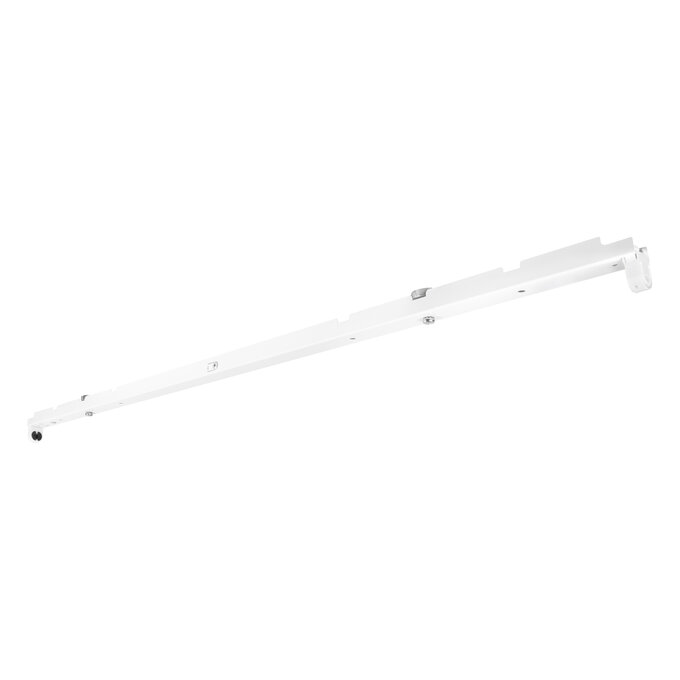

LN MAG BATTEN T5 868
4058075821798
Product benefits
- Retrofitting without completely replacing existing luminaires
- If necessary, the old luminaire may remain installed on the ceiling during the conversion process
- Control gear and wiring may remain in the old luminaire if necessary
- Easy replacement of the LED TUBE T5 AC allows to participate in progress of LED technology over time
- Simple and quick upgrade solution
- Integrated fuse for additional safety
- 5 years guarantee
Areas of application

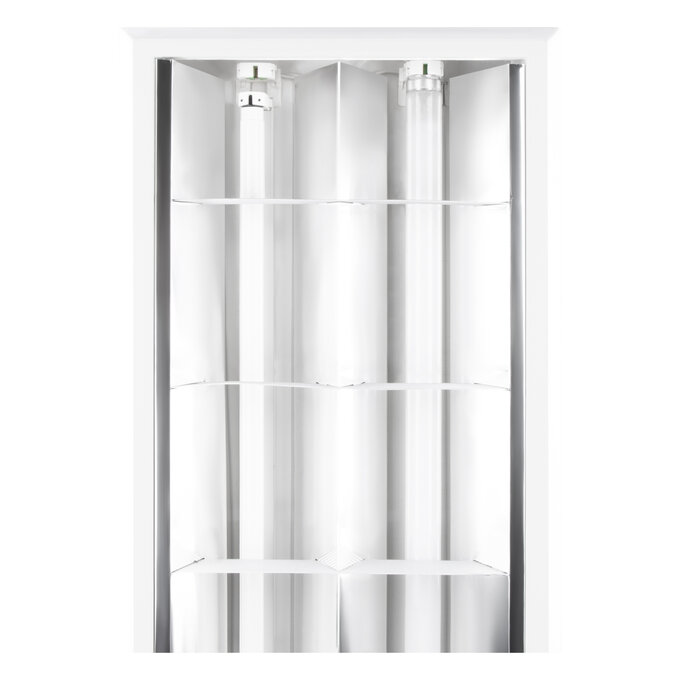

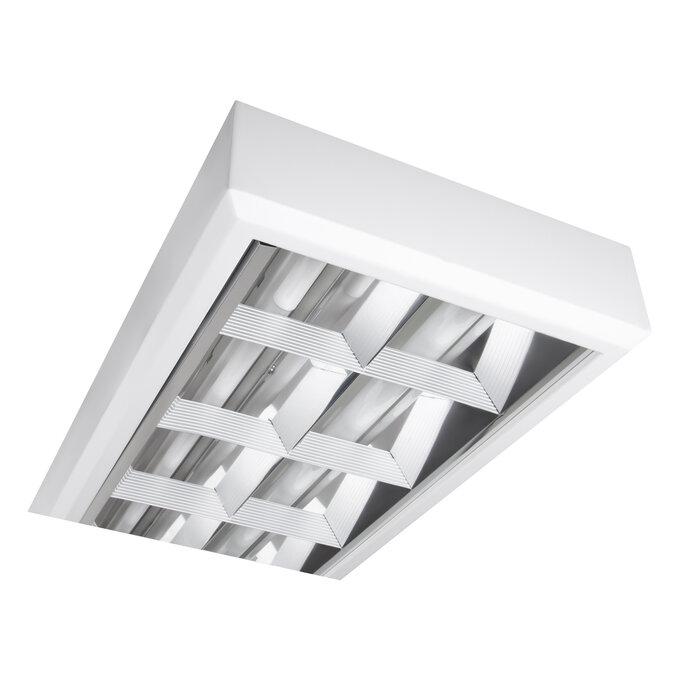

- Replacement kit for modernizing existing metallic ceiling lights (T8 and T5 Fluorescent) to energy-saving LED technology
- Offices, public buildings
- Supermarkets and department stores
- Industry
- Corridors, foyers, waiting areas
Product features
- Available in 4 different lengths: 568 mm, 868 mm, 1168 mm and 1468 mm

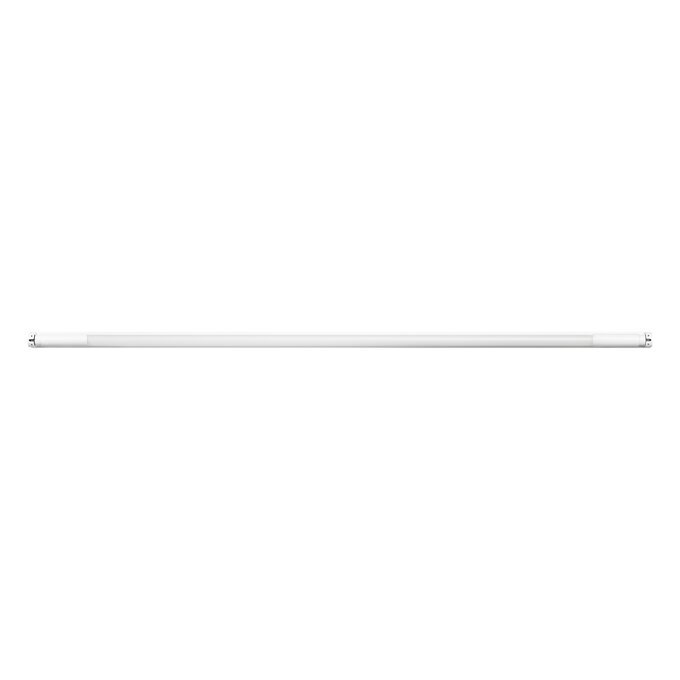

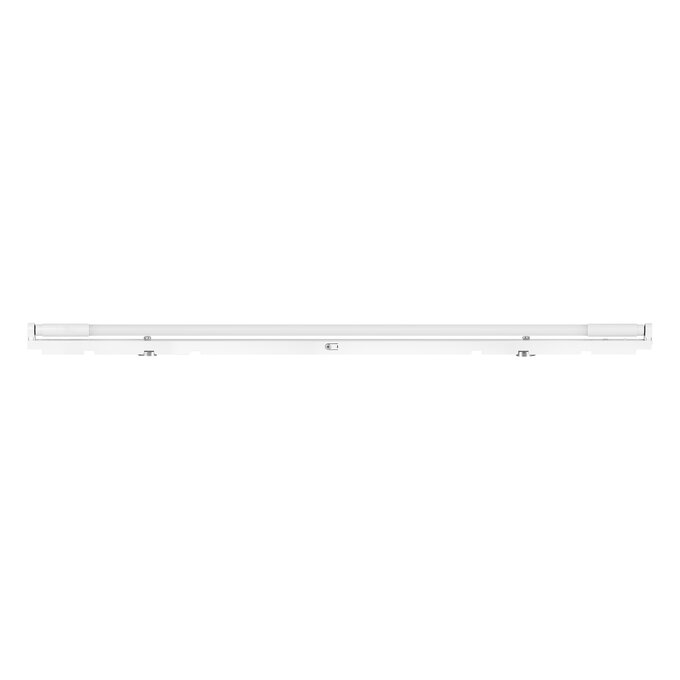

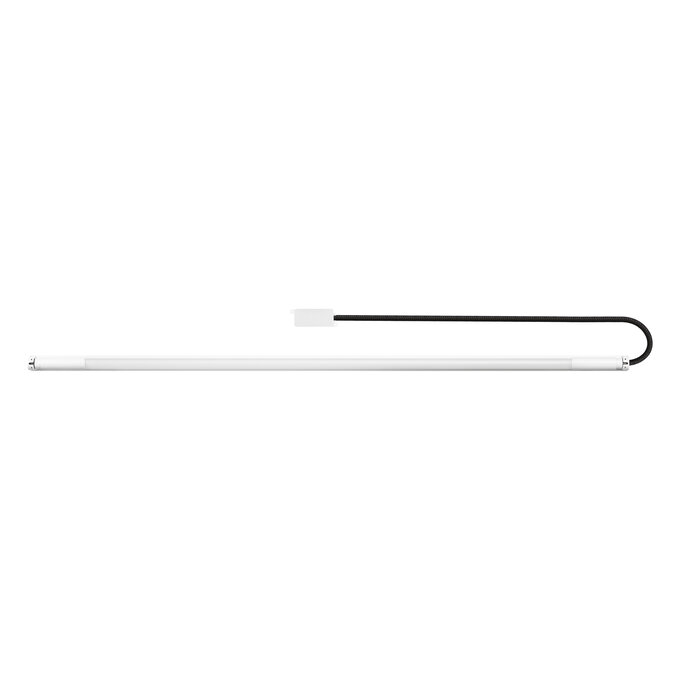

- Luminaire insert for accommodating one LED TUBE T5 AC 230V
- Suitable for LED TUBE T5 AC, HE or HO, 830/840/865

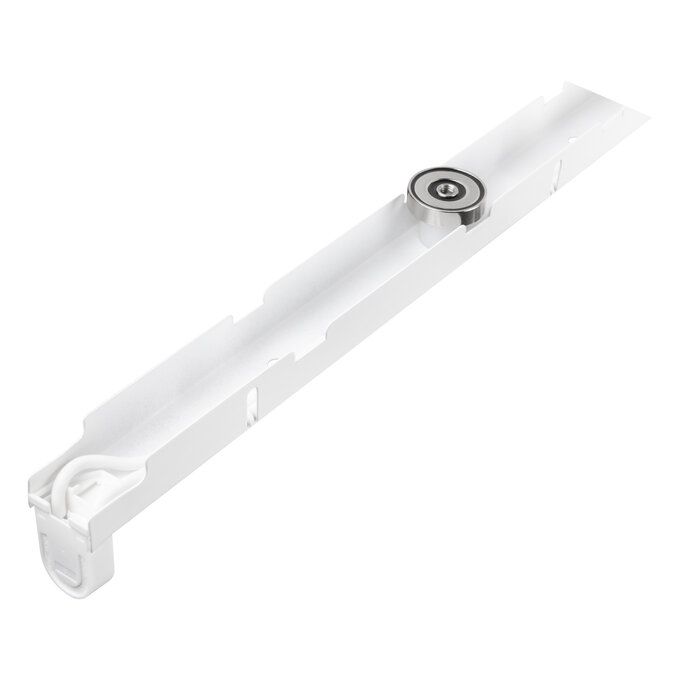

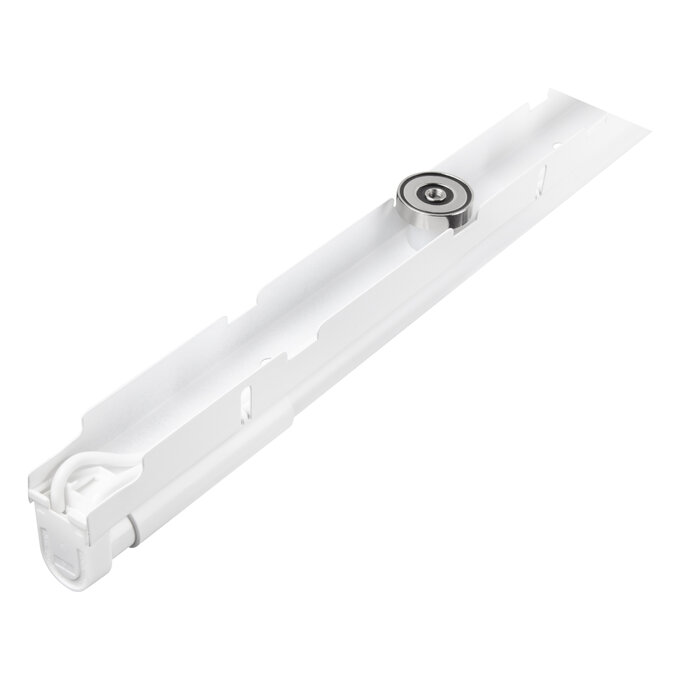

- Strong neodym magnets
References / Links
- For Guarantee see
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Body material
Steel
Cable length
600 mm
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075821798
Height
45.00 mm
Holder designation
G5
Housing color
White
Length
868.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Mains frequency
50/60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal voltage
220…240 V
Number of illuminants
1
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
520.00 g
Protection class
I
Protection class IK (shock resistance)
IK02
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Temperature range at storage
-20…80 °C
Type of connection
Screwless terminal, 3-Pole
Type of protection
IP20
Width
25.00 mm
With light source
No
