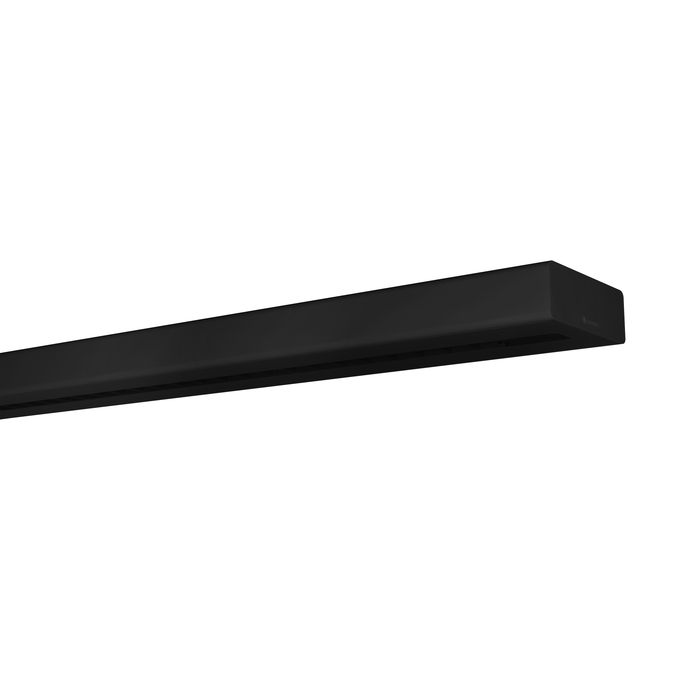

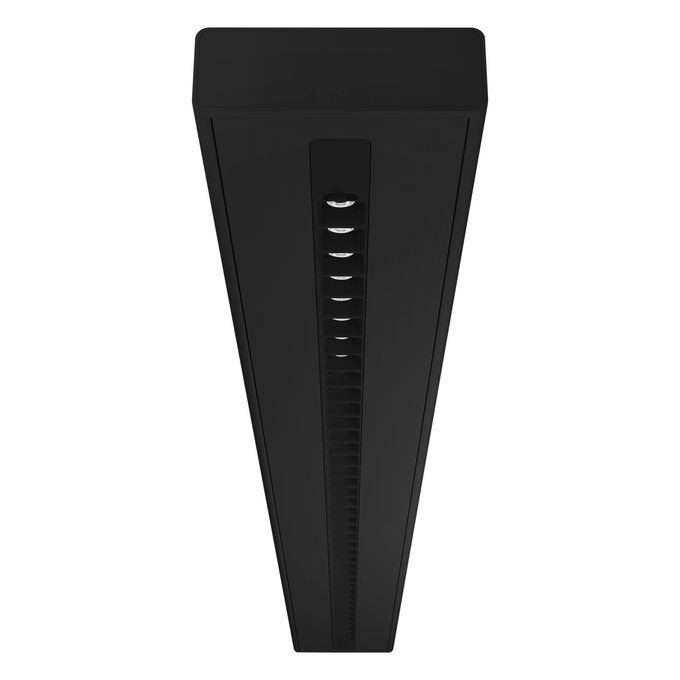

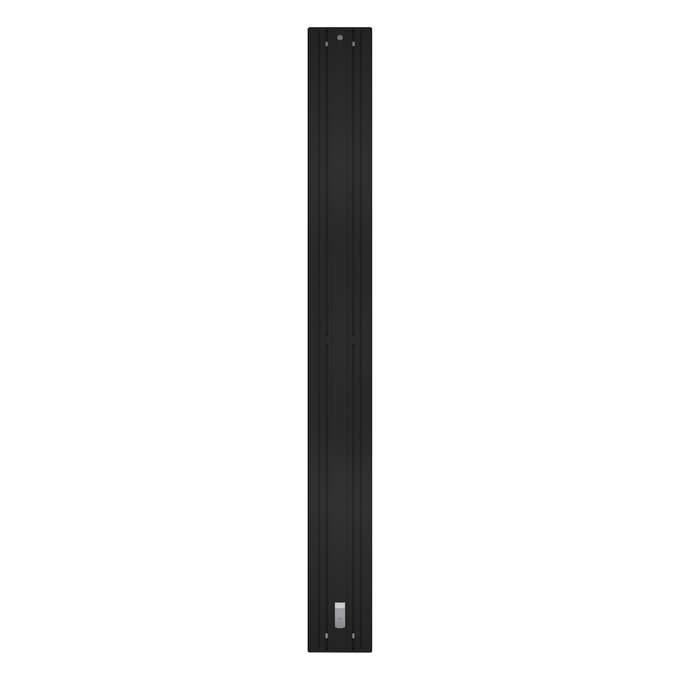

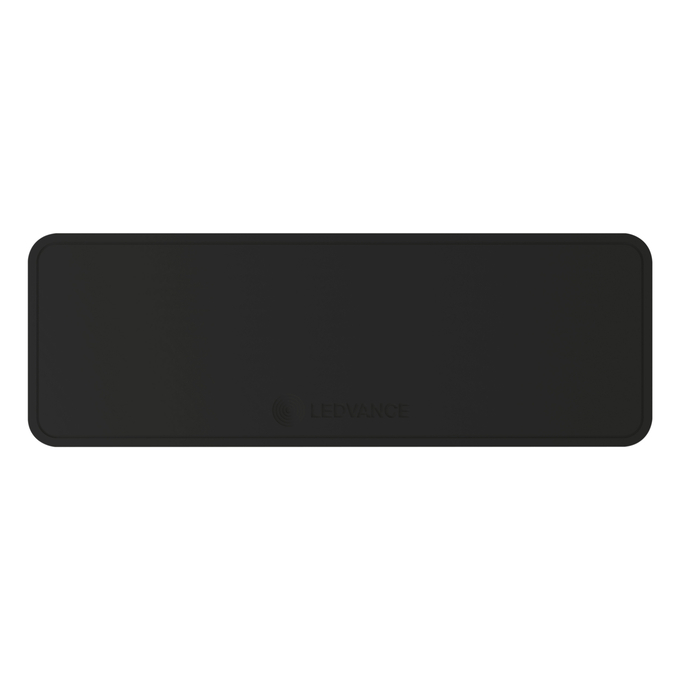

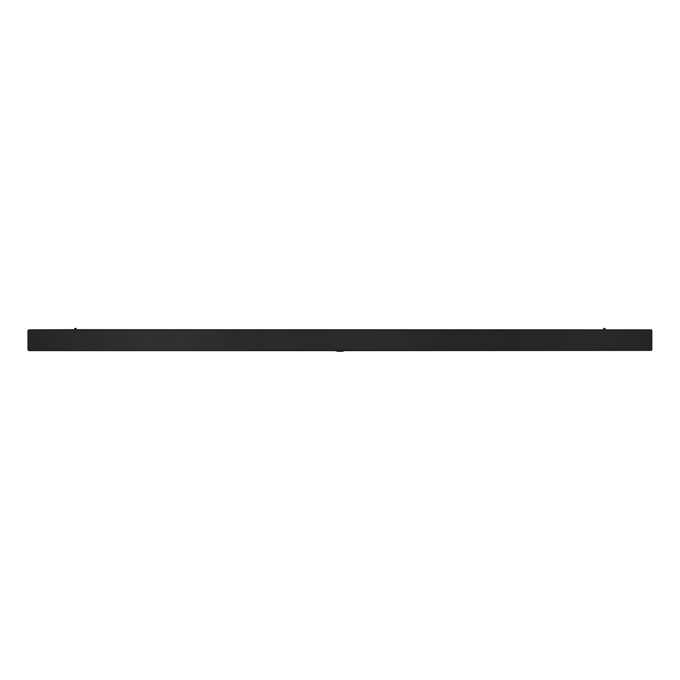

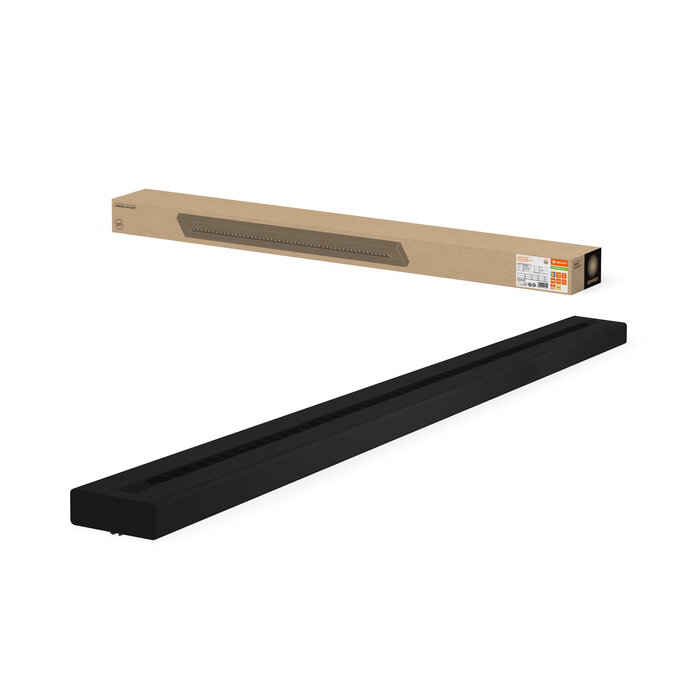

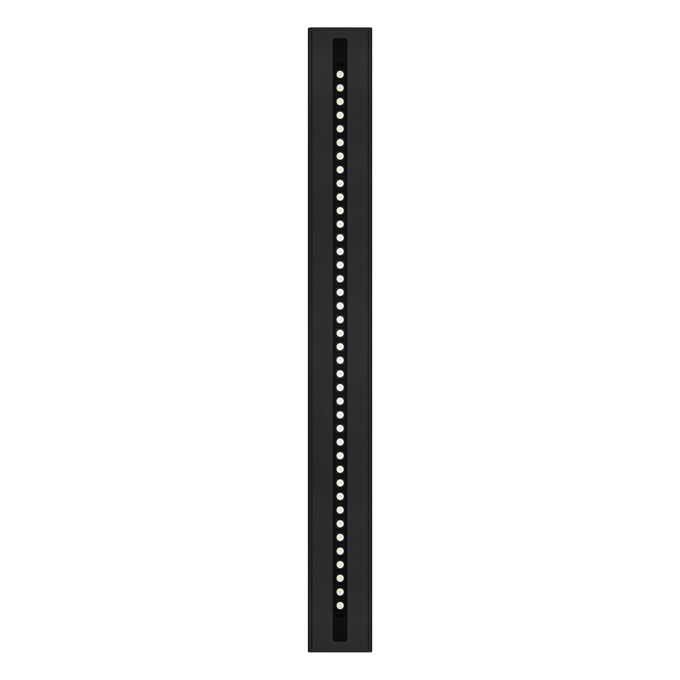

LN INV DI 1500 P 69W 930 PS BK
4099854296949
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics

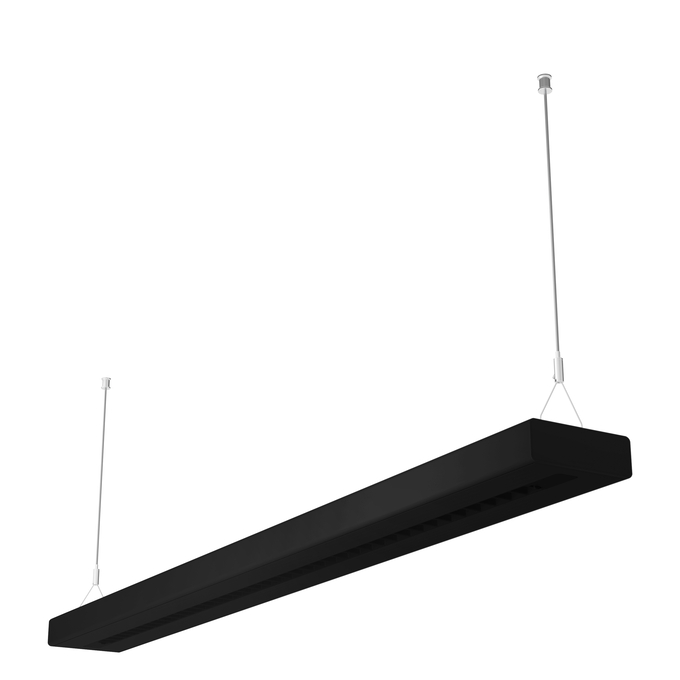

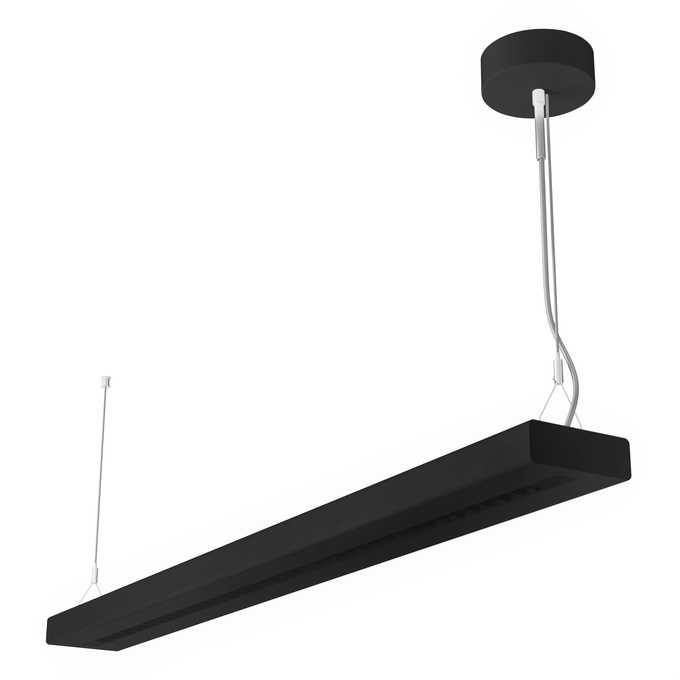

- Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
- High performance with CRI90 and up to 134 lm/W
- Highly versatile due to selectable lumen steps (Multi Lumen) on the driver
- High color consistency with SDCM 3
- Easy installation
- Low flicker light thanks to special electronic control gear
- Multiple mounting options thanks to different accessories
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
- Single and continuous line configuration
- Direct and indirect lighting
Product features
- Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
- Includes EVERLOOP: Convenient replacement of light source and LED driver
- Linkable into seamless light line with accessories (surface or pendant mounting)
- Pendant mounting with suspension kit (to be ordered separetely)
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Suspension kit available for pendant luminaire version (to be ordered separately)
- Inline, corner and infill connectors available as separate accessory
- Through-wiring cable kit available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
53 W
123 lm/W
61 W
122 lm/W
63 W
121 lm/W
69 W
119 lm/W
Added function
EVERLO
Adjustable
No
Ambient temperature range
-20…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 ° + 130 °
Body material
Aluminum
Color rendering index Ra
≥90
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
No
ECG - Output ripple current
≤ 5 %
EPD
LEDV-00026-V01.01-EN
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854296949
Height
43.00 mm
Housing color
Black
Inrush current
23.6 A
Inrush current time Th50
176 µs
Length
1475.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
119 lm/W / 121 lm/W / 122 lm/W / 123 lm/W
Luminous flux
8200 lm / 7650 lm / 7450 lm / 6500 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
17
Max. number of luminaires per miniature circuit breaker C10
14
Max. number of luminaires per miniature circuit breaker C16
23
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended
Nominal current
315…285…270…242 mA
Nominal voltage
220…240 V
Nominal wattage
69 W / 63 W / 61 W / 53 W
Number of illuminants
2
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
1400mA / 1275mA / 1200mA / 1050 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
4300.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9005
Recommended control gear
OSRAM type OT FIT 55/220–240/1A0 CS L AP& IT FIT 18/220…240/350 CS L
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Type of connection
Screwless terminal
Type of protection
IP20
UGR
< 19
Width
125.00 mm
With light source
Yes
