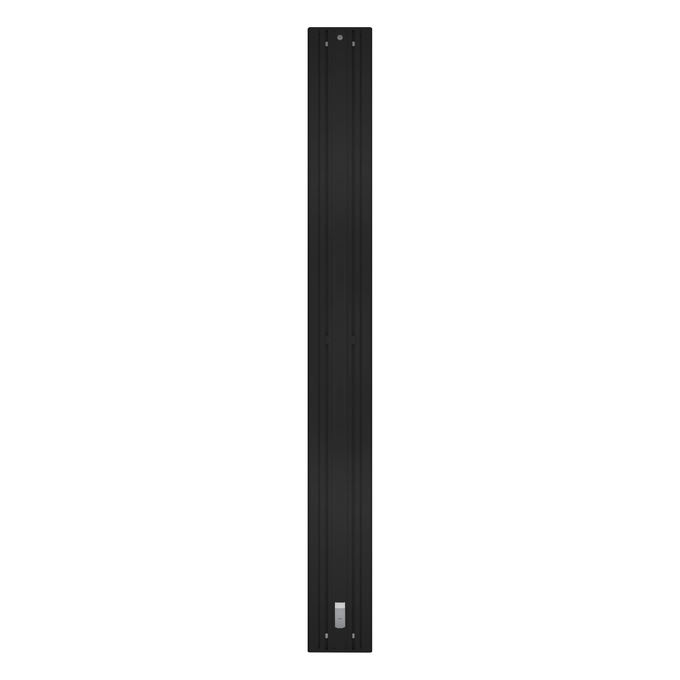

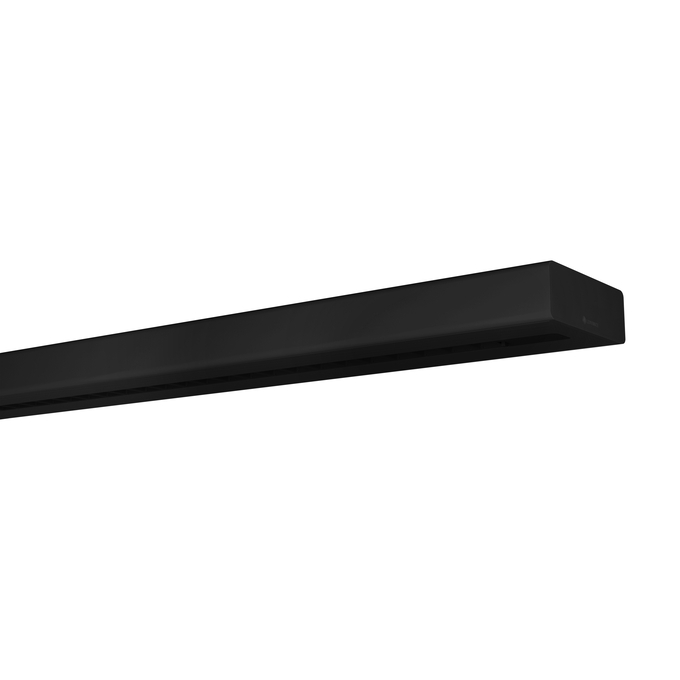

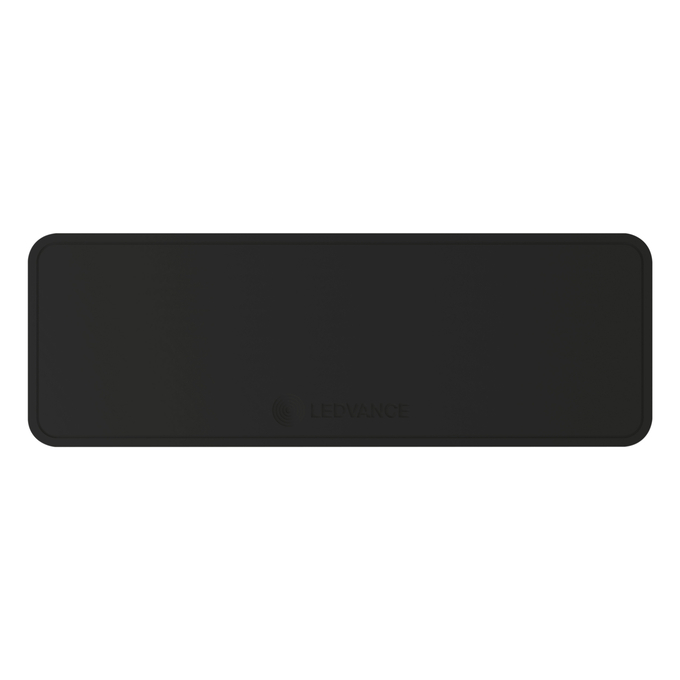

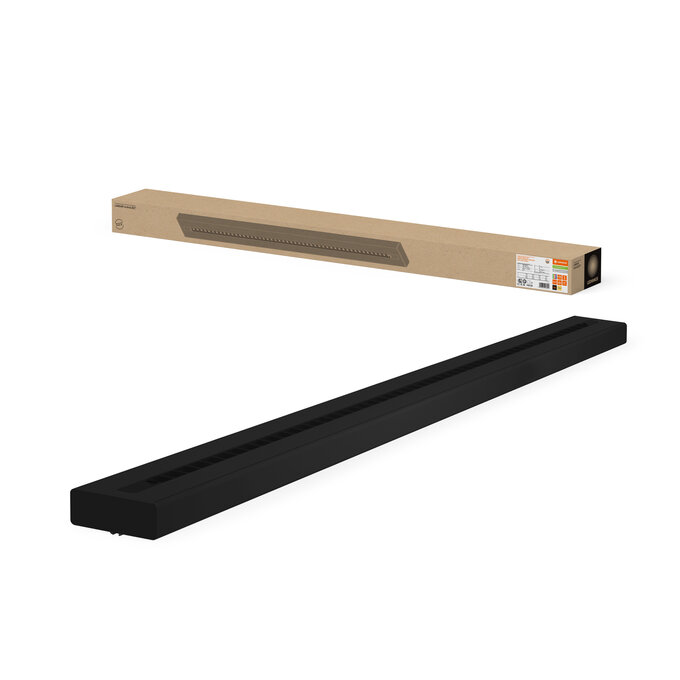

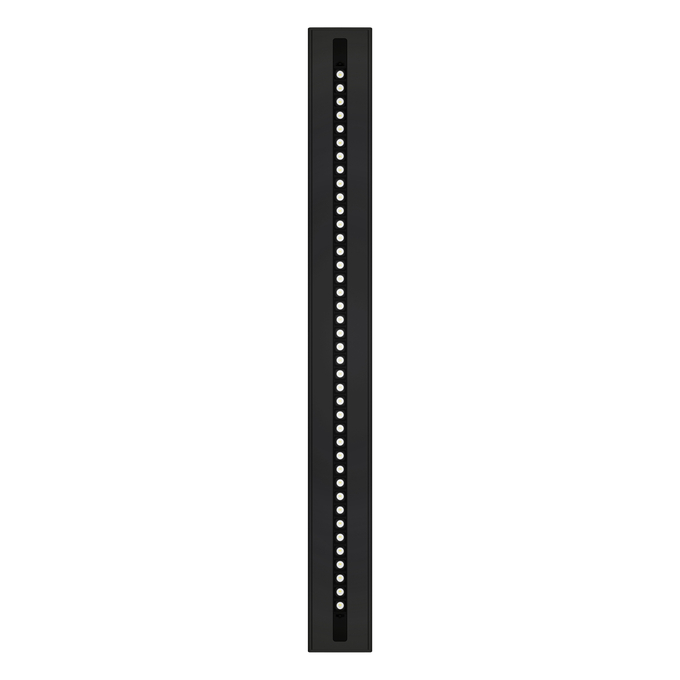

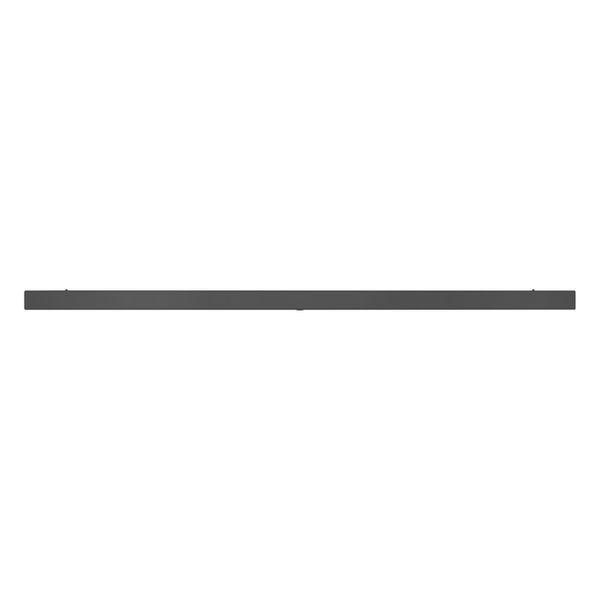

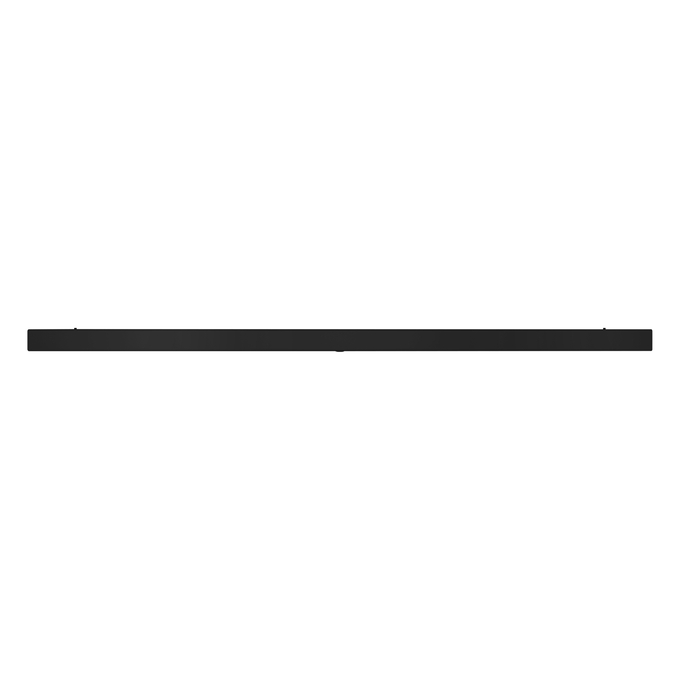

LN INV DI 1500 P 69W 930 DAVR BK
4099854296925
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics

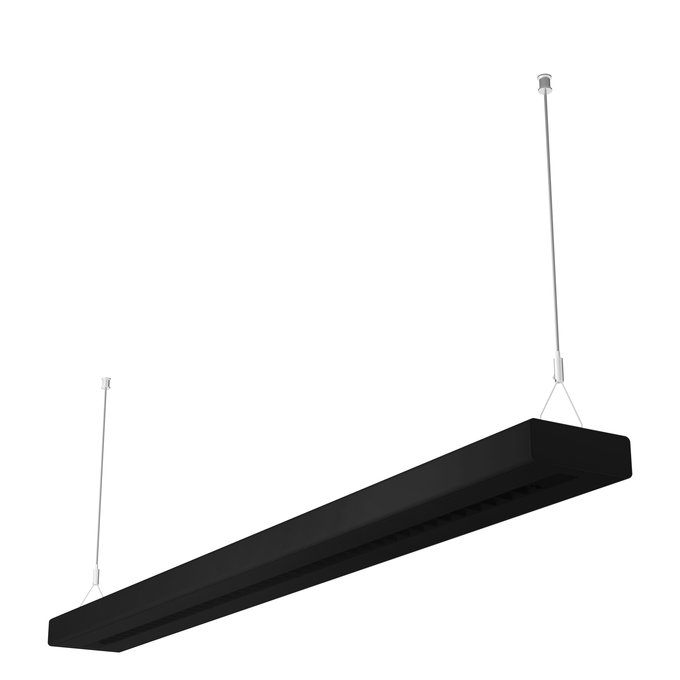

- Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
- High performance with CRI90 and up to 131 lm/W
- IoT-ready luminaire with DALI-2 driver, suitable for VIVARES and other Light Management Systems
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- High color consistency with SDCM 3
- Easy installation
- Low flicker light thanks to special electronic control gear
- Suitable for battery emergency installations acc. to EN 60598-2-22
- Multiple mounting options thanks to different accessories
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
- Single and continuous line configuration
- Direct and indirect lighting
Product features

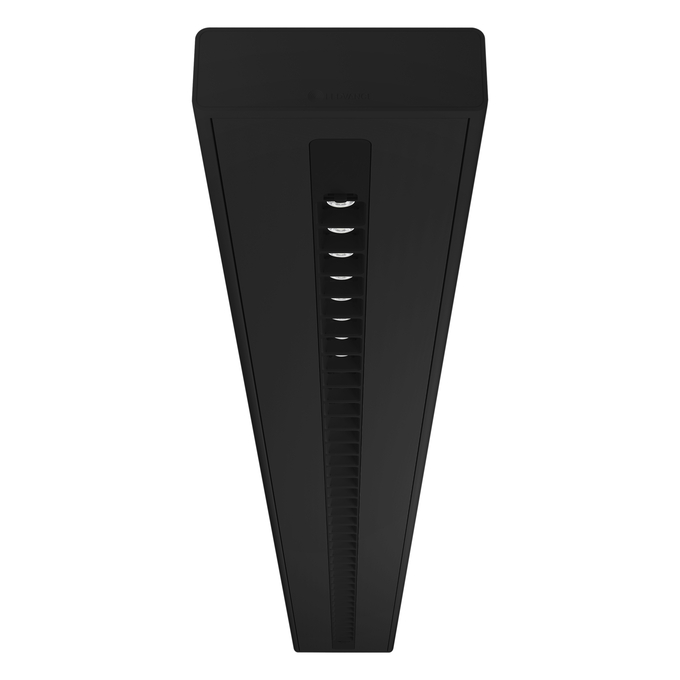

- Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
- Includes EVERLOOP: Convenient replacement of light source and LED driver
- Linkable into seamless light line with accessories (surface or pendant mounting)

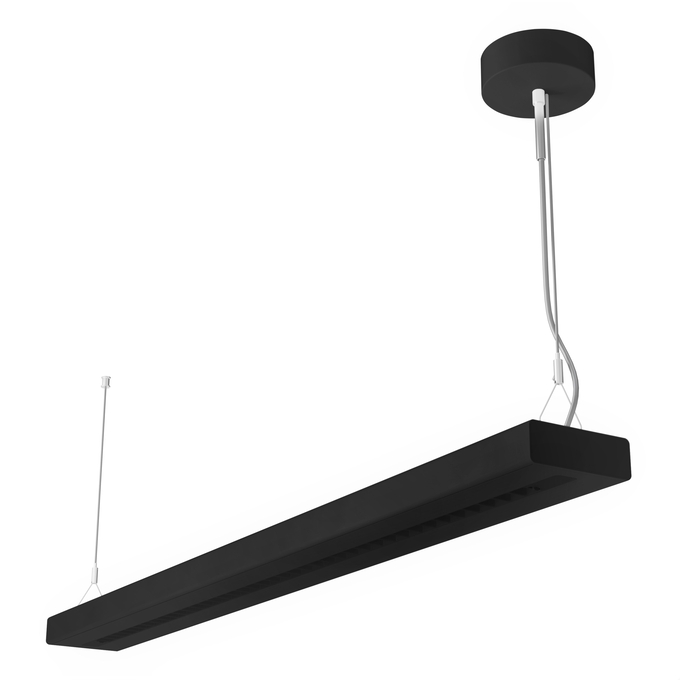

- Pendant mounting with suspension kit (to be ordered separetely)
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Multi Lumen function: programmable DALI-2 driver
Equipment / Accessories
- Suspension kit available for pendant luminaire version (to be ordered separately)
- Inline, corner and infill connectors available as separate accessory
- Through-wiring cable kit available
Safety advice
- All halogen signal lamps operate at high temperature and pressure. They may therefore only be operated in signal equipment/luminaires specially designed for the purpose. Make sure that the lamps are protected against moisture during operation and in particular during relamping.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
54 W
121 lm/W
60 W
119 lm/W
63 W
119 lm/W
69 W
116 lm/W
Added function
EVERLO
Adjustable
No
Ambient temperature range
-20…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 ° + 130 °
Body material
Aluminum
Color rendering index Ra
≥90
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
ECG - Output ripple current
≤ 5 %
EPD
LEDV-00026-V01.01-EN
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854296925
Height
43.00 mm
Housing color
Black
Inrush current
16 A
Inrush current time Th50
200 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1475.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
116 lm/W / 119 lm/W / 121 lm/W
Luminous flux
8000 lm / 7500 lm / 7150 lm / 6550 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
23
Max. number of luminaires per miniature circuit breaker C10
20
Max. number of luminaires per miniature circuit breaker C16
32
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended
Nominal current
308…285…270…240 mA
Nominal voltage
220…240 V
Nominal wattage
69 W / 63 W / 60 W / 54 W
Number of illuminants
1
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
1400mA / 1300mA / 1200mA / 1100 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
4100.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9005
Recommended control gear
OSRAM type ETI DALI 75/220-240/1A4 LT2
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of protection
IP20
UGR
< 19
Width
125.00 mm
With light source
Yes
