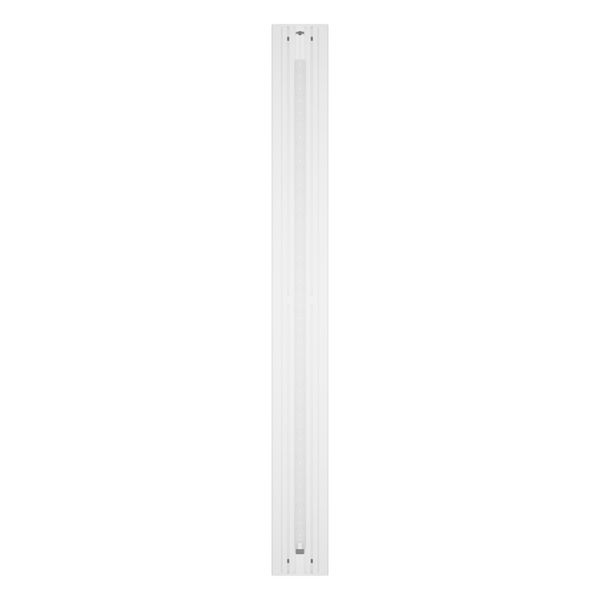

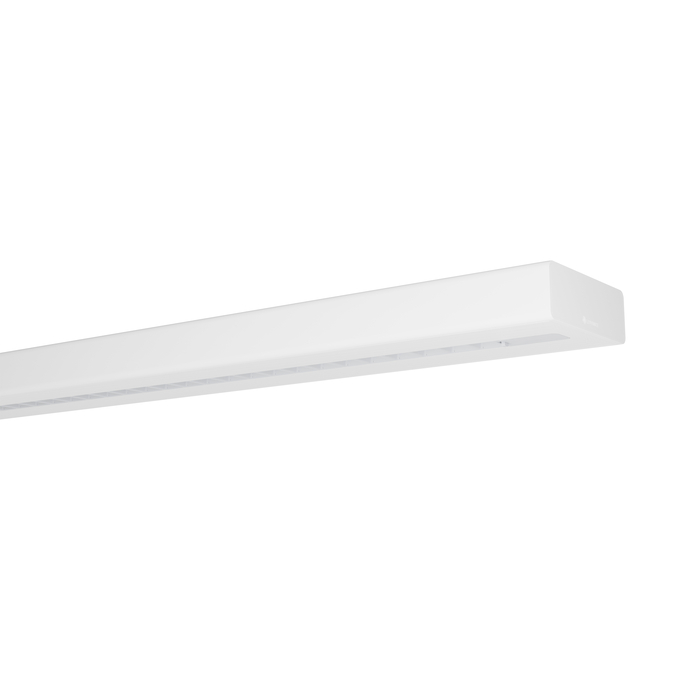

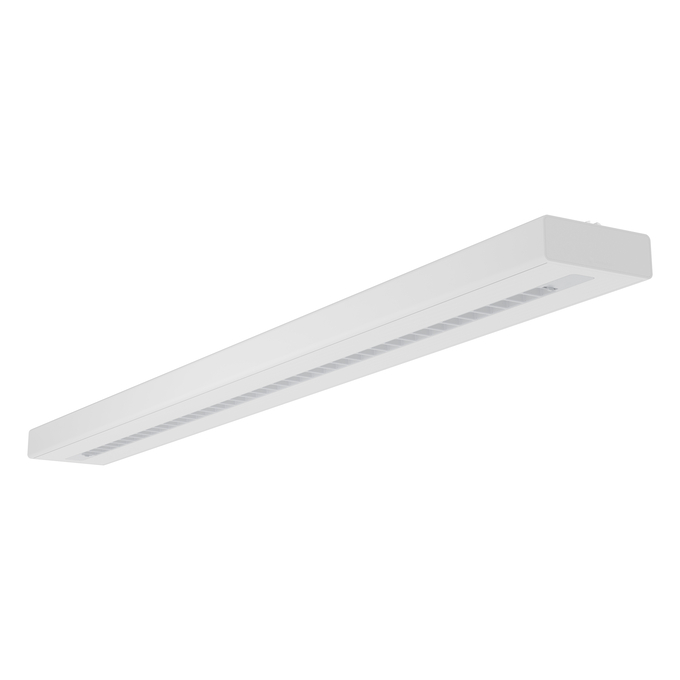

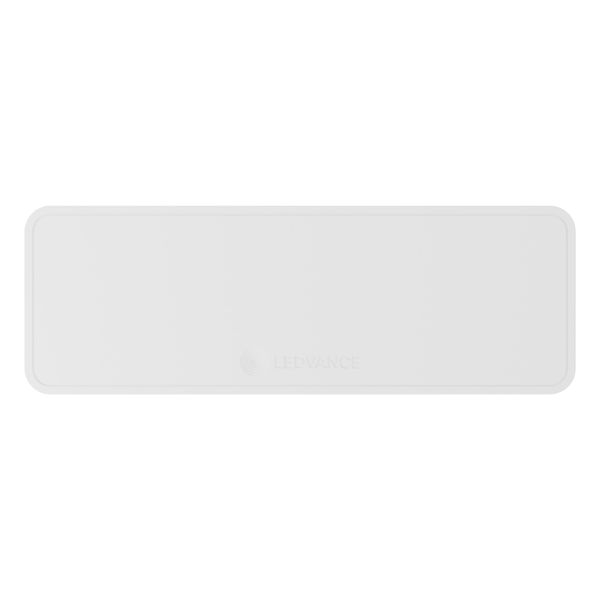

LN INV DI 1200 P 54W 930 DA EL WT
4099854249570
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Easy upgradeability of light source and driver (EVERLOOP design)
- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
- High performance with CRI90 and up to 130 lm/W
- Highly versatile due to selectable lumen steps (Multi Lumen) on the driver
- Symmetric light distribution for various application areas
- High color consistency with SDCM 3
- Multiple mounting options thanks to different accessories
Areas of application
- Emergency illumination of escape routes
- Buildings requiring up to 3 h emergency light operation
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
- Single and continuous line configuration
- Direct and indirect lighting
Product features
- Certified according to European norms (EN 60598-2-22)
- Luminaire suitable for normal lighting and emergency lighting
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Includes EVERLOOP: Convenient replacement of light source and LED driver

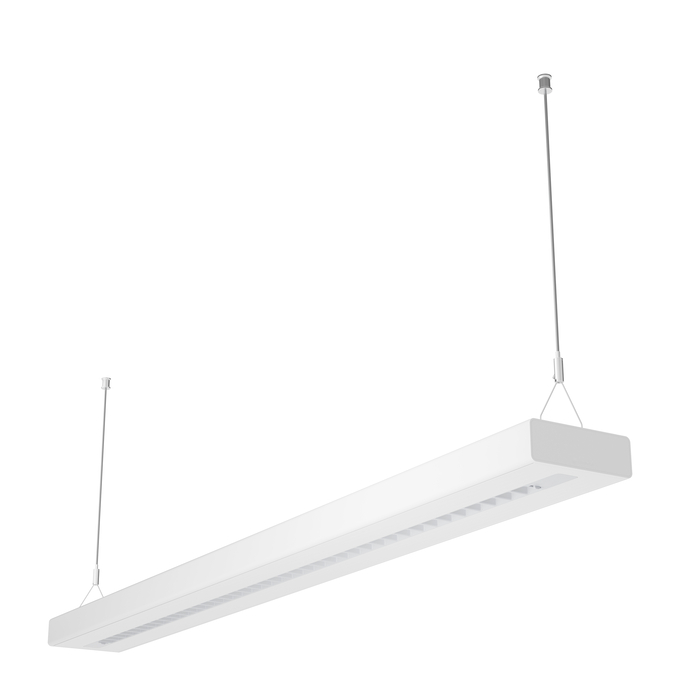

- Linkable into seamless light line with accessories (surface or pendant mounting)

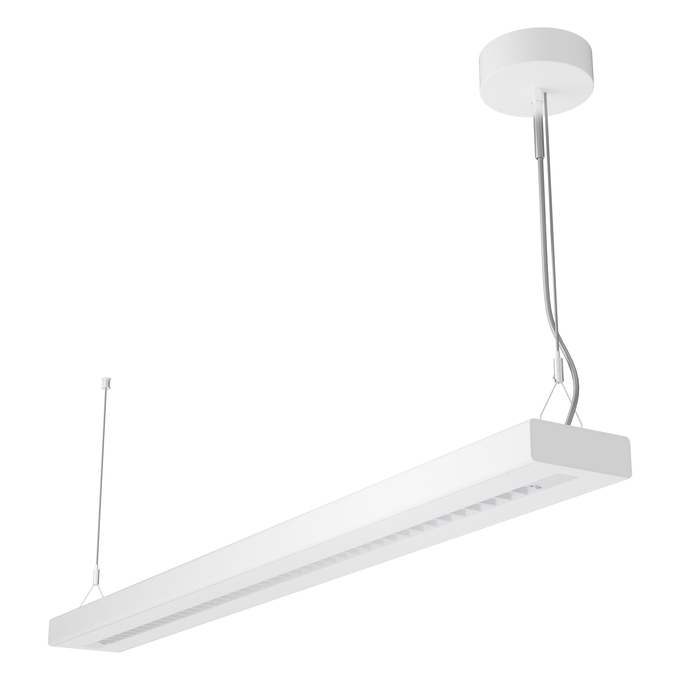

- Pendant mounting with suspension kit (to be ordered separetely)
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Suspension kit available for pendant luminaire version (to be ordered separately)
- Inline, corner and infill connectors available as separate accessory
- Through-wiring cable kit available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
34 W
128 lm/W
43 W
121 lm/W
48 W
120 lm/W
54 W
120 lm/W
Added function
EVERLO
Adjustable
No
Ambient temperature range
0…+40 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
90 ° + 130 °
Body material
Aluminum
Color rendering index Ra
≥90
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
ECG - Output ripple current
≤ 5 %
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854249570
Height
43.00 mm
Housing color
White
Inrush current
25.2 A
Inrush current time Th50
40 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1210.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W / 121 lm/W / 128 lm/W
Luminous flux
6500 lm / 5750 lm / 5200 lm / 4350 lm
Luminous flux in emergency operation mode
440 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
29
Max. number of luminaires per miniature circuit breaker C10
23
Max. number of luminaires per miniature circuit breaker C16
38
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended
Nominal capacity of battery
4500 mAh
Nominal current
233…205…195…160 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
54 W / 48 W / 43 W / 34 W
Number of illuminants
2
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
1100mA / 950mA / 850mA / 700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3800.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9003
Recommended control gear
OSRAM type OTI DALI 50/220-240/1A4 NFC L
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤0.4
Surge capability (L-N)
1000 V
Surge capability (L/N-Ground)
2000 V
Temperature range at storage
-25…+25 °C
Total harmonic distortion
≤ 20 %
Type of Battery
LiFePO4
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI
Type of emergency light operation
Non-maintain
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation includ
Type of emergency operation test
Automatic
Type of protection
IP20
UGR
< 19
Wattage in emergency operation mode
2.3 W
Width
125.00 mm
With light source
Yes
