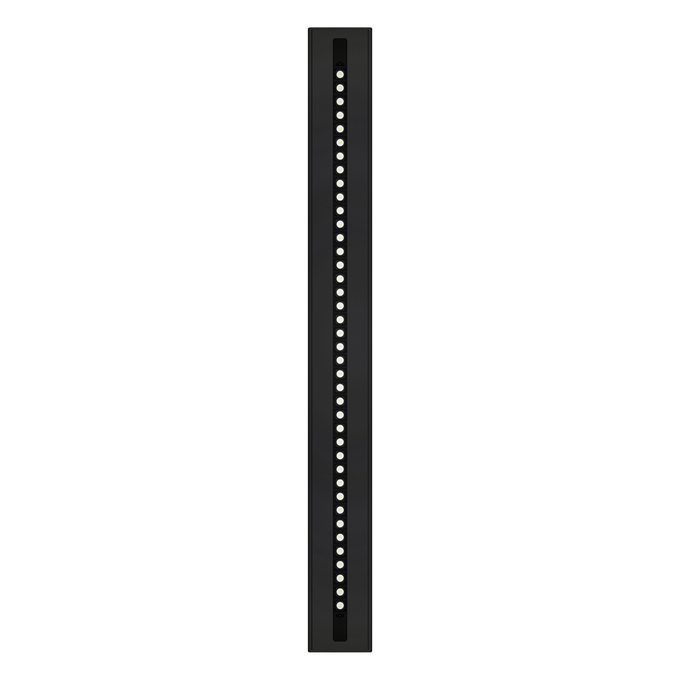

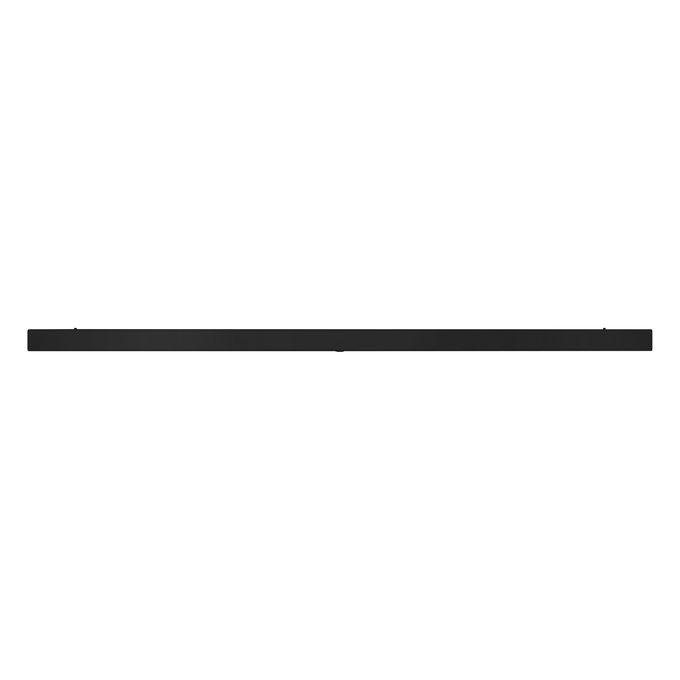

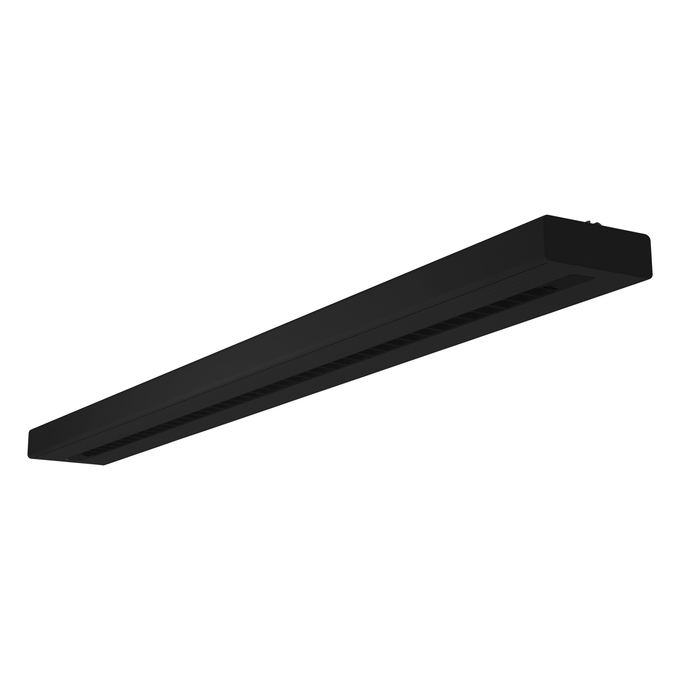

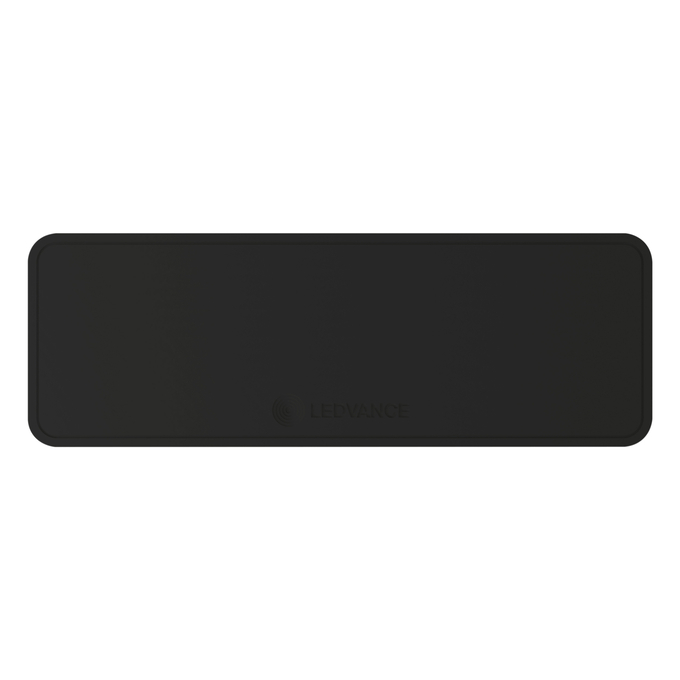

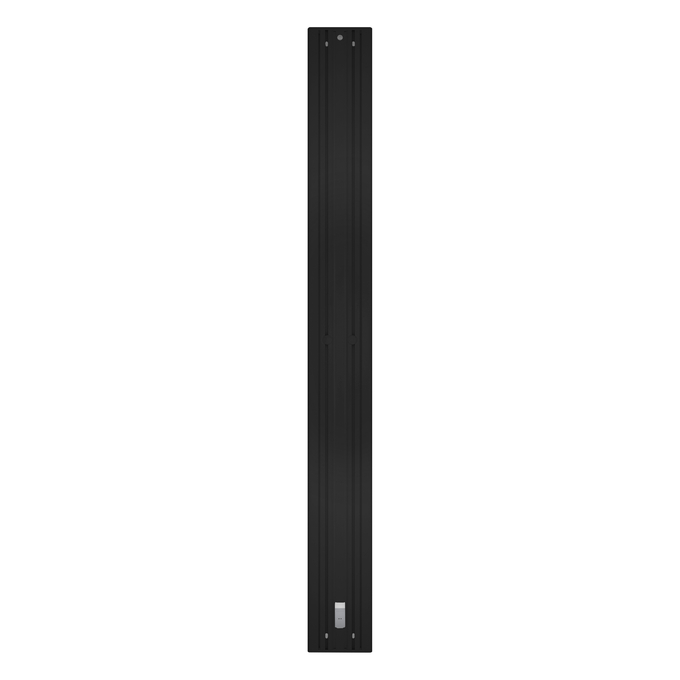

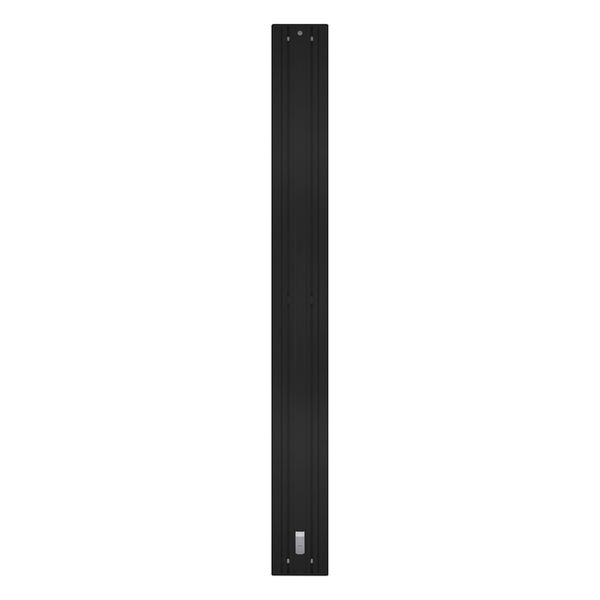

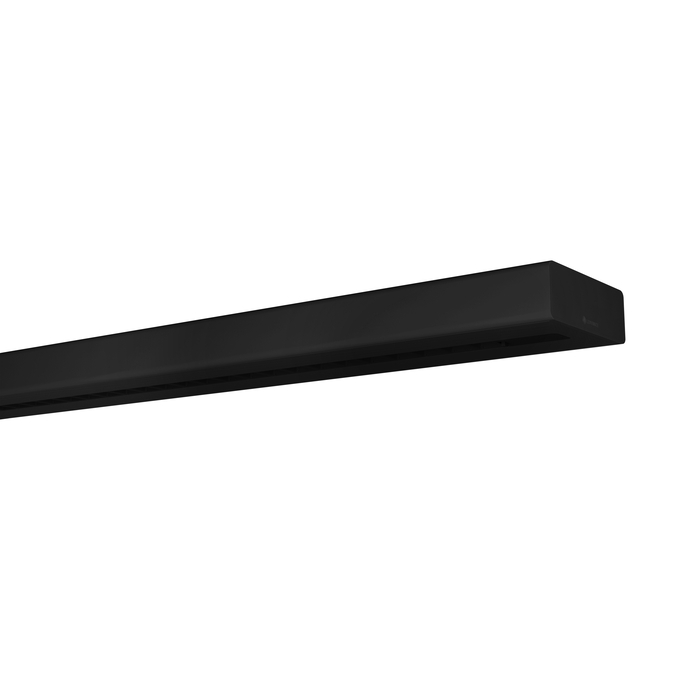

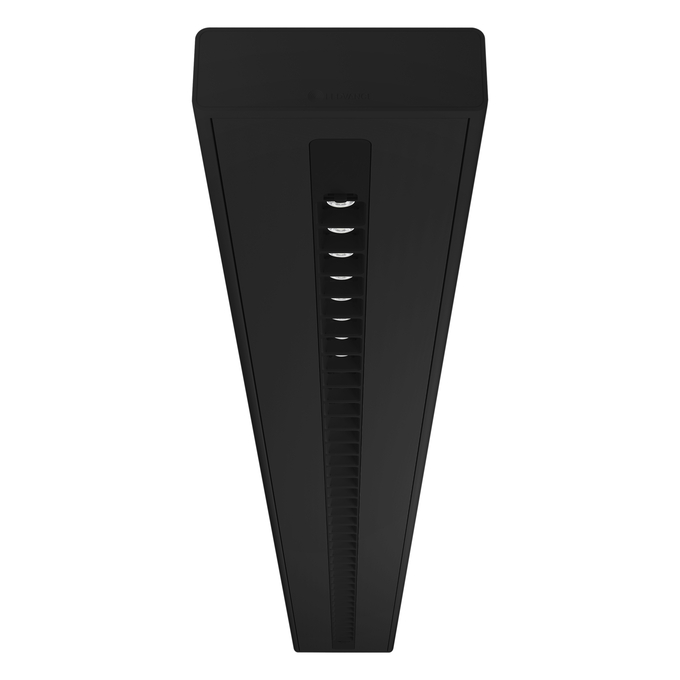

LN INV D 1200 P 40W 940 PS ASY BK
4099854591716
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- High performance with CRI90 and up to 115 lm/W
- Highly versatile due to selectable lumen steps (Multi Lumen) on the driver
- Asymmetric light distribution for various application areas
- High color consistency with SDCM 3
- Easy installation
- Low flicker light thanks to special electronic control gear
- Multiple mounting options thanks to different accessories
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
- Single and continuous line configuration
- Direct lighting
Product features
- Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
- Includes EVERLOOP: Convenient replacement of light source and LED driver
- Linkable into seamless light line with accessories (surface or pendant mounting)

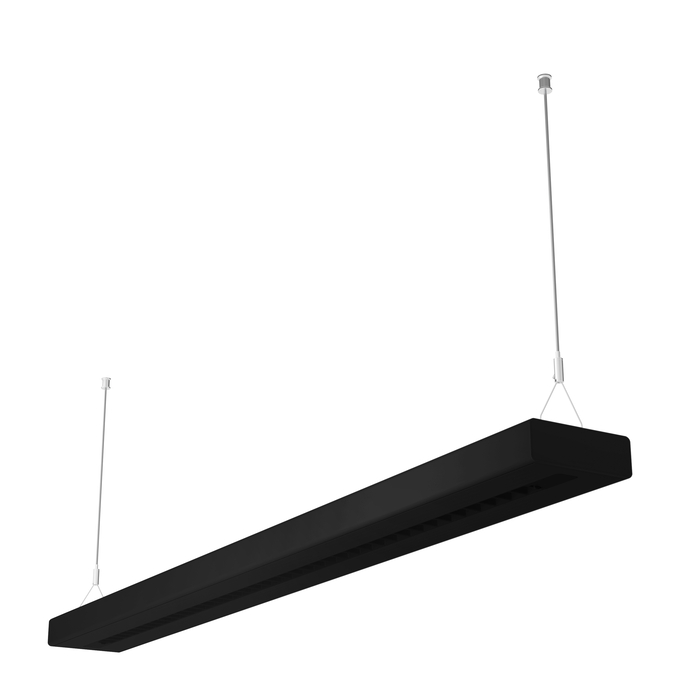

- Pendant mounting with suspension kit (to be ordered separetely)
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Suspension kit available for pendant luminaire version (to be ordered separately)
- Inline, corner and infill connectors available as separate accessory
- Through-wiring cable kit available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
25 W
106 lm/W
30 W
103 lm/W
35 W
103 lm/W
40 W
100 lm/W
Added function
EVERLO
Adjustable
No
Ambient temperature range
-20…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
55 ° x 55 °
Body material
Aluminum
Color rendering index Ra
≥90
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
No
ECG - Output ripple current
≤ 5 %
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854591716
Height
43.00 mm
Housing color
Black
Inrush current
15 A
Inrush current time Th50
50 µs
Length
1210.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W / 103 lm/W / 106 lm/W
Luminous flux
4000 lm / 3600 lm / 3100 lm / 2650 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
50
Max. number of luminaires per miniature circuit breaker C10
36
Max. number of luminaires per miniature circuit breaker C16
58
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended/Surface
Nominal current
180mA / 165mA / 135mA / 115 mA
Nominal voltage
220…240 V
Nominal wattage
40 W / 35 W / 30 W / 25 W
Number of illuminants
1
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
800mA / 700mA / 600mA / 500 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
3200.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Recommended control gear
OSRAM IT FIT 40/220-240/800 CS L
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤0.4
Surge capability (L-N)
1000 V
Surge capability (L/N-Ground)
2000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Type of connection
Screwless terminal
Type of protection
IP20
UGR
< 19
Width
125.00 mm
With light source
Yes
